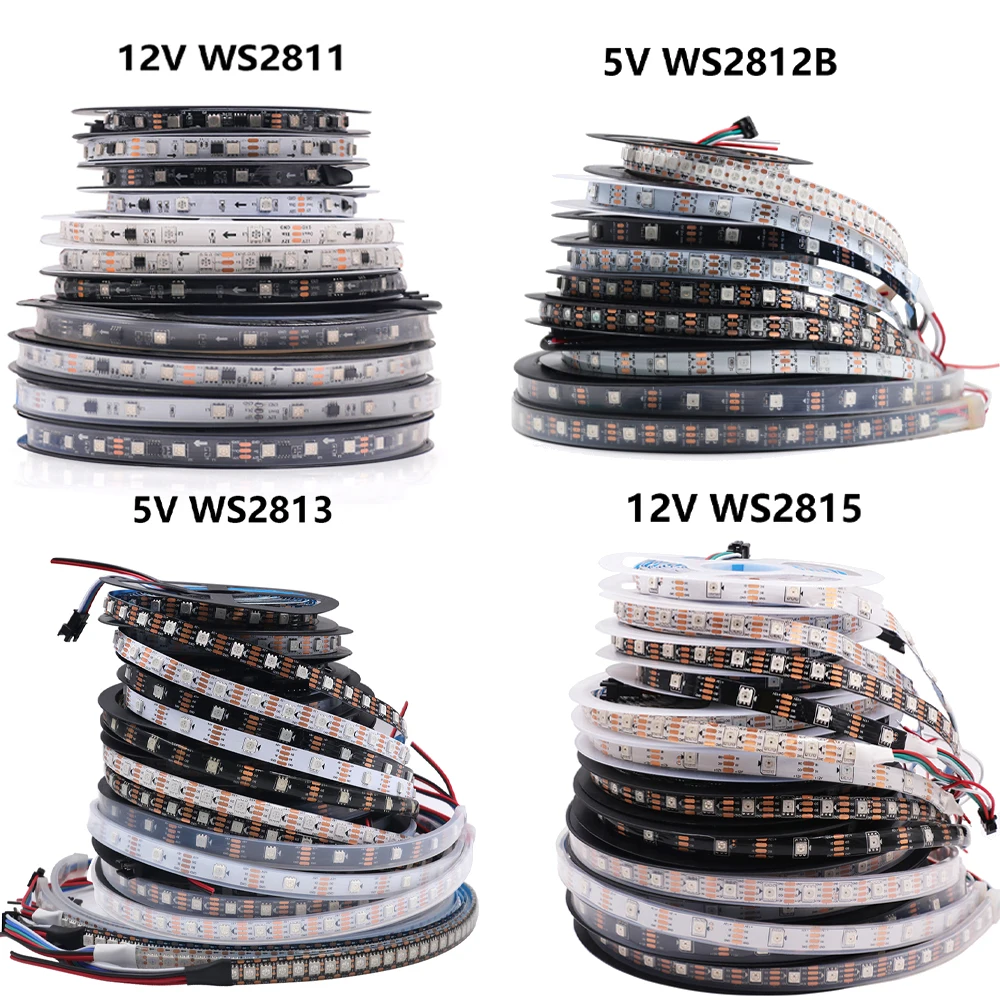

WS2812B WS2811 WS2813 WS2815 5050 RGB Smart LED Strip 5V 12V WS2812 Light Individually Addressable IC 30/60/144Pixels/Leds/m DC

Pay Attention：

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

2.You Must need a Data LED Controller and a Led Power Supply to light up LED Strip.

3.This link is Not include power supply and Not include led controller,please know it.

4.IP30, IP65 with tape on the back, IP67 without tape.

5. IP30: Non- Waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube

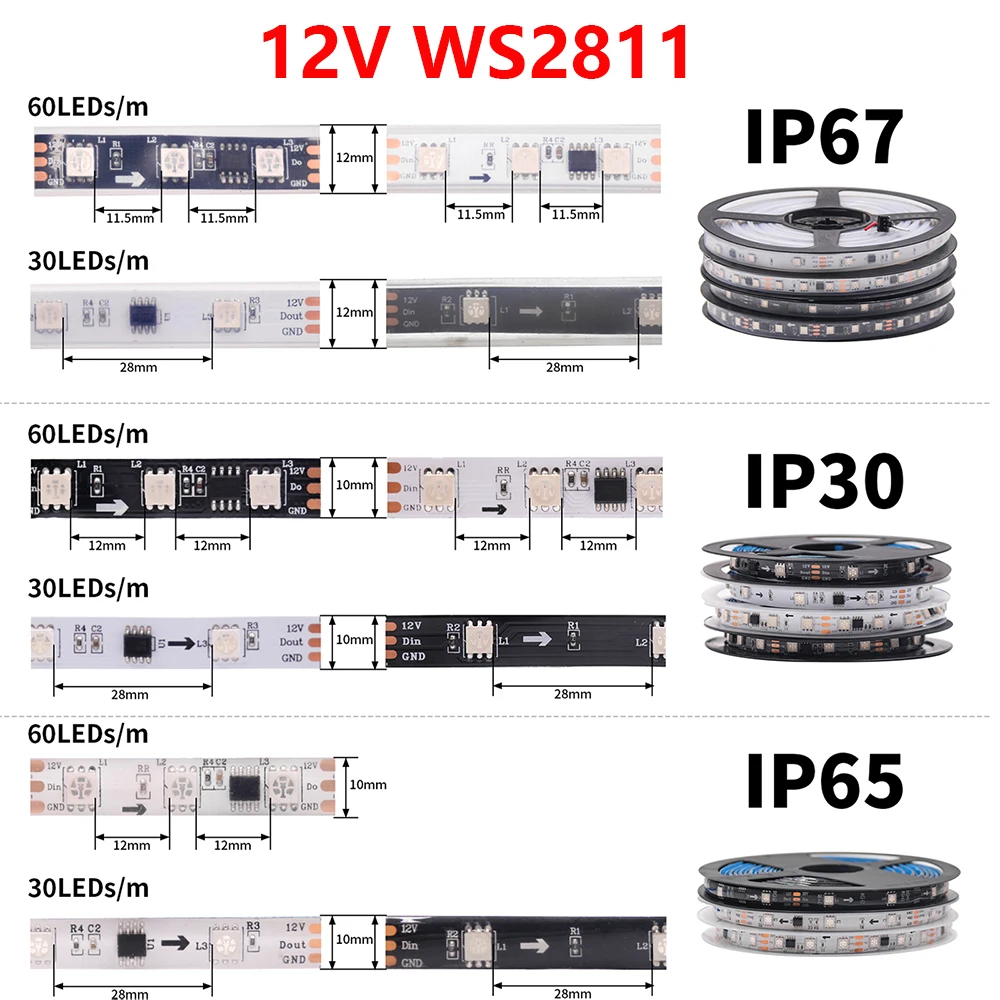

WS2811 LED strip:

LED chip: SMD 5050 RGB

Working voltage: DC 12V

Power: 9~18W/M

Chip brand: Epistar

LED quantity: 30,60LED/m

FPCB board：White/Black

Waterproof rating: IP30/IP65/IP67 Waterproof

Length: 1m/2m/3m/4m/5m

Severability: 3 LEDs per cut (similar to WS2811, 1 IC controls 3 LEDs)

Number of integrated circuits: 10/20M

Grayscale: 256/color

Beam angle: 120 °

Warranty period: 2 years

Tape: Yes (IP67,no tape)

Packaging Includes:

1 X LED 12V WS2811 RGB Strip Light(NO Power supply,No remote control)

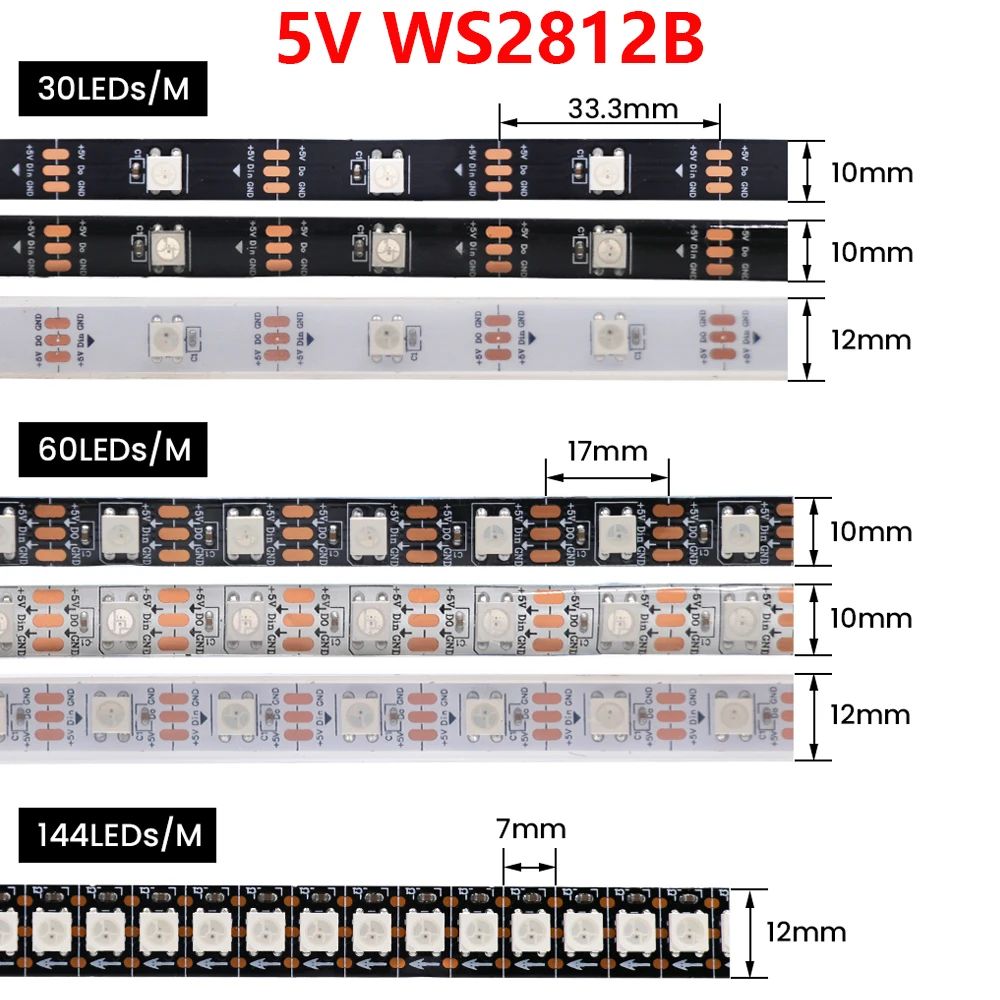

WS2812 LED strip:

LED chip: WS2812B LED (5050 SMD RGB LED, improved version with built-in WS2811 IC)

LED： Each LED is individually controlled

IC type: Improved WS2812 IC (built-in 5050SMD RGB LED)

IC： 1 IC driver and 1 LED chip

Input voltage: DC 5V

Power:

30Leds/m—-9W/m

60Leds/m—-18W/m

144Leds/m—-43.2W/m

Number of LEDs: 30/60/74/96/144LED/m

Protection level: IP30/IP65/IP67 Waterproof

Cutable: Each LED is cuttable

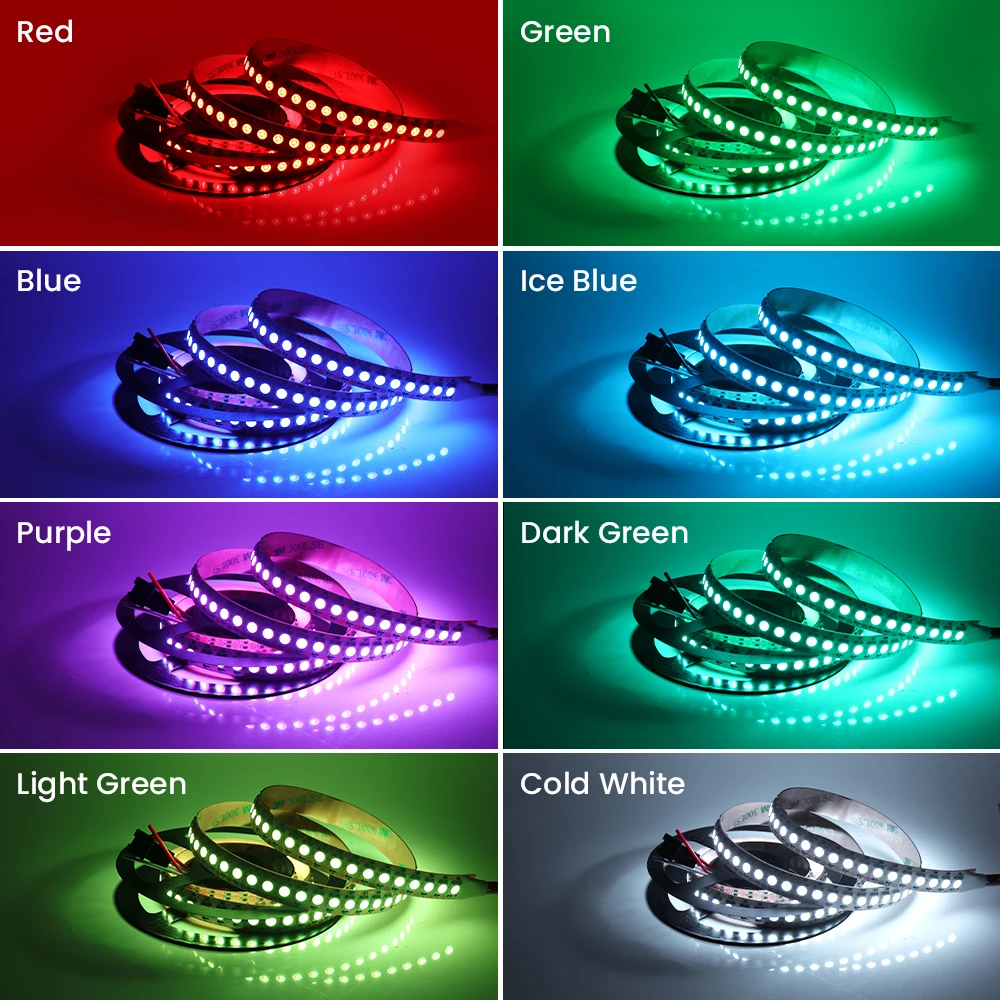

Color: Full color RGB, dreamy color transformation

FPC color: black/white

FPC width:

30Leds/m—-10mm

60Leds/m——10mm

144Leds/m—-12mm

Grayscale: 256

Tape: Yes (IP67,no tape)

Packaging Includes:

1 X LED 5V WS2812B RGB Strip Light(NO Power supply,No remote control)

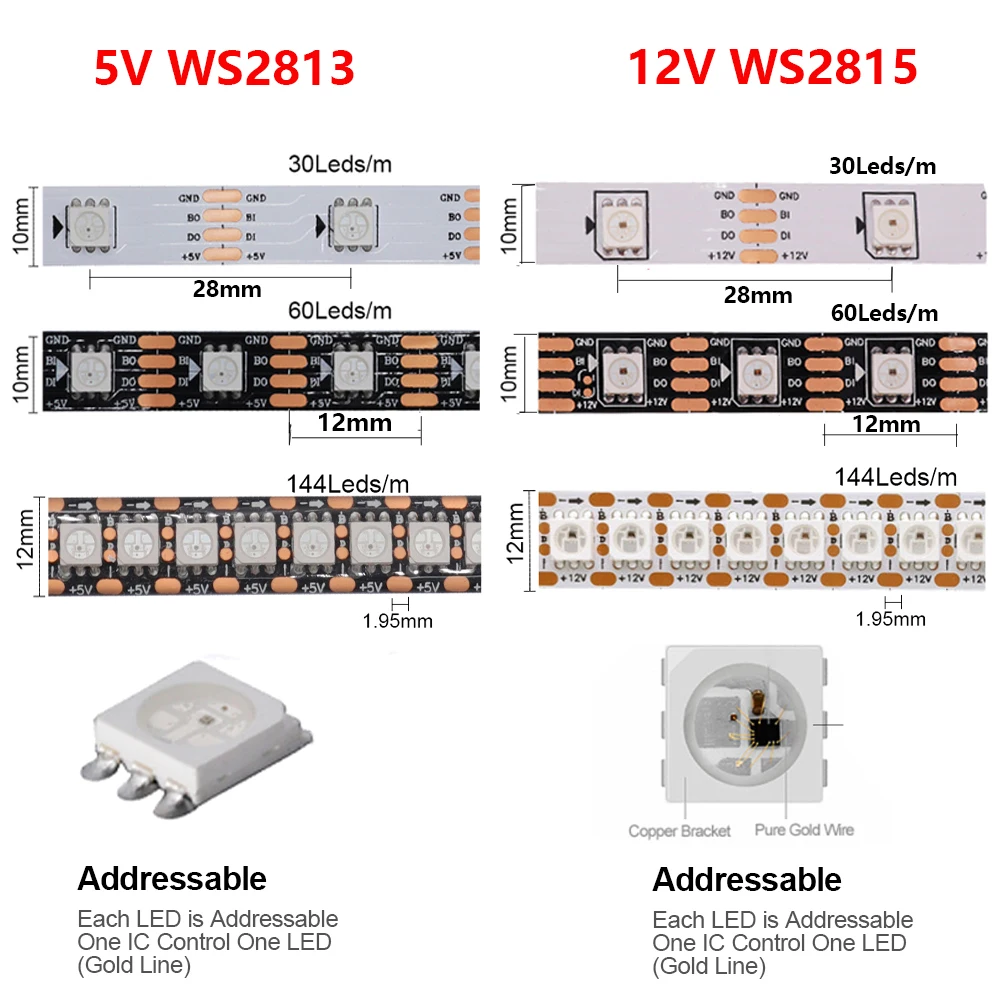

WS2813 LED strip:

LED resource: WS2813 LED (5050 SMD RGB LED, improved version with built-in WS2811 IC)

Input voltage: DC5V

Power:

30Led/M-9W/m

60Led/M-18W/m

144Led/M-43.2W/m

Number of LEDs: 30/60/144LED/m

Color: Full color RGB, dreamy color transformation

FPC color: black/white

Waterproof rating: IP30/IP65/IP67 Waterproof

LED： Each LED is individually controlled

IC type: Improved WS2813 IC (built-in 5050 SMD RGB LED)

IC： (1 IC drives 1 LED chip)

FPC width:

30Leds/m—-10mm

60Leds/m——10mm

144Leds/m—-12mm

Grayscale: 256

Cutable: Each LED is cuttable

Tape: Yes (IP67,no tape)

Connector: 4PIN connector terminal pair (red: 5V power supply, green: data cable, blue: spare data cable, black: GND）

Recommended controller: T-1000s、T-8000A； T-100K； T-200K； T-300K

Packaging Includes:

1 X LED 5V WS2813 RGB Strip Light(NO Power supply,No remote control)

WS2815 LED strip:

LED resources: WS2815 LED (5050 SMD RGB LED, improved version with built-in WS2811 IC)

LED： Each LED is individually controlled

IC Type: Improved WS2815 IC (Built into 5050 SMD RGB LED)

IC： (1 IC drives 1 LED chip)

Input voltage: DC12V

Power:

30Leds/m—-9W/m

60Leds/m—-18W/m

144Leds/m—-34W/m

Color: RGB

FPC color: White/Black PCB

Waterproof grade: IP30/IP65/IP67

FPC width:

30leds/m—-10mm

60leds/m—-10mm

144leds/m—-12mm

Cutable: Each LED is cuttable

Tape: Yes (IP67,no tape)

Working temperature -40~70 ° C

Storage temperature -50~80 ° C

Packaging Includes:

1 X LED 12V WS2815 RGB Strip Light(NO Power supply,No remote control)
