Video Capture card 4 in 1 AHD CVBS CVI TVI to USB 2.0 Video Converter 1080P 30FPS For OBS /PotPlayer supports lossless loop out

If you need convertor for : AHD TVI CVI CVBS to HDMI , pelase order this link :  //www.aliexpress.com/item/32980380450.html
If you need capture for : VGA to USB , pelase order this link: //www.aliexpress.com/item/1005001334922649.html
If you need capture for : SDI to USB , please order this link :  //www.aliexpress.com/item/1005003722737177.html

Please note before purchasing that this device only supports AHD TVI CVI CVBS and cannot support SDI signals.

Features:
* Support input :BNC ;
output interface : USB2.0
* Support output max resolution 1920x1080P,1600*1200P,1360*768P,1280*1024P,1280*960, 1280*720P, 1024*768P,800*600P,720*480P, 720*576P, 640*480P;

* Support Frame rate;30FPS  select
* Support audio and video capture : standard UVC/UAC,

* Drive : NO need to install the driver , plug and play ;
* Support Windows and  Linux, android operating system ;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Without external power supply, compact and portable.
‘ allowed for capture, commonly used acquisition software : OBS/potplayer(windows )
Product power consumption: 3Wat

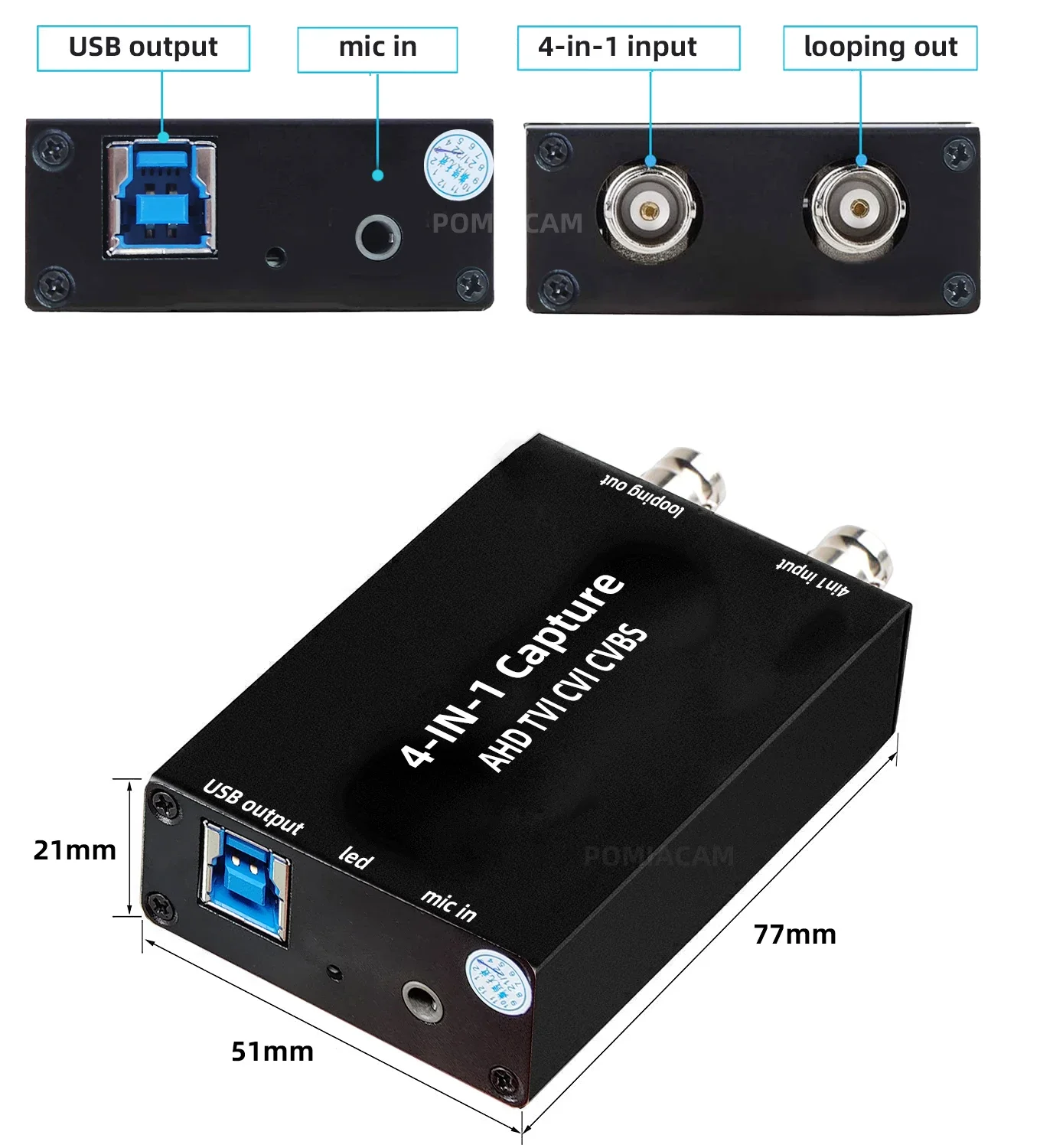

Size : 87mm+10mm*51mm*21mm
Weight: 100g

Package include:
1 x BNC to usb video capture

PRODUCT INTRODUCTION:
4 in 1 CAPTURE is an audio and video capture device that supports AHD, CVBS, TVI, CVI signal input, and USB interface output to the computer. It is a cost-effective audio and video capture card that complies with UVC/UAC specifications. The transmission interface is USB2.0, this machine can be compatible with WINDOWS system, LINUX system, Android ANDROID, it is a plug and play High-definition video capture tool with USB drive free.

FUNCTIONAL:
4 in 1 CAPTURE converts AHD, CVBS, TVI, CVI and other camera signals into USB signals, and completes the collection and recording of camera signals and videos through computers, notebooks, mobile phones and other devices. At the same time, it supports lossless loop out and supports microphone synchronous audio input. The products are commonly used in security monitoring, medical equipment video capture, corporate video conferencing, education, phishing detection and other fields. Compatible with OBS, POTPLAYER, AMCAP, VLC and other acquisition software.

INSTRUCTIONS FOR USE. .

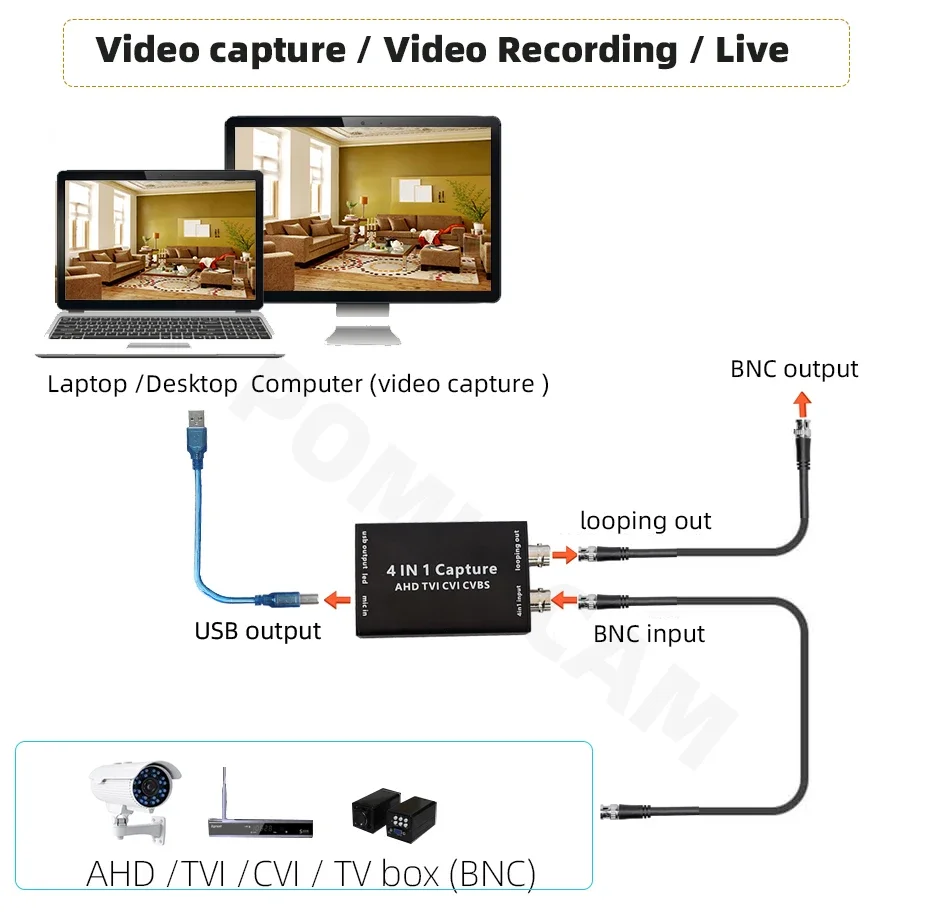

1. Connect the signal source to the 4IN1 INPUT interface of the capture card, if you need the loop-out function, you can connect to the LOOPING OUT interface

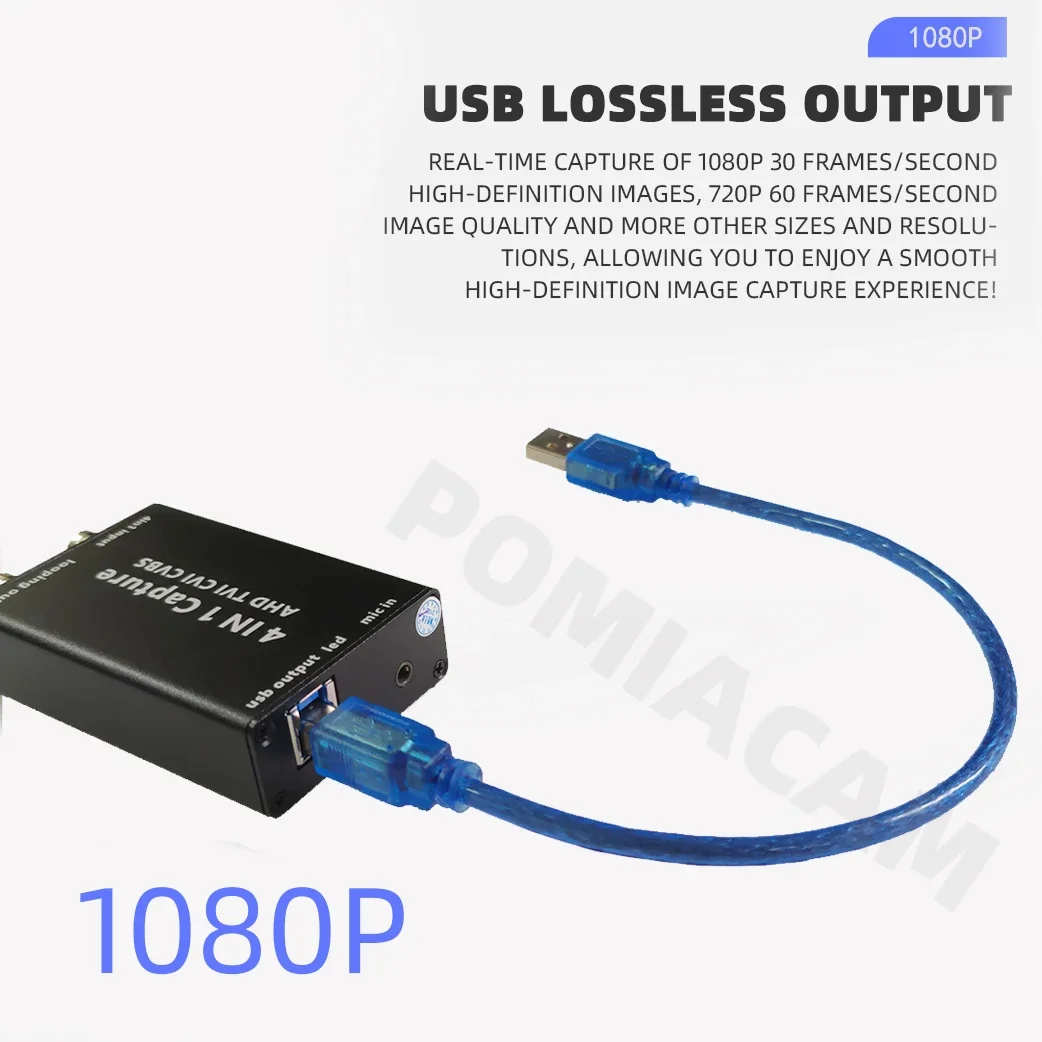

2. The USB OUTPUT of the capture card is connected to the computer through the USB cable, or the OTG head is connected to the mobile phone (drive-free)
3. For audio input, connect the audio signal to the MICIN interface
4. Open the acquisition software on the acquisition computer, select the device AFN_ CAP VIDEO and activate it. At this time, the red LED light flashes, indicating that the signal acquisition is successful
