Feature |
*4 Channel 1080p60 |
|
*Support Win7/8/10/Linux |
|
|
*Zoom/Skype/Vmix/Wirecast/ManyCam/VLC/OBS etc |
|
|
*Support Fiber HDMI Cable 50M |
|
|
Interface |
|
|
PCIe interface |
PCIe2.0 X4 |
|
Input interface |

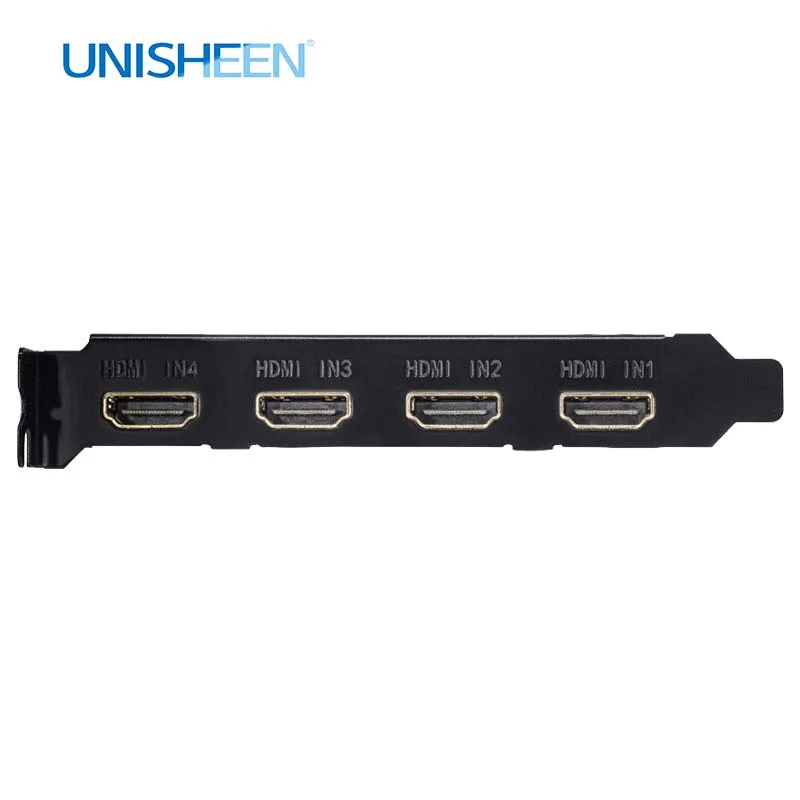

4xHDMI 1.4a |
|
Output interface |
PCIeX4(Compatiable PCIe X8 X16) |
|
Video input |
1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I |
|
Audio input |
HDMI Embeded |
|
Standard |
|
|
HDMI input format |
HDMI 1.4a |
|
Output color space |
YUV2 4:2:2 |
|
Recording Mode |
Software Compression, Real-Time Mode |
|
General |
|
|
Operation system |
Windows (7, 8, 8.1,10), Linux (kernel version 2.6.38 and above),Windows Server 2008 R2 |
|
Compatible software |
Vmix,Wirecast,OBS,VJ,Xsplit,Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, AMCAP etc. |
|
Compatible SDK |
DirectShow (Windows), DirectSound (Windows),V4L2 |
|
Update |
Firmware can be updated |
|
Dimension |
98x87mm |
|
Board Height |
Full Height Bracket(Compatiable full Height Chassis) |
|
Consumption |
<= 2.0 W |
|
Work/Storage Temperature |
0-60 degree centigrade |
|
Storage humidity |
5%-90% |
Back to products

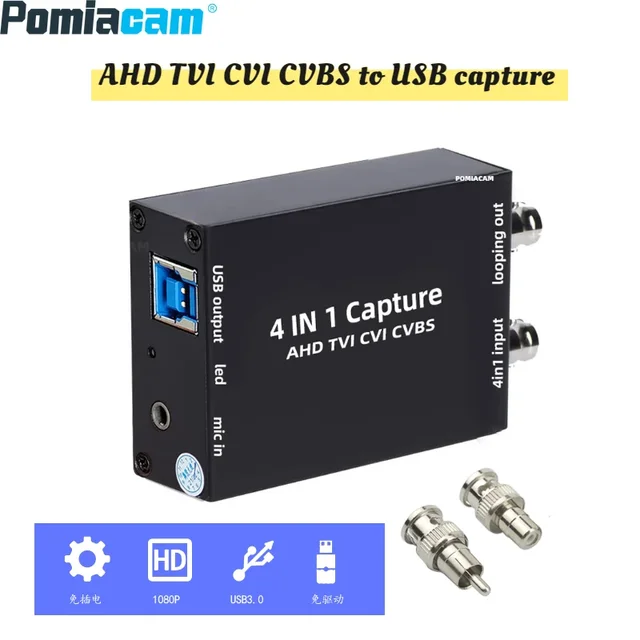

Video Capture card 4 in 1 AHD CVBS CVI TVI to USB 2.0 Video Converter 1080P 30FPS For OBS /PotPlayer supports lossless loop out
Price range: $54.81 through $93.84
-36%
UNISHEEN 4 Channel 1080p OBS Vmix Wirecast Streaming 4 Channel 60fps Quad HDMI SDI Broadcast PCI Express HD Video Capture Card
Price range: $298.26 through $350.24
Specification
Overview
| Weight | 5 lbs |
|---|---|
| Dimensions | 4 in |
| Brand Name |
unisheen |
| High-concerned chemical |
None |
| Origin |
Mainland China |
| Smart home platform |
Other |
| Certification |
RoHS |
| Model Number |
UC3540H |
| Video Input |

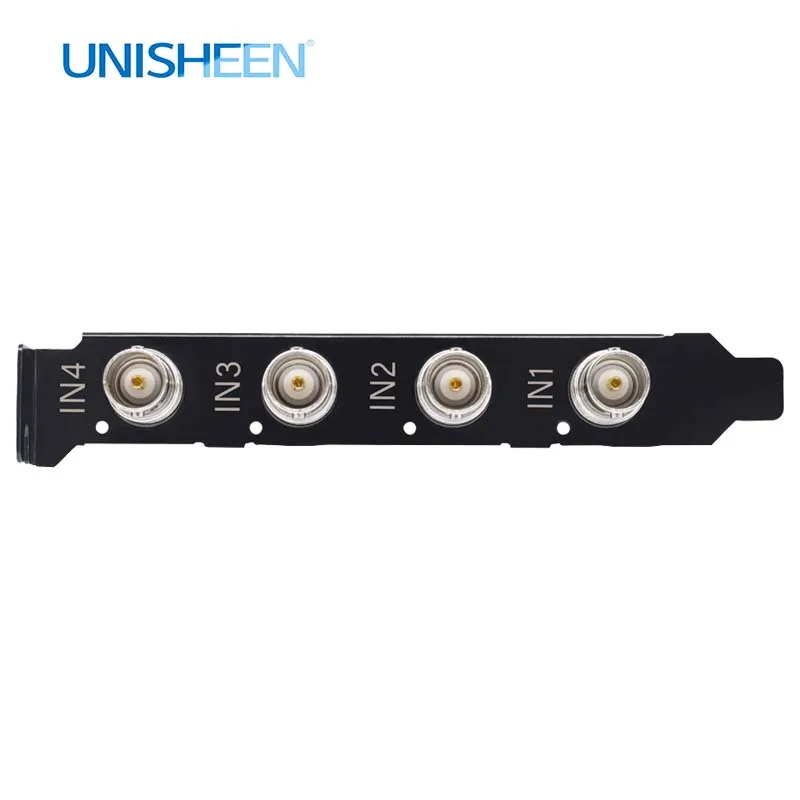

4Channle HDMI or 3G-SDI |
| Resolution |
1080p60/50/30,1080i60/50,720p,576p 480p |
| Platform |
Win7 8 10 11 Linux |
| Compatiable Software |
Zoom/VJ/OBS/vMix/Wirecast etc |
| Color Space |
YUV2(BT.709) |
| Color Sample |
4:2:2 |
| Interface |
PCIe X4 |
| Driver |
Download from internet |
| Multi-Card in one Computer |
Support |
Description
