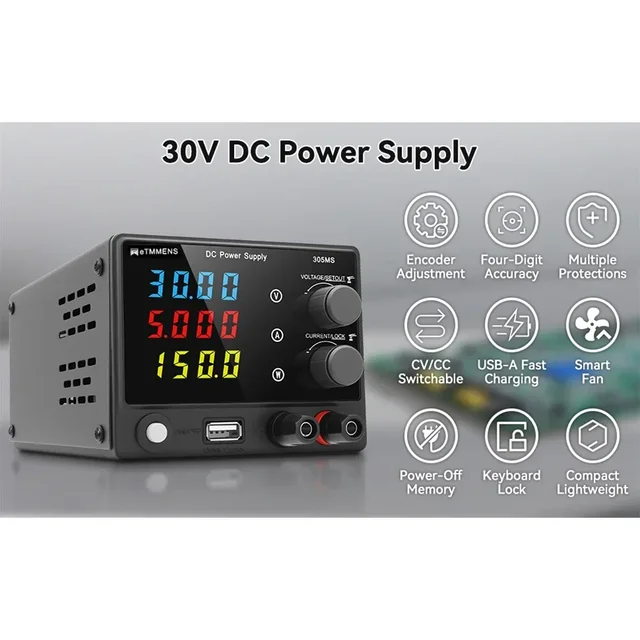

Lab Power Supply Adjustable 30V 10A Voltage Regulator Stabilizer Bench Power Source DC Power Supply 24V 60V Mobile Phone Repair

Advantage:

NICE-POWER DC power supply, the output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine
1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.
3.Display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current: output voltage and output current can be continuously.
5.Adjusted between 0 and nominal value with fine regulating and coarse regulating.
6.It has over voltage protection(OVP), over current protection(OCP), over temperature protection
7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11. Stable current and voltage output.
FCC & CE certified product

Memory Series:
Professional Programmable Power SupplyThe power supply adopts advanced PWM technology, the voltage can be continuously adjusted , and the rated value obtains ultra-low ripple. The current is continuously adjustable, From rated value to obtain ultra-low ripple, high-precision reference voltage source, reasonable circuit design, and the ability to provide high-precision output. The application of high-power MOS devices ensures sufficient power supply and improves the long-term stability of the power supply during full load operation. Perfect protection function to protect the load and power supply from being damaged. Simple operation, multiple power supplies can be directly connected in series or parallel to expand the application range of power supplies
1. 4 digital display screen.
2. LOCK Function:the lock button prevents you from accidentally touching other buttons to avoid re-adjustment.
3. ON/OFF switch: the output switch controls the output of the DC power supply and prevents damage to the load.
4. STORAGE AND RECALL MEMORY FUNCTION: M1-M4 buttons with Storage and recall memory function. Easy to storage or recall the frequently used 4 group of current/voltage only by pressing the button, turn on the DC power supply again can be used with one key, very convenient. Support Constant Current (C.C.) and Constant Voltage (C.V.) modes.

Memory Function:
1) Open the power button.
2) Press the “M1” button until the indicator is on, rotate the Knob to set the current/voltage you want to save, then press again the “M1”, the value saved in the “M1” button successfully.
3) Press the “M1” button to light the button. The saved value will be read when the indicator is on. (M1/ M2/ M3/M4 button works essentially the same way).

Application:

1. Production line test, PCB board power-on test, LED lamp power-on test.
2. Mobile phone maintenance, computer maintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery(drone, lead-acid battery, lithium battery).
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use.
6. Chemical electroplating and electrolysis, anodic oxidation.
7. DIY electronic products test。
8. All other occasions requiring DC power supply.

1X Power supply
1X Power Adapter(EU/AU/UK/US optional)
1X Red output line(gift)
1X Black output line(gift)
1X Instruction Book (English)
1X Certificate of conformity
1X Pakcgae Box
