KUAIQU 120V 3A Adjustable DC Lab Power Supply Switching Voltage Regulator Stabilizer Bench Source 30V 10A For Repair Anodizing

lab power supply dc, voltage regulator, DC Power Supply Adjustable 30V 10A 60V 5A For Phone Repair, USB DC Regulated Lab Power Supply Adjustable, fonte de bancada, power source, laboratory power supply, power supply laboratory, better than wanptek dc power supply, 24V dc power supply, power supply 24v 5a

Features:

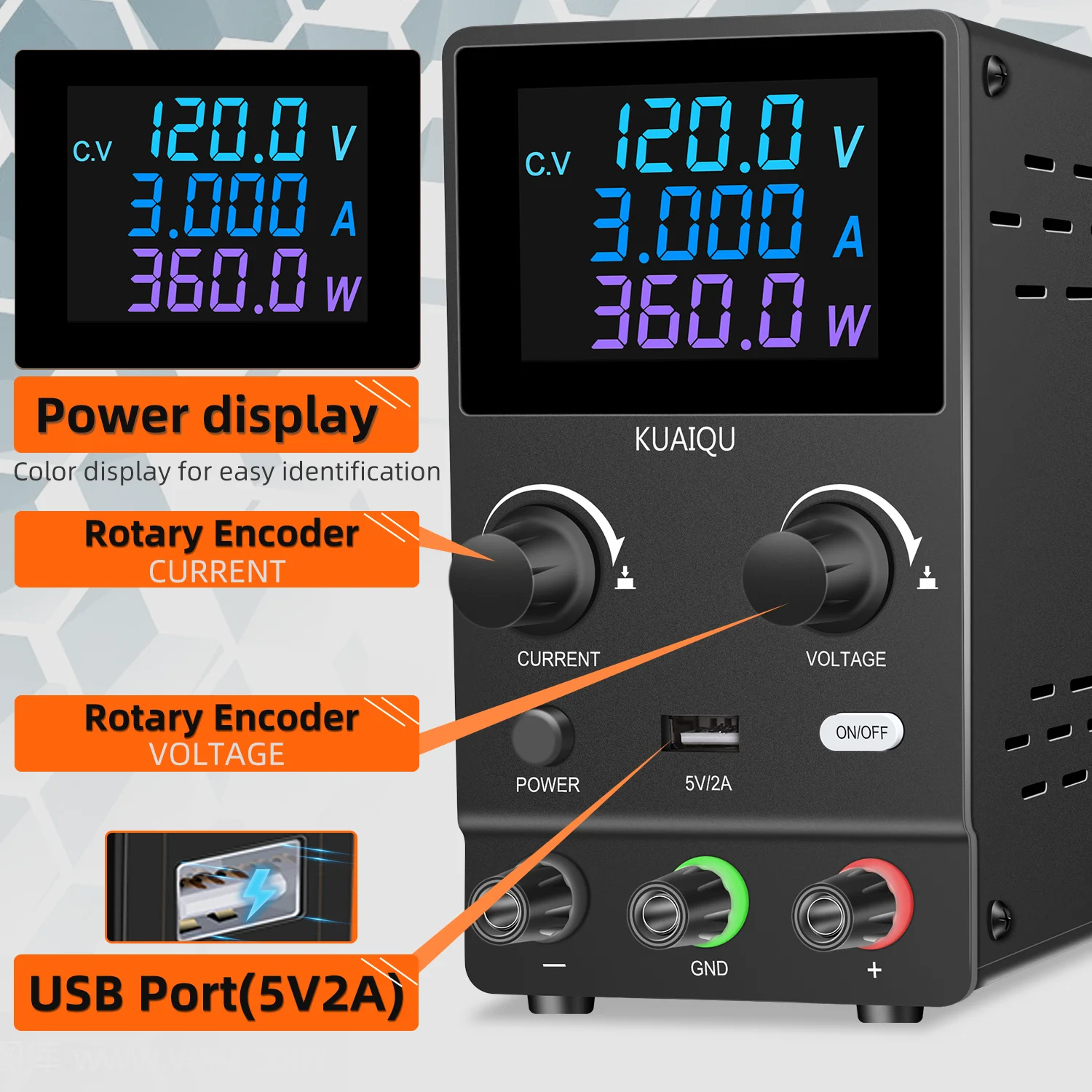

1. High-precision LCD/LED digital display, intuitive and clear, LCD screen is more eye-friendly.

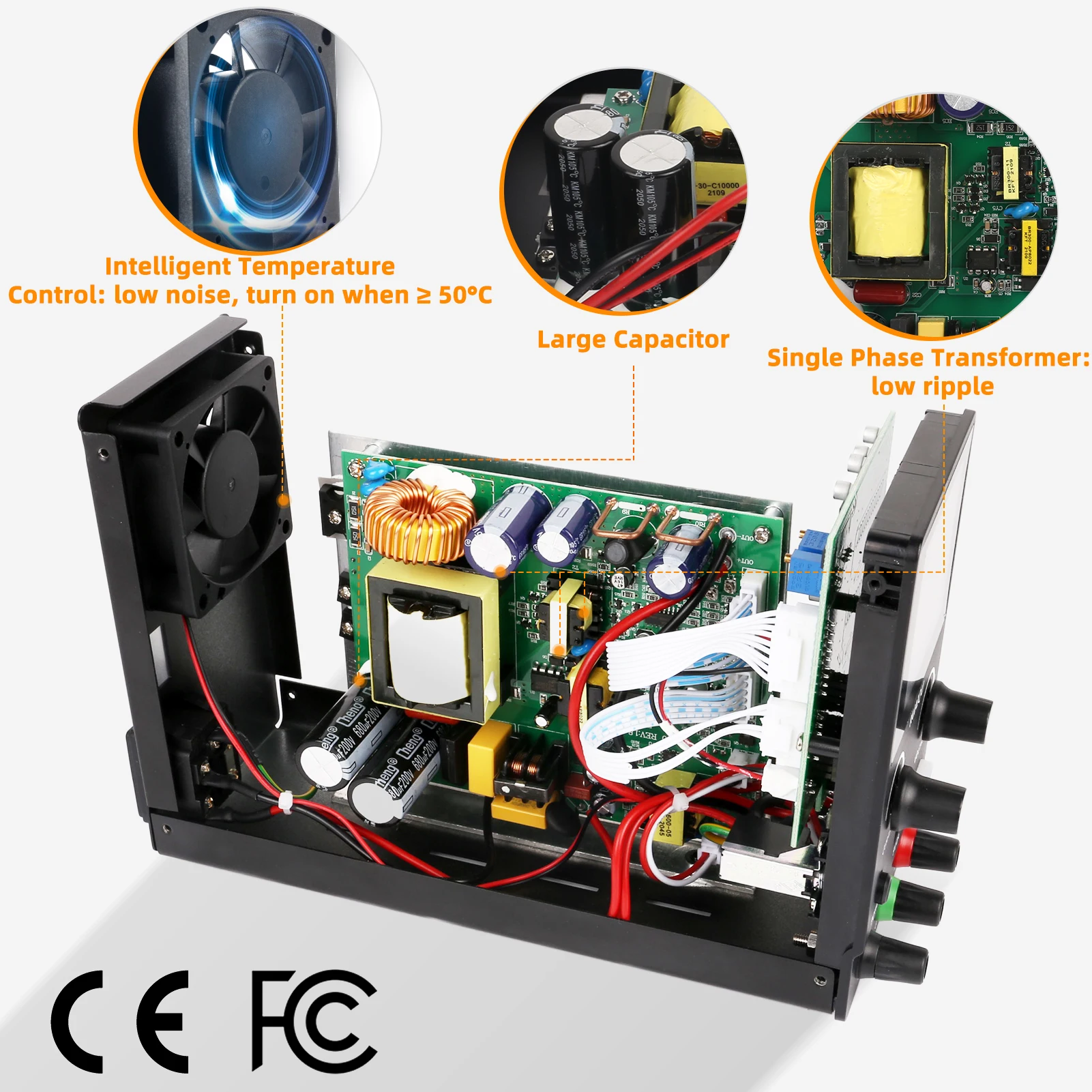

2. 8cm smart fan, excellent heat dissipation, practical extend fan life and reduce noise.
3. The use of advanced technology to effectively reduce the weight of the power and convenience of mobile power.
4. A variety of protection, current limiting protection (OCP), over temperature protection (OTP), Over Power Protection (OPP).

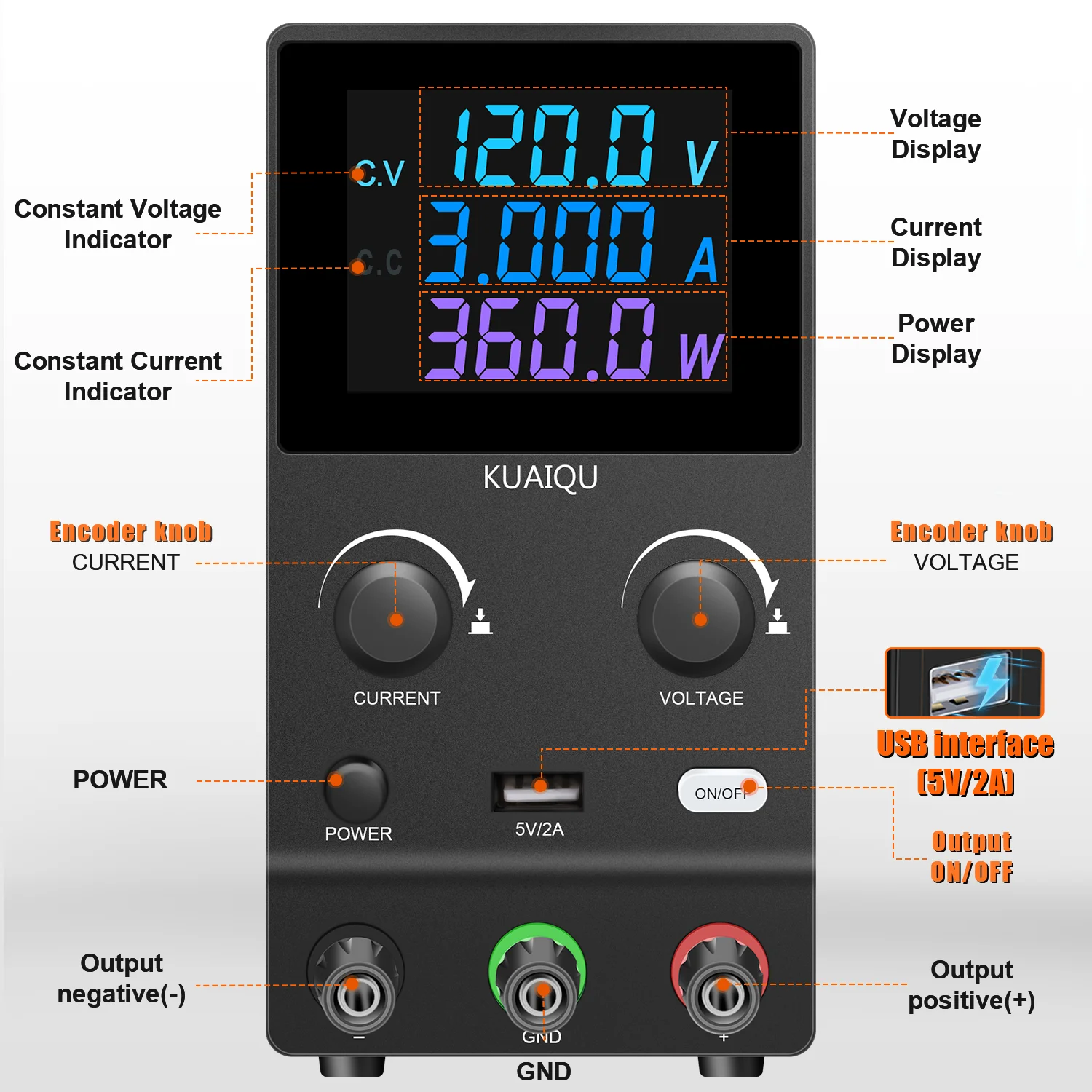

5. plastic panels, more beautiful, voltage, current, coarse and fine adjustment knob to set the settings to be more precise.

Technical parameters:

1. Input voltage: 220V ± 10% @ 50Hz ± 5Hz
110V ± 10% @ 60Hz ± 5Hz
Switch or a single voltage input
2. Output voltage: DC 0- Ratings V (see Table I)
3. Output Current: DC 0- rated A (see Table I)
4. Display Accuracy:
± 1% ± 1 word (three / three and a half digital display, voltage resolution 0.1V, current resolution 0.1A)± 0.1% ± 1 word (four / four semi-digital display, voltage resolution 0.01V, current resolution 0.01A)
5. Boot delay: 1-2S Shutdown Delay: 1-6S (depending on the load)
6. Voltage Stability: ≤0.05% + 1mV
7. The current stability: ≤0.1% + 10mA
8. Load stability: CV≤0.05% + 1mV
CC≤0.05% + 10mA
9. Ripple and Noise: CV≤10mV
CC≤20mA (RMS)
10. Overall efficiency: ≥80% (under full load test)
11. Working environment: -10 – + 40 Relative humidity 20% -80% (non-condensing)
12. Storage Environment: -20 – + 80 Relative humidity 20% -70% (non-condensing)
13. Pressure test: Input – Output: 1.5KVAC / 1 MinuteInput – Housing: 1.5KVAC / 1 Minute
Output – Housing: 500VAC / 1 Minute

Application:

1. For Factory Production line test.
2. For Mobile phone ,computer repair, electrical appliance maintenance,Car DVD, car audio, etc.

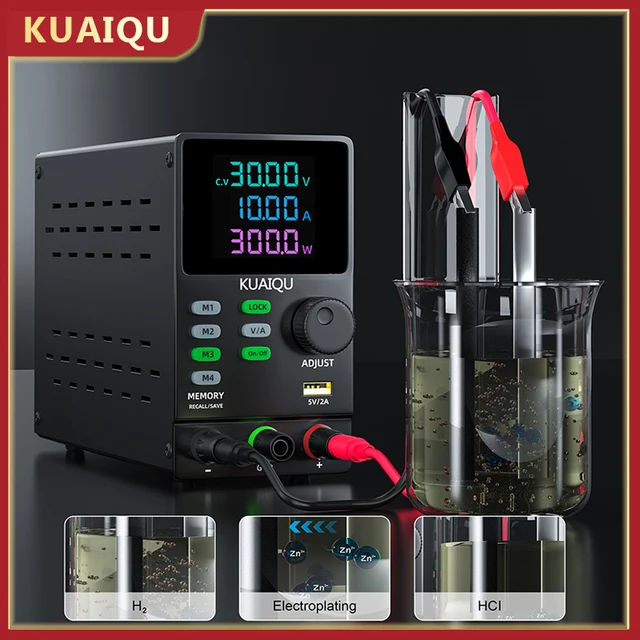

3. For Product aging, electroplating,titanium oxide,electrolysis,such as resistors, jewelry,capacitors, relays, DC motors, LEDs, etc.
4. For Charge the battery (Include car battery).
5. For Laboratory, scientific research teaching,factory, maintenance power supply,school ,scientific research , production line use,etc.
6. For Security monitoring system, fire protection system, building automation system

Packing List include:
1X DC Power Supply
1X Power Adapter(EU/AU/UK/US we will send according to you country)
1X 10A Output Line
1X 3A Output Line
1X Instruction Book (English)
1X Pakcgae Box（Hard）
1X Certificate of Conformity(1 Year)
