Product Description

Working voltage: 5V

Link method: USB Type-C

Product size: 207mm * 104mm * 13mm

Supported Platforms : pc /ps3/ps4/switch/ Android/Steam

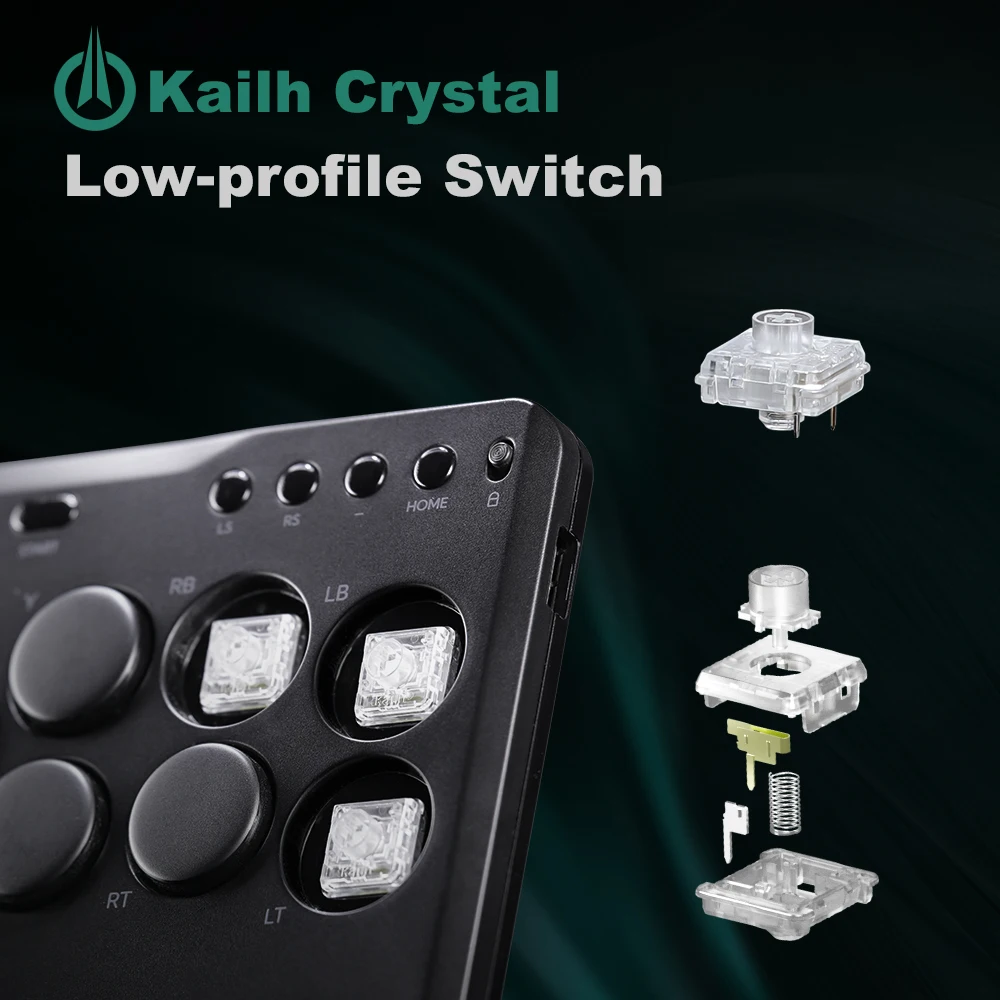

Product Specifications:1Mini Keyboard,1Data Cable Type-C,1Keycap Puller, 1 extra switch

Characteristic:

Dual core ARM Cortex-M0+@ 133MHZ

Supported by dedicated QSPI bus, up to 16MB off chip flash memory

Fully connected AHB crossover switch

Integrated 264kB on-chip SRAM in six independent groups

40nm process node manufacturing, low dynamic power consumption, and low leakage

1ms delay, no frame leakage rate above 95%

Supports firmware updates

more functions and compatibility coming soon

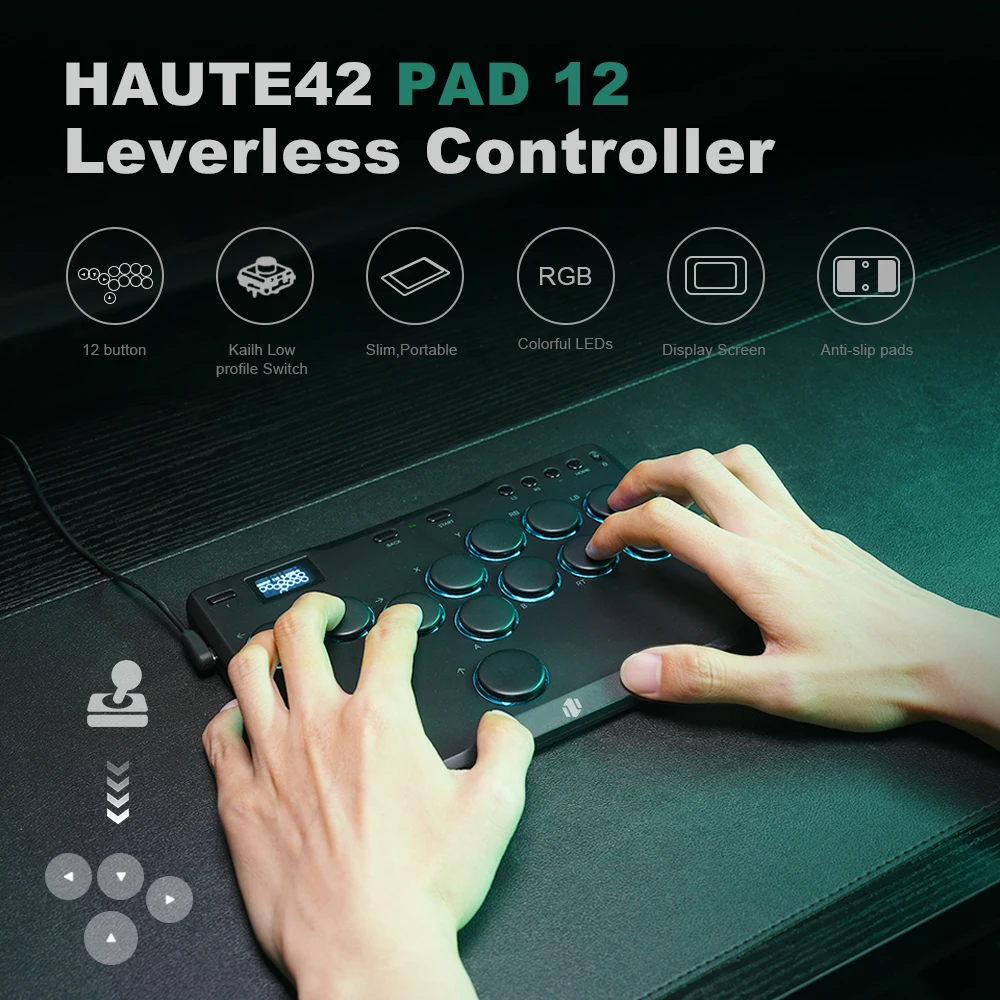

This is a mini hitbox controller made of ABS material. It abandons the heavy acrylic. It is very light, easy to carry and store, and has RGB lighting effects, making you more immersive.

01 Compatibility

B — Xinput mode (Windows/Steam)

A — SWITCH mode

X — PS3 / Dinput mode (Raspberry Pi / Android)

Y — PS4 mode (Compatible with PS4 games on PS5 console）

RT — KEYBOARD mode

Input Mode

To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.

Tips：

This product defaults to Xinput mode，Input mode is saved across power cycles.

If there are games that do not compatible the above input modes , you can enter the Web Configurator to modify them for normal use

PS4/PS5 Mode

About PS4 8 minute disconnection，there are two ways， one is insert a dongle or a officially authorized PS4 wired controller to the EXT.port，We don’t have a recommend one，there are too many choices，maybe you can discuss with other nice players in haute42 group，ficial Website：www.haute42.com

SOCD Modes

Simultaneous Opposite Cardinal Direction (SOCD) cleaning will ensure

the controller obeys certain directional input rules when sending inputs

to the computer/console. Users can choose 1 of the 3 SOCD Modes

while the controller is in use by pressing one of the following button

default combinations:

● HOME + START + UP = Up Priority mode

Up + Down = Up, Left + Right = Neutral (Standard stickless behavior).

● HOME + START + DOWN = Neutral mode

Up + Down = Neutral, Left + Right = Neutral

● HOME + START +LEFT =Last Input Priority (Last Win)

Hold Up then hold Down = Down, then release and re-press Up = Up.

Applies to both axes.

The selected SOCD mode is saved across power cycles

Invert D-Pad Y-axis

A toggle is available to invert the Y-axis input of the D-pad, allowing

some additional input flexibility. The default hotkey to toggle is to press

● HOME + START + RIGHT = Y-axis inersion

This is a temporary hotkey mapping for this feature, so keep an eye on

updated releases for this to change.

Web Configurator

This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access //192.168.7.1 in a web browser to begin configuration.

04 RGB LED Setting

●BACK + START + X Next Animation

●BACK + START + A Previous Animation

●BACK + START + Y Brightness Up

●BACK + START + B Brightness Down

●BACK + START + RB LED Parameter Up

●BACK + START + RT LED Parameter Down

●BACK + START + LB Pressed Parameter Up

●BACK + START + LT Pressed Parameter Down
