Dedicated License Plate Light Accessories HD Rear View Camera for Renault Fluence 2012-2019 Renault Duster Dacia Duster 2009-2019 Espace 4 Laguna 2 3 2003-2015 Grand Scenic 3 2009-2016 Captur 2013-2019 Terrano 2009-2019
Important Tips
Dear customers, due to different countries or regions of the same model of the car parts may be different, the purchase must be based on your car license plate lights or the original camera shape and size to decide. If you have any questions, please contact us. Otherwise, we will not bear the responsibility of the product and the original car parts do not match!!!
Reference for suitable car model
For Renault Fluence 2012 2013 2014 2015 2016 2017 2018 2019
Camera model HS135
For Renault Espace 4 2003-2015
For Renault Laguna 2 3 2003-2015
For Renault Grand Scenic 3 2009-2016
For Renault Captur 2013 2014 2015 2016 2017 2018 2019
For Renault Duster/ Dacia Duster 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
For Nissan Terrano 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
Specifications
â‘ HS134 HS134D HS135 HS135D
Image sensor: CMOS
Signal mode: CVBS
Video format: NTSC
White balance: Automatic
AGC and BLC: Automatic
Viewing angle: 140-170 degrees
Pixel: 728 × 512
Clarity: 500 TVLine
Signal to noise ratio: Better than 48db
Working voltage: DC 12V
Waterproof level: IP68
Working temperature(Deg.C): -30 – +80
Packing List
1 x Car rear view camera
1 x 6m Video cable
1 x 1m Power cable
1 x User manual

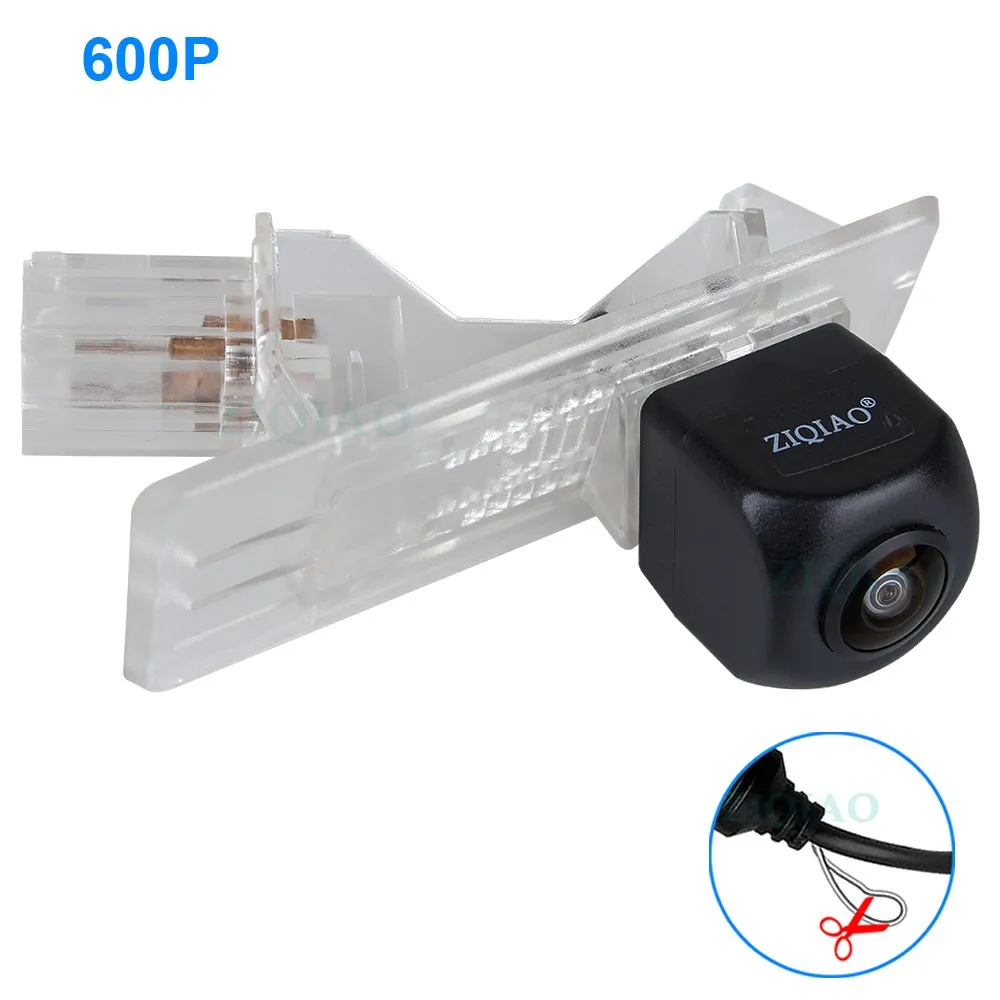

â‘¡ 600P HS134A HS135A
Signal mode: CVBS
Image sensor: CMOS
Video format: NTSC
White balance: Automatic
Viewing angle: 150-170 degrees
Working voltage: DC 12V
Waterproof level: IP68
Video power cable: 6m
Pixel: 1024 × 600
Working temperature(Deg.C): -30 – +80.C
Packing List
1 x Car rear view camera
1 x Video power cable
1 x User manual

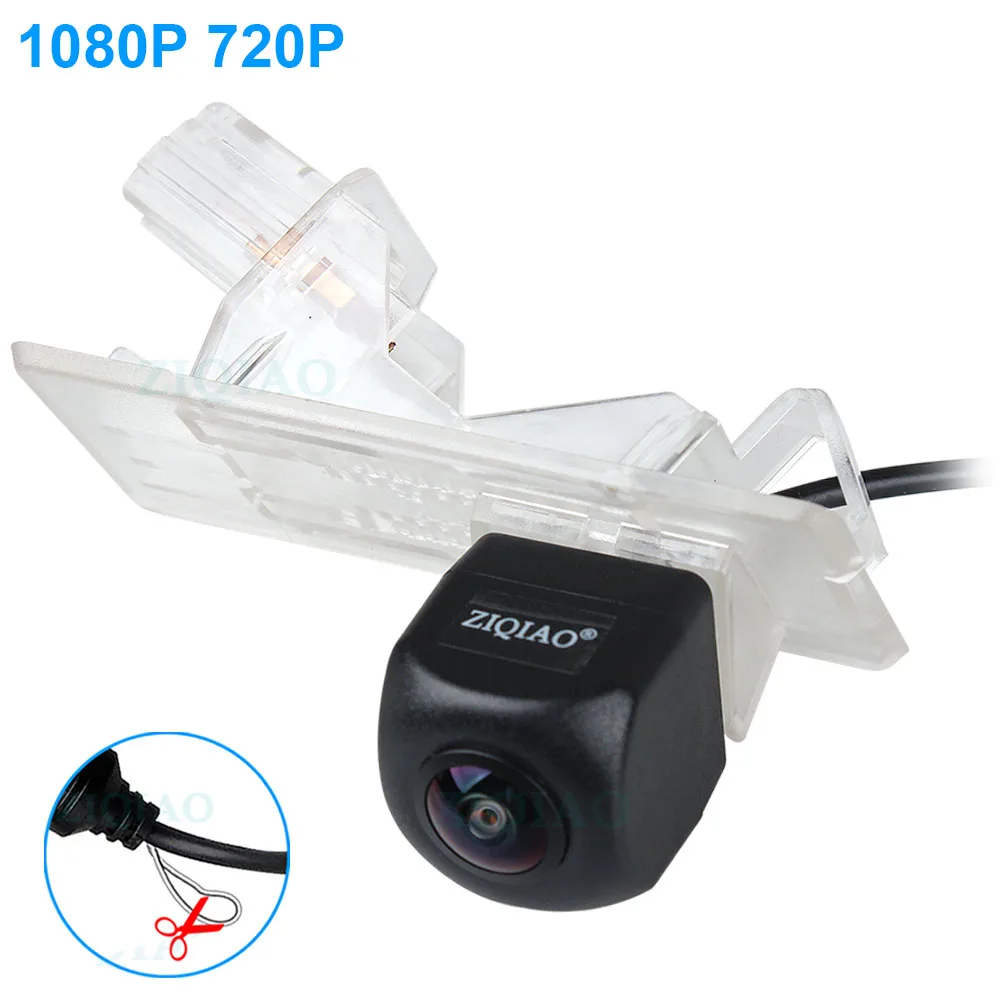

â‘¢ 1080P 720P HS134B HS135B
Signal mode: CVBS AHD
Image sensor: AHD
Video format: NTSC AHD
White balance: Automatic
Viewing angle: 160-170 degrees
Working voltage: DC 12V
Waterproof level: IP68
Video power cable: 6m
Pixel: 1080P 720P
Working temperature(Deg.C): -30 – +80
Packing List
1 x Car rear view camera
1 x Video power cable
1 x User manual
If you need a filter rectifier, let the video signal output normal. Please click on the pictures below to learn about ordering!
When the engine starts, some German cars and American cars will output voltage interference. The power supply of the reversing lamp is not a pure DC power supply. Due to the very high operating voltage, the camera cannot work normally and the video signal output is not normal, so the host can see that there is serious interference, which can not switch the reversing screen normally.
600P 720P
HS134A HS134B HS135A HS135B
The HS134A HS134B HS135A HS135B camera defaults to a rear view camera without parking guide line
. If you need a rear view camera without a parking guide line, do not cut the white wire.
. If you need a rear view camera with a parking guide line, cut the white wire.
HS134 HS134D HS135 HS135D

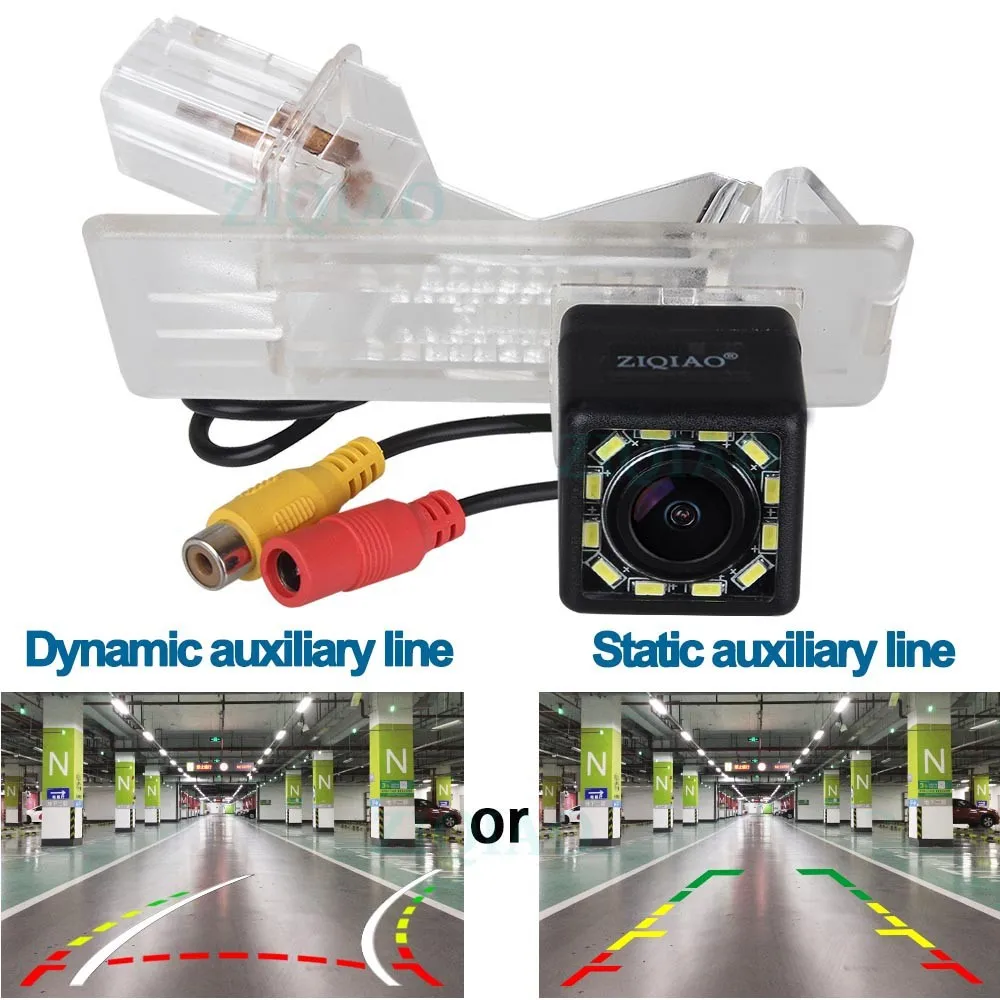

The differences between static and dynamic parking guide line
Dynamic trajectory parking line & Static parking line comparison.
Avoid Danger
HD night vision rear view camera is clearly visible day and night, allowing you to park safely.
Dynamic line ruler effect display HS134D HS135D
Trajectory parking line car rear view camera automatically adjust the angle according to the car’s moving position and speed.
140-170 Degrees Wide Angle
High resolution and wide viewing angle can check the blind spots during the reversing process to ensure your safe driving and avoid accidents.
IP68 Waterproof Level

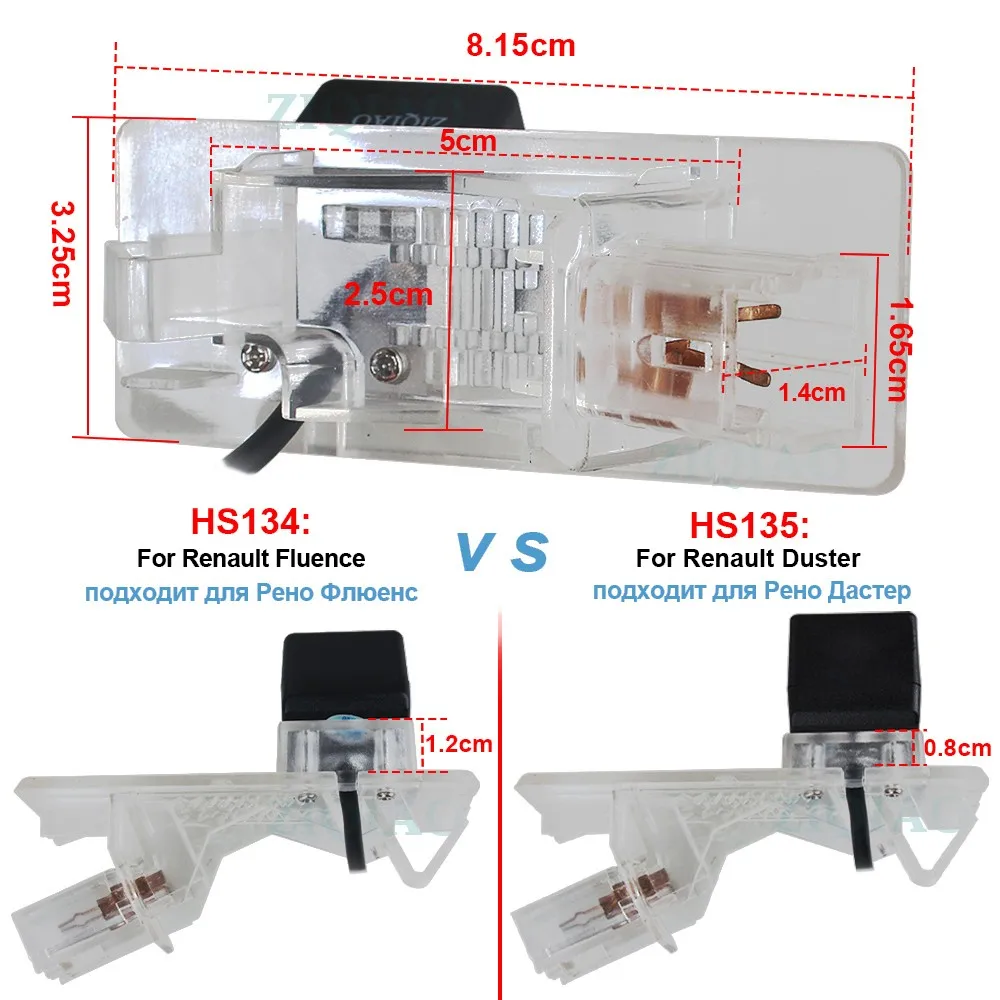

Product Size
Due to manual measurement, there may be an error of 1-2mm.
Product Parameters
HS134 HS134D HS135 HS135D
HS134A HS134B HS135A HS135B
If you don’t want to use long video cable. We have wireless transmitter and receiver for rear view camera to replace video cable. Click the following picture to order.
Installation Method
The installation instructions are for reference only. It is recommended that a professional installer install the camera.
1. Install the camera in the area of your car license plate light.
2. Adjust the lens of the camera to your best position.
3. Connect the video output(yellow wire) to the monitor.
4. Connect the power cable(red and black) to the power supply of the car’s reversing light, while reversing, the reversing monitoring system automatically start working, you can see the condition of the car tail clearly.
Dedicated Car Rear View Camera for Renault Duster Renault Fluence HD night view rear view cameraÂ
