WS2815 DC12V WS2812B WS2813 LED Strip Light RGB Individually Addressable LED Lights Dual Signal 30 60 100 144 LEDs IP30 65 67

WS2815 DC12V WS2812B WS2813 LED Strip Light RGB Individually Addressable LED Lights Dual Signal 30 60 100 144 LEDs IP30 65 67

12V WS2812B LED Strip:

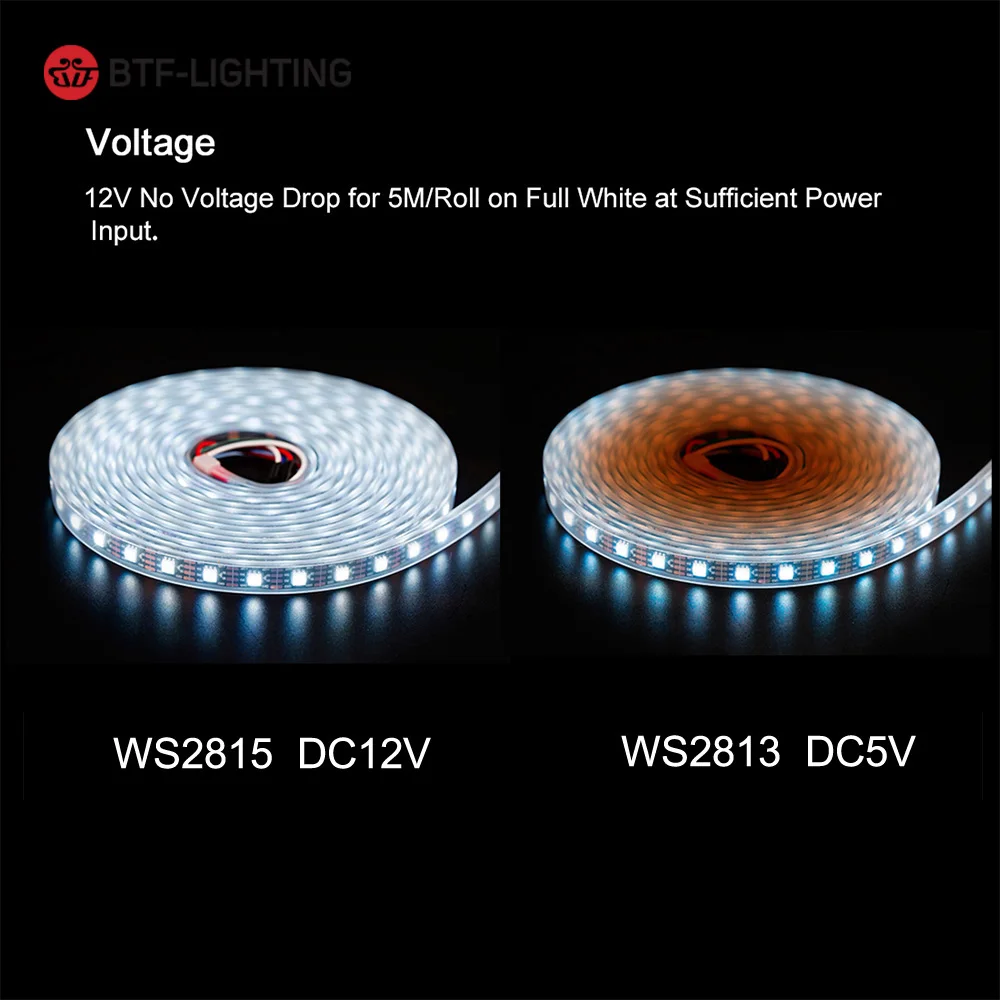

WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don’t need to inject power as frequently as 5V version.

Individually addressable:
Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.

Dual-signal wires:

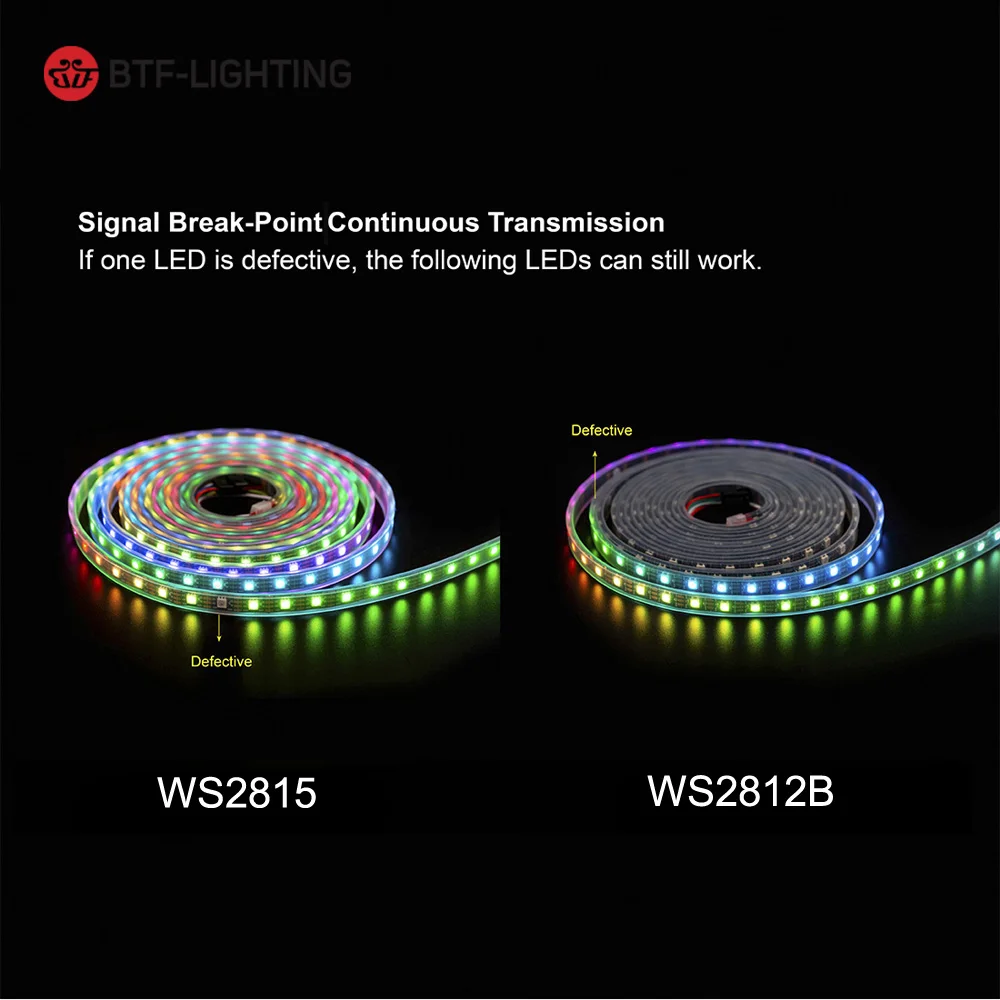

WS2815 LED strip is Similar like the version of 5V WS2813 LED strip, Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.

Specifications:
IC type :WS2815 IC.
Gray level: 256.
View angle: 120.
Input voltage: DC12V.
Color: full color 24-bit.
FPCB board color: White/Black.
Power: 0.3W/LED 30/60/100/144 LEDs/m.
Model: WS2815 strip 5050rgb chips.
Storage Temperature:-30-+95 .
Operating Temperature:-20 ~ +85.
Led Qty: 30/60/100/144pcs RGB SMD 5050 per meter.

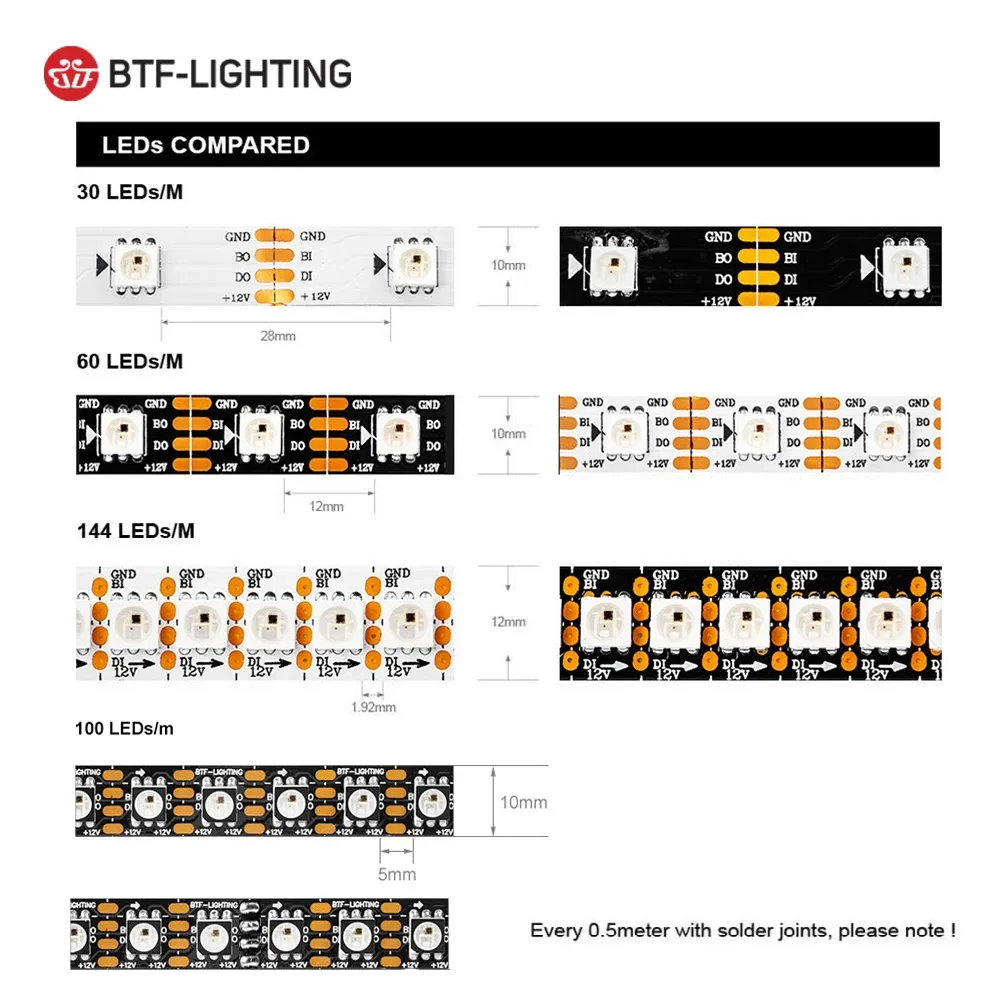

The distance between two LEDs: 30Leds/m — 28mm, 60Leds/m — 12mm, 100Leds/m — 5mm, 144Leds/m — 1.92mm.
Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm.
Waterproof level: IP30: Non- waterproof, IP65: Waterproof in Silicon Coating, IP67: Waterproof in SiliconTube.

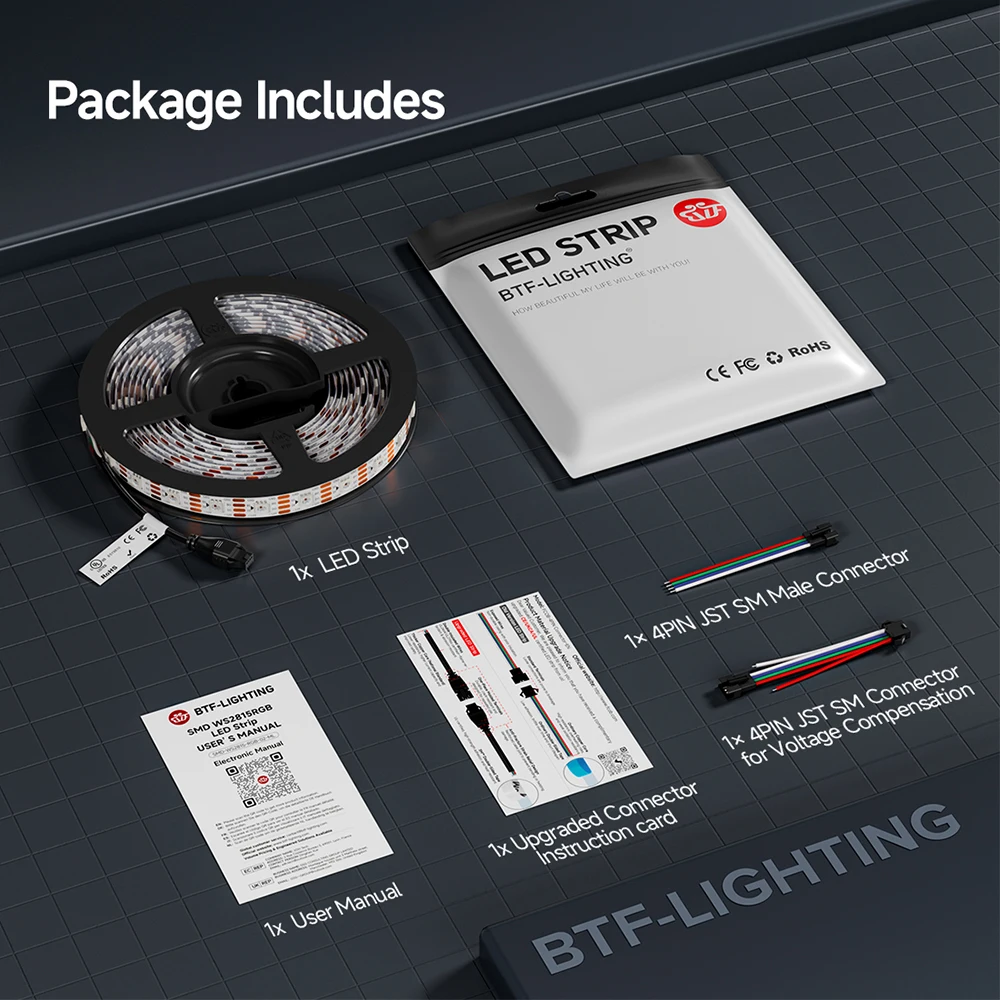

Package includes:
1 x 1m/5m RGB 30/60/100/144leds/m led strip.
1 x 4pin connector.

Note:
Power adapter and controller are not included!
It is forbidden to light up for a long time when the strip is in the spool.

Please Pay Attention !

1. The Price is Only Led Strip, Not Included Power Supply and Led Controller.

2. WS2815 Must Use DC12V Power Supply and Pixels Led Controller to Control.

3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It’s Not a Quality Problem.

4. WS2815 Led strip Can Be Cut Between Each Led To Create Custom Lengths, Please Do Not Bend LED Strip Sharply.

5. The LED Strip Has Adhesive Tape On The Back of PCB (Except Ip67 ). Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.

6. Longer LED Strip Runs, Please Power From 2 pin Power Wire of Both Ends To Reduce Voltage Drop.
