WS2814 DC12V 24V Led Strip Light 4 in 1 Similar SK6812 RGBW Pixels Addressable WS2811 RGBWW RGBCW 5050 3 Pin Lights IP30 65 67

WS2814 DC12V 24V Led Strip Light 4 in 1 Similar SK6812 RGBW Pixels Addressable WS2811 RGBWW RGBCW 5050 3 Pin Lights IP30 65 67 ( NOT Individual Addressable ! )

Note:

The price is only Led Strip, Not Included Power Supply or Pixels Controller!

WS2814 Must Use DC12V or DC24V Power Supply and Pixels Controller to Control!

Every 0.5meter with solder joints, please note!

Parameter:

1, Working Voltage: DC12V / DC24V.

2, LED Source: SMD 5050 RGBW.

3, LED QTY: 30/60/84 LEDs/M

4, IC QTY:

DC12V 30LEDs/M, DC24V 60LEDs/M have 10 Pcs IC/M.

DC12V 60LEDs/M have 20 Pcs IC/M.

DC12V 84LEDs/M have 28 Pcs IC/M.

DC24V 84LEDs/M have 12 Pcs IC/M.

5, Power: R+G+B=mixed white 0.3W/LED, Pure White : 0.1W/LED.

6, Grey Scale: 256 / Color.

7, Cutability:

DC12V 30LEDs/M, DC24V 60LEDs/M, 10cm can be cut.

DC12V 60LEDs/M, 5cm can be cut.

DC12V 84LEDs/M, 3.5cm can be cut.

DC24V 84LEDs/M, 8.25cm can be cut.

8, Beam Angle: 120 °.

9, Packaging: 5m/roll, 12V or 24V WS2814 RGBW Strip + 3pin SM Connector.

10, Protection grade: IP30-No waterproof, IP65-Waterproof in Silicon Coating, for indoor use. IP67-Silicone tube, need reseal after cut, outdoor use.

11, Adhensive tape: IP30 and IP65 with adhensive tape on the back ( IP67 without adhensive ).

12, RGBW (WW 2900K-3200K; CW 5700K-6300K).

Easy installation, good flexibility, can be arbitrary bendin.

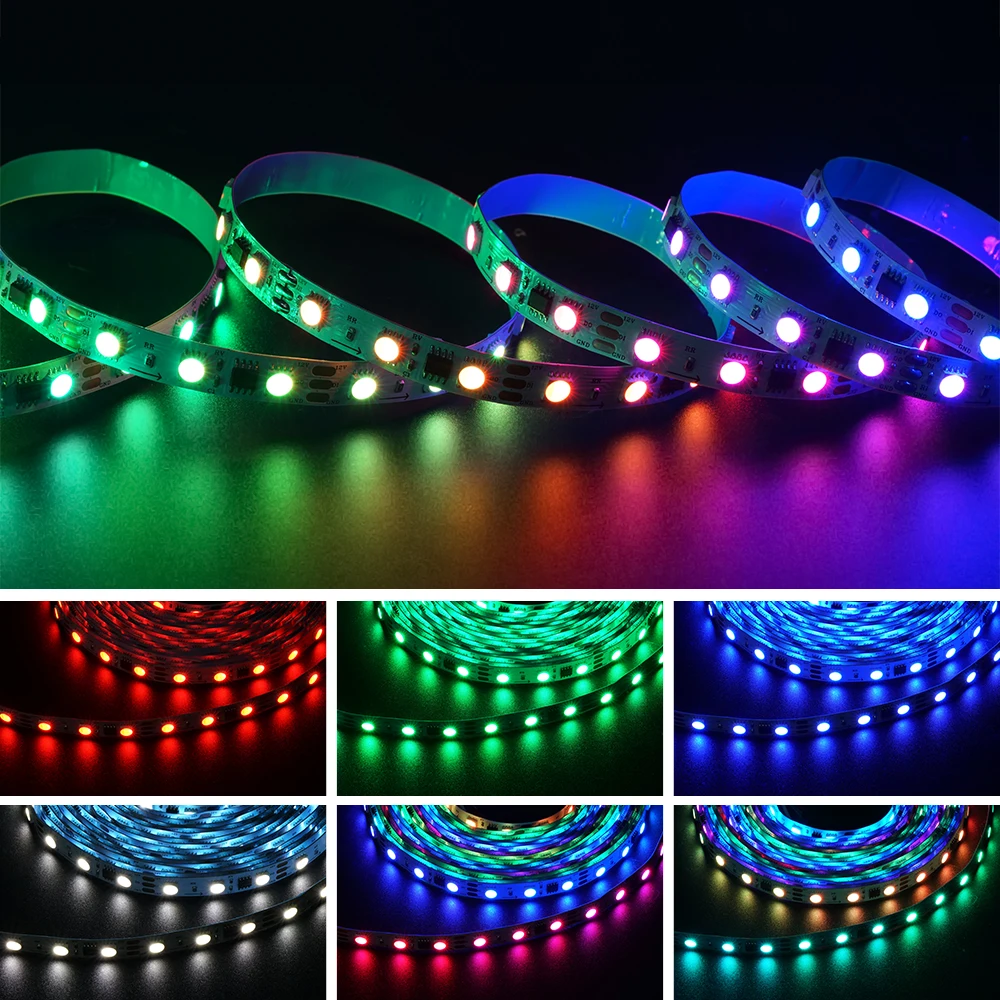

Dream color lighting, Match use SP617E/SP630E/SP639E/SP530E/SP539E controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect.

Addressable WS2814 RGBW IC. WS2814 RGB+Pure White, 16.4FT/5m. Addressable groups of 3 or 6 LEDs. One WS2814 IC controls three or six LEDs. Dream full color Programmable LED Strip. 5050 SMD. 256 brightness display and 24-bit color display. Every 3 or 6 LEDs or 7 LEDs can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

Chasing RGB+W Lighting Effects. Advantages of pure white: the presence of pure white can make the project more perfect, it is more energy-efficient Less heat consumption. With this product, you can light up addressable RGB rainbow color,pure white light chasing or pure white static effects .Solve the problem of voltage drop at the tail of all white light strip. It is the perfect upgrade of WS2812B RGB or WS2811 RGB.

Fan and economical LED strip project. Works great with SP617E/SP630E/SP639E/SP530E/SP539E controller. You can light up a single pure white light , the LED strip is more energy-efficient, extending the life of the LED strip. R+G+B=mixed white 0.3W/LED . Pure White : 0.1W/LED. 1 color(red or green or blue or pure white) 0.1W/LED. 2 colors (red+green) 0.2W/LED, 3 colors (red+green+blue=mixed white) 0.3W/LED.

Chain able design. It comes with 3-pin JST-SM connectors on both ends. You can continue to extend or cut at both ends.

Differences between WS2814RGBW, SK6812RGBW and WS2812B. WS2814 : DC12V 24V One IC drives 3 or 6 or 7 LEDs, RGB+W. SK6812RGBW :DC5V One IC drives 1 LED, RGB+W. WS2812B :DC5V One IC drives 1 LED RGB . Similarities:5050SMD ,addressable,3 pin jst connector

Making led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Festivel Christmas or wedding party decoration. IP30 and IP65 have double side tape on the back, so you can stick it to the wall or other items conveniently as you like. IP67 waterproof should use screw and clips to fix, there is no double side tape on IP67 Back. Please note the color order of the LED strip and the applicable power supply.

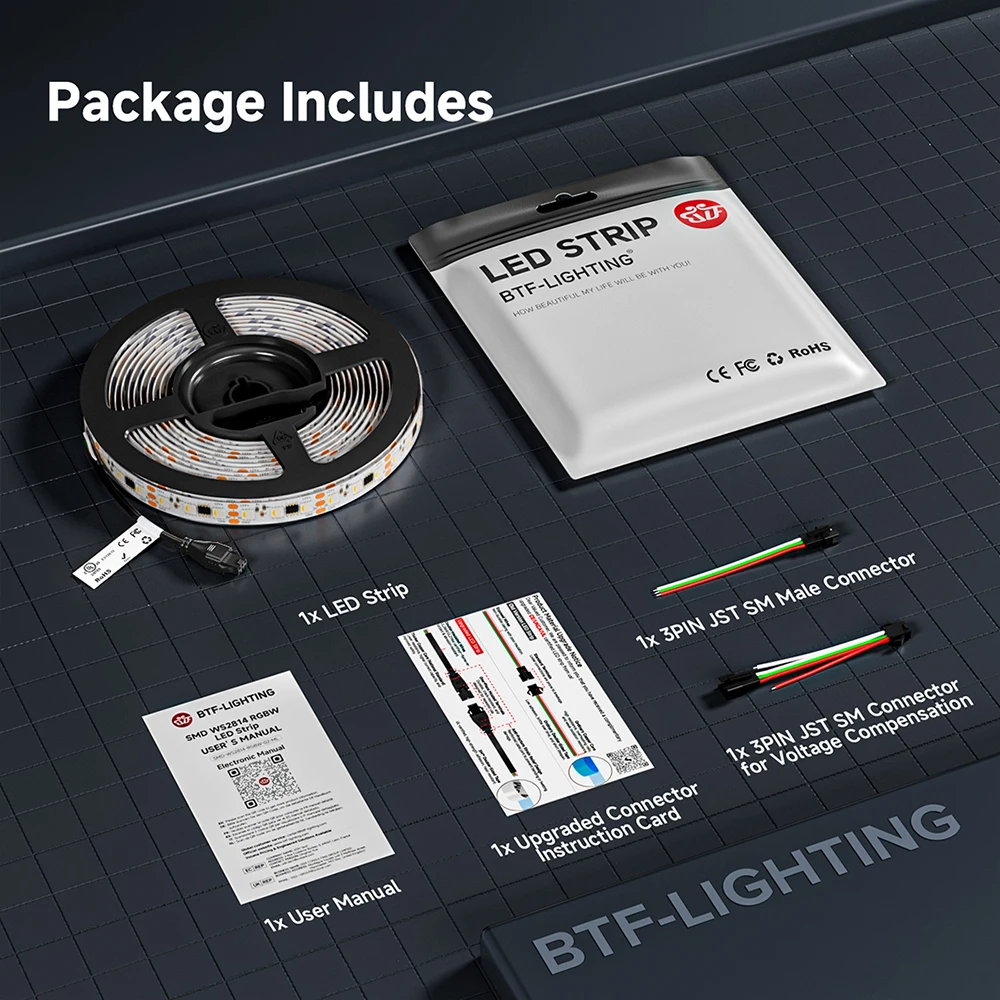

Package contents: 1 * 16.4FT/5m WS2814 RGBW LED Strip, 1 * 3 pin male jst connector .The power supply and controller need to be purchased separately.
