Attention
1. Price includes only the LED strip, excluding the power supply or LED controller! Power supplies and smart controllers need to be purchased separately.
2. If you have any questions about the product, feel free to contact us. We will assist you in resolving the issue as soon as possible.
This LED strip link does not include a controller and power supply.
Please Pay Attention:
1. The Price is Only LED Strip, Not Included Power Supply and Pixels Controller.

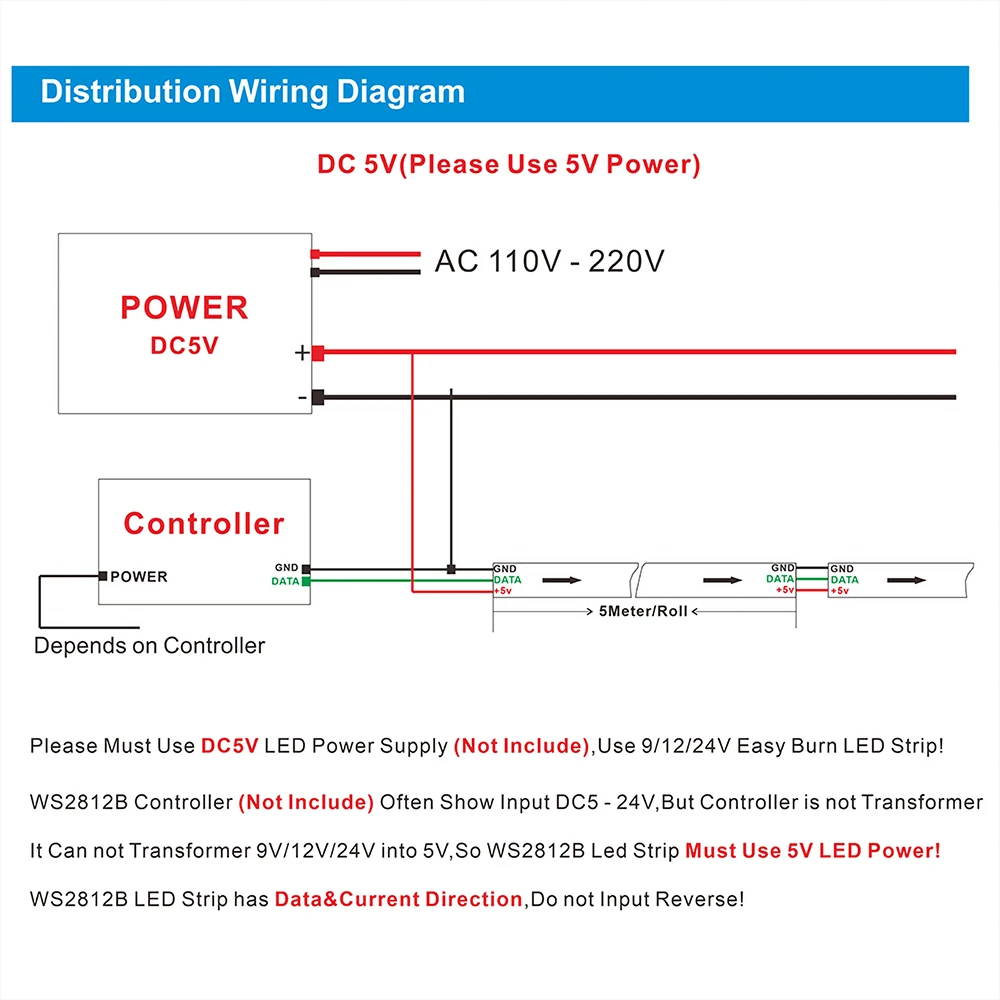

2. WS2812B Must Use DC5V Power Supply and Pixels Controller to Control.
3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It’s Not a Quality Problem.
4. WS2812B LED Strip Can Be Cut Between Each LED To Create Custom Lengths, Do Not Bend LED Strip Sharply.
5. The 3 Pin SM Connectors of LED Strip Included: Red: VCC, White: GND, Green: DATA.
6. The LED Strip Has Adhesive Tape On The Back of PCB ( Except IP67 ). Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.
7. Longer LED Strip Runs, Please Add More Power to 2 Pin Power Wire of Both Ends To Reduce Voltage Drop. Â

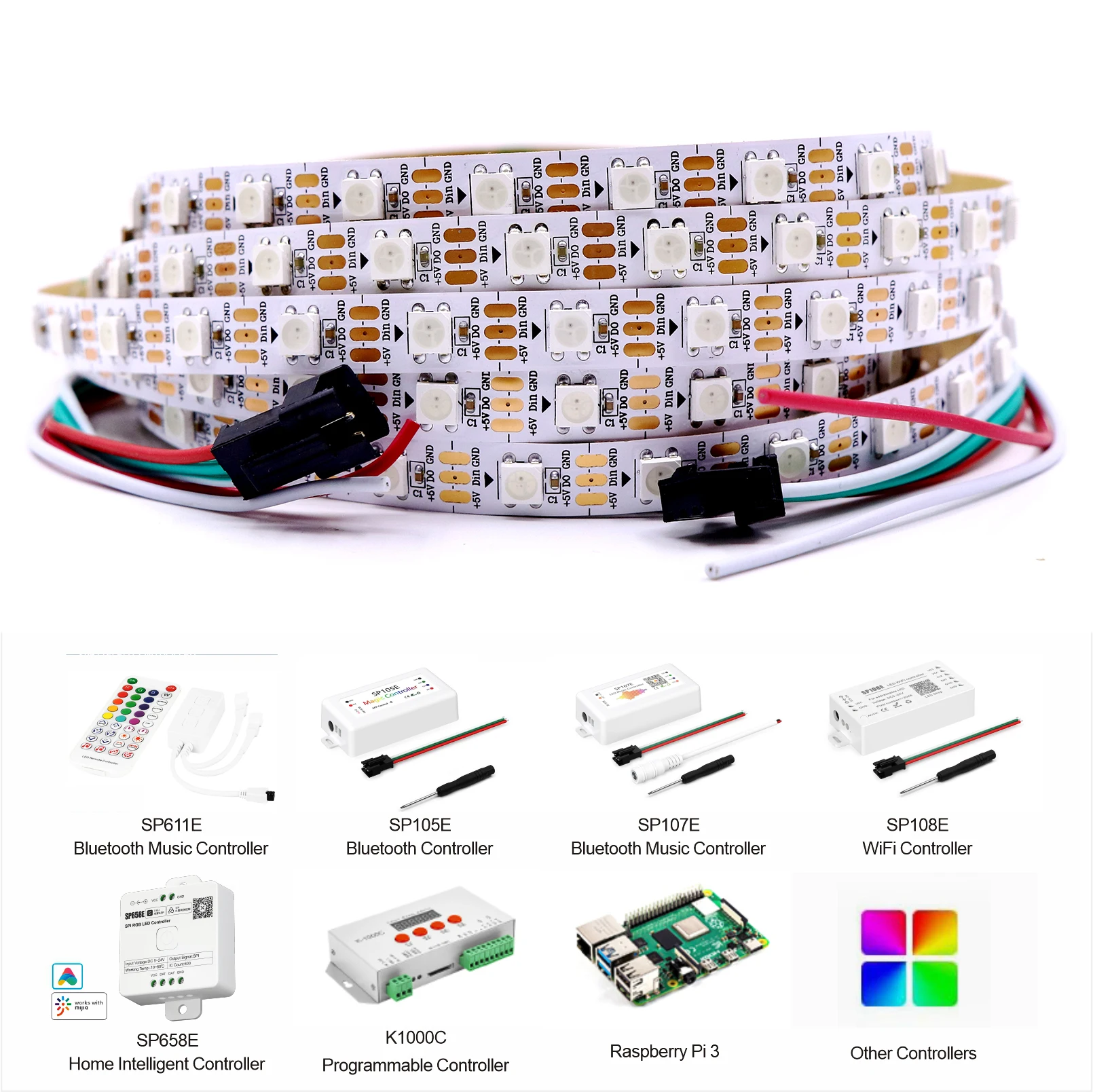

How to Choose LED Power Supply and Pixels Controller? First, Calculated The Whole LED Strip Lights Watts. One LED Chip is About 0.3W, If You Buy 5m 60LEDs/m ( Total LED Strip is 300 LEDs ), So 0.3W*300=90W. Then, Choose the Right LED Power Supply. This LED Strip is Work with DC5V Power, So 90W / 5V=18A ( At Least 18A or more ). Finally, Choose the Right Pixels Controller You Like. WS2812B LED Strip is Controlled By Single Data Line Pixels Controller. So you could choose them from our store, we have IR/RF Remote, Bluetooth, Wifi, Music APP and Computer controller etc. ( If you can’t recognize them, you could feel free to contact us, we will glad to help you )
Input Voltage: DC5V/12V
LED Light Source: WS2812B LED
LED Control Mode: Individual control for each LED
IC Type: WS2812 IC (Built-in 5050SMD RGB LED)
IC Quantity: 1 IC driver per LED chip

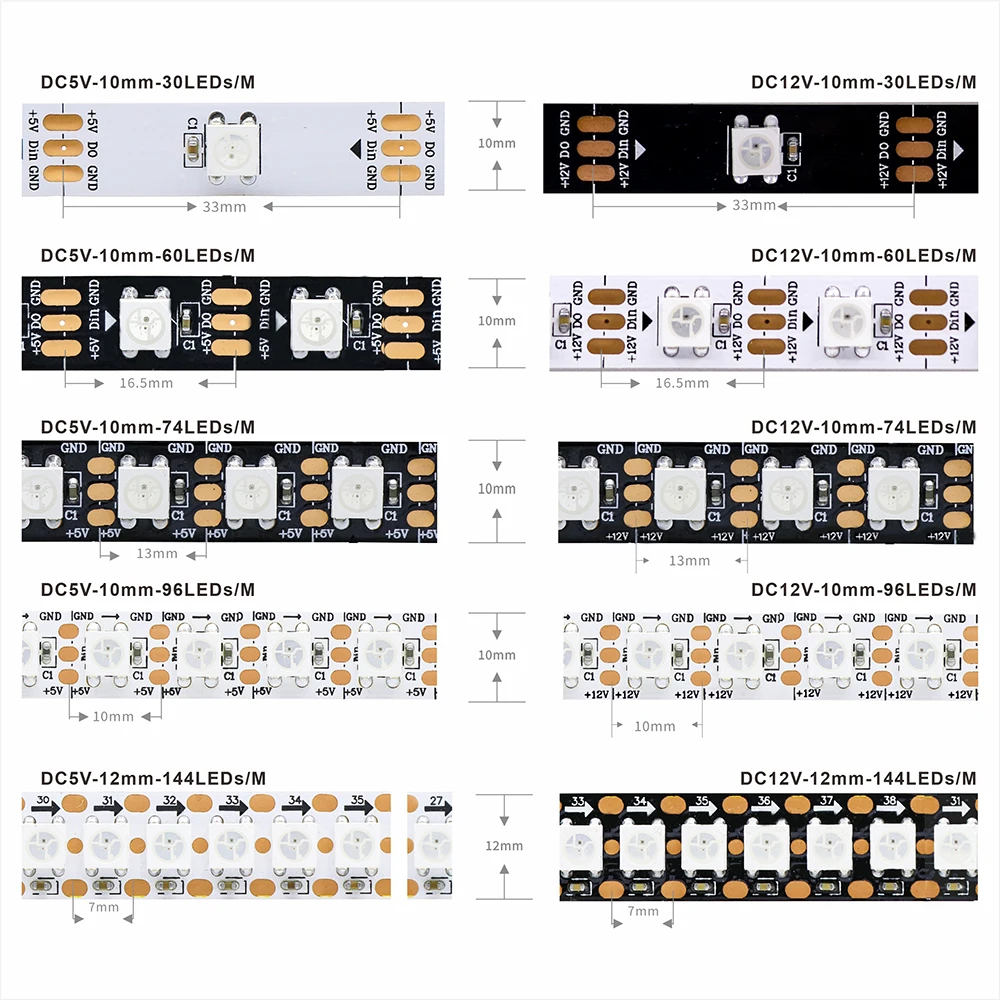

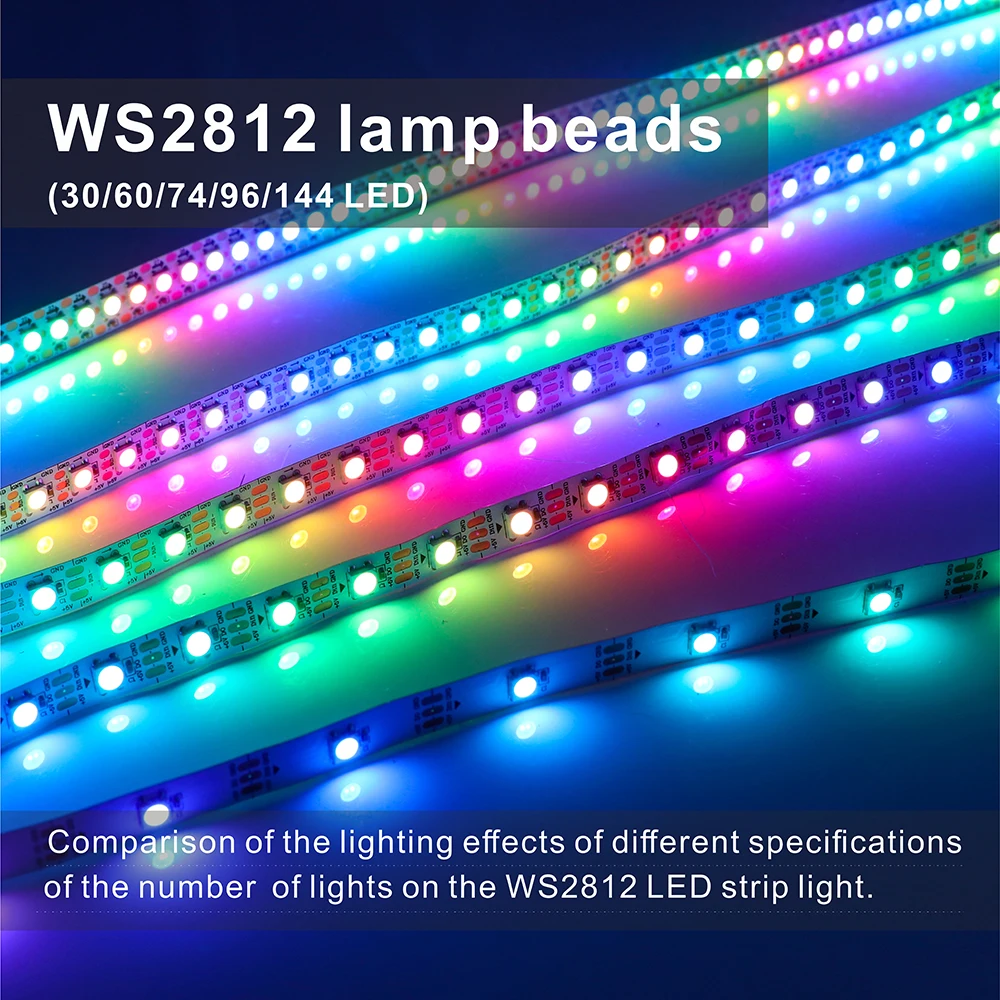

Pixel Density (LED Quantity): 30leds/m / 60leds/m / 74leds/m / 96leds/m / 144leds/m
Power: 9/18/21/25/35W/m
Pitch: 16.6mm (1000/60)
Grayscale: 256
Bit per Color: 8-bit per color
FPC Width:
30 LED/m – 10mm
60 LED/m – 10mm
74 LED/m – 10mm
96 LED/m – 12mm
144 LED/m – 12mm
FPC Color: Black / White
Protection Class: IP30 (Bare Board) / IP65 (Glue Coating) / IP67 (Waterproof)
Color: Full-color RGB, Dream Color Changing
Cuttable: Each LED is individually cuttable
Packaging: Anti-static bag; IP30/IP65 versions with 3M adhesive on the back (3M adhesive not included for IP67 version)
Connector: 3PIN connector pair (Red: Positive, Green: Signal wire, White: Negative)
