Wireless Light Wall Switch RF 433Mhz Remote Control 1/2/3Gang Interruptor Smart Lighting Switch For Lamp LED 10A 110V 220V

Specification:

controller (Receiver)

Working voltage: AC85-240V 60HZ/50HZ
Working frequency: 433MHZ
Power consumption in standby mode: <0.3W
Load power: <1100W
Receiving sensitivity: -108dBM
Working way:wireless control
Coding way: learning code
Modulation: ASK
Working temperature: -10*C~+70″C
Size: 47.4*42*22.8 (mm)

Wireless Wall Switch

Working voltage: DC3.0V
working frequency:433MHZ
Power consumption in standby mode:<1uA
Transmitter power: <10mW
Working way: wireless control
Coding way: EV1527 learning code
Modulation: ASK
Working temperature:-10″C~+70*C
Size: 86*86* 15mm

Feature:

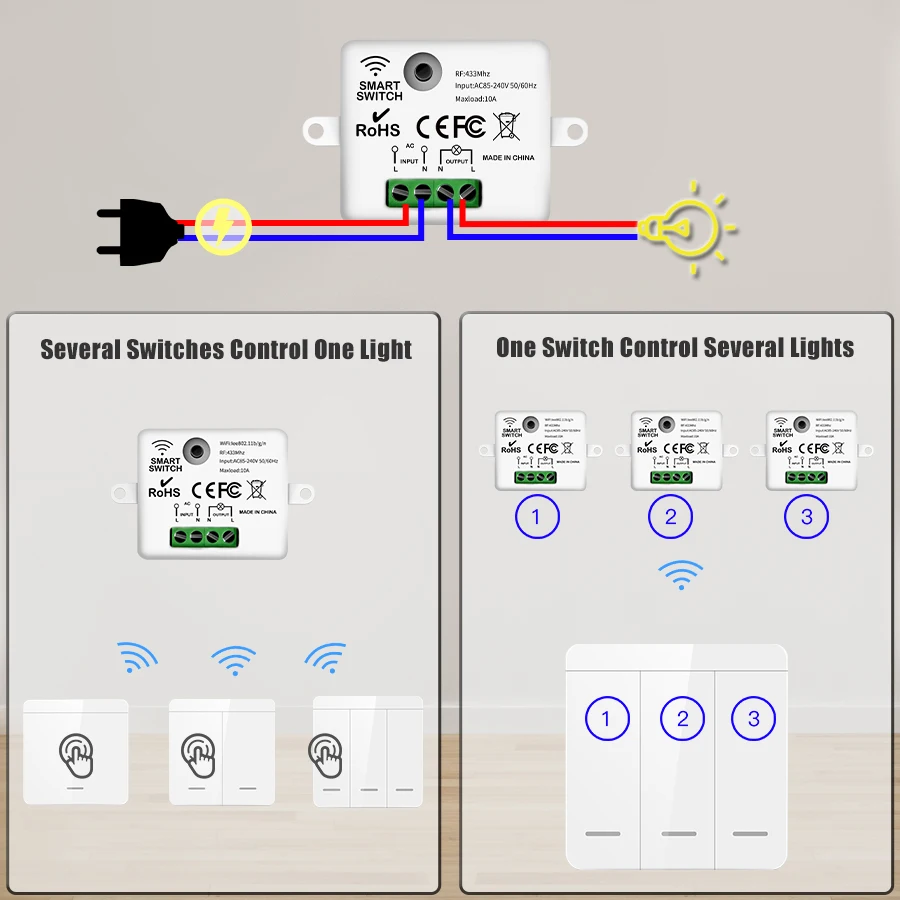

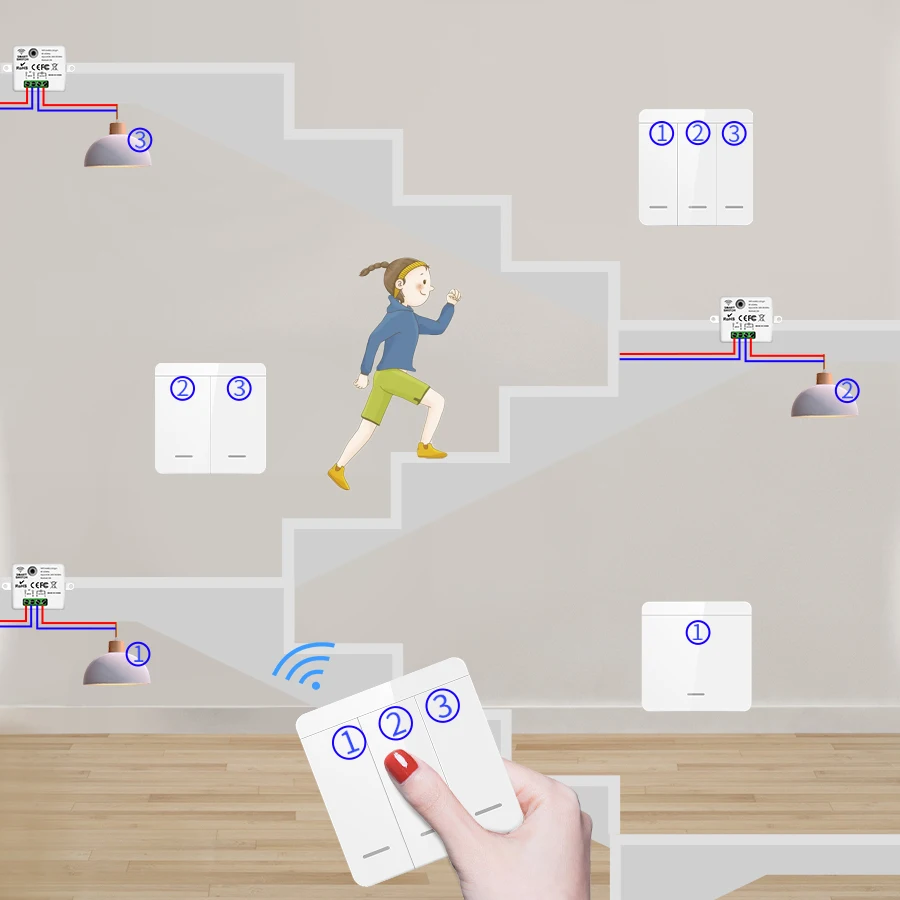

1.Multi switches can control different receivers.Save energy,avoid darkness.

2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.

3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.

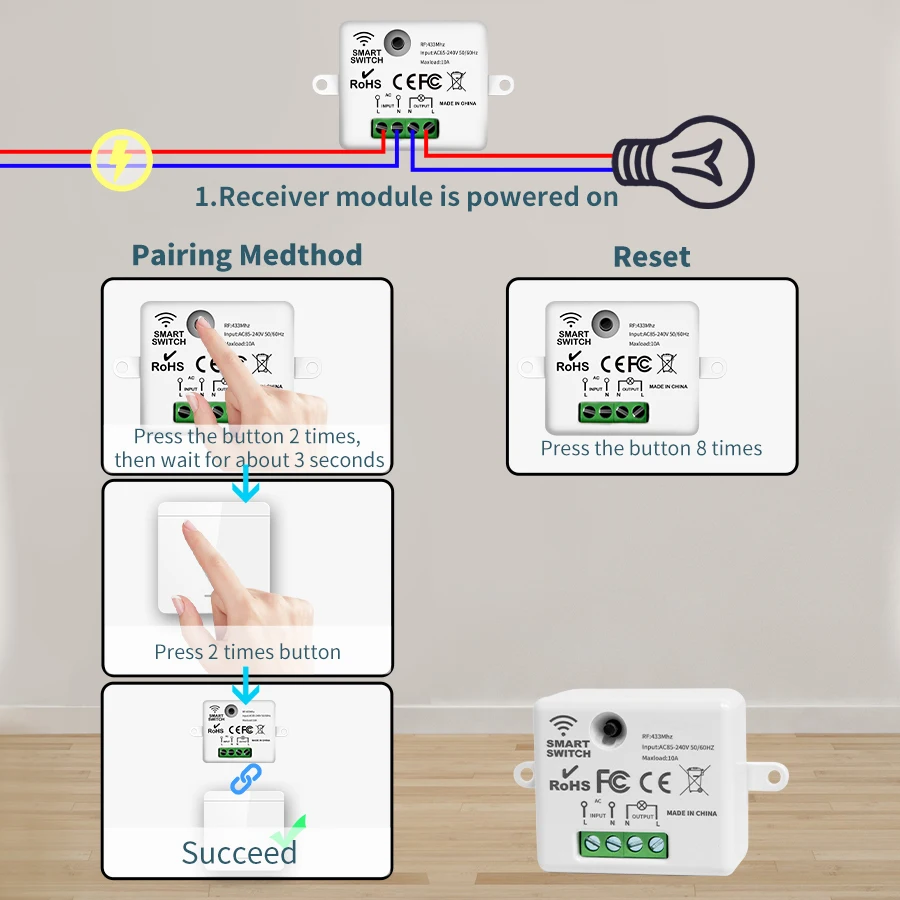

How to get the signal？

Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;

Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.

How to clear the signal？

Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

Please Note:

Dear Customer, If in case of power failure, and power supply is coming, switch is still turn on, just need long press switch for 15 seconds to set.
