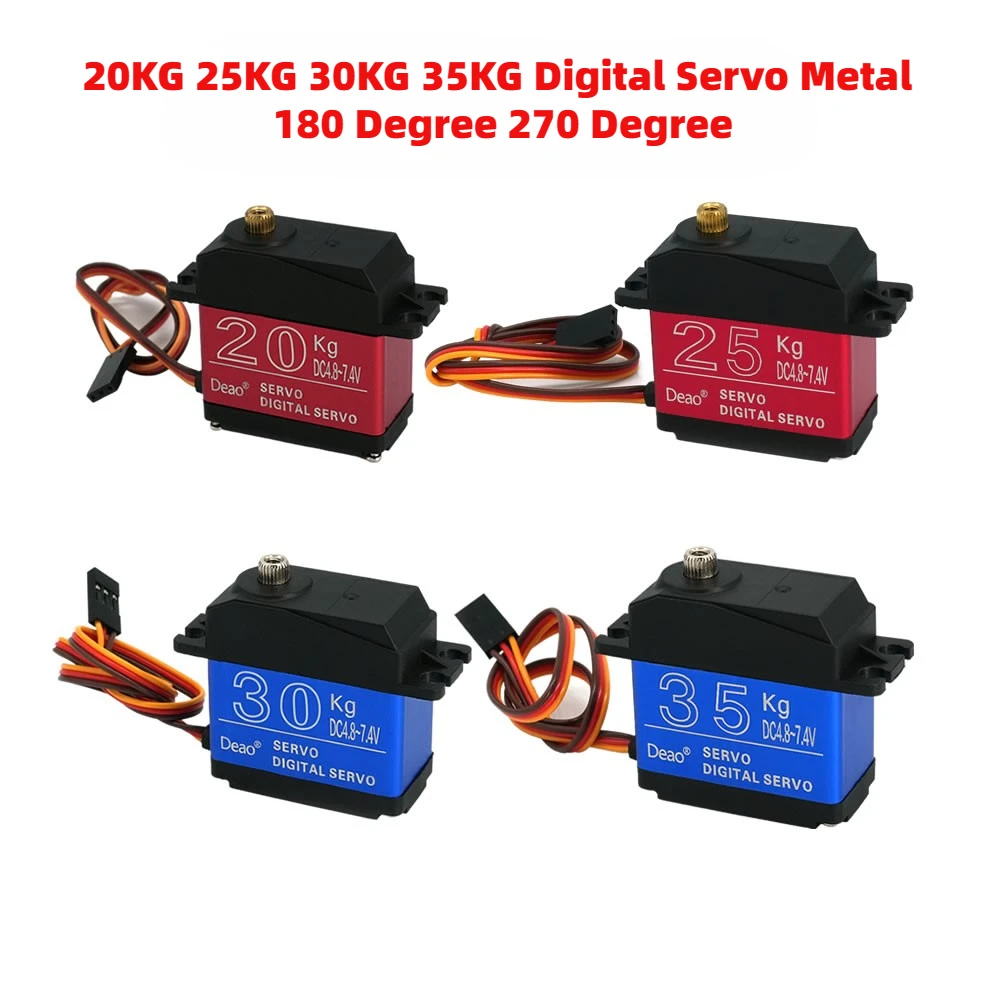

Waterproof 20KG 25KG 30KG 35KG Servo 180 Degree 270 Degree Large Torque Digital Servo Metal Gears 25T Servo Arm For RC Car Truck

Waterproof 20KG 25KG 30KG 35KG Servo 180 Degree 270 Degree Large Torque Digital Servo Metal Gears RC Car Truck

20KG Servo:

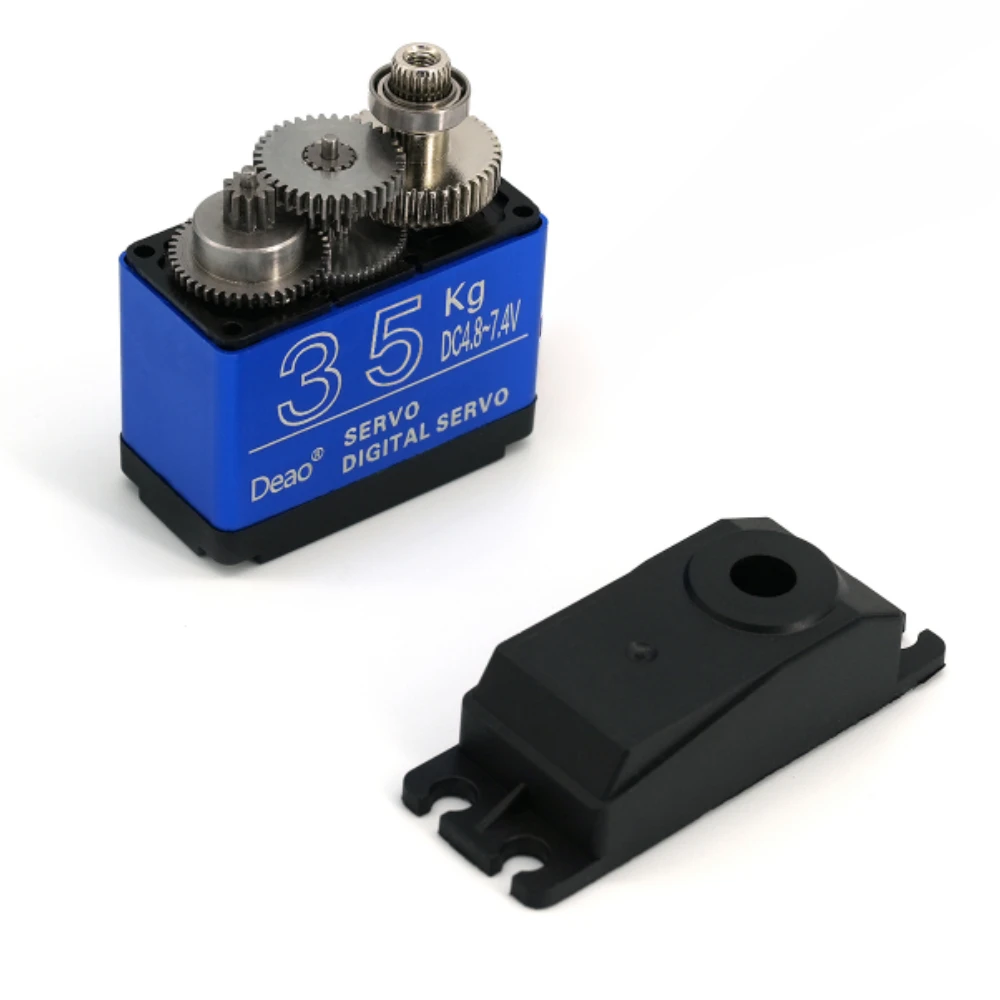

High-precision metal gears with hard anodizing
CNC aluminium middle Shell,
Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
 Idle speed :4.8V/0.15sec / 60 deg
                    6.0V/0.13sec / 60 deg
Steering angle: 180 / 270 degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter

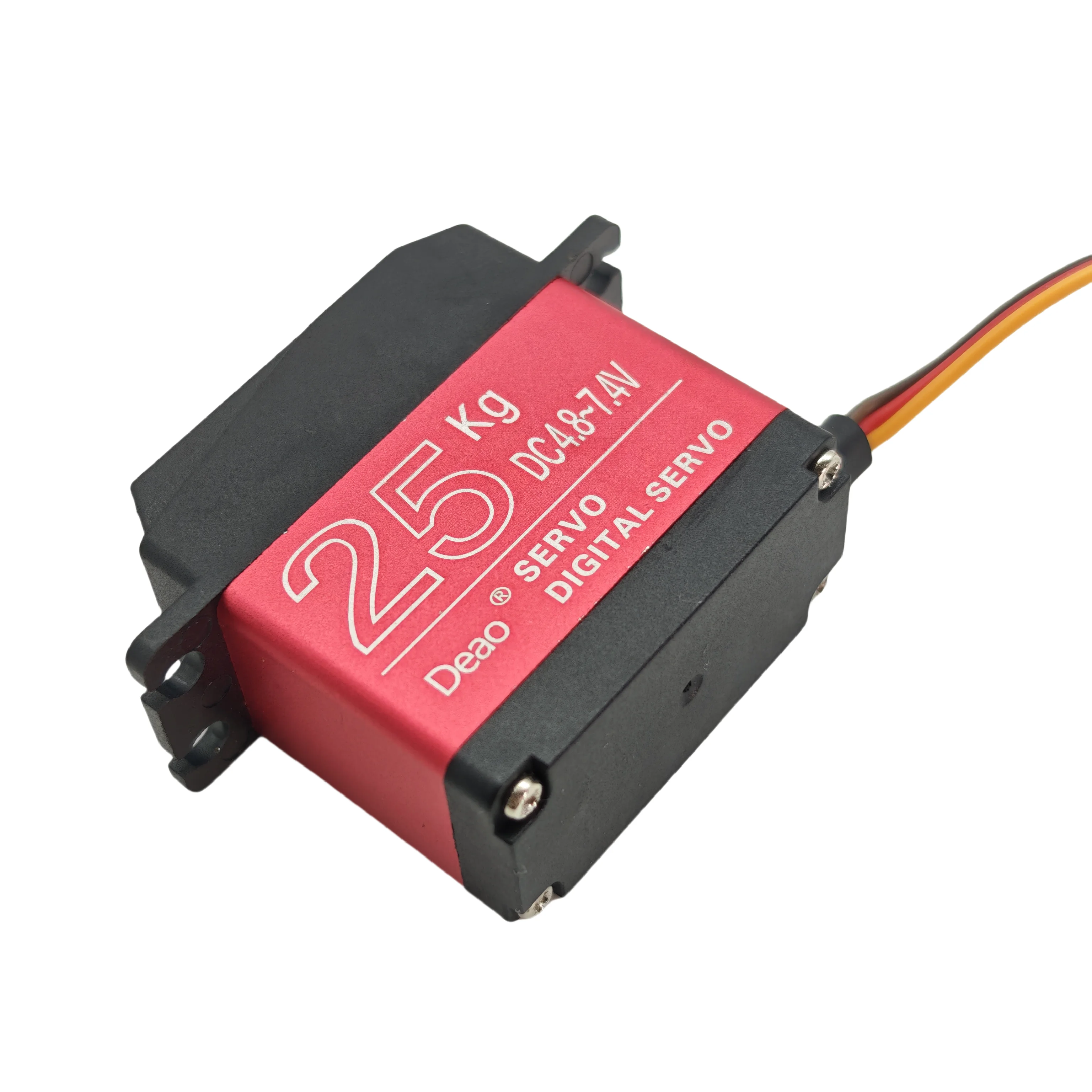

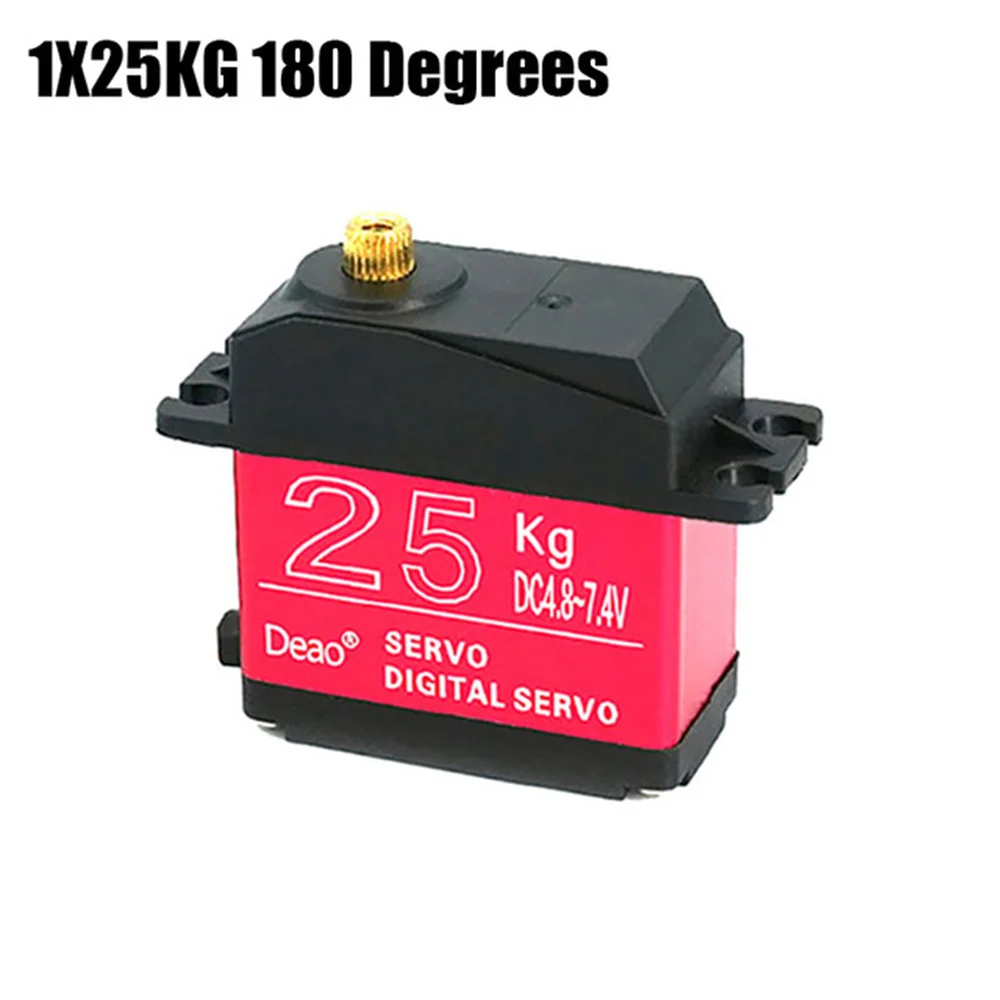

25KG Servo:

Apply Environmental Conditon:
1.Storage Temperature Range: -30°C～80°C
2.Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1.Temperature Range: -25°C～70°C
2.Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type:  5 Metal
4. Limit angle: 360°
5.Bearing: 2BB
6. Horn gear spline: 25T   Diameter:5.9mm
7. Horn type: Plastic, POM
8.Case : Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10.Motor: Carbon brush motor
Electrical Specification:
1.Operat voltage: 4.8V – 7.2V
2.No load speed: 0.18sec/60° –  0.14sec/60°
3.Running current: 140mA – 200mA
4.Peak stall torque: 23.5kg.cm-26.8kg.cm
5.Stall current: 2600mA±10% –  3400mA±10%
6.Working voltage range:  4.8 – 7.2V
Control Specification:
1.Command signal: Pulse width modification
2.Amplifier type: Digital controller
3.Pulse width range: 500～2500usec
4.Neutral position: 1500usec
5.Running degree: 180°±3°(when 500～2500usec)
6.Dead band width: 5 usec
7.Rotating direction Counterclockwise: (when 1000～2000usec)

Package includes:

1pc Servo (Red / Blue colour send as your choice)
