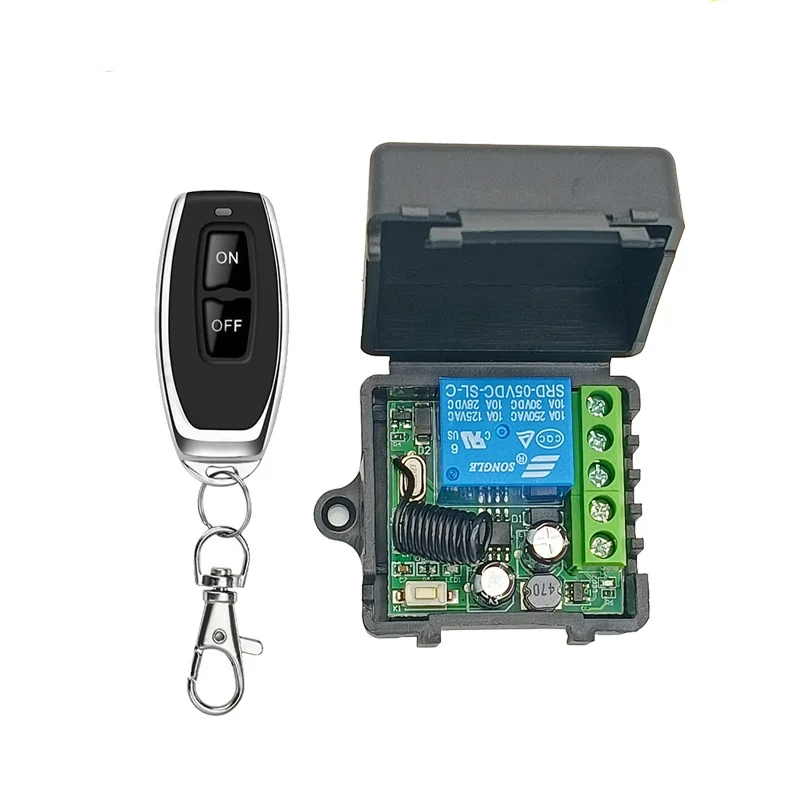

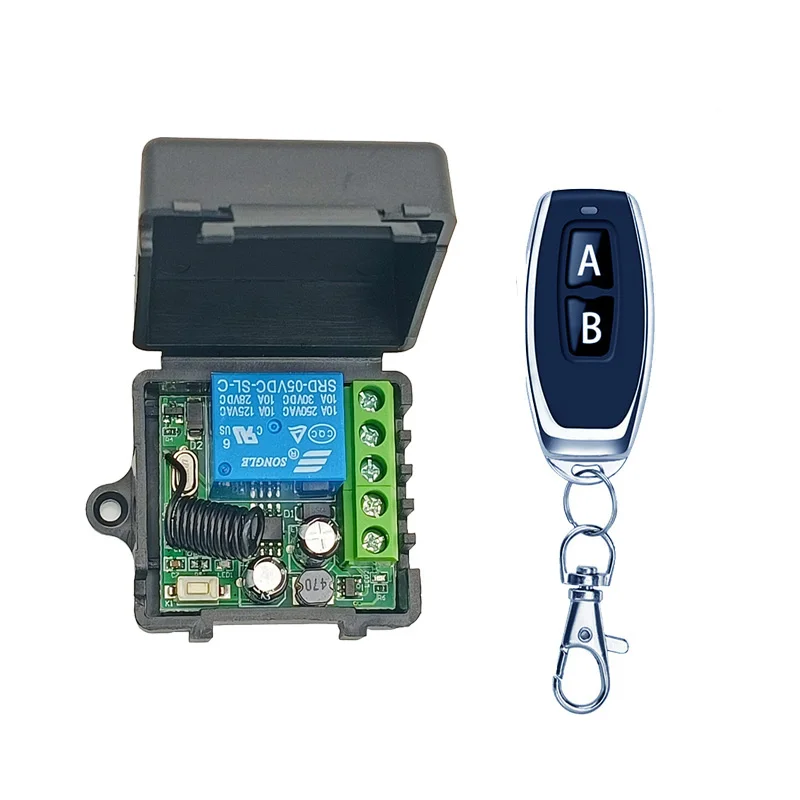

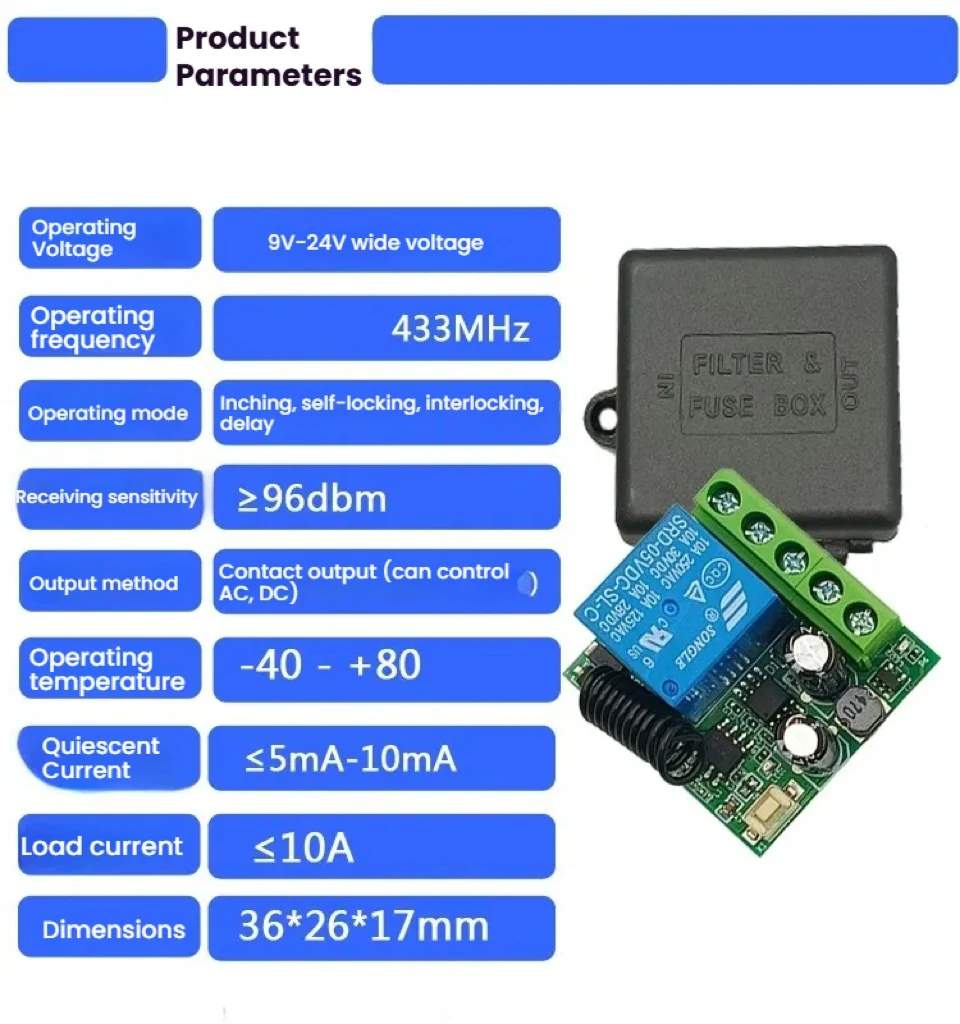

Specifications Of The Receiver:
Model Number : RA01
RF Working Mode: Superheterodyne Reception
Modulation Mode: ASK
Working Mode: Momentary, Toggle, Latching and Time Delay Mode.
Input Voltage: DC 9~ 24V
RF Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: >96dbm
Theoretical remote control distance:>80-100m(The actual distance has losses depending on the application method)

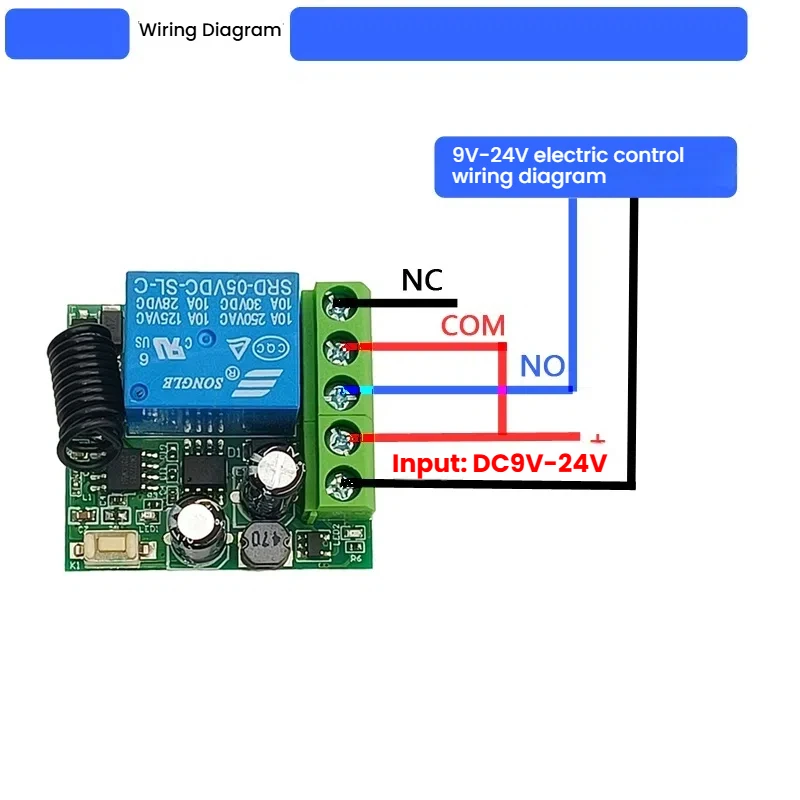

Wired Connection Way: Fixed Wiring Pillar.
Decoding Mode:MCU Software Decoding.
Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s )
Specifications Of The Transmitter:
Model Number : RC06
Operating Frequency: 433MHz
Power by 3V Coin Cell Button Battery (Battery included )
Material: PVC
Button: 2 Buttons
Size: 60mm x 31mm x 11mm
Operating Voltage: 6V
Operating Current: 12mA
Transmitting Power: 10mw
Modulation Mode: ASK (AM)
Encoding Type: Learning
Transfers Distance: 20-50 m
Operation Introduction:
About Working Mode:
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15s.
Clearing the Code:
Press the Learning Button on the receivers for 8 times, the codes will be cleaned.
After cleaning the code, all the remote control cannot work any more.
Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
