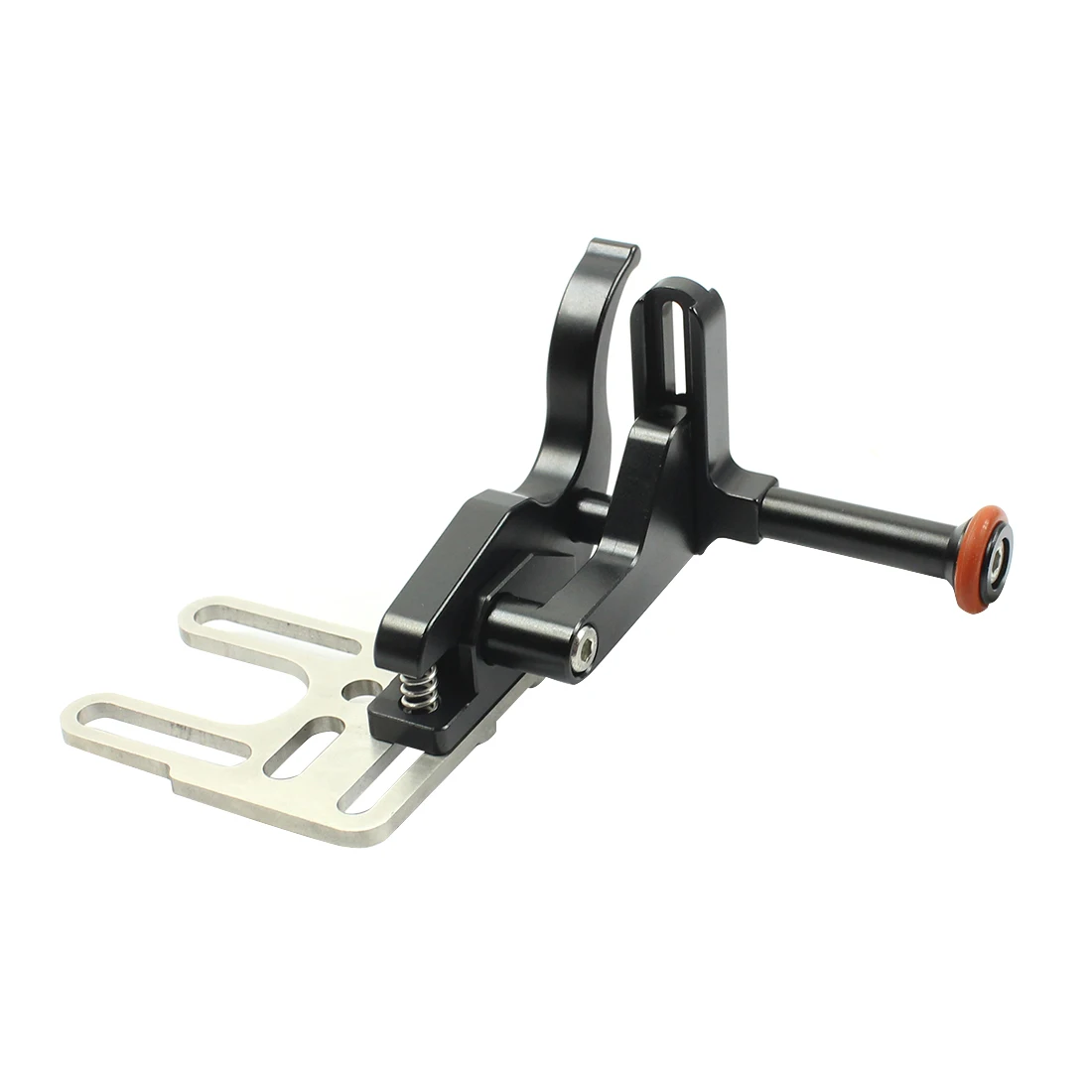

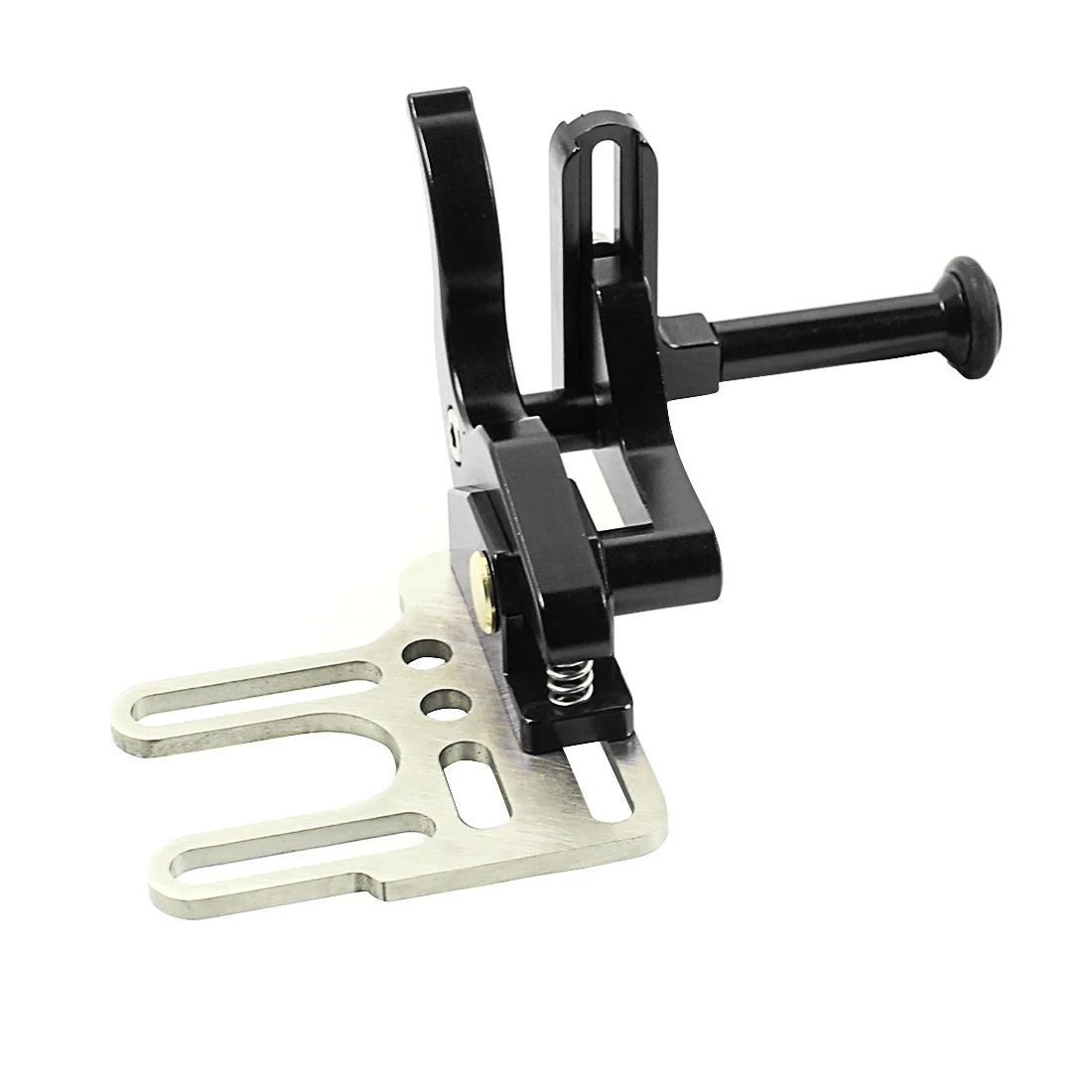

Adjustable Shutter Trigger Rod Diving Camera Stand Adapter for TG6 5 Sony RX100 SLR Camera Housing Extension Rod Underwater Tray

Brand: BGNing

Material: Aluminum alloy

Color: Black / Red / Mix

Processing technology: CNC machining / CNC

Aluminum alloy surface process: Anode blasting oxidation

Product size: 60 * 70 * 75mm

Product gross weight: 100g

Suitable for diving dual-handed / suitable for GOPRO all series / SJcam / Xiaoyi and other sports cameras, for Nikon for Canon Micro SLR and other waterproof cases.

Features:

1. All aluminum alloy material, strong and light, strong, corrosion resistance, stable performance;

2. New design, simple structure, easy assembly, stable connection, small size;

3. High-end anode sand blast oxidation, and different colors can be customized according to personal preference;

4. The principle of lever is used to realize the function of triggering the photography shutter without holding the handle, making triggering easier and saving time and effort.

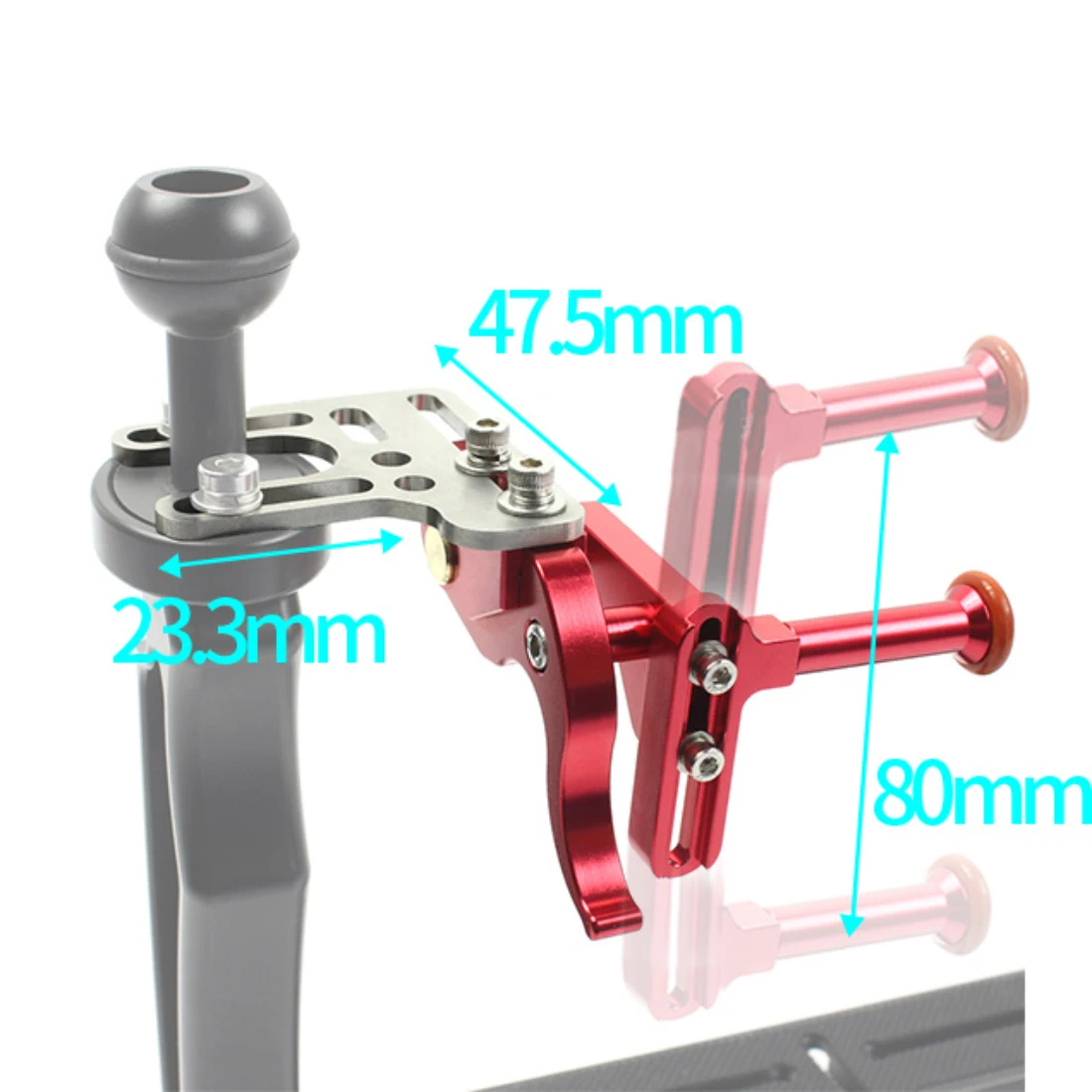

5. Maximize the use of space and maximize the length of all chutes, so that you can adjust the position back and forth, left and right, and up and down to meet different camera models.

6. The positions of the 1-A, 1-B, and 5-A sliding grooves on the fixing block ① and the connection block ③ and the sliding block ⑤ can be adjusted separately, so that the position of the accessories can be adjusted for reasonable installation.

Working principle:

1.Using the principle of lever, move the movable block ② the tail, the movable block ② is pushed down at the front end, because the movable block ② is equipped with a spring at the front end, the movable block ② will rebound, and the movable block ② movement drives the connection block ④ and the sliding plate ⑤, fixed Column ⑥ is in contact with the camera shutter button, thereby achieving the purpose of not directly pressing the shutter.

2. When in use, connect the fixing block ① to other accessories and fix it, then adjust the fixing block ① the left and right positions and then adjust the connection plate ③ the front and back position and finally adjust the sliding block ⑤ the up and down position to match the camera shutter position, which can meet Used by different models of cameras.

Note: We have our own factory, and we can customize LOGO and products with different colors. Please contact our customer service for details. Thank you.

Type A

Type B

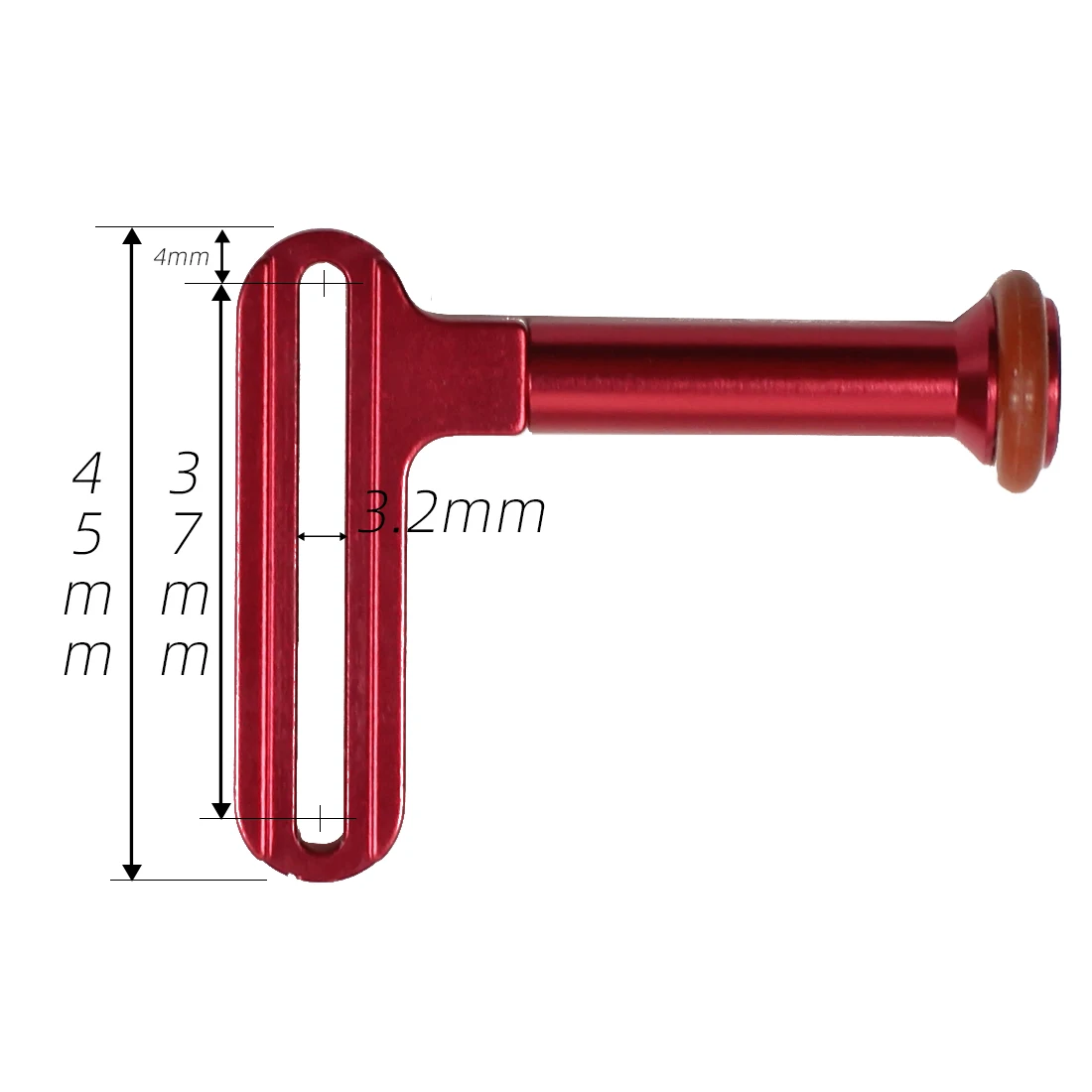

Product size: 15 * 70 * 60mm / 4.52 * 2.75 * 2.36”
Material: Aluminum alloy
Processing technology: CNC machining
Weight: 120g, plus box 170g
Color: black / red / blue
Surface treatment: anodizing

Scope of application:

This extended shutter trigger level is suitable for Meikon.

It is suitable for SEAFROGS non-reflective camera housings, such as A6000 series, RX100 series, A5000 series, suitable for Olympus camera housing TG4, TG5 and so on.

Features:
1. Shutter release trigger extends the adapter lever.
2. Made of aluminum alloy material, it is sturdy and durable.

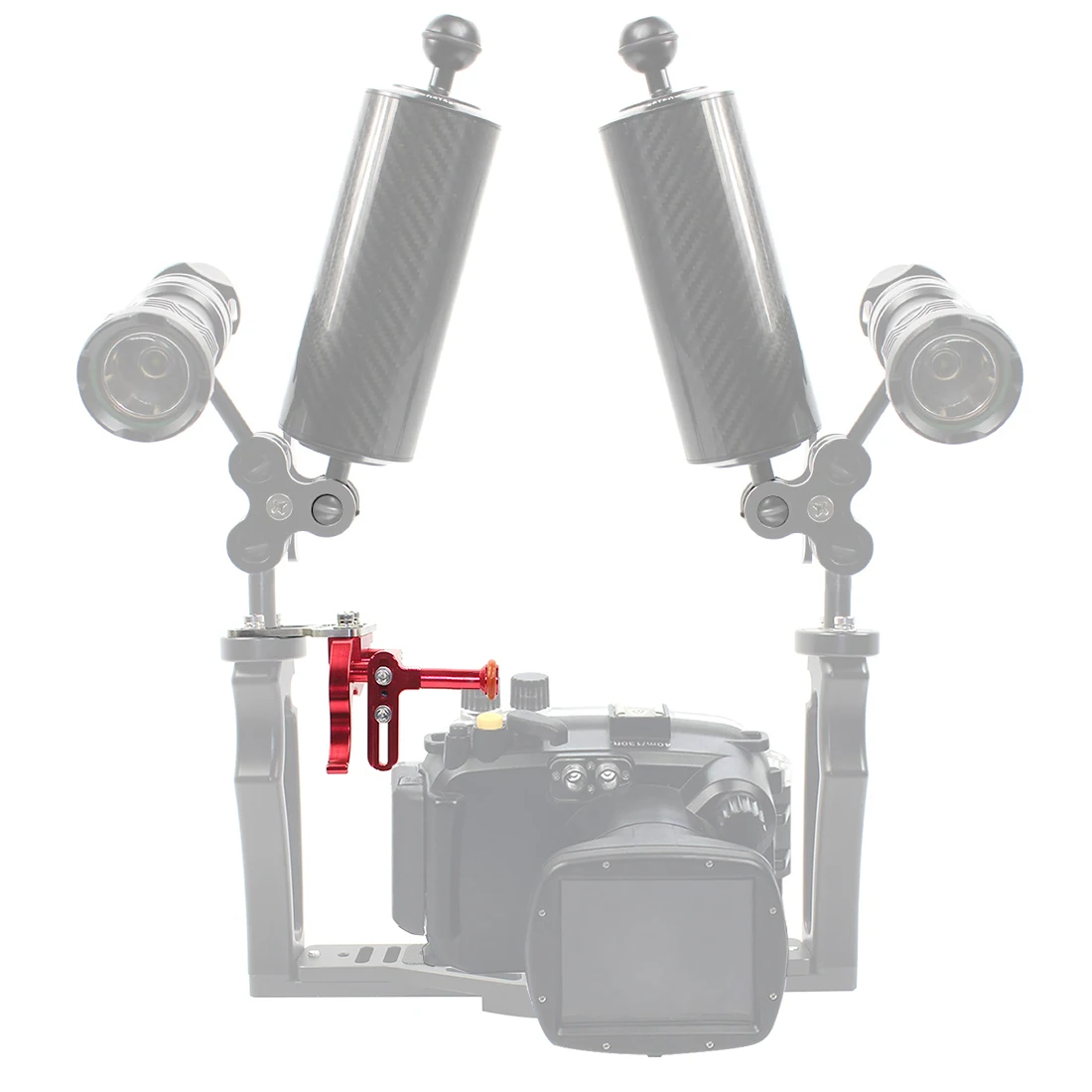

3. Install the underwater stabilizer tray and the waterproof camera of the diving camera.
4. It is more convenient to control your shooting, especially underwater photography.
5. Applicable to GoPro, Sony, Olympus, Canon, Nikon, Panansoic, Pentax and other cameras.
6. Size: 7.2 * 11 * 5.9 cm, weight: 118 g.

Packing list:
Shutter extension bracket x 1
Hexagon screwdriver and screw set x 1
