Tuya Smart Fingerprint No Punch Cam Lock Cabinet Lock Door Drawer Filing Cabinet Post Mail Box Furniture Locker Cupboard Locks

Tuya Smart Fingerprint No Punch Cam Lock Cabinet Lock Door Drawer Filing Cabinet Post Mail Box Furniture Locker Cupboard Locks

1.Add the lock

Search the lock in Tuya APP and press “Add” button, wait until it’s added successfully.

2.Unlock the lock:Press the unlock button below and slide it to the right side to unlock it.

3.Add fingerprint:Add user first,and then add fingerprint. You need to press the same finger several times for registration according to the message.

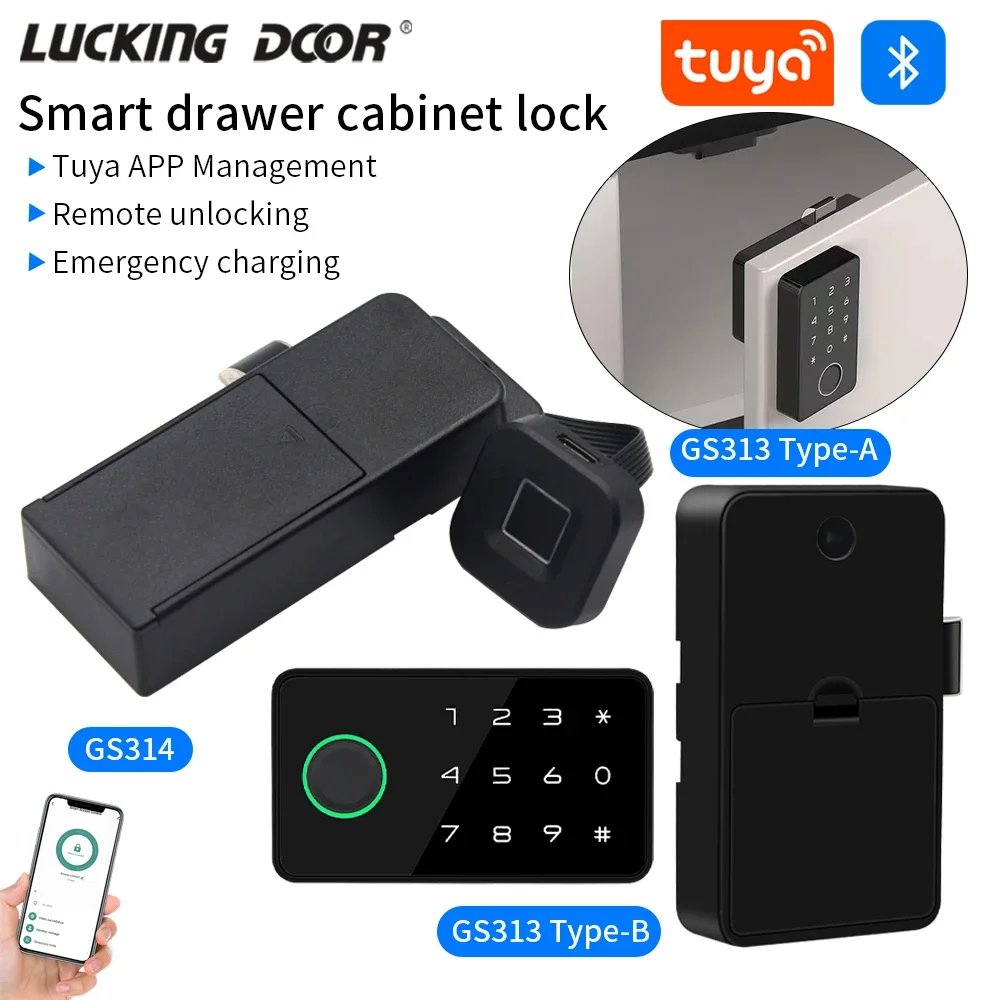

Parameter of GS313

Unlock method: Fingerprint,password,card,Tuya APP

Fingerprint sensor:Semi conductor

Recognitionspeed:<0.5s

Failure rate:<0.001%

Fingerprint capacity: 50

User capacity: 300

Card type: lC card

Working temperature:-25℃-65℃

Working humidity:5%-95%

Powersupply:AAA battery x4

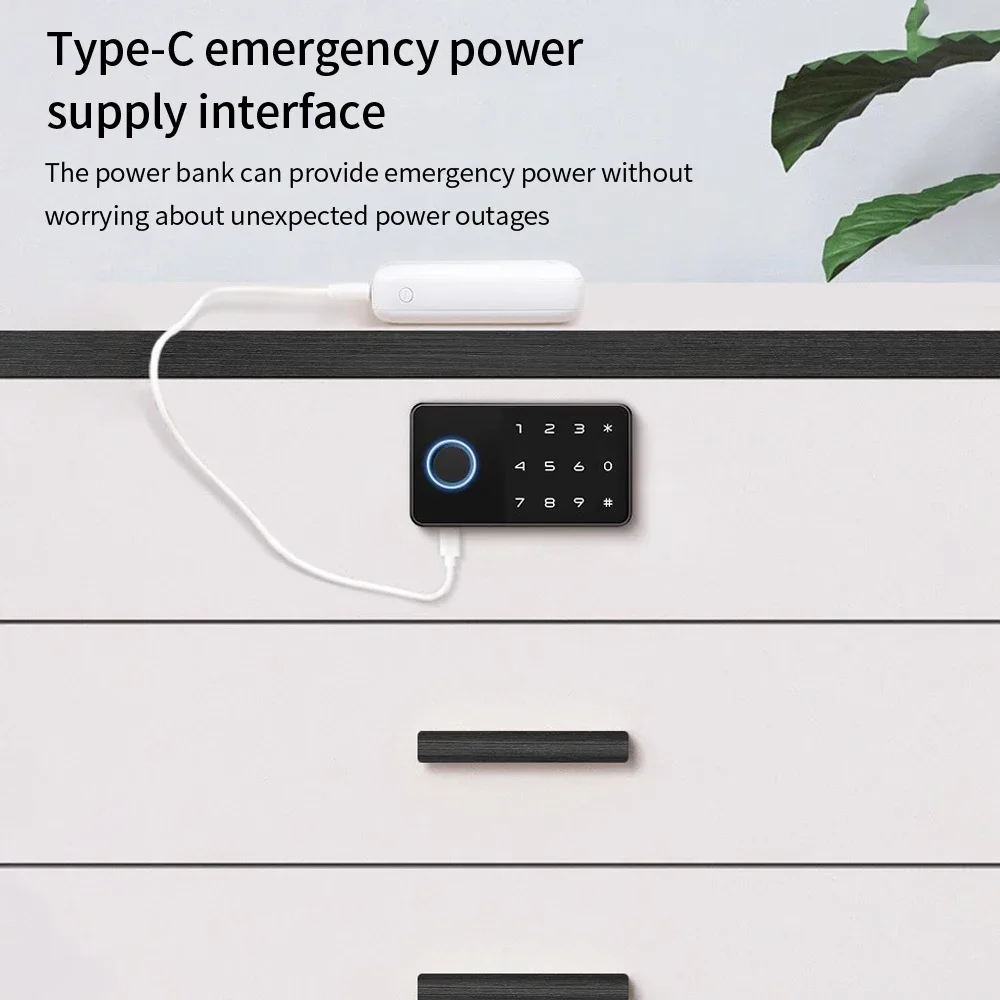

Emergency power: USB TYPE-C

Parameter of GS314

Power:1.5V AAA battery x3

Fingerprint:20

Pressing times:10

Sleep power:<80uA

Voltage:3.3-5V

Low power alert:<3.5V

Emergency power:USB TYPE-C

App: Tuya Bluetooth

Battery life:>3000 times use

Brief guide

At factory mode,any fingerprint can unlock it.After you connect the APP without registering any fingerprint, you can only unlock it by the APP.After you register your fingerprints,you can unlock it by APP and the registered fingerprints.

Fingerprint verification OK: Green LED blinks once.

Fingerprint verification failed: Red LED blinks once.

After successful verification,ifthe green LED blinks once and the red LED blinks 3 times, you need to change the battery.

Reset thelock

You may press the reset button with a pin through the pin hole for 8 seconds.Or after APP connection you may delete the lock from the APP.

APP connection

At factory mode, press the fingerprint sensor for more than 3 seconds until the light turns on.Now the lock is ready for APP connection.
