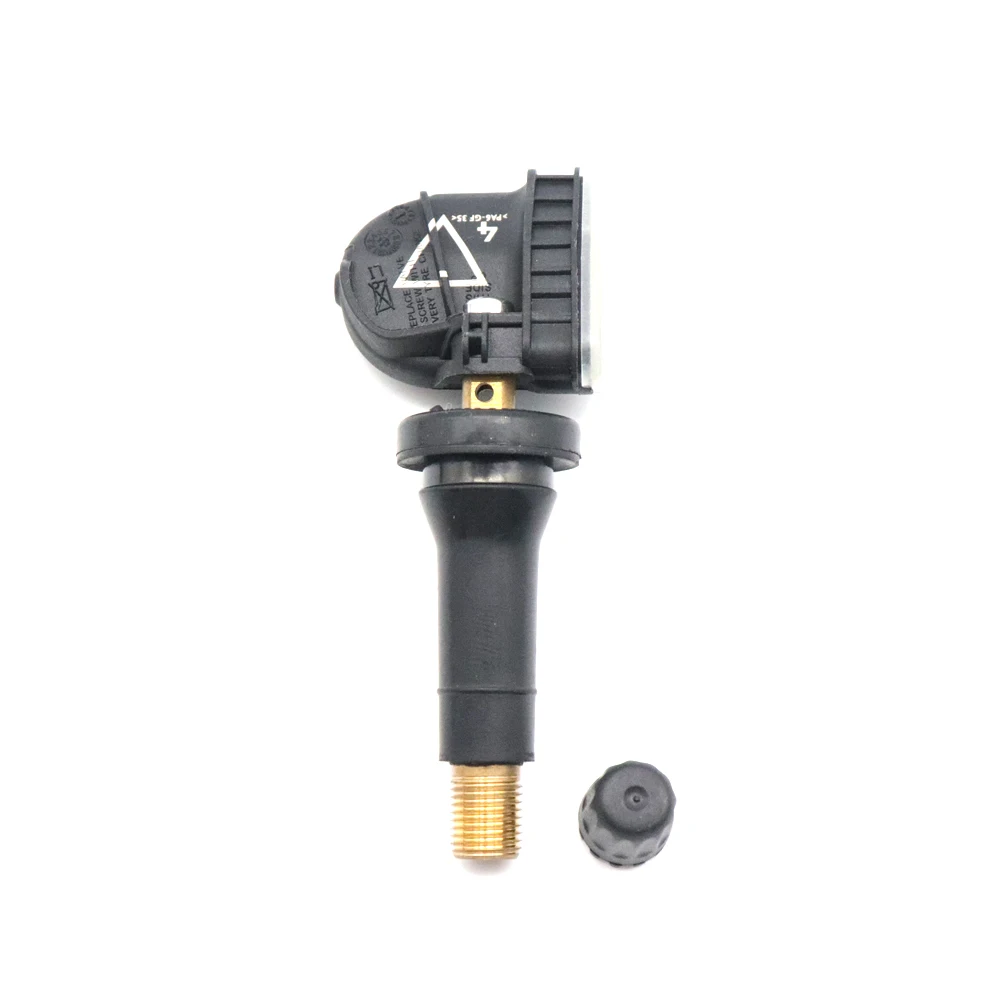

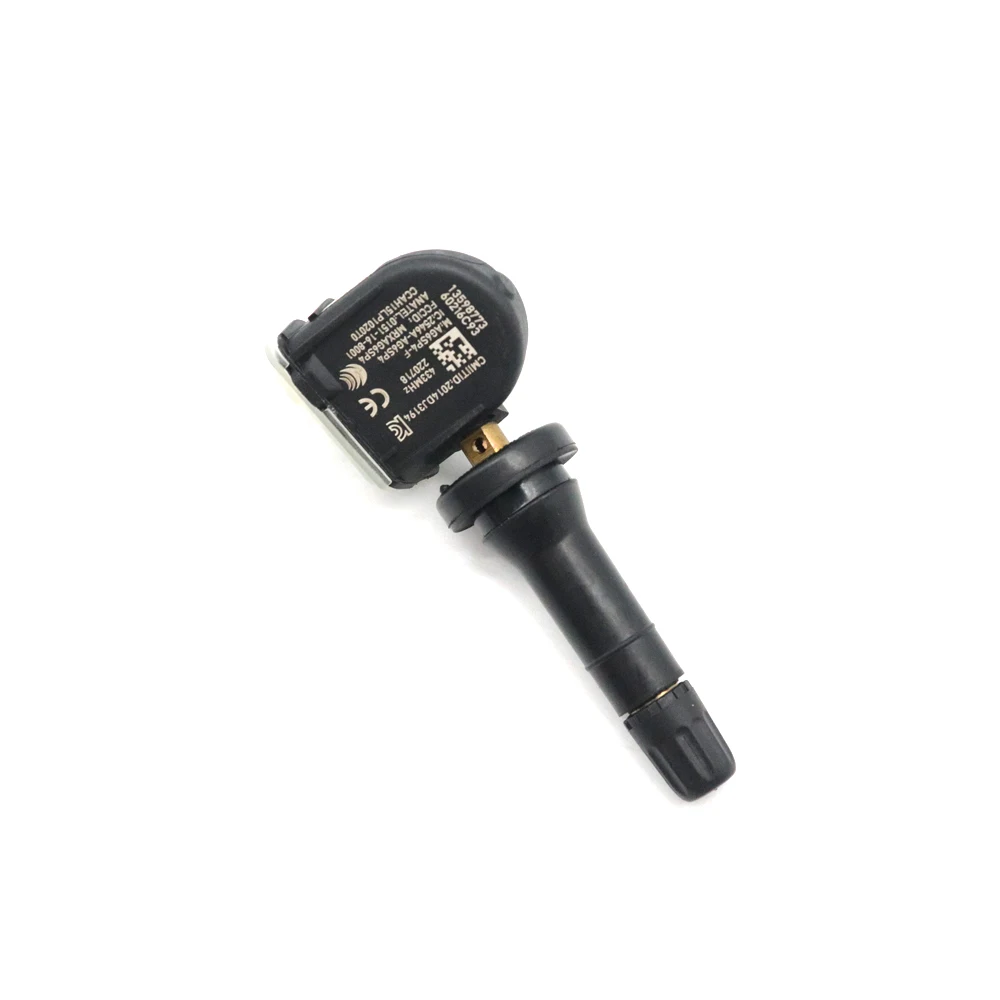

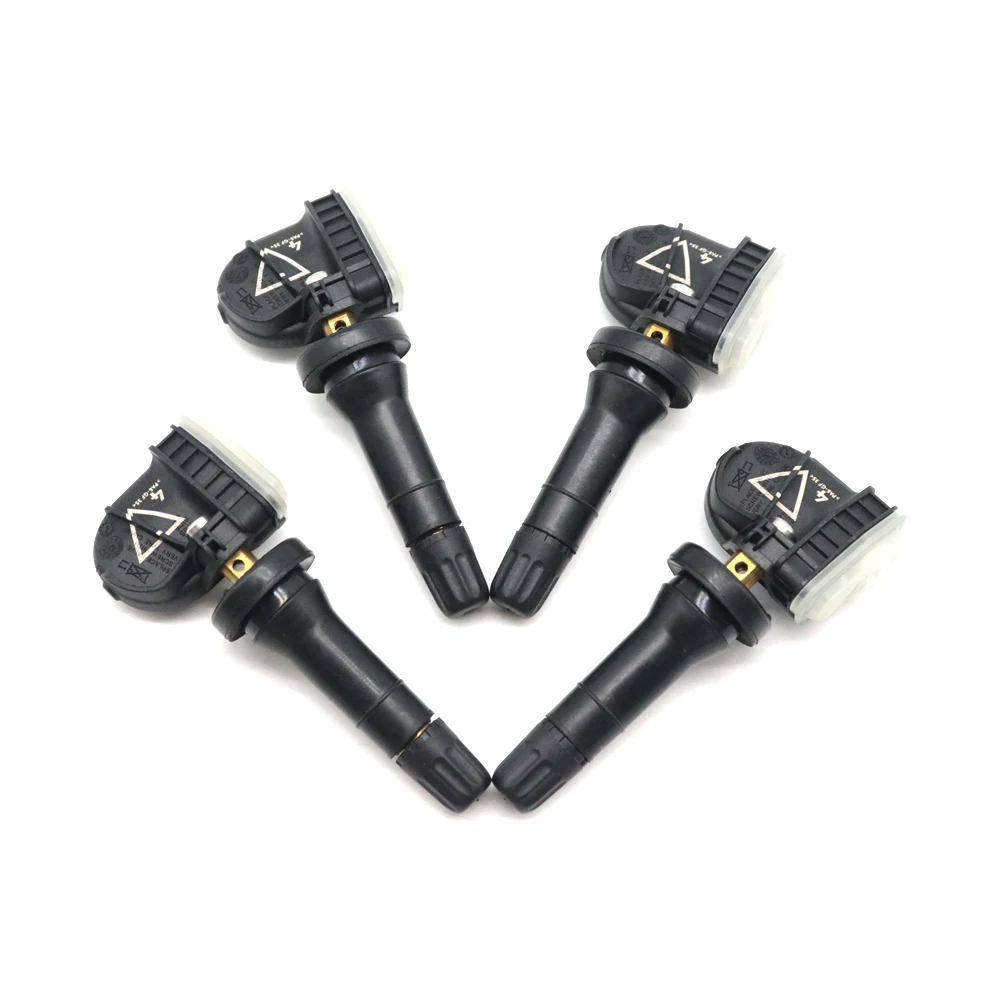

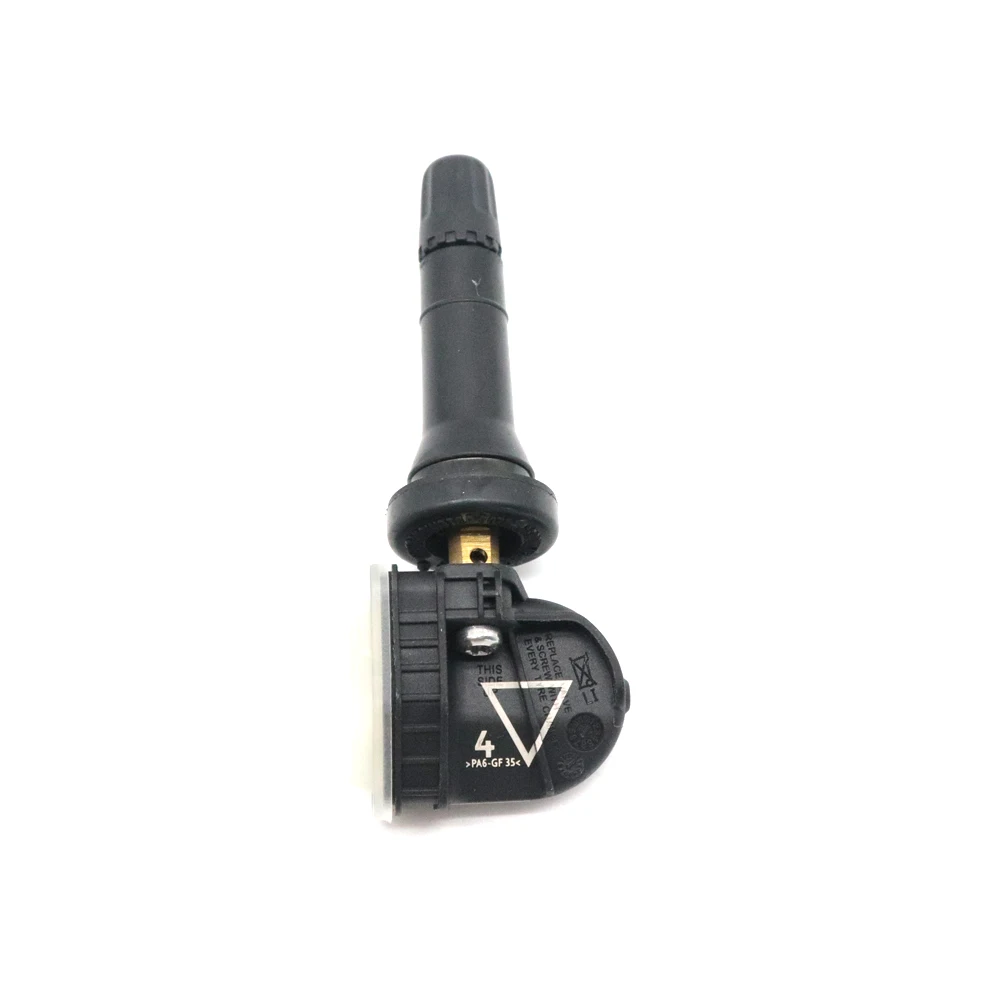

TPMS Tire Pressure Monitoring Sensor 13598773 For Opel Mokka (J-A) (from 2015-09 to 2019-12) 433 MHz 13589601 22853740 13522629

Note:

1. If you can not make sure which item fit for your car,please send the VIN CODE to us confirm it before order.

2.【No sensor programming Required】:

 The Tire Pressure Sensor is 100% new and come pre-programmed specifically for your make/model/year of vehicle,need activate them by scal tool or “re-learning“.

Simplified Relearn :OBDIIrequired

*Installation of TPMS is recommended to be performed only by trained professionals.

3.Installation Process

Ⅰ. Loosen the tire: Remove the valve cap and core and deflate the tire.

Ⅱ. Dismount the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.

Ⅲ. Dismount the sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.

Ⅳ. Mount sensor and valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.

Ⅴ. Mount the tire: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.
