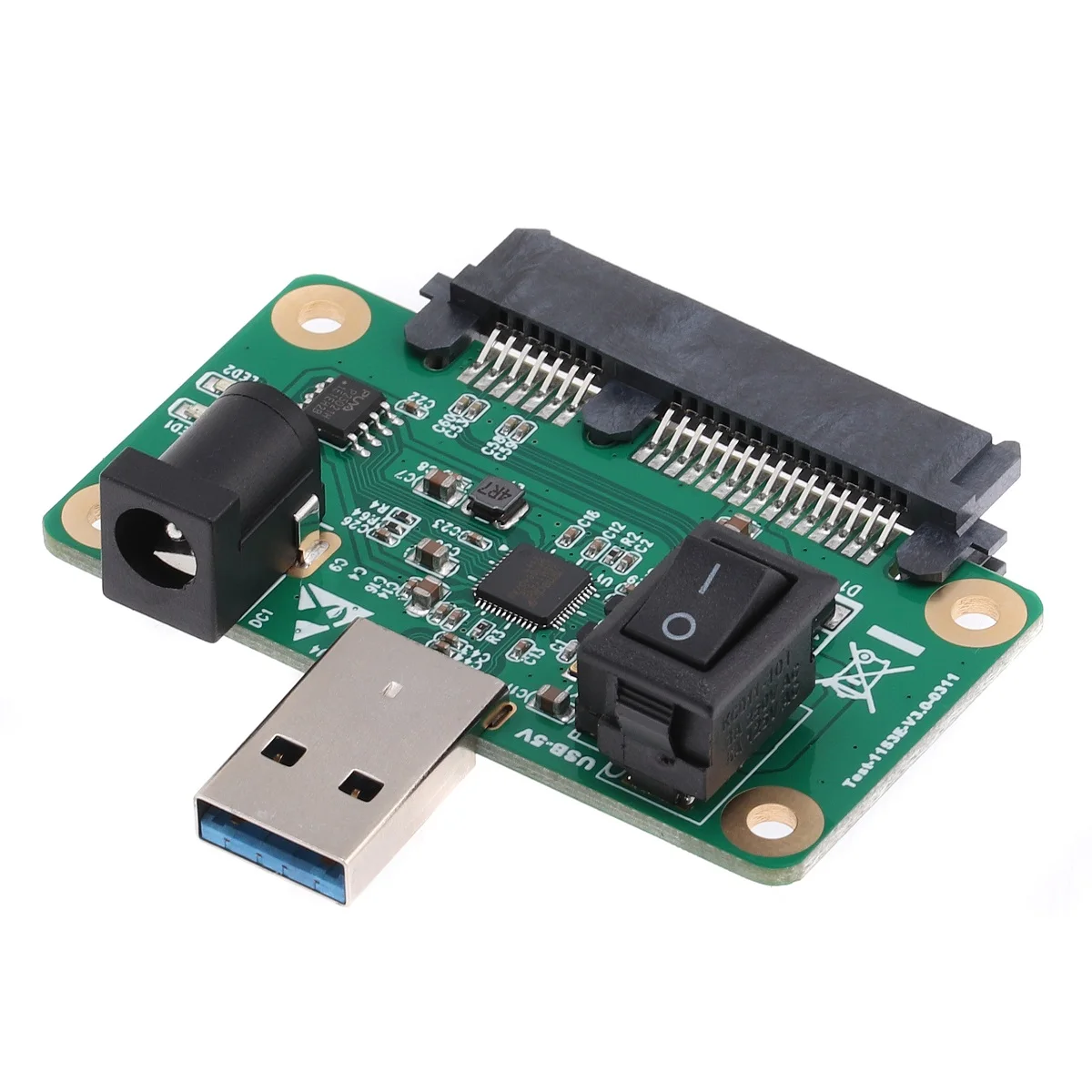

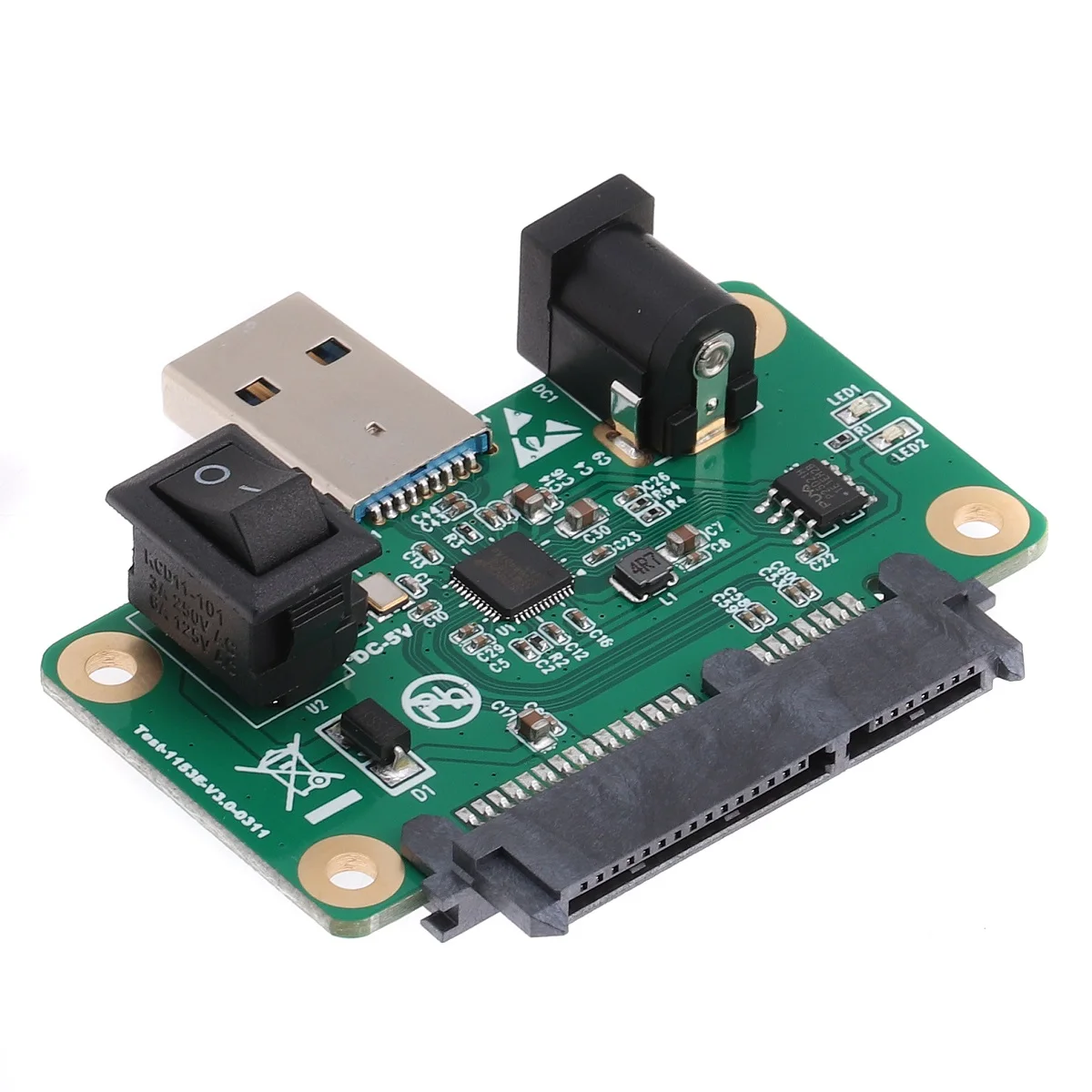

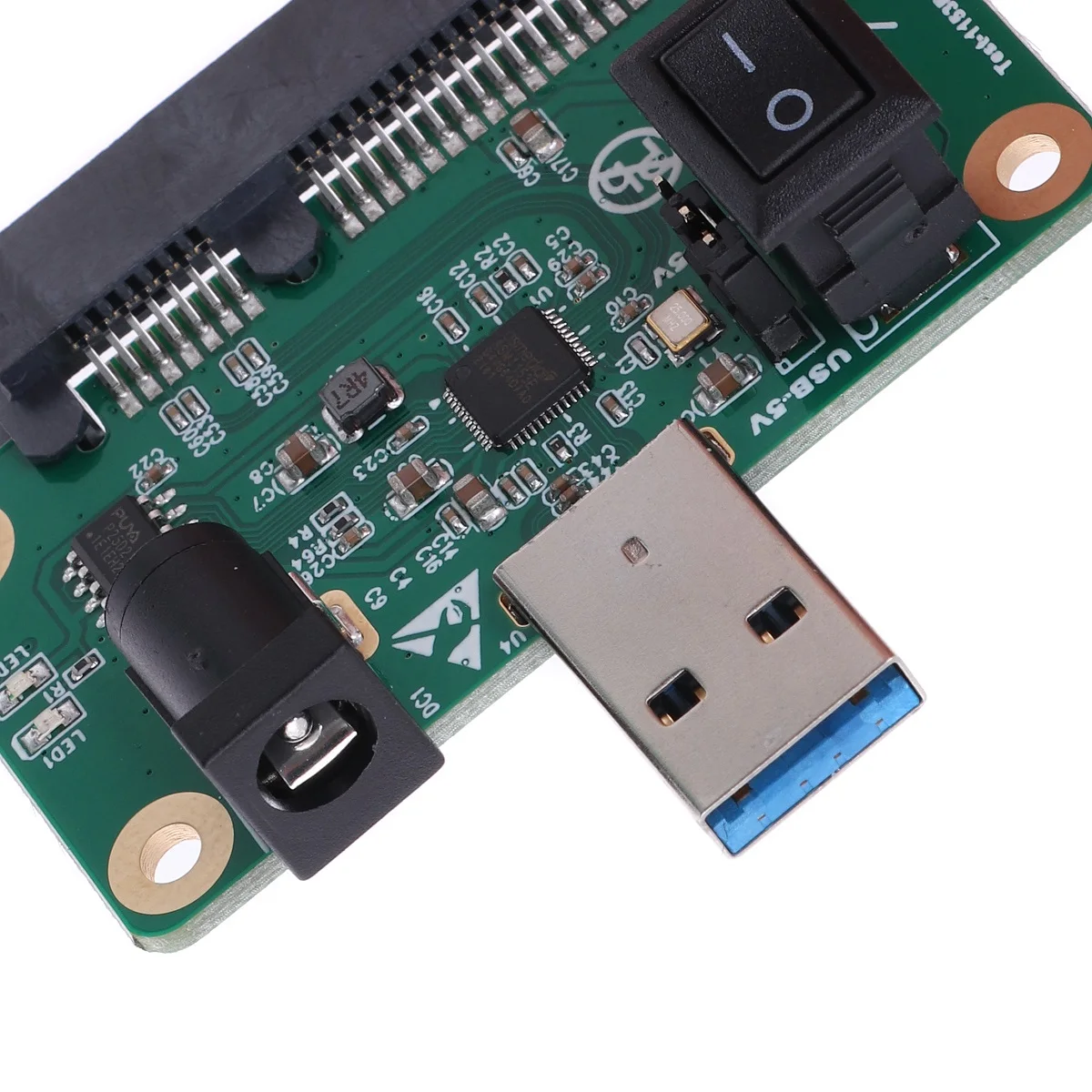

Product name: SATA to USB3.0 Converter board;
Product Model: UN2;
Main control IC: JMS578;
Power input: DC5V 500-1000MA;
USB interface: USB-A male;
SATA interface: 7+15pSATA+ power supply;
Product features:
The main control IC of this product adopts JMs578 high compatible chip produced by Jmicron Company. Product design has three LED indicators, so that the working status at a glance.
When the converter board is used on a computer or USB device, the DC power supply can be used when the power supply is insufficient. In general, no additional power supply is required.
The conversion card can be used as an SSD card opener, as well as reading and writing data from 2.5-inch SSDS or mechanical hard disks. It is a good tool for maintaining and upgrading SSDS.

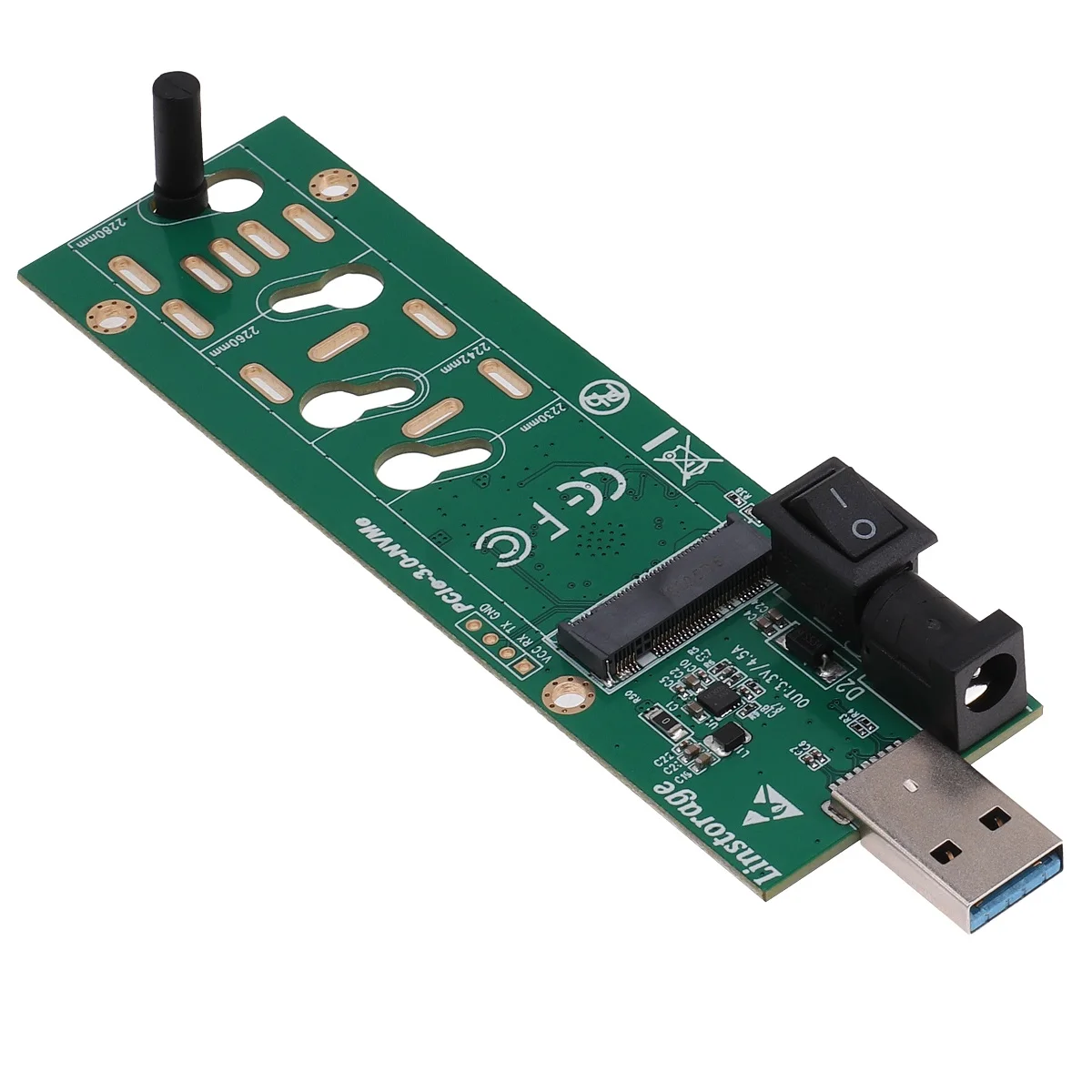

USB3.1 To NVME Converter,M.2 SSD to PORT A, USB disk board card opener
Product specifications
Name: USB3.1 to M.2 / NVME Converter Card Model:
UNI master chip: MS583
Product size: 1 17 * 34 * 17MM (size includes switch height)
Product features: Support NVM E. M. 2 computer external storage read and write
Transmission interface: USB3.1 / A port (10G/s)
Supported hard disks: NVMEE M. 2 Hard disks 2230/2242/2260/2280
Product warranty: one year warranty
Supported systems: IVlac, Linux, and WindowS

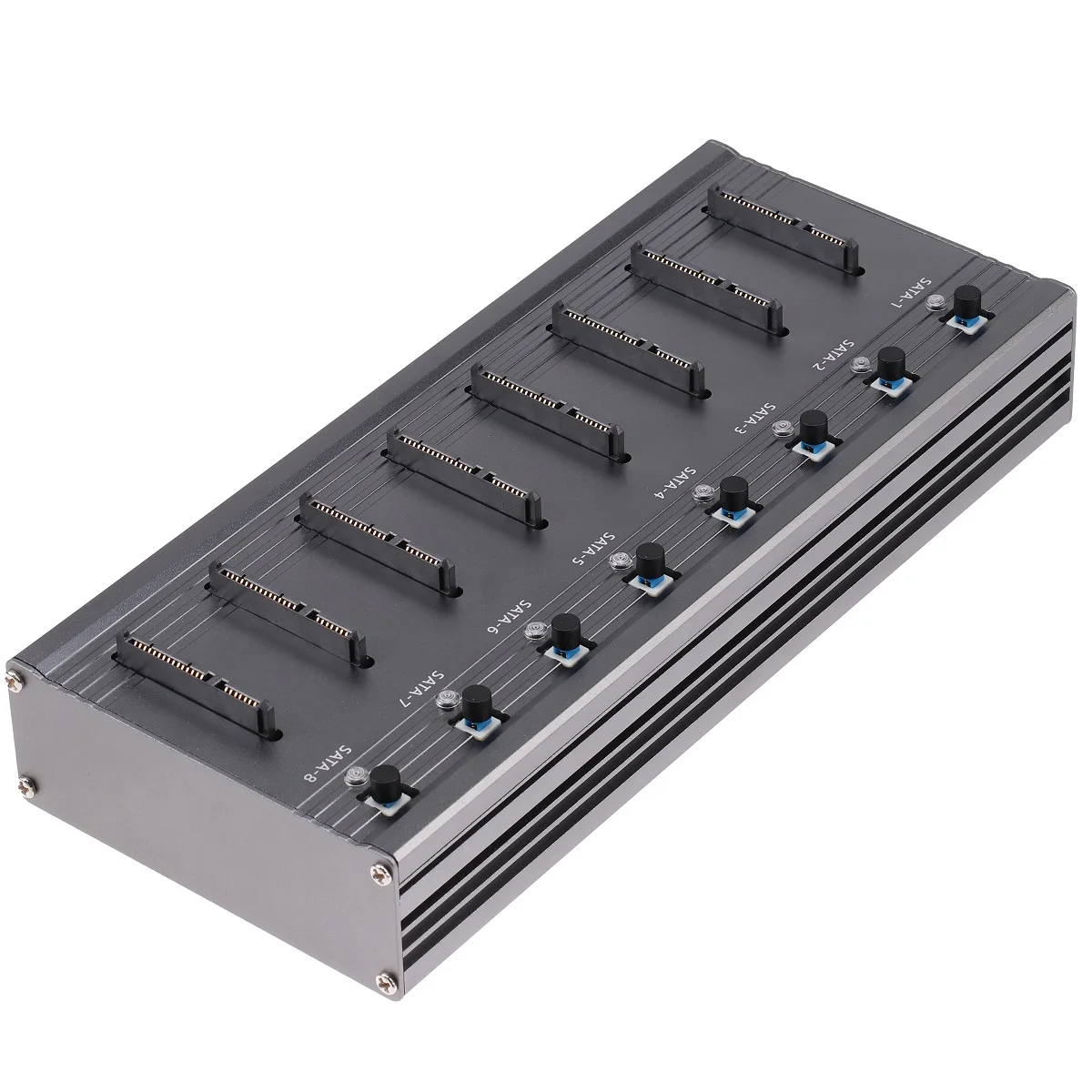

8 Ports SATA hard disk SSD card opener Batch test maintenance tool USB3.0
Main control chip: JMS578
Product size: 233*90.5*46MM (size includes SATA interface)
Product features: Hard disk seat/reader /SSD card opener tool
Transmission interface: USB3.0/B port (6G/S)
Hard disks: 2.5-inch SSD or hard drives
Product warranty: one year warranty
Supported operating systems: Mac, Linux, and Windows
SSD card opening tool
8 Ports SATA hard disk base
USB3.0 interface to 8 SATA 3.0 interface, IC using JMS578 chip solution, good compatibility, drive free, support hot swap, can be used for SSD batch card openers, is also a set of tools for maintenance and testing personnel
Supports 2.5-inch HDD or SSD. Hard disks can be used to read and write data
Can be used as SSD card opener
Mass production tools or repair tools
The product is equipped with USB data line, 12V power supply, each interface is equipped with independent power supply
