SMLIGHT SLZB-07/07p7/MG24/07p10 Zigbee 3.0 Smallest Thread/Matter USB Adapter Works With Zigbee2MQTT, Home Assistant, ZHA

WELCOME TO THE WORLD OF SMLIGHT SLZB-07, SLZB-07p7 and SLZB-07p10 – MOST ADVANCED AND POWERFUL USB ZIGBEE ADAPTERS

SLZB-07 also supports Matter-over-Thread and MultiPAN (simultaneous Zigbee+Thread) firmware!

WHAT IS SMLIGHT SLZB-07, SLZB-07p7 and SLZB-07p10 ZIGBEE ADAPTER?

SMLIGHT SLZB-07/07p7/07p10 are the USB devices that serve as a central bridge for managing communication in a Zigbee network. SLZB-07 can also serve a Matter-over-Thread network. The devices are designed specifically for Zigbee2MQTT and ZHA Home Assistant, ensuring smooth work out-of-the-box. These devices have the smallest size and reachest packing.

KEY SPECIFICATIONS FOR SLZB-07* SERIES ZIGBEE COORDINATORS:

✅ Options on different Zigbee SoCs: SLZB-07 on EFR32MG21, SLZB-07p7 on CC2652P7 and SLZB-07p10 on CC2674P10.

✅ Matter-over-Thread experimental: SLZB-07 has also experimental supports of Matter-over-Thread and MultiPAN firmware support.

✅ Pre-flashed and ready to use with Zigbee2MQTT and ZHA (plug-and-play).

✅ Zigbee firmware OTA update, autoBSL is enabled on all devices.

✅ Can cover multiple buildings with 2 or more coordinators and Zigbee2MQTT. You can install one SLZB-07 or SLZB-07p7 as Zigbee coordinator and SLZB-07 as the router.

✅ LED indicator for core activity.

✅ Small and tiny design, just 10x17x40mm.

✅ Rich packing: Zigbee Coordinator, +3dB antenna.

✅ Coordinator or Router Zigbee firmware (router firmware is availlable for SLZB-07 currently.

ZIGBEE SOC SPECIFICATIONS:

⭐ SLZB-07, based on EFR32 Zigbee chip with Cortex-M33 80Mhz, 96kB RAM – native for ZHA Home Assistant and works well with Zigbee2MQTT (Matter-over-Thread and MultiPAN support!);

⭐ SLZB-07p7, based on CC2652P7 Zigbee chip with Cortex-M4F 48Mhz, 153kB RAM, new for Zigbee2MQTT and for ZHA;

⭐ SLZB-07p10, based on CC2674P10 Zigbee chip with Cortex-M33 48Mhz, 256kB+8kB RAM, good for Zigbee2MQTT and for ZHA.

SLZB-07  Series Specifications:

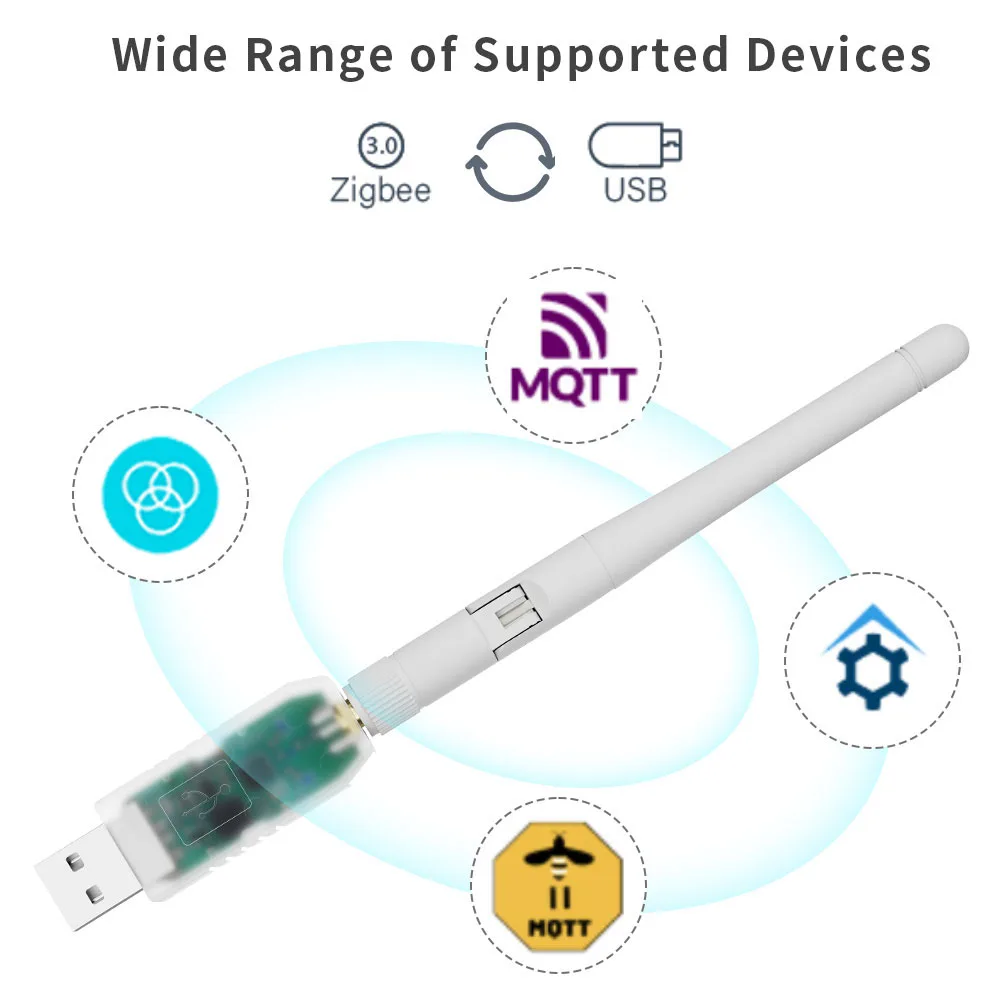

1. SLZB-07/07p7/07p10 are Zigbee to USB adapters, that come pre-flashed and ready to use. Can be used as a Zigbee 3.0 gateway in the open source automation platforms – Zigbee2MQTT, Home Assistant, ZHA.

2. SLZB-07 is Matter over Thread & MultiPAN ready.

3. Zigbee SoC EFR32MG21 features +20dB gain, +3dB antenna included.

4. SLZB-07 has Hardware flow control enabled, in future more reliable communication between USB/Serial and Zigbee chip.

5. Online flasher for firmware updates.

6. The adapter is shipped with firmware and ready to use, plug-and-play.

7. Small tiny design.

· Zigbee SoCs:

o SLZB-07: SoS model: EFR32MG21; MCU Core: ARM Cortex-M33; RAM (kB): 96kB; Core Frequency (MHz): 80; Zigbee Capable: Yes; 2.4 GHz Capable: Yes; Bluetooth Low Energy Capable: Yes; Thread Capable: Yes.

o SLZB-07p7: SoS model: CC2652P7; MCU Core: ARM Cortex-M4F; RAM (kB): 144kB+8kB; Core Frequency (MHz): 48; Zigbee Capable: Yes; 2.4 GHz Capable: Yes; Bluetooth Low Energy Capable: Yes; Thread Capable: Yes.

o SLZB-07p10: SoS model: CC2674P10; MCU Core: ARM Cortex-M33; RAM (kB): 256kB+8kB; Core Frequency (MHz): 48; Zigbee Capable: Yes; 2.4 GHz Capable: Yes; Bluetooth Low Energy Capable: Yes; Thread Capable: Yes.

· Connectivity:

o USB connection (USB 2.0 or 3.0 support)

o Zigbee 3.X support

o +3dB SMA antenna included

· Other

o USB port for data and power

o Power consumption: 5V/100mA via USB

o Dimensions – 17 x 10 x 44 mm

o Operating temperature: +5◦C – +45◦C

Note:

· SLZB-07, SLZB-07p7 and SLZB-07p10 are designed for work with Zigbee2MQTT or ZHA integration for Home Assistant.

· If you need Zigbee-to-Ethernet, please use SLZB-06, SLZB-06p7, SLZB-06p10 or SLZB-06M adapters.

🤝 QUESTIONS AND ANSWERS:

Q1: Do these coordinators work with Zigbee2MQTT and ZHA?
A1: Yes, all models work with both Zigbee2MQTT and ZHA.

Q2: Which adapter should I choose? SLZB-07 or SLZB-07p7 or SLZB-07p10??
A2: Basically, each of them can fulfill your needs and work as USB Zigbee adapter. However, there are some differences. SLZB-07p7 and SLZB-07p10 firmware does not have router mode. So if you are going to use these Zigbee USB adapters as routers – better to take SLZB-07, as it can have router firmware.

Q3: Can I connect multiple adapters to the same instance of Home Assistant?
A3: Yes, you can. But you need to run multiple instances of ZHA or Zigbee2MQTT. Moreover, with USB adapters run simultaneously as coordinator under one server, Zigbee can interference. We would suggest using network based adapters, like SLZB-06 series for multiple instances of Home Assistant/ZHA.
