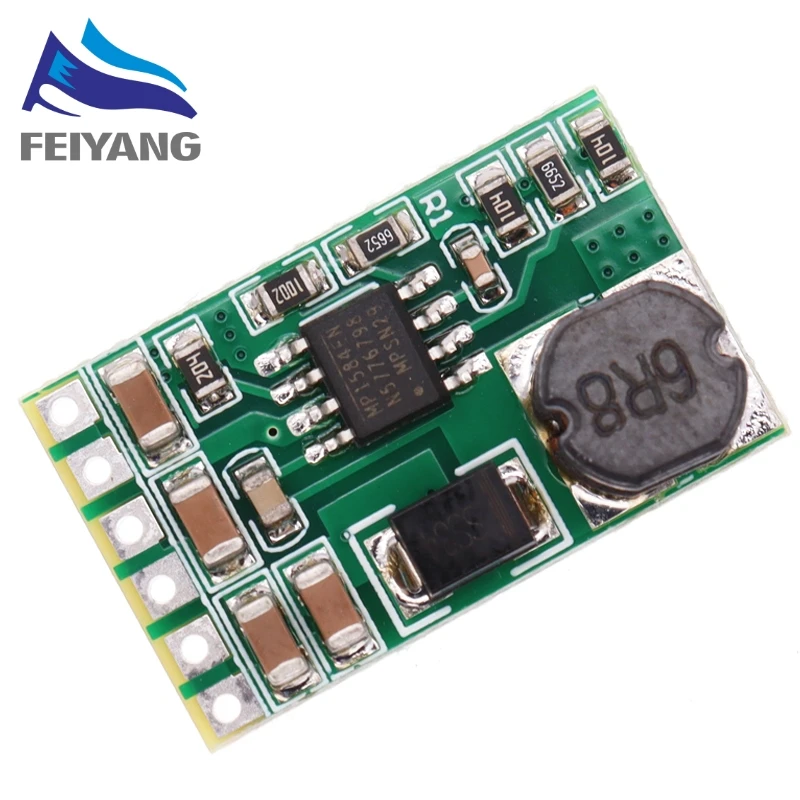

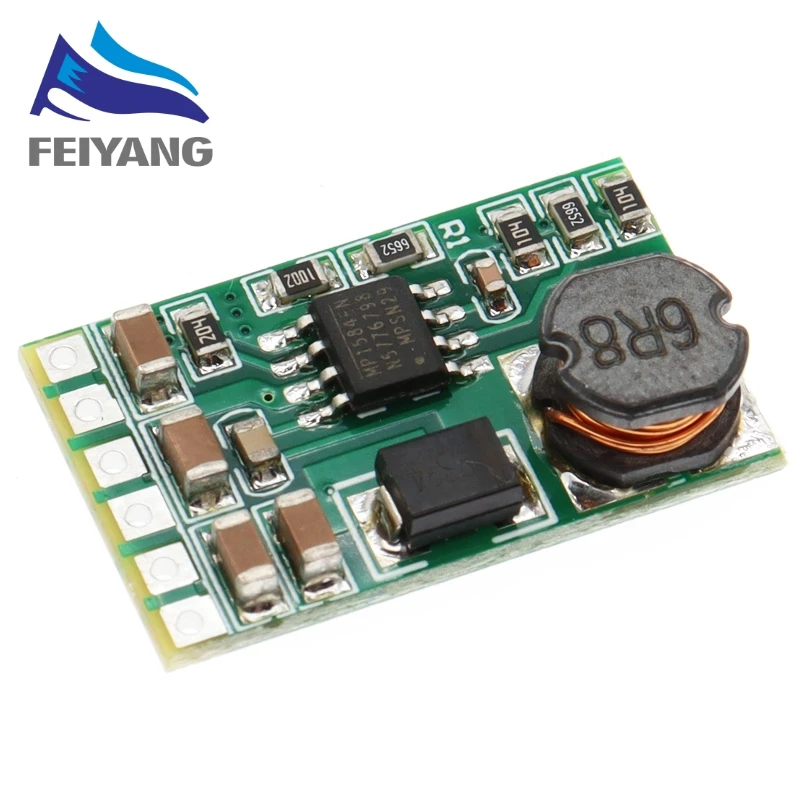

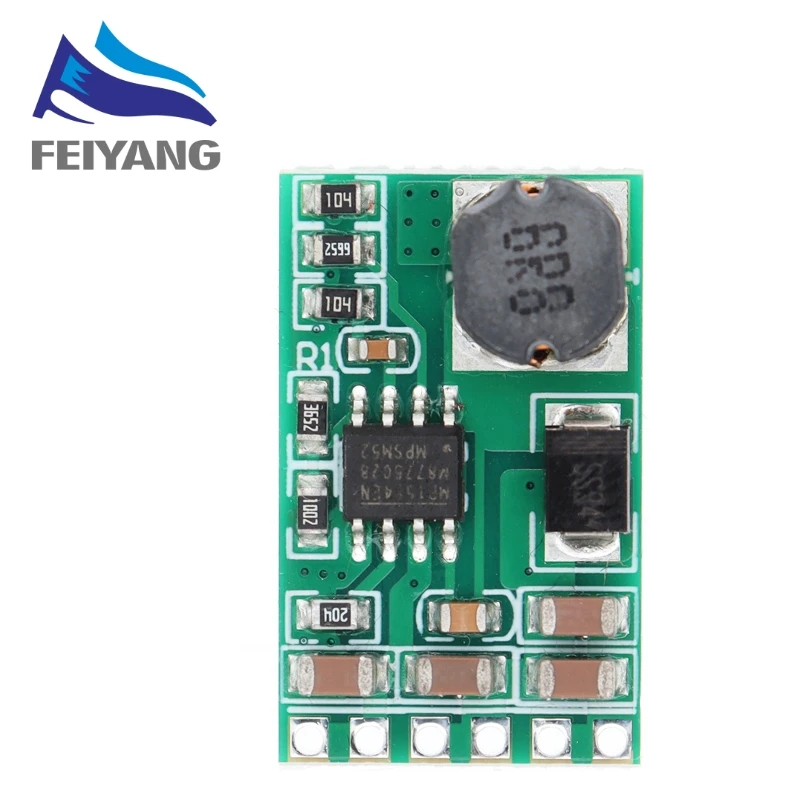

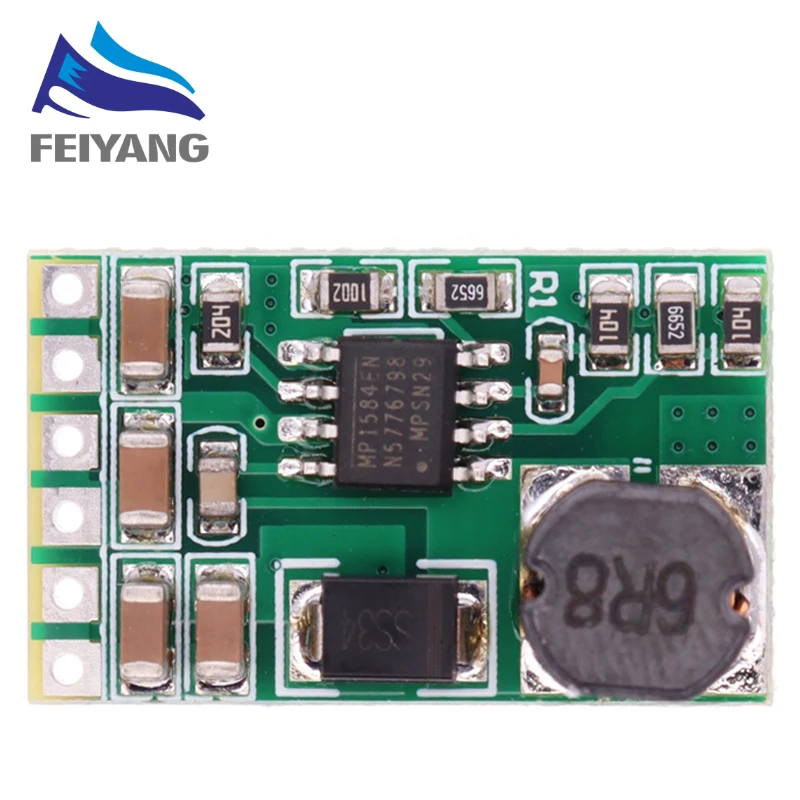

Description:

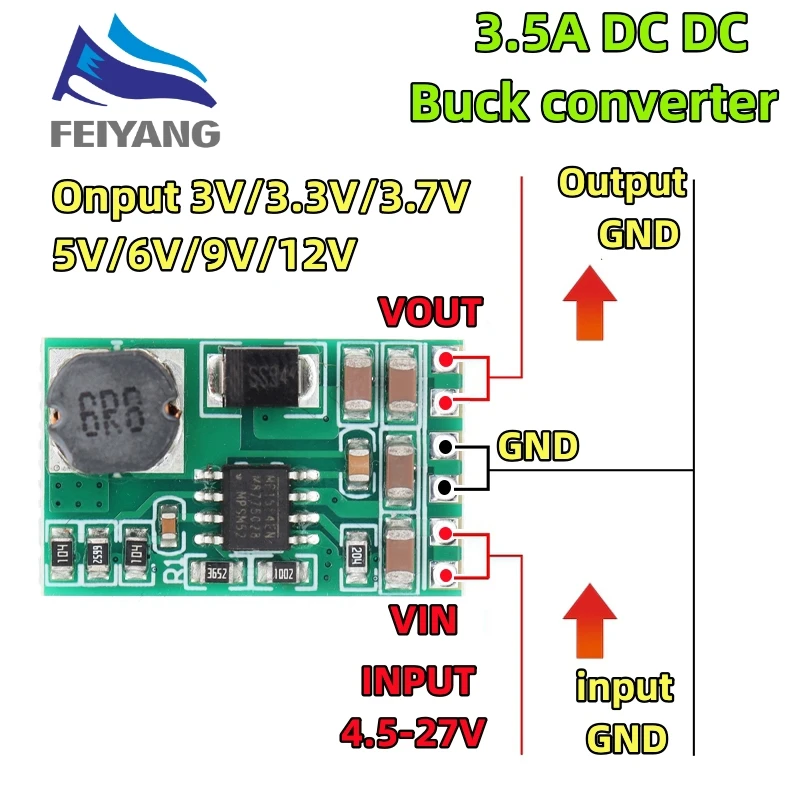

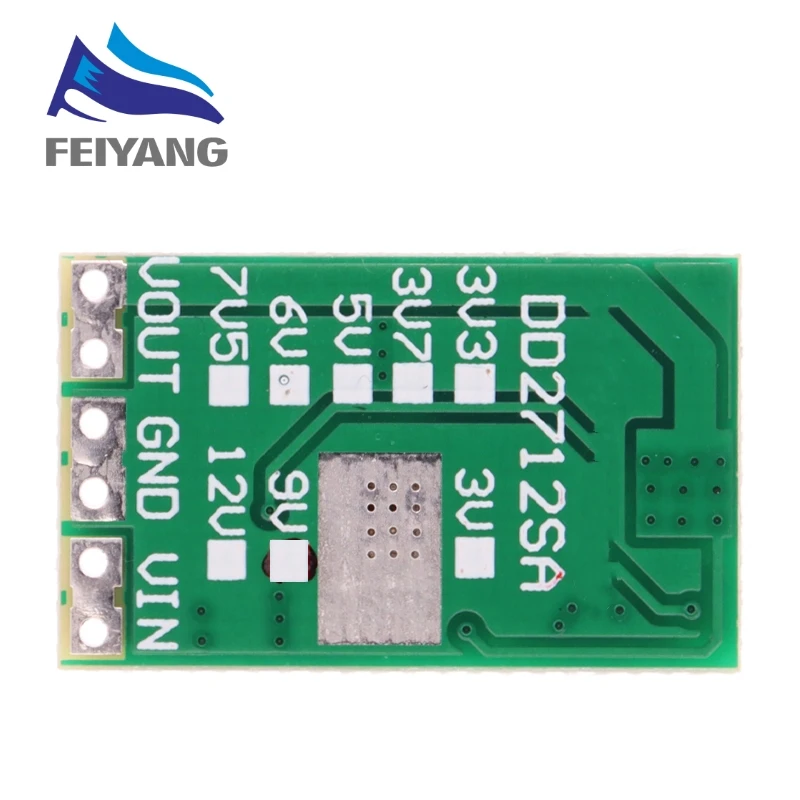

3V :
Input voltage 4.5~27V,output 3V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g
3.3V :
Input voltage 4.5~27V,output 3.3V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g
3.7V :
Input voltage 4.5~27V,output 3.7V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g
5V :
Input voltage 6.5~27V,output 5V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g
6V :
Input voltage 7.5~27V,output 6V
Maximum output current 2.5A,Short time maximum output current 3.3A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g
7.5V :
Input voltage 9~27V,output 7.5V
Maximum output current 2.5A,Short time maximum output current 3A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g
9V :
Input voltage 11~27V,output 9V
Maximum output current 2.3A,Short time maximum output current 3A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g
12V :
Input voltage 13~27V,output 12V
Maximum output current 2A,Short time maximum output current 3A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15 x 6.3mm
Weight : 2.4g
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Applications:
Motor Toy
WIFI Router Switch
Network equipment
Multimeter instrumentation
CCTVÂ camera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
FM radio
Battery powered equipment
Audio amplifier
