QXNY HD US License Plate Backup Camera Rear View Cam Mounted 170 Degree AHD 720P or 1080P Reverse Parking for Car Vehicle

Purchase Notice
► Video Signal Compatibility:The video signal must be compatible with your device. Common signals are AHD or CVBS (most in-car displays allow switching between CVBS and AHD modes).
►Connector Compatibility:Ensure the connector type matches your device (e.g., 4-PIN or RCA).
►This product outputs CVBS or AHD signal (switchable), with RCAconnector , with parking line on or off (switchable), power input: DC12V
►Signal Switching Guide:For displays requiring  signal: Factory Settings > Reversing (Image) Settings > Select signal

Note:

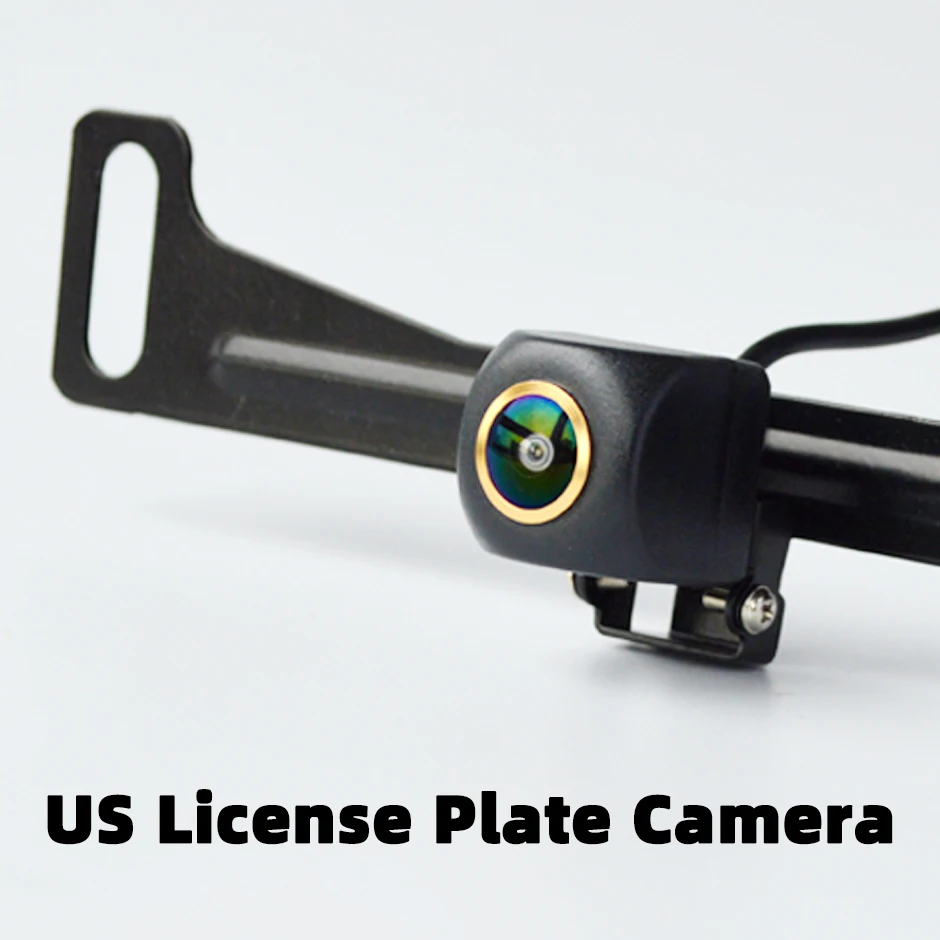

The product comes with 2 brackets, 1 is a universal bracket, and the other is suitable for US license plate frames



AHD Camera Feature :
 * Viewing angle: Real 170 Degrees Visible Range .
 * Signal format: NTSC
 * Image resolution: 200W pixels
 * Video output: AHD, CVBS signal switchable
 * Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
 * Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
 * Lens : 14/16MM Fisheye 6 glass Lens .
 * Low illumination: 0.01Lux
 * Signal to noise ratio: ≥69dB
 * Working power supply: DC12V/2A
 * Working temperature: -45 °C ~ +70°C
 * Maximum power: 3W

Package includes:

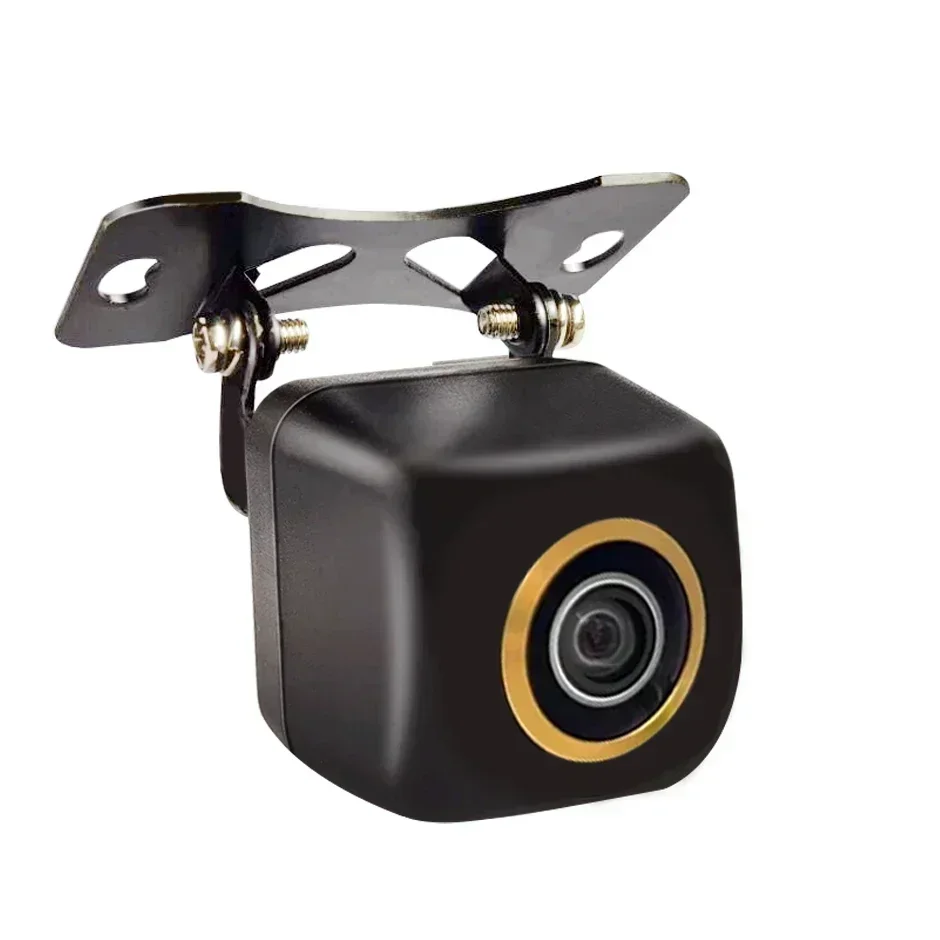

1 x Rear View Camera

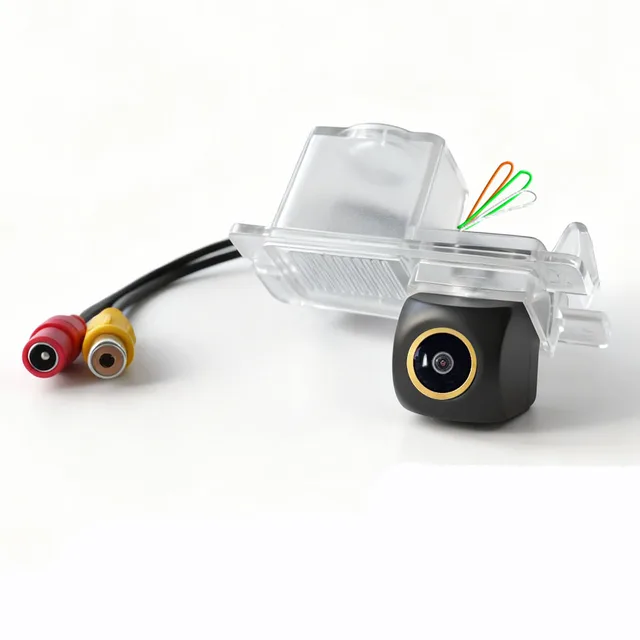

1 x 6m Video Cable
1 x 1m Power Cable
2xbrackets (1 of which is mounted on the camera)

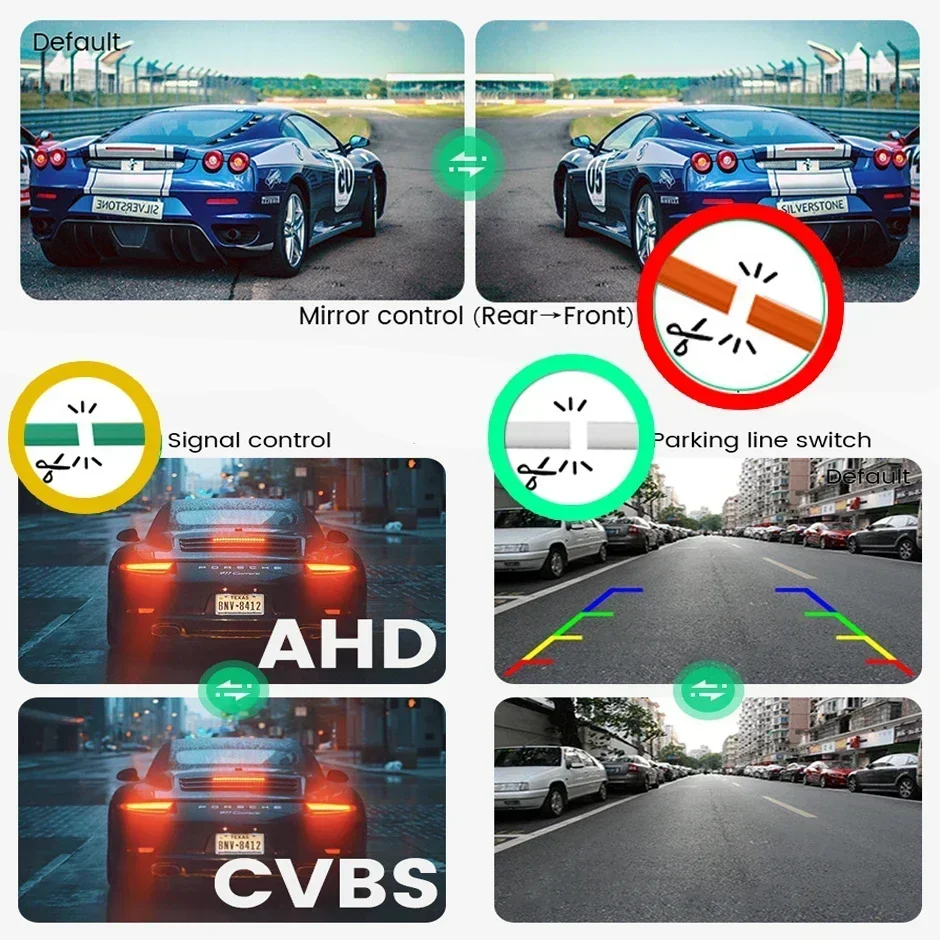

（Cut）Cable Control Functions:
► Green Cable: AHD/CVBS signal switching
► White Cable: Parking line on/off
► Orange Cable: Image flip function

Starlight Night Vision Technology:
Empowers cameras to capture high-definition color imaging in near-darkness (0.001 lux). Maintains clear visibility of critical details like vehicles, streetlights, and environmental features even under ultra-low illumination, eliminating traditional monochrome night vision limitations.
Key Advantages:
►Full-color imaging in extreme low-light conditions
►Enhanced object recognition
►0.001 lux minimum illumination threshold

AHD Technical Highlights:
►HD real-time transmission (25fps@1080P/720P)
►500m coaxial cable transmission range
►Seamless integration with legacy analog systems
►<1ms latency for mission-critical monitoring

Q1: No Signal/Black Screen Detection
Symptoms:
“No Signal” alert
Persistent black screen
Troubleshooting Protocol:
► Power Verification
Confirm 12V DC power delivery to camera (test with multimeter at B+ terminal)
Bypass vehicle wiring: Connect directly to battery terminals for bench test
► Signal Source Validation
Check display input mode: Disconnect green control wire to force CVBS mode
Cycle power after signal switching (AHD↔CVBS transition requires reboot)
► Legacy System Check
Test CVBS compatibility: Connect to TV’s RCA input (NTSC standard verification)

Q2: Monochrome Display Issue
Observed Behavior:
Loss of color rendering
Grayscale imaging
Diagnostic Procedure:
► Signal Standard Alignment
PAL/NTSC mismatch resolution:
AHD 1080P cameras: Set to PAL (50Hz)
CVBS analog cameras: Configure NTSC (60Hz)
