This product can be switched between the AHD and CVBS signals, The parking line can be displayed or hidden. The product is CRA connector, DC12V.
For Volkswagen:
Golf Passat B7 B5 Variant B6 Polo Tiguan T5 Jetta MK6 Caddy Touran Touareg Sharan
For Audi:
Audi A3 A4 B8 A6 C7 B6 Q3 Q5 Q7 Sportback A5 A4L A6L A8L S5 S3 RS6
For Porsche Cayenne
(These car model is for reference only, if your car model does not appear above, you can contact us and we will tell you which camera can fit your car)
1: Video signals must match: There are generally two types of video signals output by cameras, AHD or CVBS, and your device must match it to display it normally. Now, car DVD, Android display, car navigation and other devices can support receiving CVBS or AHD signals at the same time.
2: Connectors must match: There are 4-PIN, RCA and other connectors, please pay attention to whether they match.
Tips, About AHD Style: Adjustment to AHD signal via monitor settings is required before mounting the camera
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD
These car models are for reference only. Please check the size of your originals Trunk handle before purchasing and then choose the suitable model.Provide 2 options, the appearance is the same, the pixels are 720P/1080P respectively

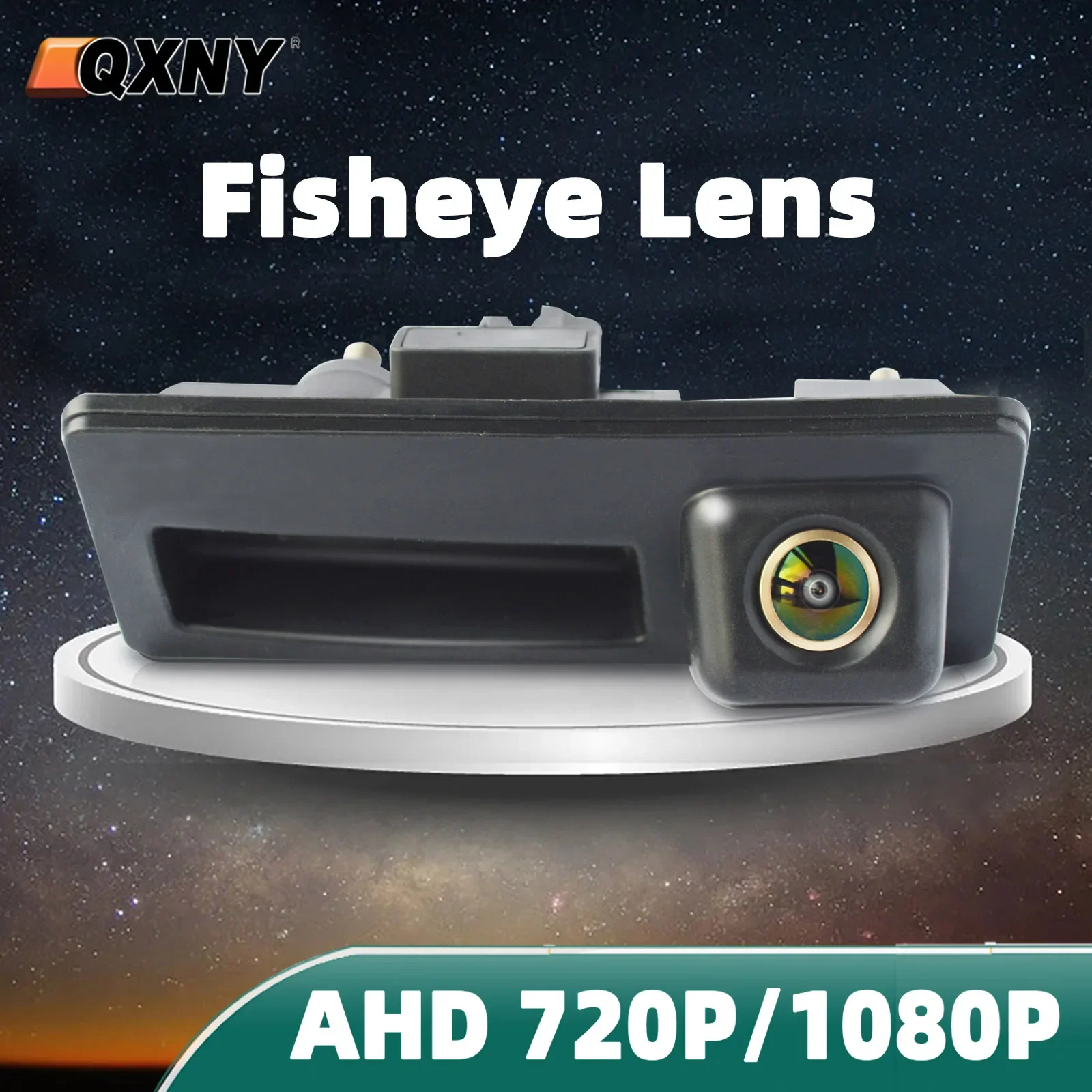

Analog High Definition Technologie
170° Wide Angle
Top Starlight Night Vision
Starlight night vision function allows the camera to be used properly even at night.
Support Waterproof
The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions
Integrated Step-down Module
Support DC12V
Low power consumption, cable never hot, reduce fire risk.
If your monitor don’t support AHD signal, please cut the Green wire and change to CVBS signal.
If you don’t need camera parking line, please cut the green wire.
Â
Â
Tips: If the monitor is android dvd or stereo radio, you need 6m cable red trigger wire “A” and “B”:
“A” connect reverse lights power DC 12V+.
“B” connect to radio trigger wire.
FAQ:
How to choose a rear view camera that can be suitable for my car model?
A) According to the main car model, search in the shop, there will be several type of cameras, and then buy according to your actual original license plate/ handle.
B) Or you can measure your size and consult customer service to confirm the camera model.
Tip: because there may be slight differences between cars produced in different countries, please check the size before buying.
For quality problems, please contact QXNY customer service and provide relevant videos or pictures, we will deal with buyer problems within 24 hours.
