Automotive Gasoline Compression Tester Product Description

Features

• Widely compatible with most gasoline-powered vehicles (cars & motorcycles), equipped with multi-size adapters and dual-type pipes to fit different engine models
• Copper nickel-plated drain valve: Excellent anti-oxidation and corrosion resistance, ensuring long-term stable use
• Dual-unit pressure gauge (0-300psi / 0-20bar) with quick coupling and pressure release button for fast and accurate readings

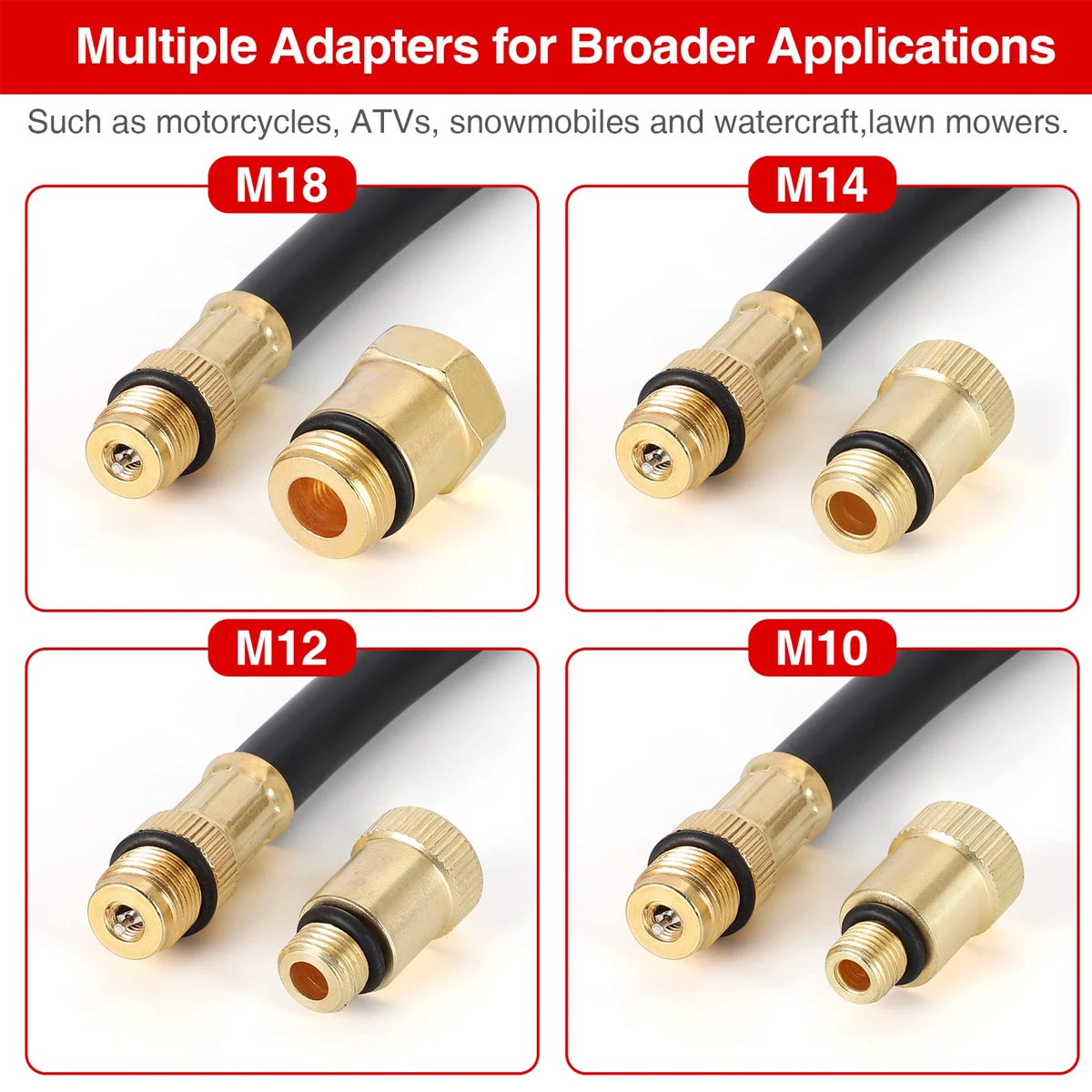

• Complete adapter set: M10*1.0mm (for motorcycles), M12*1.25mm / M14*1.25mm / M18*1.5mm (for motor vehicles)
• Two types of test pipes (crankshaft type & transverse axis type), both with rubber cone caps for universal engine compression testing
• Easy-to-read instrument panel with dual units (0-300 psi, 0-21 kg/cm²); Acrylic glass gauge cover with anti-scratch coating and rubber protective cover for superior shock absorption
• Multi-type adapters (straight, curved, male fittings) enhance compatibility with various vehicle models; All components are stored in an ABS carrying case for easy organization and transportation
• Accurately detects issues with valves, piston rings, cylinder bores, or head gaskets

Specifications

• Case Color: Red
• Material: Copper
• Dual Gauge Readings: 0-300psi, 0-20bar (1bar=100kPa)
• Test Units: bar, psi
• Special Function: Accurate component performance detection (valve, piston ring, etc.)

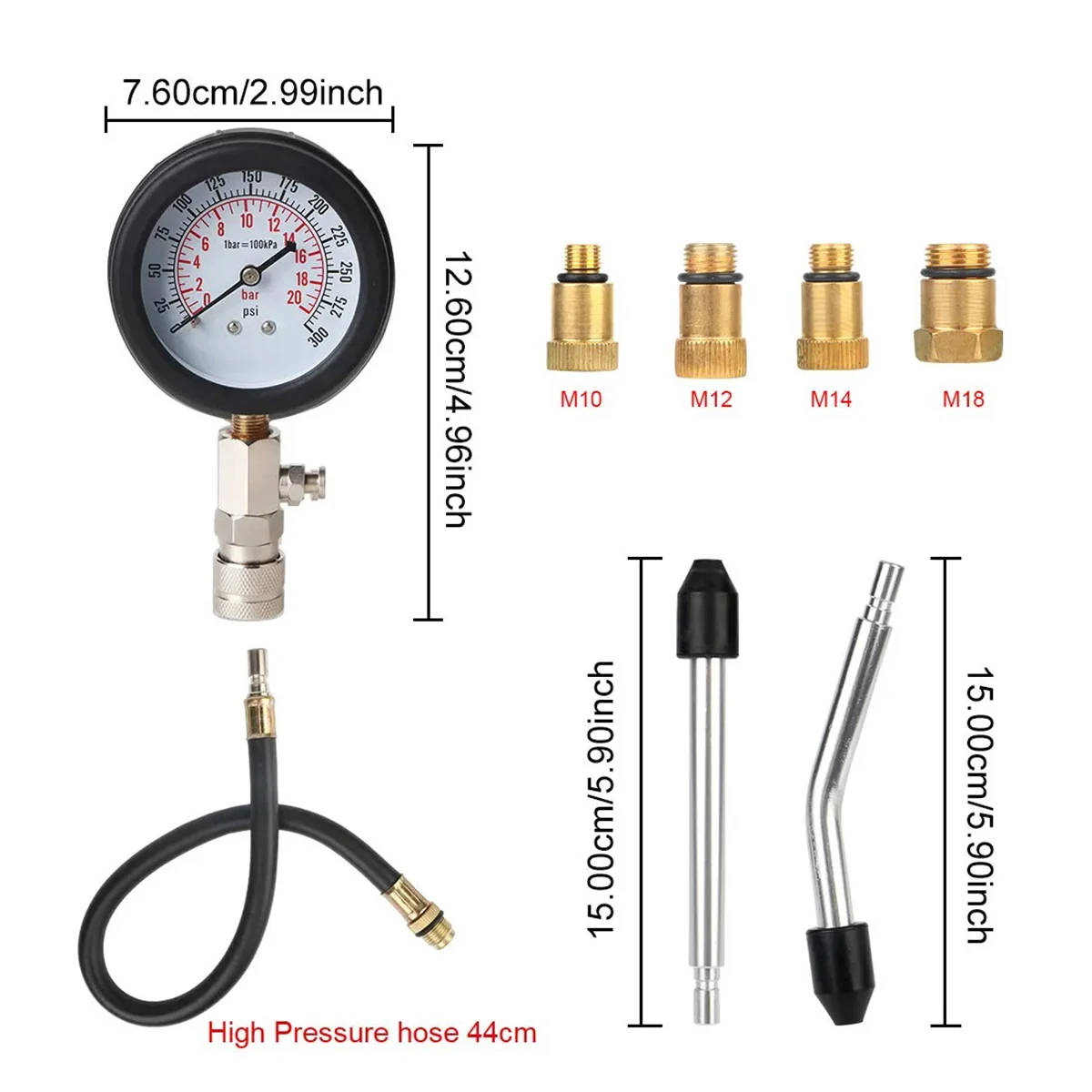

• Adapter Thread Sizes: M10 x 1.0mm, M12 x 1.25mm, M14 x 1.25mm, M18 x 1.5mm

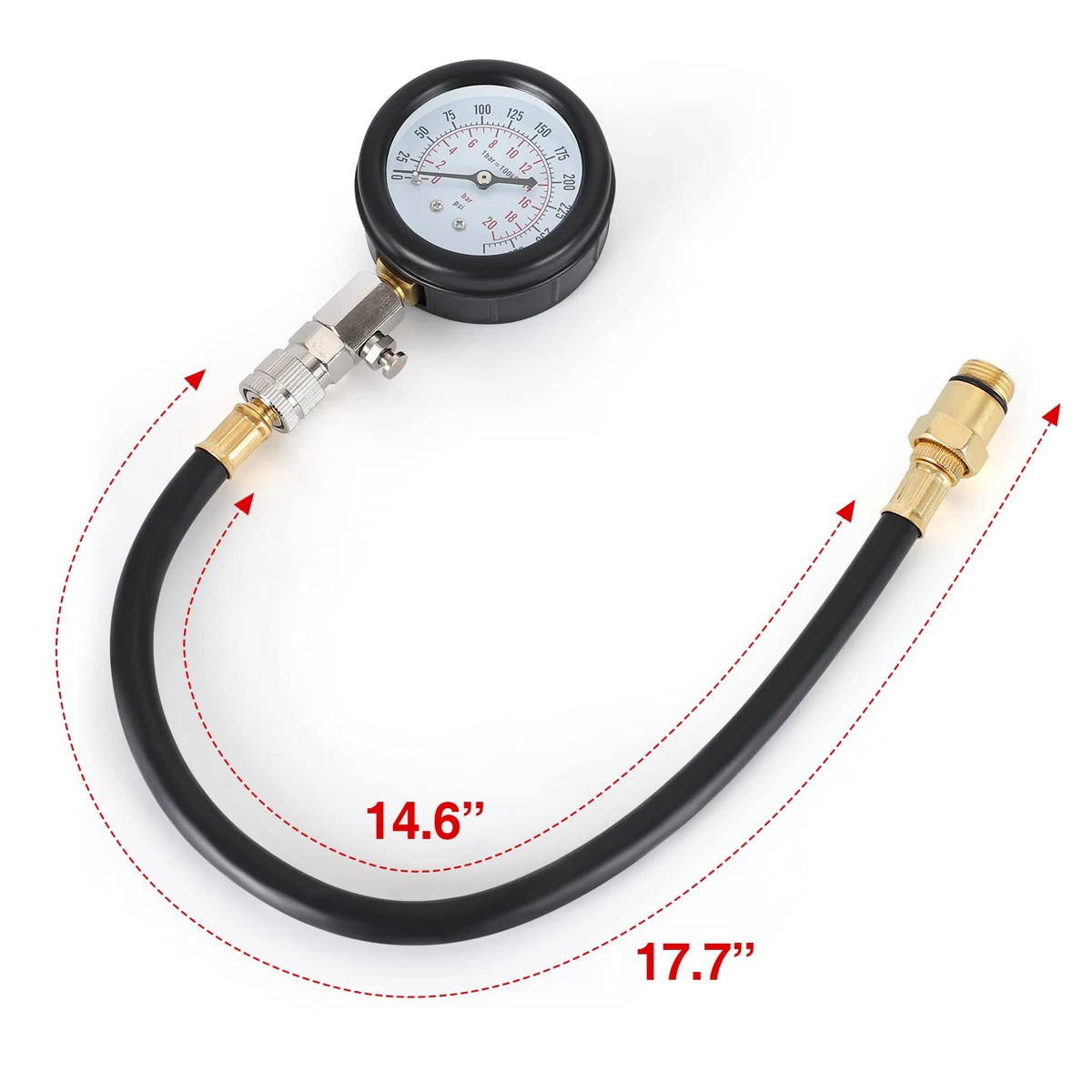

• Hose Overall Length: 17.32″ / 440mm
• Straight Line Pressure Tube Length: 5.91″ / 150mm
• Angled Pressure Tube Length: 6.30″ / 160mm

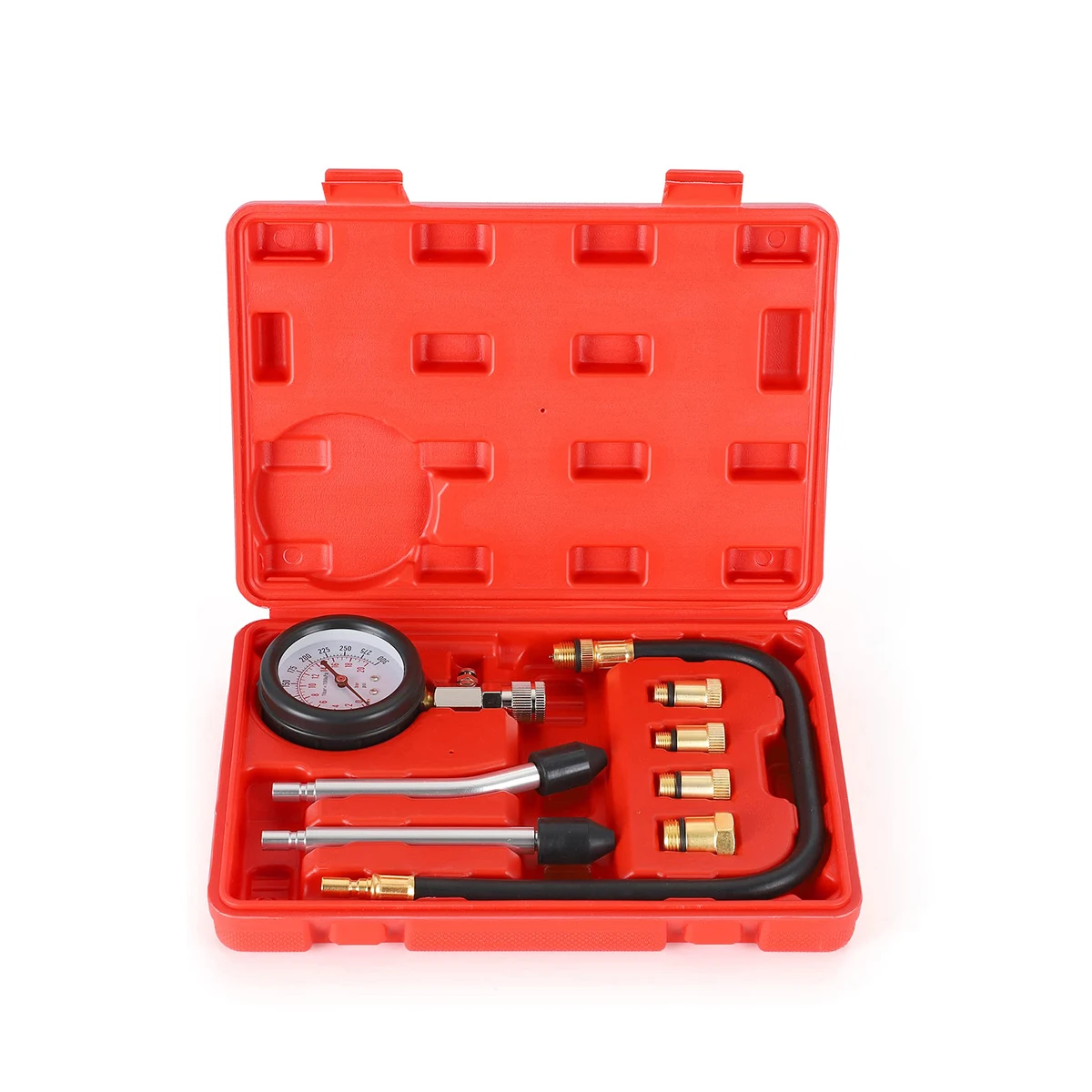

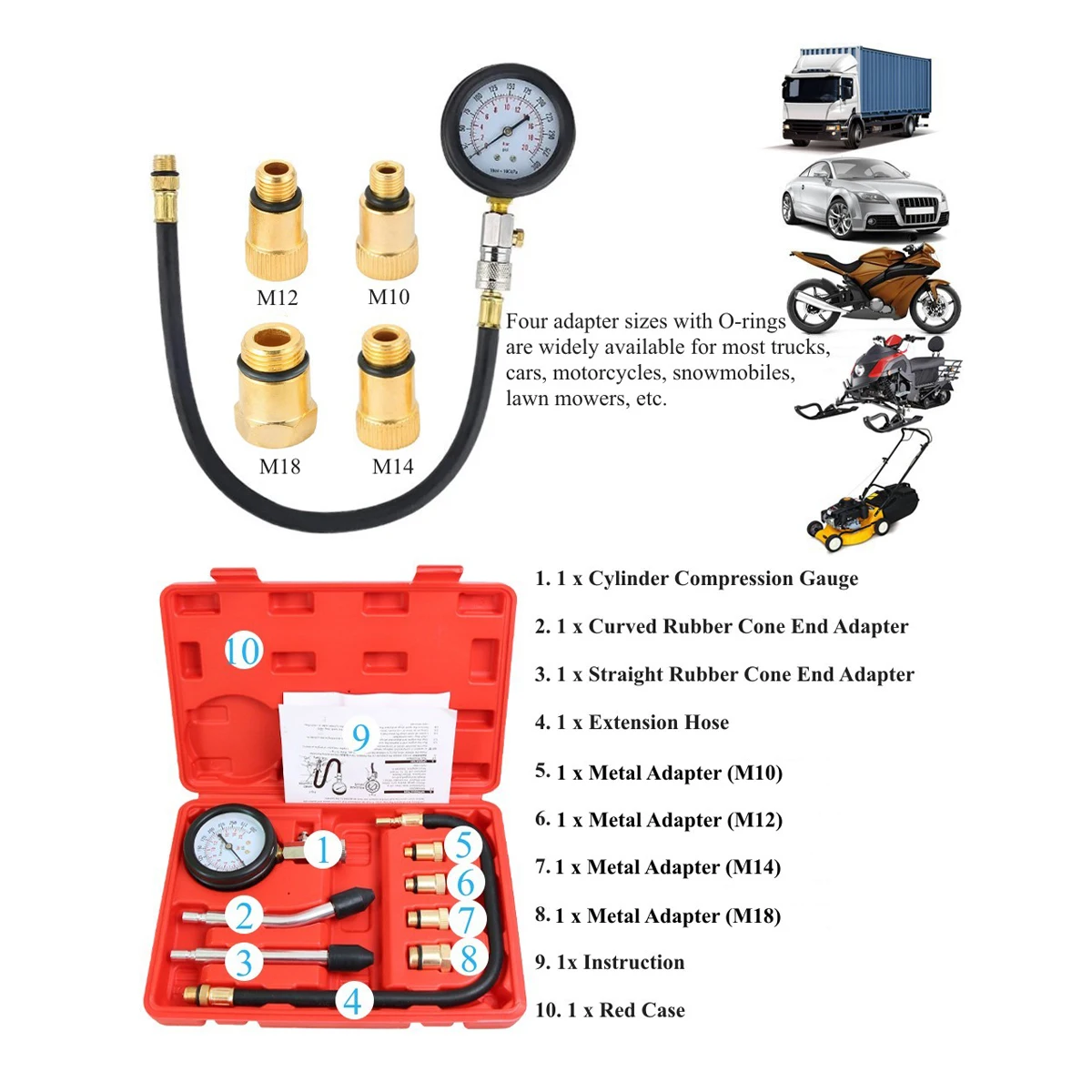

Package Content

• 1 x Gasoline Compression Tester
• 1 x M18 x 1.5mm Adapter
• 1 x M14 x 1.25mm Adapter
• 1 x M12 x 1.25mm Adapter
• 1 x M10 x 1.0mm Adapter
• 1 x Angled Pressure Pipe
• 1 x Straight Line Pressure Pipe
• 1 x Hose
• 1 x Storage Case
