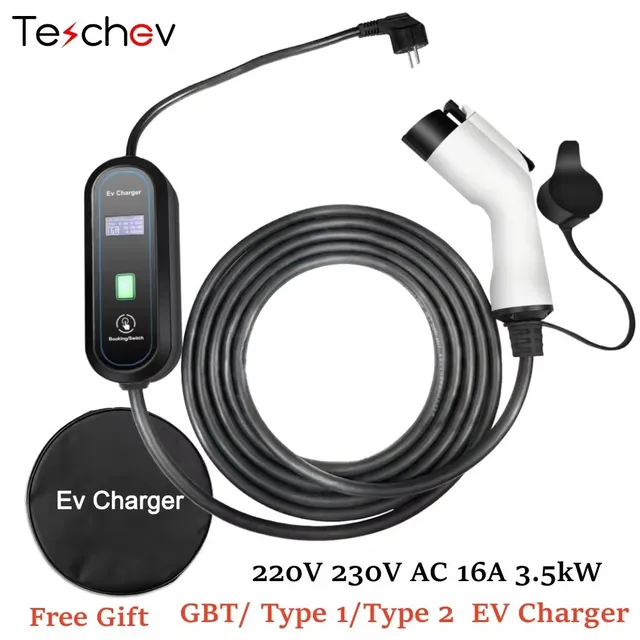

Portable EV Charger Type2 IEC 62196 / GB/T Plug Connector 3.5KW 16A 1Phase Type 1 Wallbox Charging Station for Electric Vehicle

Main Features:

Phases: single phase

Output Power: 3.5kW

Power pins: 3 pcs(L1, N, PE)

Input Power: 110V-250V AC

ChargingCurrent: 8/10A/13A/16A

adjustableSignal pins: 2 pcs (CP, PD)

Signal current: 2A

Signal voltage: 30V AC

IP Rating: IP66

Operating tempeature: -25℃ to +55℃

Length:  3.5 meter

Weight: 1.7kg

Mechanical life: plug in/out > 10000 times

Impact of external force: can afford 2m drop and 2t vehicle run over pressure

Insulation resistance: > 1000MD (DC500V)

Terminal temperature rise: < 50K

Housing Fire Rating：UL94V-0

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A/10A/13A/16A

7.Delayed Charging: 0-10 Hour

LED Display:

1. Charging Temperature

2. Charging Status

3. Set Current

4. Energy Charged in KW/h

5. Charged time

6. Charging Voltage

7. Charging Current

8. Charging Power

Method of use:

The round shape button “Booking/Switch” is for adjusting current. touch the button lightly to change the current. When you adjust the current, the power plug should be always connected, Car connection plug should be disconnecte
