PIR Motion Sensor Switch,DC6V-24V 5A PIR Infrared Motion Human Body Sensor Detector Switch,Light Sensor Adjustable for LED Strip

Dark-Activated Motion Sensor Switch

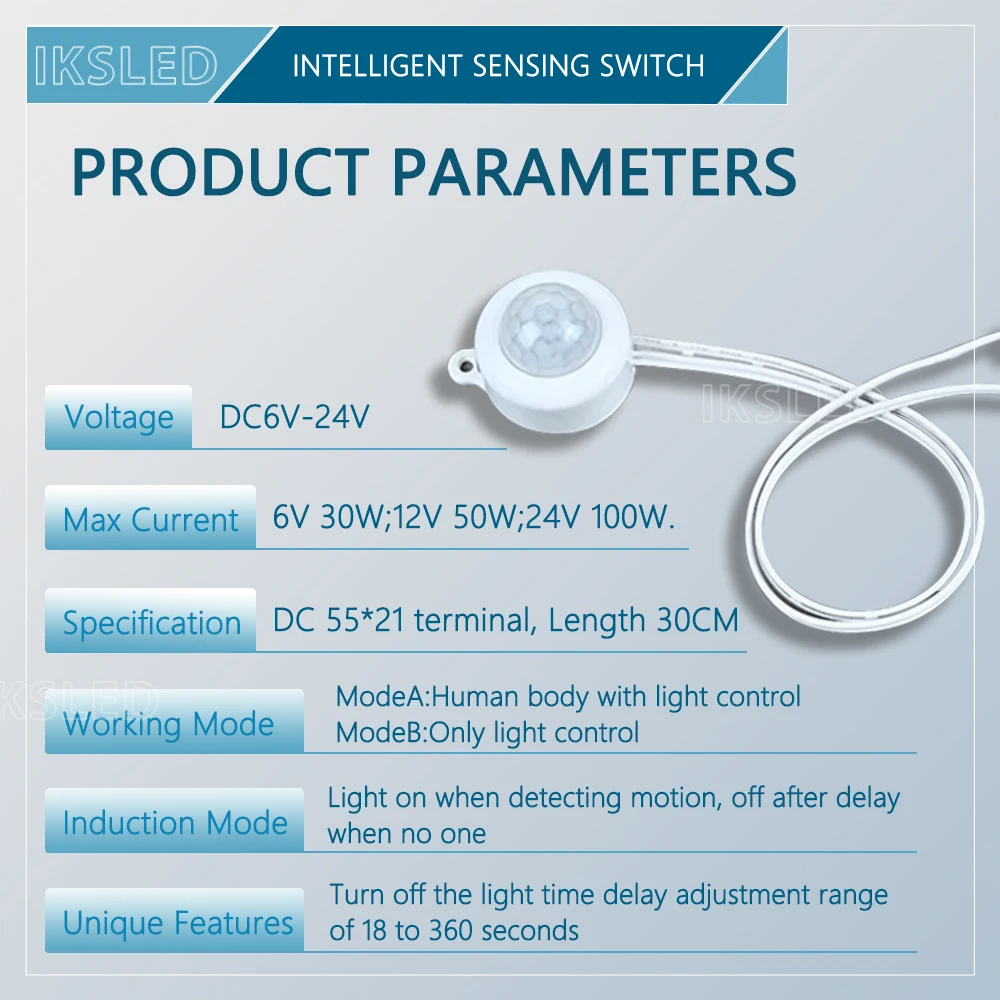

Specifications:

• Conductive Material: Copper

• Housing Material: ABS

• Operating Voltage: 5-24V (Input = Output)

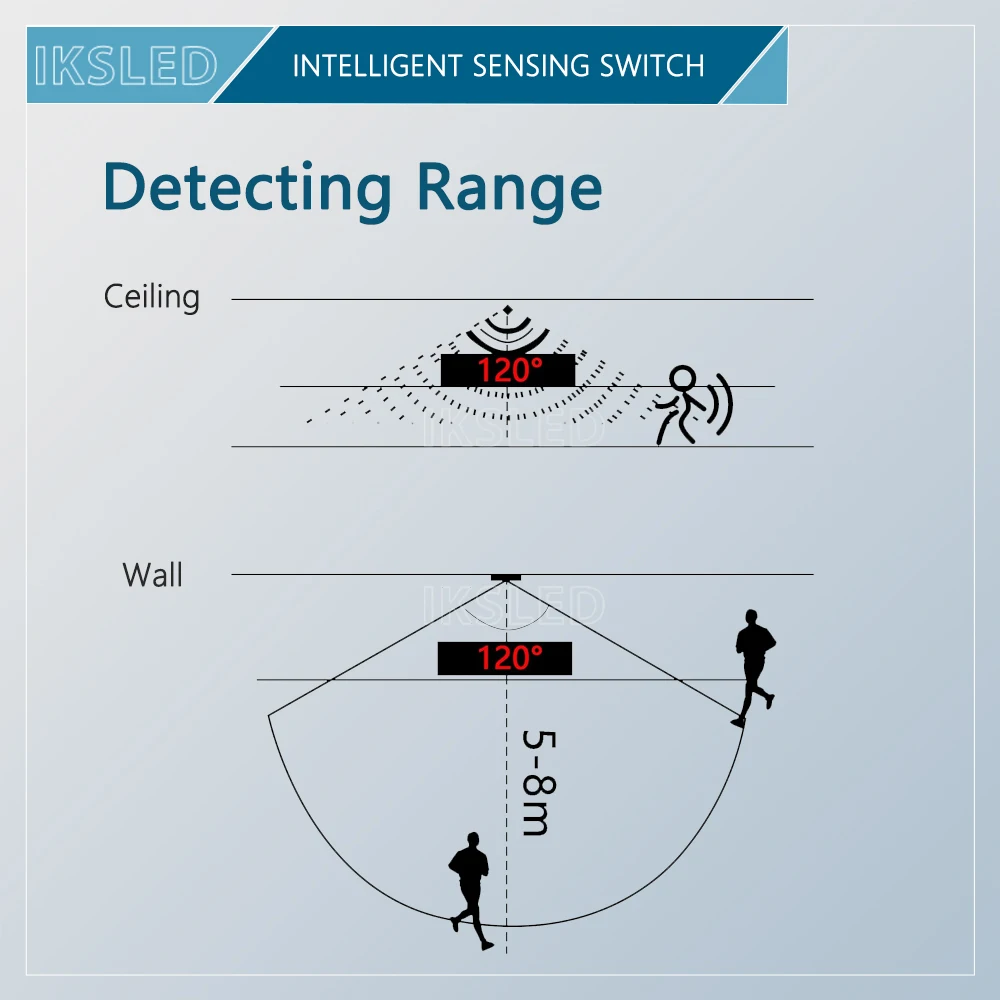

• Detection Range: 3-5m

• Output Current: 5A

• Detection Angle: 120° cone

• Standby Current: <50μA

• Trigger Mode: Continuous Trigger

• Default Delay Time: 18s-360s

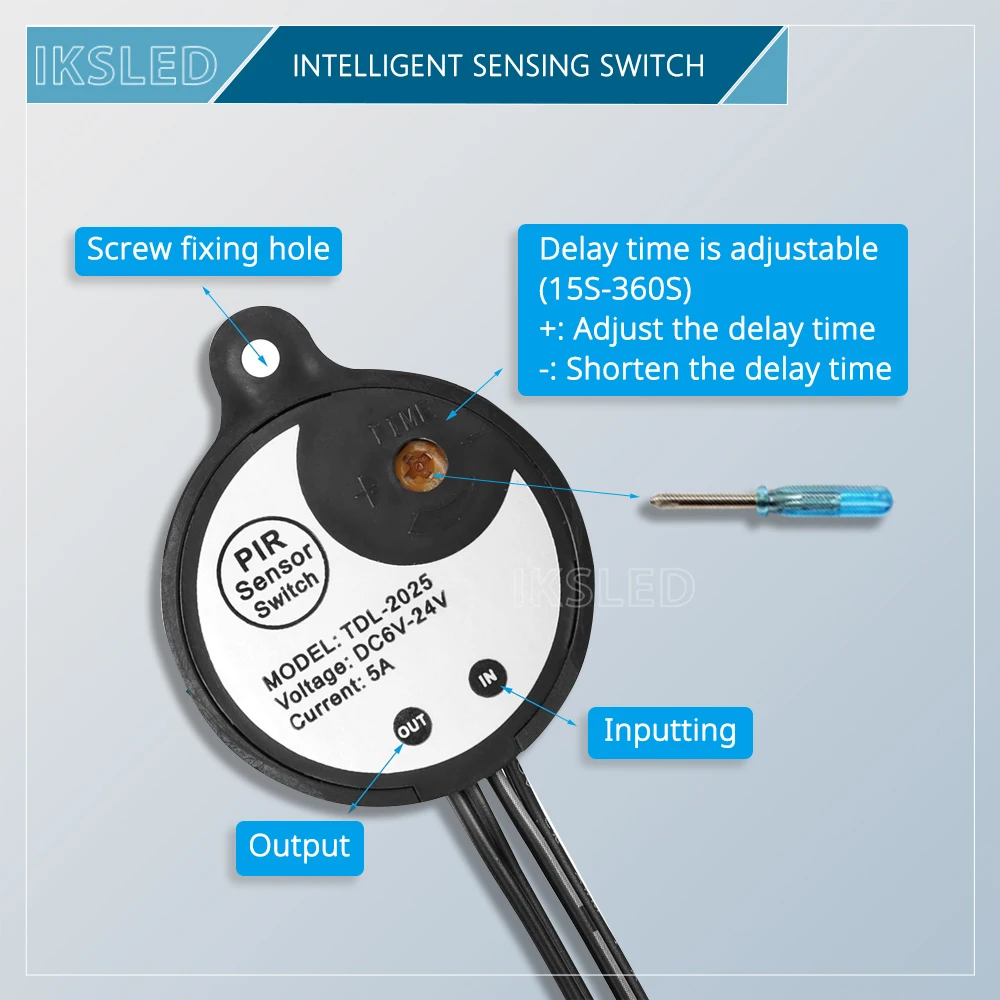

• Adjustable Delay Range: 18-360s

• Operating Temperature: -20°C to +50°C

Features:

1. Easy installation and simple operation.

2. Light-sensitive control: Automatically disables in bright environments and activates in darkness.

3. Smooth and stable light adjustment with no flickering.

4. Dual human + light sensing:

   • At night: Light turns ON when motion is detected, OFF when no motion.

   • During daytime: Light remains OFF.

5. Auto light sensor: Light turns ON at dusk and OFF at dawn.

Applications:

• LED strips

• Incandescent lamps

• Energy-saving lamps

• LED lamps

• Fluorescent lamps
