Function:
- Brand new and high quality.
- Read
diagnostic trouble codes, both generic and manufacturer-specific, and
display their meaning (over 3000 generic code definitions in the
database). - Clear trouble codes and turn off the MIL (“Check Engine” light)
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
Specifications:

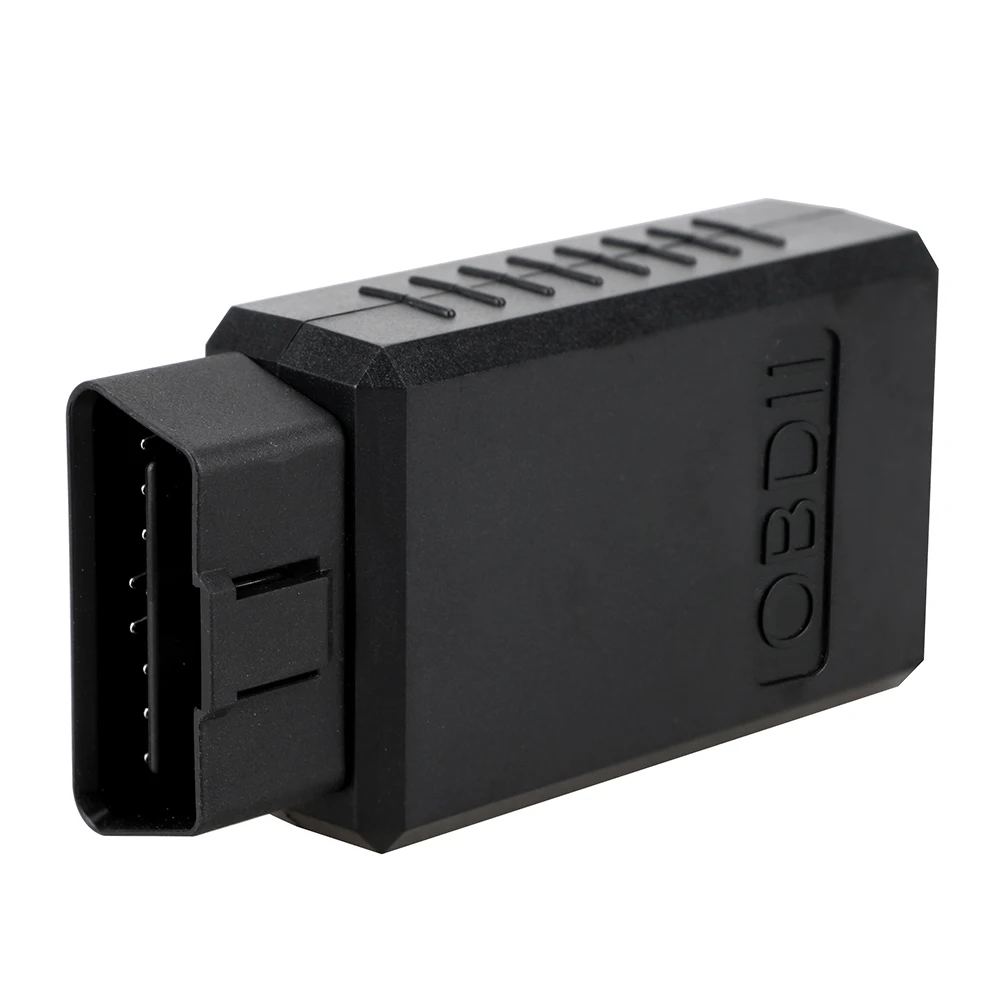

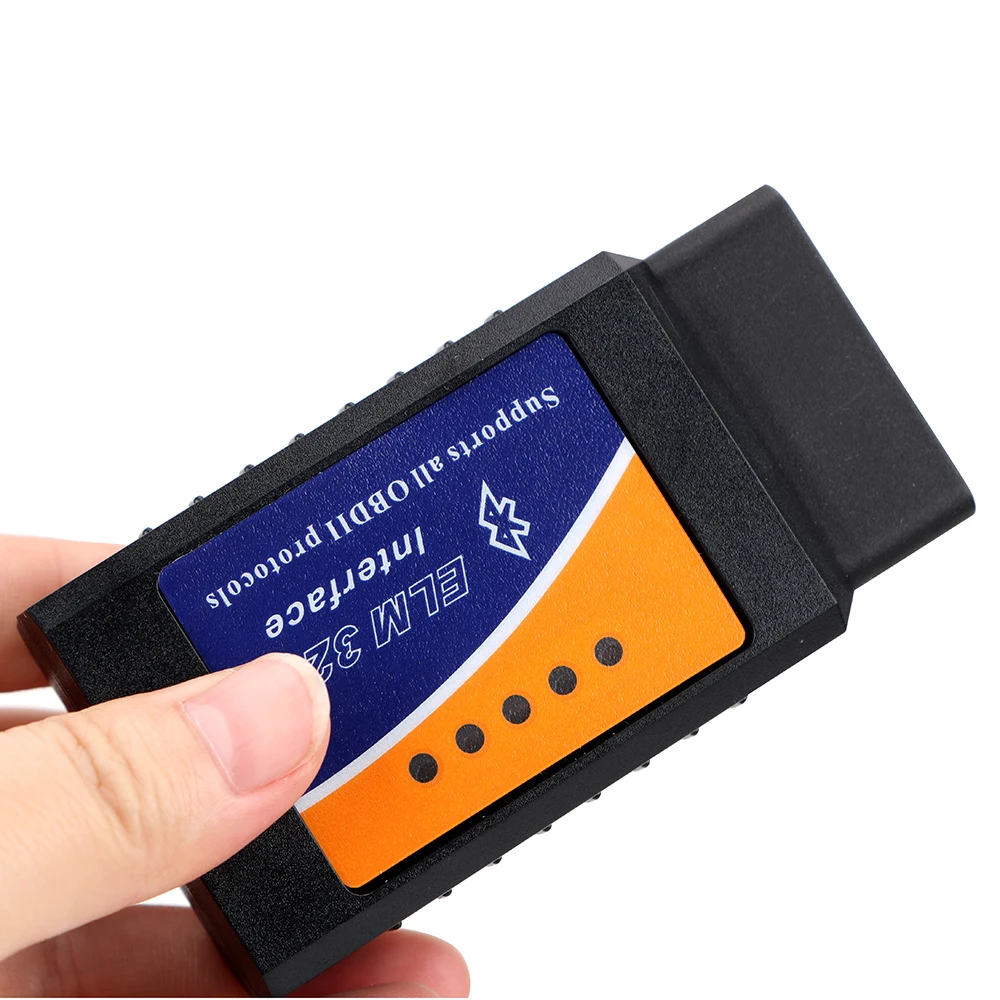

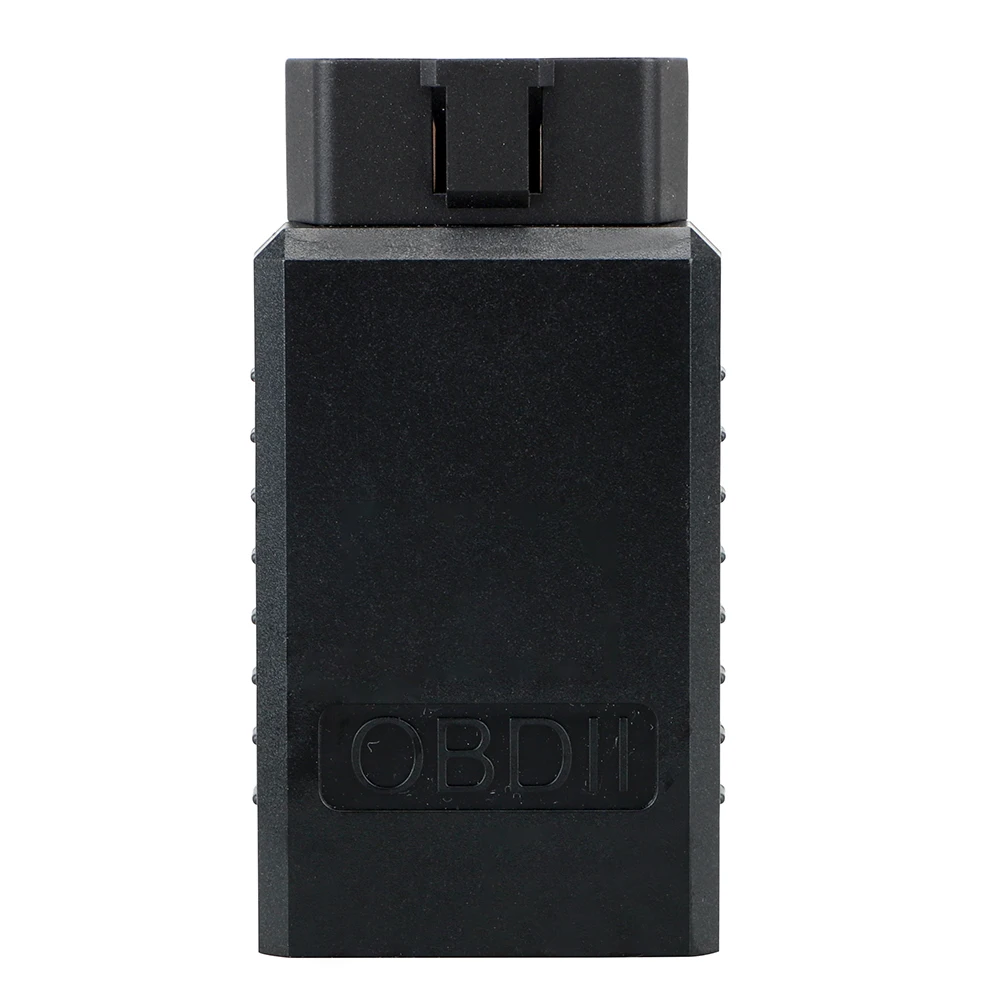

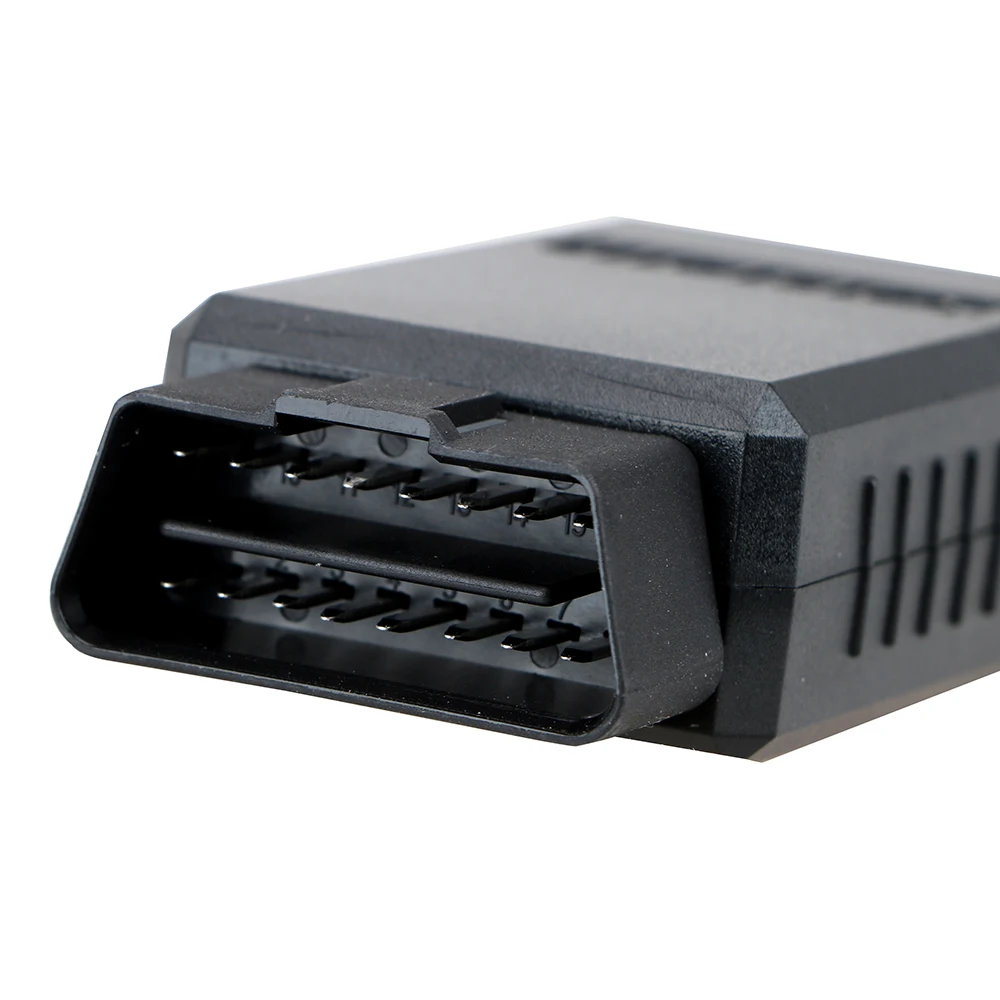

- Product Type: Mini ELM327 V2.1 OBD2 II Bluetooth Car Auto Diagnostic Interface Scanner Tool
- Material: Automotive grade plastic
- Output Protocol: RS232 serial port
- Baud Rate: 9600 or 38400
- Working Voltage: 12V
- Working Current: 45 mA
- Operating Temperature: -40 to 100 Deg Celsius
ELM327 Bluetooth
ELM327
V2.1 OBD2 II Bluetooth Car Auto Diagnostic Interface Scanner is capable
of communicating with vehicles which adopt the following protocols:
- 1) ISO9141-2(5 baud init,10.4Kbaud)
- 2) ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- 3) ISO14230-4 KWP (fast init, 10.4 Kbaud)
- 4) ISO15765-4 CAN (11 bit ID, 500 Kbaud)
- 5) ISO15765-4 CAN (29 bit ID, 500 Kbaud)
- 6) ISO15765-4 CAN (11 bit ID, 250 Kbaud)
- 7) ISO15765-4 CAN (29 bit ID, 250 Kbaud)

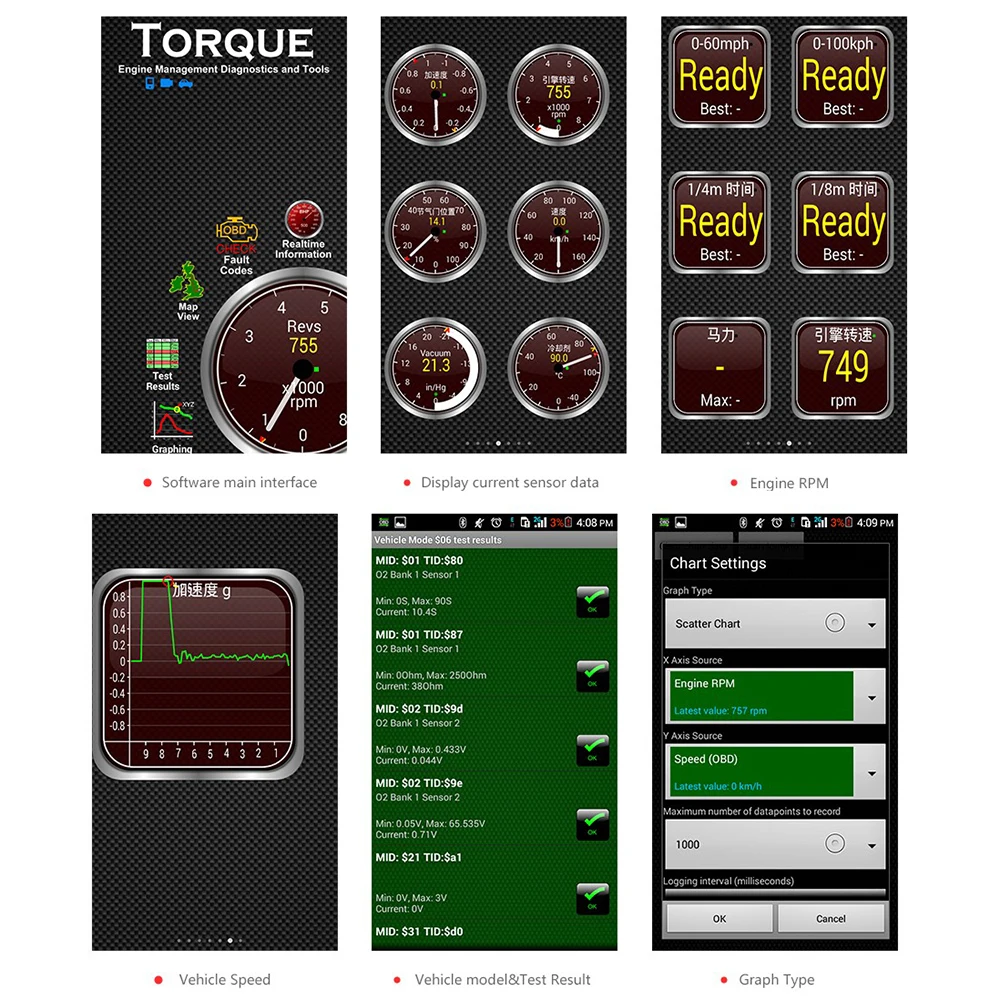

This
ELM327 support TORQUE software for Android system cell phone, OBD scope
software for Symbian system cell phone, PPC(Windows Mobile) system cell
phone, ScanMaster-ELM for PC etc.
Project Bluetooth Password: 1234
Â
Â
Compatible vehicles:
- Benz2001/02/03W203 C200K (ISO); BMW X5 2002 (ISO) Chevrolet Aveo (ISO)
- Citroen C3 2004 (ISO) ? Daihatsu YRV 2005 (ISO)
- Daihatsu YRV Turbo 2006 (ISO)
- Fiat Tipo 2002 (ISO)
- Ford New?ocus 2006(CAN)
- Honda
Accord 2006 JDM (ISO); Honda Accord Euro R 2004 JDM (ISO); Honda City
GD8 (ISO); Honda Civic ES 1.6A (ISO); Honda Integra Type R DC5 JDM
(ISO); Honda Jazz 1.4M (ISO) - Hyundai
Getz 1.3A 2004 (ISO); Hyundai Getz 1.6M 2004 (ISO); Hyundai Matrix 2004
(ISO); Hyundai Santa Fe2.4A (ISO); Hyundai Sonata GLS (ISO); Hyundai
Sonata 2005 (ISO); Hyundai Tuscani FX (ISO) - Kia Carens 2005 (ISO); Kia Magentis 2005 (ISO); KiaRioLS (ISO); Kia Sorento SUV 2005 (ISO)
- Lexus es300 Mazda 2 (CAN)
- Mazda 5 (CAN); Mazda 6 (CAN); Mazda Premacy 2001 (ISO); Mazda RX8 (CAN)
- Mitsubishi
Colt 2003 (ISO); Mitsubishi Colt Plus 2005 (ISO); Mitsubishi
Eclipse(GST—–Turbo Car can be tested for the year 1995-2000
ï¼›RS/GS—-1994-1996 GS all can doï¼›Turbo Car for the year 1996-2000,only
have speed and TPS，can clear the DTCS) - Mitsubishi Lancer Evolution IX 2006 (ISO); Mitsubishi Pajero 3.5 V6 2006 (ISO)
- Nissan Sunny B14 (ISO); Nissan Sunny VIP FB15 (ISO); Nissan X-Trail 2.0L 2004 (ISO); Nissan X-Trail 2.5L 2004 (ISO)
- Peugeot 206 2001 –Only can show RPM; Peugeot 206 (ISO); Peugeot 307 (ISO); Peugeot 407 (ISO); Renault Megane II 2005 (ISO)
- Renault Kangoo 2006 (ISO)
- Subaru Impreza 1.6TS 2002 (ISO); Subaru Impreza WRX 2005 (ISO)
- Toyota Camry
2.0A 2004 (ISO); Toyota Camry 2.4A 2005 (ISO); ToyotaCorolla Altis 1.6A
2005 (ISO); ToyotaCorolla GLXi G8 1999 (ISO); ToyotaCorolla G9 2002
(ISO); ToyotaVios 2004 (ISO)
Not available vehichles:
- Mazda 323 Protege 2003 (OBD-I)
- Mitsubishi Lancer 1.6M 2006
- Nissan Sunny (N16); Nissan Cefiro (Teana) 2005; Nissan sentra 1.8 2000/2005; Nissan Cefiro (Teana) 2005
- Proton Perdana V6
- Subaru Legacy GT 2005
- Toyota camry 2002; ToyotaWish JDM (Missing Pin 5 in DLC); ToyotaIST JDM (Missing Pin 5 in DLC); Toyotaaltis 1.8 2004
- Peugeot 206 2000
- Suzuki Jimny 1.3 2000
- Diesel engine
- Hyundai Accent 2004 (ISO)
Package included:
- 1 x ELM327 V2.1 Car Diagnostic Tool
- 1 x CD
