4K 1080P NDI Conference Camera PTZ Video Live Streaming SDI HDMI USB IP POE 10X 20X zoom for Church NetMeeting Broadcast Youtube
Dear customer, this product is in stock in Brazil. You can choose to have it shipped directly from Brazil. If you can’t make the selection, please contact our customer service. They will solve the problem for you at any time. Have a nice day!
|
Model No. |
JS520USH4KNDI |
|
Optical Parameter |
|
|
Sensor |
Panasonic1/2.5″ CMOS |
|
Effective Pixels |
8.51Megapixels |
|
SignalSystem |
PAL/NTSC |
|
Resolution |
4KP30,1080P60, 1080P30, 1080P25, 720P60, 720P50 |
|
OpticalLens |
20XOptical Zoomf＝5.2mm～110mm |
|
Horizontal ViewAngle |
2.9°（W）–58°（T） |
|
Shortest View Distance |
10mm(W)～1000mm(T) |
|
Minimum Illumination |
0.5Lx |
|
Exposure Control |
Auto, Manual, AE Priority, Compensation |
|
Shutter Speed |
1/1～1/10000S |
|
Gain |
Auto, Manual |
|
White Balance |
Auto, Manual |
|
Noise-Signal Ratio |
≥55db |
|
Image Effect |
Color/Electronic Flip |
|
OSD Menu |
Support |
|
Mechanical Parameter |
|
|
Pan-Tilt |
Horizontal Angle:±170°(Maximum speed: 100°/s); Vertical Angle: -30°to +90°(Maximum speed: 60°/s) |
|
No. of PresetPositions |
255 |
|
Preset Positions |
Support |
|
Interface |
|
|
Video Output |
HD:RJ45(POE),HDMI,USB,SDI |
|
Control Interface |
RS-232/RS-485/RS422(VISCA) |
|
Control Protocol |
VISCA, PELCO P/D |
|
Baud Rate |
9600bps, 4800, 2400bps |
|
Network Parameter |
|
|
Video Compression |
H.264Baseline，Main Profile，High profile，H.265 Mainfile，MJPEG |
|
Frame Rate |
3840*2160@30fps，1920*1080@30fps，1280*720@30fps；720*576@30fps |
|
Video Compression Rate |
32kbps-16MbpsContinuouslyAdjustable，Support CBR/VBR |
|
Data Storage |
Video and Photos |
|
Storage Mechanism |
Auto, Manual(Loop, Timing, Alarm switch, Motion Detect) |
|
Protocols |
TCP/IP，UDP，RTP，RTSP，RTCP，HTTP，DNS，DDNS，DHCP，FTP，NTP，PPPOE，SMTP，UPNP, NDI(Optical) |
|
ONVIF |
Support |
|
Browser |
Higher Version than IE6.0, IOS, Android |
|
Others |
|
|
Power Adapter |
AC110V-AC220V to DC12V/2A, DC12V(DC11.5-DC12.5V) |
|
Working Temperature |
0℃～45℃ |
|
StorageTemperature |
-10℃～+60℃ |
|
PowerConsumption |
18W(MAX) |
|
Dimensions |
(Length)155 × (Width)186 x (Height)172mm |
|
Weight |
1000g |
|
Casing Color |
Black/silver |
|
Accessories |
ACPowerAdapter, IRRemoteCommander, Ceiling/WallBracket, RS232Ccable, UserManual |
Focus Your Streaming

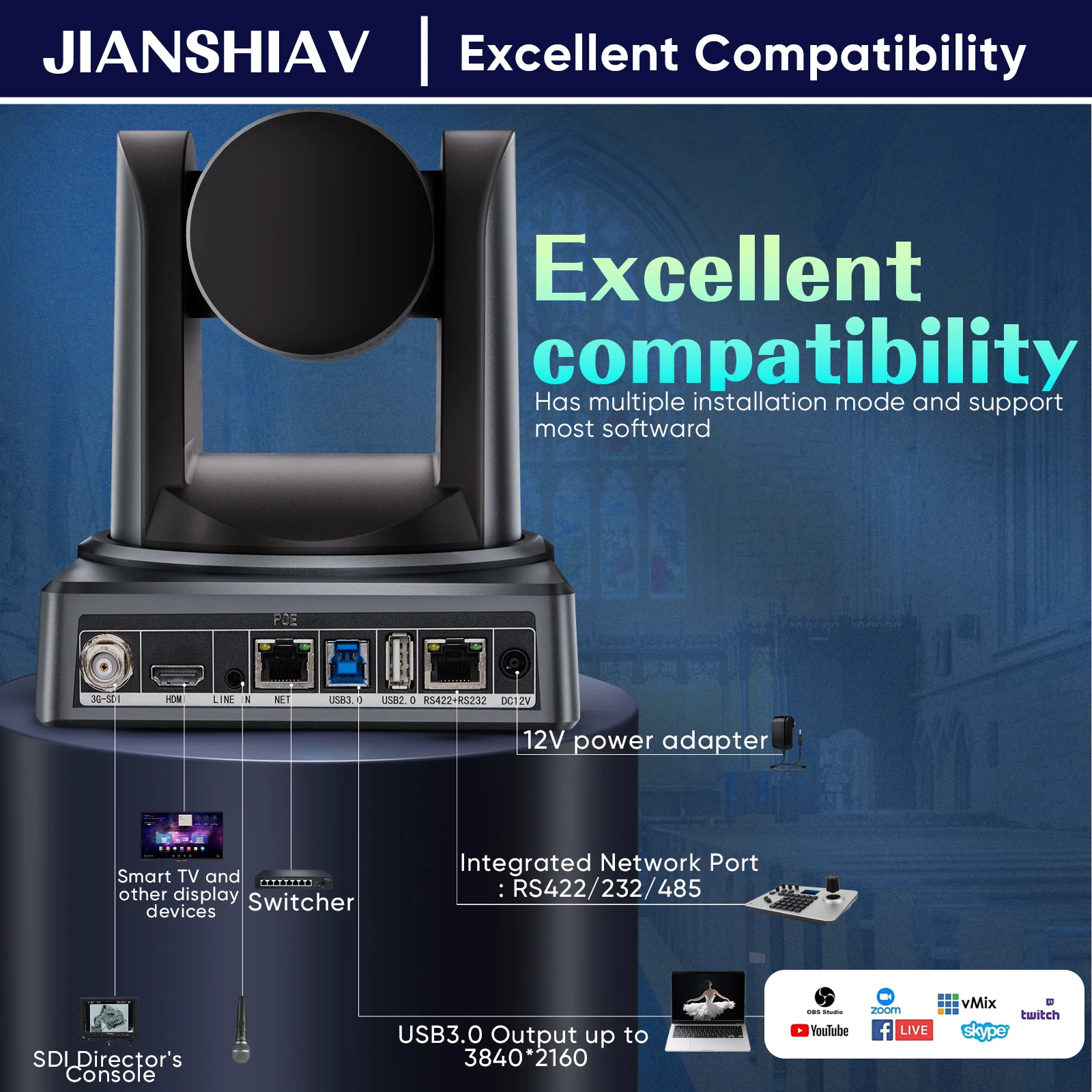

HDMI/3G-SDI/ USB /IP /POE True to life colors 20x optical zoom
NDI HX3
Low latency-suitable for real-time video production.
High compression ratio-Suitable for environments with limited bandwidth.
Compatibility-Compatible with NDl, but specifcally optimized for low bandwidth.
AI HUMAN AUTO-TRACKING
Supports remote control and gesture control
Easy Preset Seeting
The camera can set 255 preset positions through the serial port, and the remote control can set 10 preset positions. The preset data can be saved even if the camera is turned off.
The advanced fast-focusing algorithm ensuresthat even while adjusting thecamera’s pan,tilt, and zoom, you can maintain high-defnitionimage `quality.
Pan·Tilt·Zoom Speed Adjustable
The video format can be adjusted
Change the parameters of the camera through MENU
For Live Streaming and Video Productions
Multiple scenarios available
|
Support SONY VISCA, PELCO P/D 1/2.5 Panasonic CMOS, 4K 8.51Megapixels The whole series supports automatic face tracking The interfaces are abundant and have a large wide angle 20x optical zoom,clear from near and far It supports 20x ultra-far optical zoom, which can output high-qualityimages even if the picture is zoomed in, capture clear meeting detailsand be sharp with a wide range of rotating mechanical gimbalsCapture every detail of the venue’s near and far location for an immersive viewing experience |
Q&A
Q：Is this PTZ camera 4K? Because I bought one from a different seller (not from you) which was advertised as 4K, but when I used it, it could only achieve a resolution of 1080p.
A:Yes, our product is a genuine 4K product, and its highest resolution is 3840*2160.Of course, we also have 1080P products. Please select the products according to your needs.
Q：Does it support NDI and PoE?
A：All of our products support PoE (Power over Ethernet) power supply. Only one network cable is needed to achieve power supply, control, and image transmission. Regarding the NDI issue, you can choose to directly purchase products with NDI functionality. Of course, we can also activate the NDI feature at a later stage.
Q：What brand are you?
A：We are the brand of JIANSHIAV. We are a well-known Chinese company integrating production, research and development, and sales. We can provide you with our existing products. Most importantly, we can customize products according to your needs. Meanwhile, we also have a great advantage in terms of price.
Q：The quality of your products?
A：We are a factory that manufactures cameras. We have professional production lines and dedicated quality inspectors to ensure that each product meets the standards. Please feel free to make a purchase with confidence. Meanwhile, we also have professional customer service staff who are available online 24 hours a day, ready to solve customers’ problems at any time.
Q：Is there a warehouse in Brazil? And do we need to pay taxes?
A：Yes, our products are in the local warehouse in Brazil, and there is no need to pay taxes. If you have any questions, please consult our customer service staff.
Q：What are the differences between the silver-white products and the black products?
A : The silver-white products and the black products are of the same model. Different appearances are designed to meet the needs of different customers. The functions and performance of the two versions are identical. Please feel free to make a purchase.
