MH-Tiny ATTINY88 micro development board 16Mhz /Digispark ATTINY85 Upgraded /NANO V3.0 ATmega328 Extended Compatible for Arduino

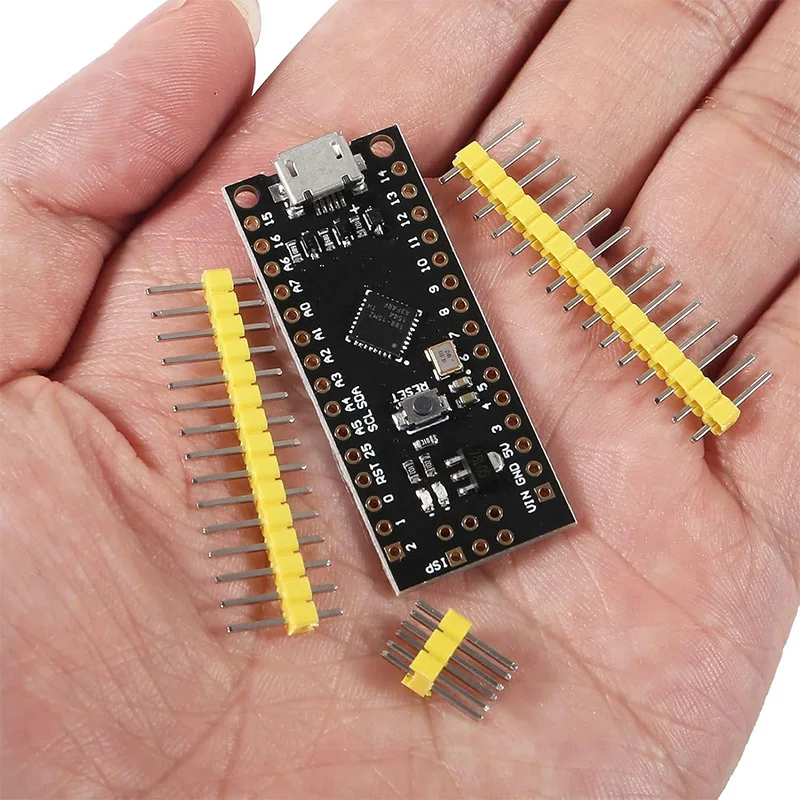

The MH-ET LIVE Tiny88(16.0Mhz) based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful.  With the ability to use the familiar Arduino IDE the MH-ET LIVE Tiny88(16.0Mhz) is a great board to jump into electronics, or perfect for when an other board is too big or too much. The MH-ET LIVE Tiny88(16.0Mhz) is shipped fully assembled except for the headersincluded and easy to solder them by yourself.

Support for the Arduino IDE 1.0+ (OSX/Win/Linux)

1.  Power via USB or External Source – 5v or 7-35v (12v or less recommended,

automatic selection)

2.  On-board 500ma 5V Regulator

3.  Built-in USB

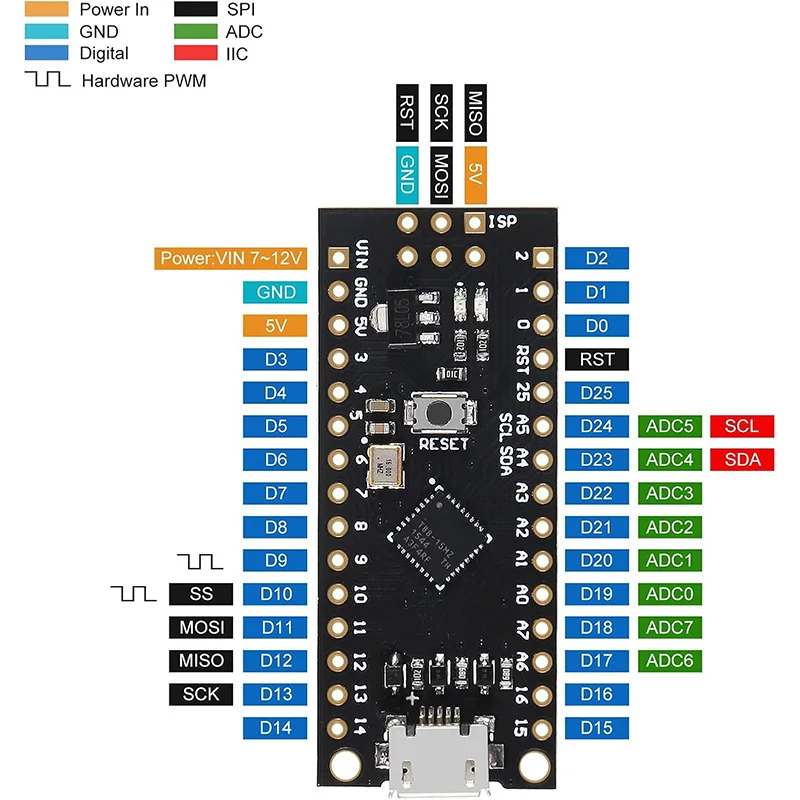

4.  26 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)

5.  8k Flash Memory (about 6k after bootloader)

6.  I2C and SPI

7.  26-PWM (26 pins with Software PWM,only two(D9,D10) with hardware PWM )

8.  ADC on 8 pins

9.  Power LED and Test/Status LED

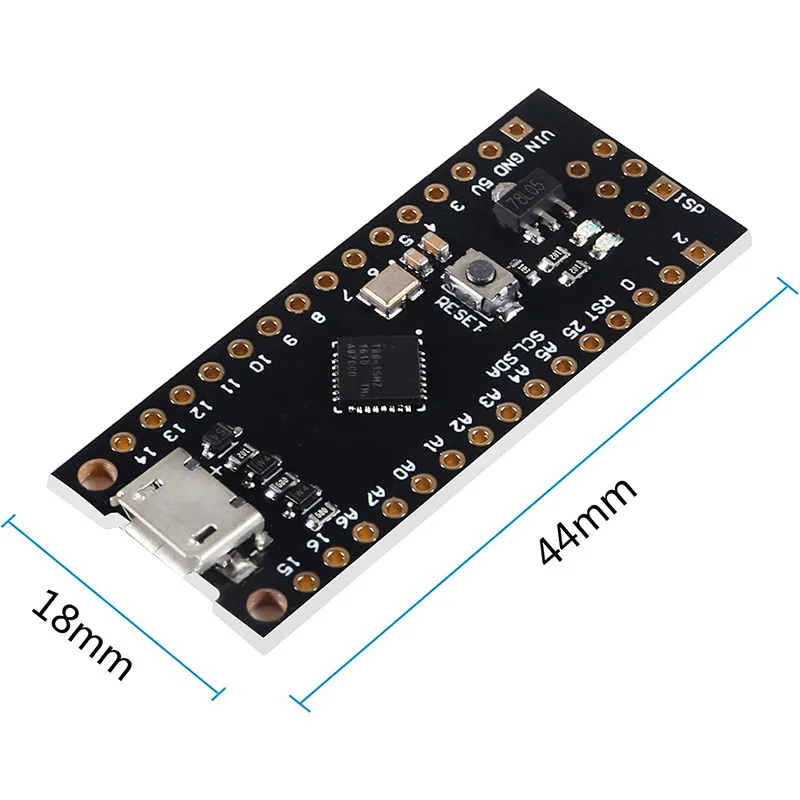

10.  Size(mm):44.5×18.3×3
