MH-MX8 Audio Module M18 M28 M38 Bluetooth-Compatible 4.2 MP3 Wireless Audio Receiver Module DIY Refit Loudspeaker

MH-MX8  MP3 Decoder Board HIFI Lossless Stereo Module Bluetooth-Compatible 4.2 MP3 Wireless Audio Receiver Module M18 M28 M38 DIY Refit Loudspeaker

Feature:


1. High-Quality Audio Transmission: The MH-MX8 audio module supports Bluetooth-Compatible  wireless connection, enabling high-quality audio transmission.


2. Easy to Use: This lossless stereo module is designed to be user-friendly, requiring basic Bluetooth-Compatible  pairing setup for effortless connection and audio playback. No complex configuration or programming is needed, making it suitable for everyday users.


3. Low Power Consumption Design: The mp3 decoder board is designed with low power consumption, effectively reducing energy usage and extending battery life. This makes it ideal for portable audio devices, wireless speakers, and other applications that require long-term use.


4. Wide Compatibility: The MH-MX8 mp3  wireless audio receiver module has broad compatibility and can be paired with most Bluetooth-Compatible  devices and operating systems.

Specification:


Origin: Mainland China


Type: Module


Condition: New

Working voltage: 5V/3.7V-4.2V

Working current (not connected): 5.5MA

Working current (connection): 20MA

Transmission distance: 20 meters (in open space or low interference environment)

Working temperature: (-40°C~+85°C)

Sensitivity: -87dbm

1. This product MH-M18/M28/M38 is a low-power Bluetooth-Compatible  design solution that supports new Bluetooth-Compatible  4.2 transmission and two-channel stereo lossless playback.

After the module is connected to Bluetooth-Compatible , Bluetooth-Compatible  wireless transmission can be quickly realized. In an open environment, the Bluetooth-Compatible  connection distance can reach 20 meters.

2. Widely used in various Bluetooth-Compatible  audio reception, various audio DIY modifications, etc.

3. Module blue indicator light:

When Bluetooth-Compatible  is not connected, the indicator light flashes quickly;

When Bluetooth-Compatible  is connected, the indicator light is always on;

When Bluetooth-Compatible  is playing, the indicator light flashes slowly.

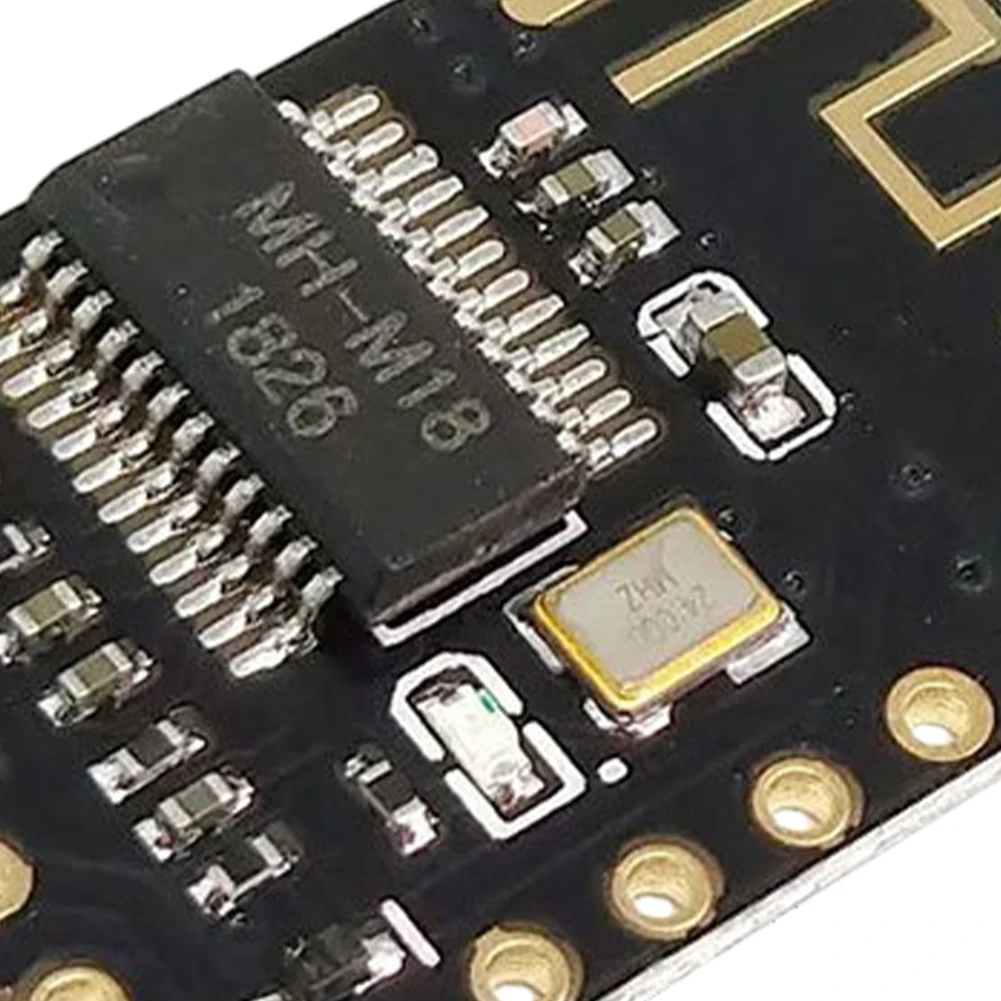

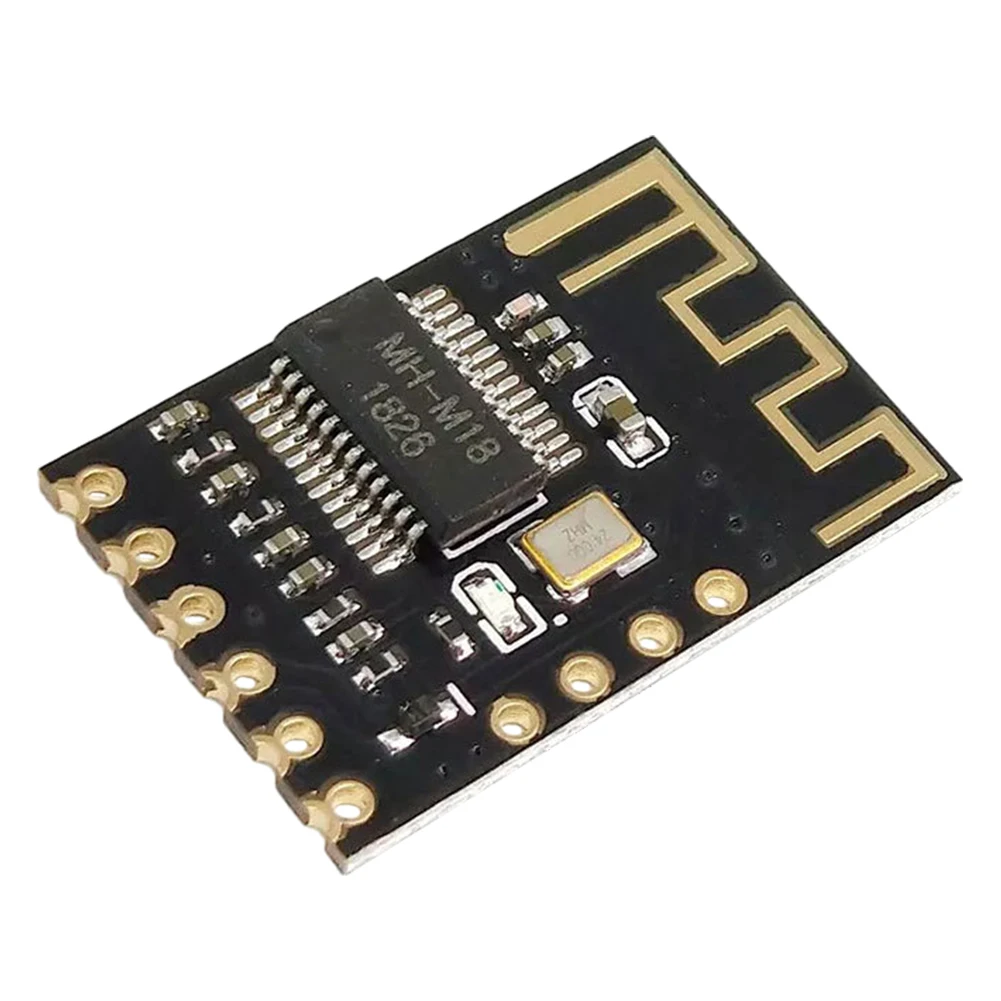

MH-M18
:

1.MUTE mute control terminal: used to control the power amplifier board. MUTE outputs a high level of 3.3V when muting and a low level when playing.

2. KEY button control: This function requires additional connection of resistors and buttons to be realized.

3. Volume retention function when power is off: default output volume. Use the buttons to control the volume increase or decrease.

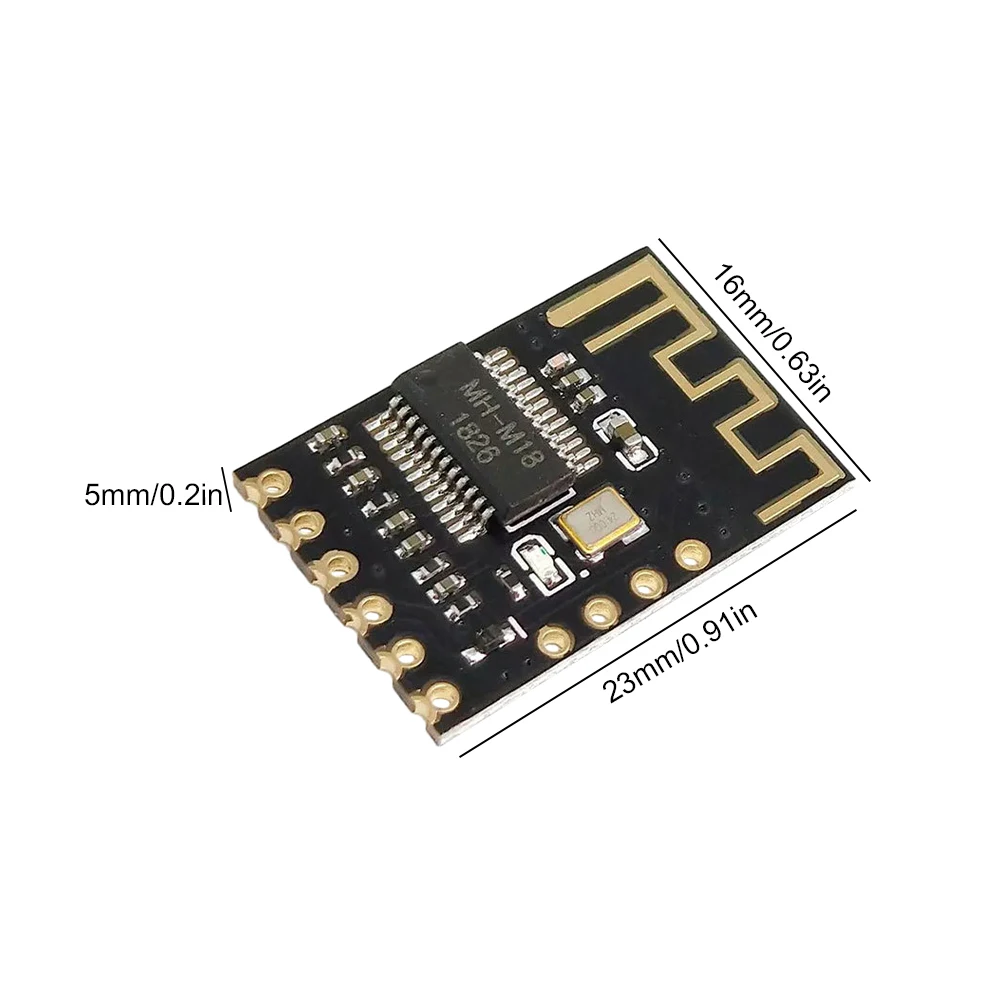

4. Size: 23*16*5MM/0.91×0.63×0.2inch

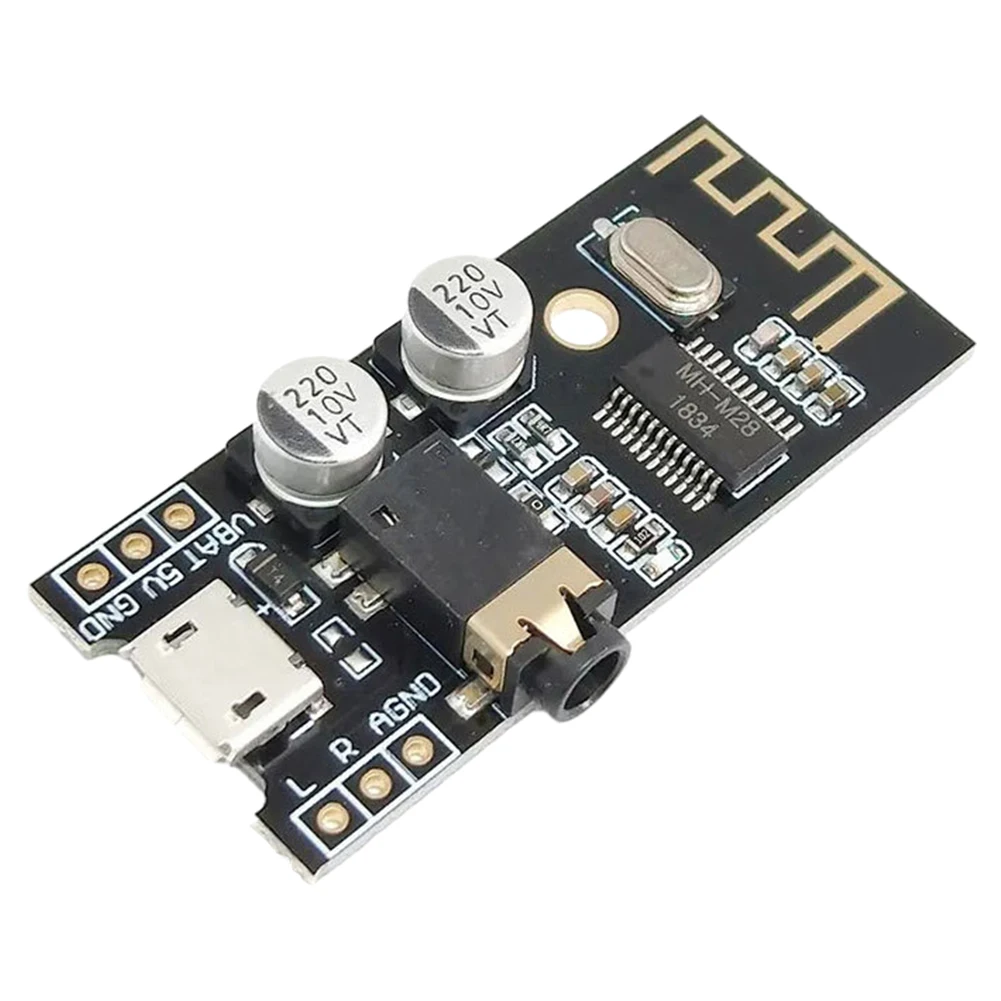

MH-M28
:

1. Power supply: You can directly use the MICRO USB Android cable 5V for power supply, or you can also connect an additional 5V power supply or 3.7V lithium battery.

2. Note that the power supply interfaces of 5V and 3.7V are different. The 5V voltage is connected to 5V and GND, and the 3.7V lithium battery is connected to VBAT and GND.

3. Audio output: The headset can be directly connected to the 3.5mm audio interface, or can be wired for the audio input of the power amplifier board

4. Size: 45*20*5MM/1.77×0.79×0.2inch

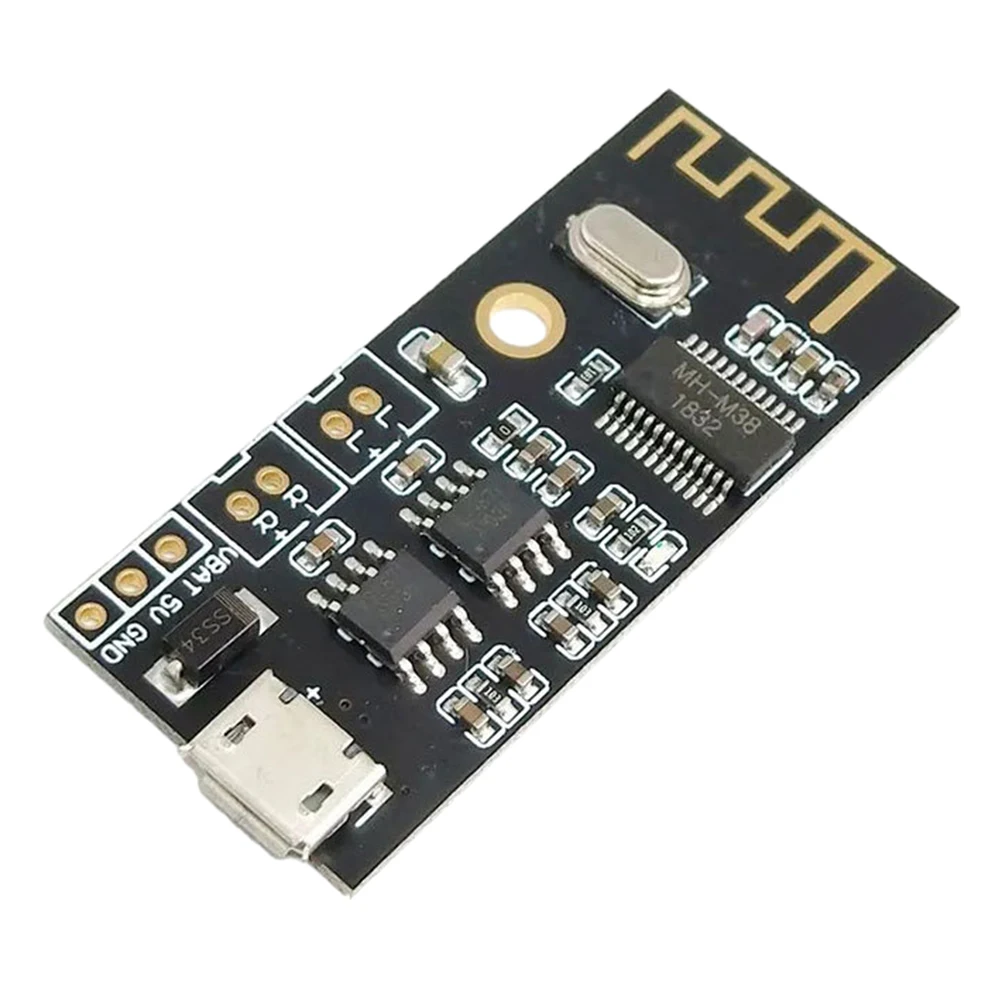

MH-M38
:

1. Power supply: You can directly use the MICRO USB Android cable 5V for power supply, or you can also connect an additional 5V power supply or 3.7V lithium battery.

2. Note that the power supply interfaces of 5V and 3.7V are different. 5V is connected to 5V and GND, and the 3.7V lithium battery is connected to VBAT and GND.

3. The maximum working current is 5V2A. It is recommended to use a 5V2A regulated power supply.

4. Supports USB sound card, driver-free (plug and play). Use a USB data cable to connect the module to the computer. When the computer plays music, it can be output through the module amplifier.

5. Audio output: Output left and right channel stereo audio signals.

6. This product has its own dual 5W power amplifier circuit and cannot be used with another power amplifier. The outputs of the two power amplifiers cannot be connected in parallel or the negative poles are connected together, as this will damage the power amplifier chip.

7. Size: 45*20*5MM/1.77×0.79×0.2inch

Precautions

Signal interference: Bluetooth-Compatible  antennas are extremely susceptible to interference from high-frequency or strong electromagnetic signals. Try to place them as far away from transmitting wireless devices as possible. And the board cannot be close to metal objects, keep a certain distance.

Since this product is designed as a bare board, try not to touch the components on the board with your hands, as static electricity may kill the chip and cause it to burn.

Warning: The charging interface of this product is in current-limiting charging mode and does not have charging management! For the safety of your life and property, be sure to use lithium batteries with protective plates produced by regular manufacturers.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 X Mh-M18 Audio Module

Or 1 X Mh-M28 Audio Module

Or 1 X Mh-M38 Audio Module
