Load Cell Weight Sensor 1KG 5KG 10KG 20KG HX711 Module Electronic Scale Aluminum Alloy Weighing Pressure Sensor Ad Module

Name: Load Cell Weight Sensor 1KG 5KG 10KG 20KG HX711 Module Electronic Scale Aluminum Alloy Weighing Pressure Sensor Ad Module
SKU: 3256805804518395
Availability: InStock

Price range: $11.99 through $13.95

Color

Clear

Add to compare

Add to wishlist

Specification

Overview

Weight	11 lbs
Dimensions	4 in
Brand Name	Si Tai&SH
Origin	Mainland China
Output	Analog Sensor
Theory	Current Sensor
Model Number	HX711
Type	vibration sensor
is_customized	Yes
Material	Metal
Use	MAGNETIC SENSOR
Choice	yes

Description

Introduction:

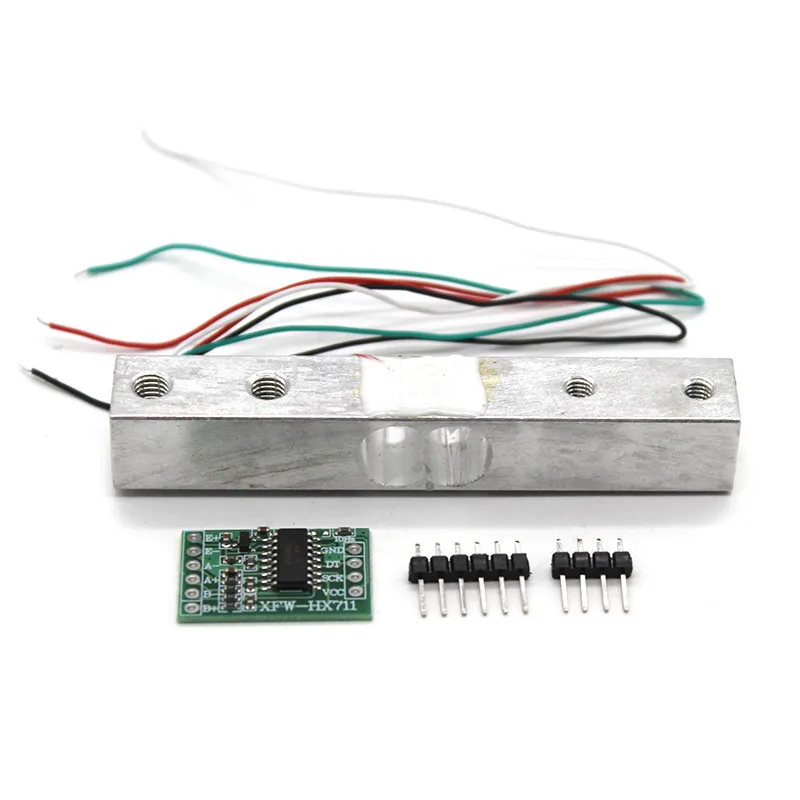

This weighing module is available in 1KG, 5KG, 10KG, 20KG models. The self-contained backplane, 51 single-chip module and display can be used to make electronic scales.

Four leads, easy to use, plus 5-10V driving voltage, direct output as voltage signal due to force changes

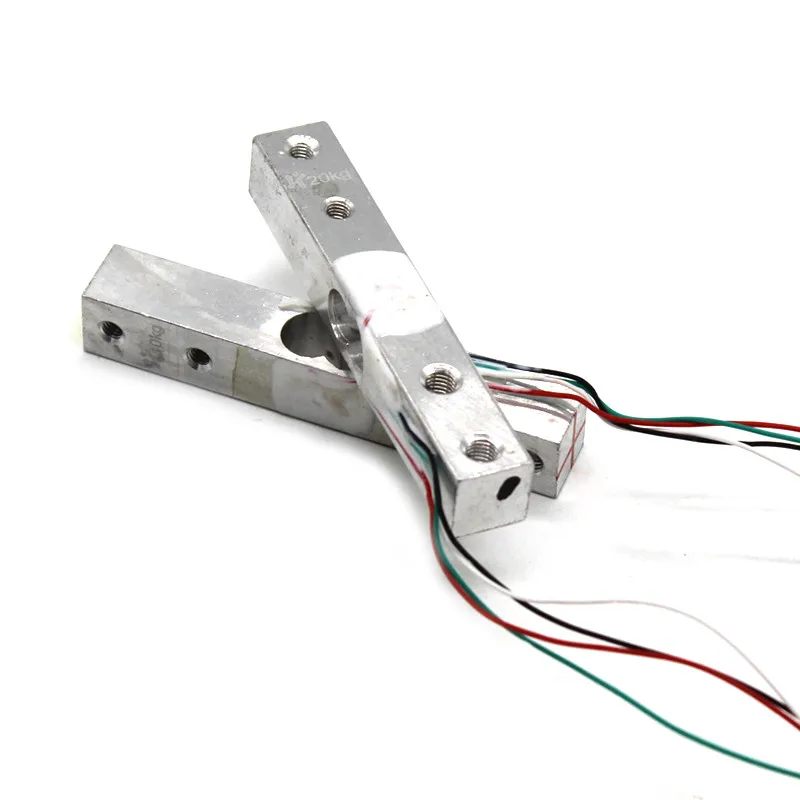

[Weighing module size]: 12.7*12.7*75mm

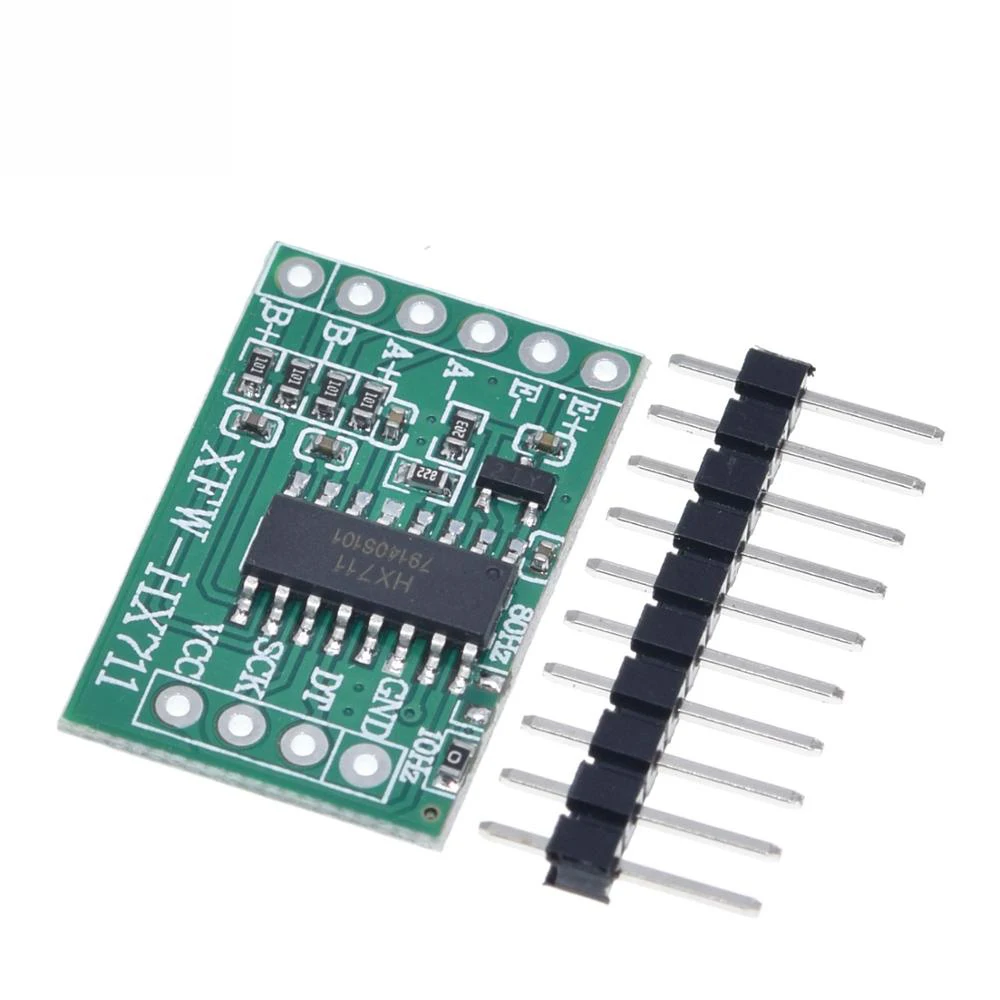

[HX711AD module size]: 16*24mm

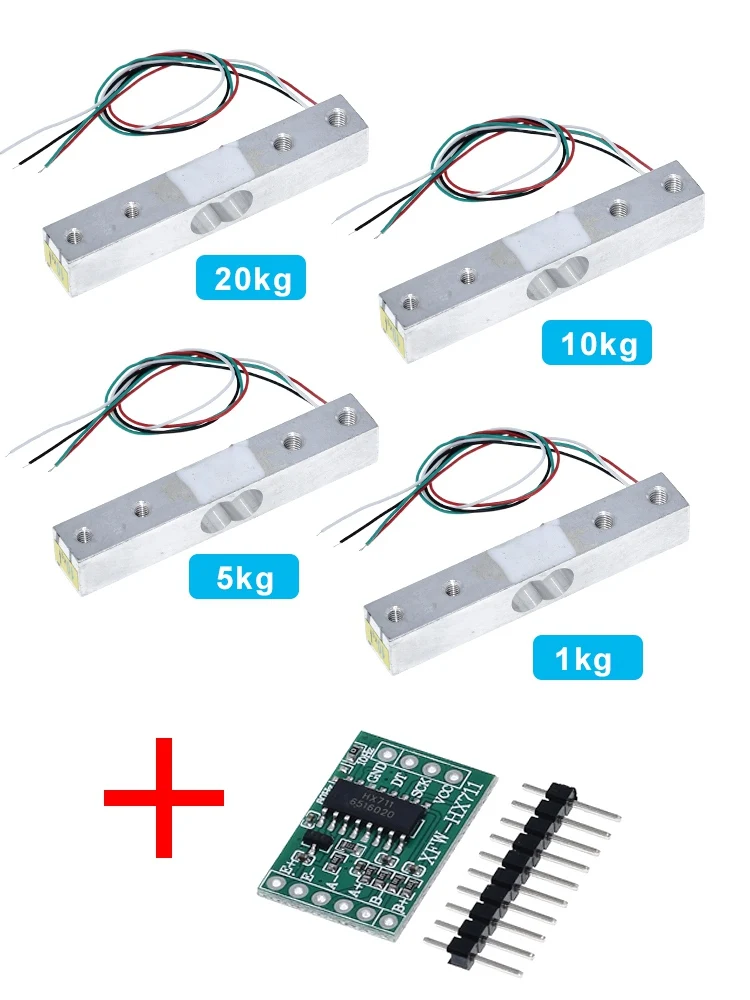

[Product Specifications]: 1KG, 5KG, 10KG, 20KG

[Fixed hole]: two 4mm holes; two 5mm holes (requires self-equipped screws)

[Fixed hole distance]: about 14.5mm

-50%

Add to compare

Add to wishlist

Select options This product has multiple variants. The options may be chosen on the product page

Fashion Double Layered Black Bead Star Choker Necklace Punk Pentagram Leather Rope Necklaces For Women Girls Gift
Original price was: $27.90.Current price is: $13.95.

: about 32 grams
[Wiring method]: Red line is connected to power supply +, black line is connected to power supply – green line is connected to output signal +, white line is connected to output signal –

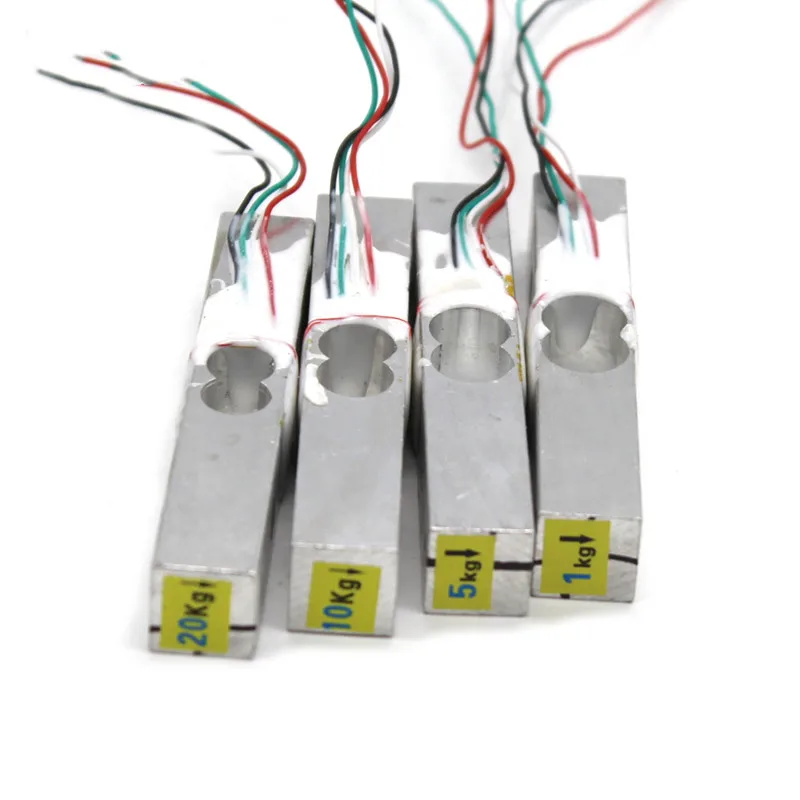

[Precautions]: One end of the sensor is fixed by the screw hole, and the other end is kept in a floating state. Gravity is applied according to the direction indicated by the label. Special attention must be paid not to directly press the white rubber part to avoid damage to the sensor.
