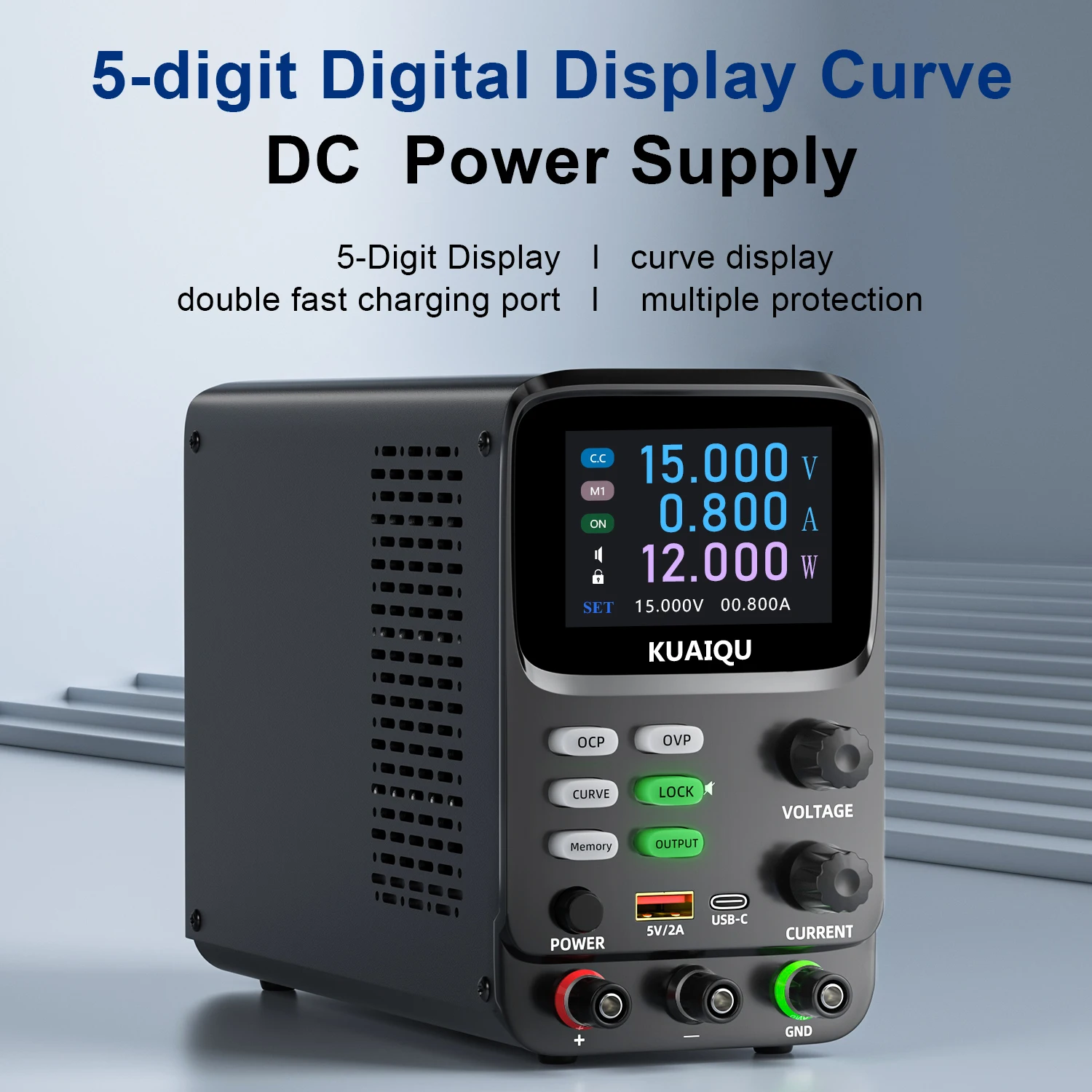

KUAIQU Lab Teste Curve DC Power Supply TFT 5-Digit Bench Voltage Regulator 30V 10A 5A 300W Adjustable OCP OVP Switching Source

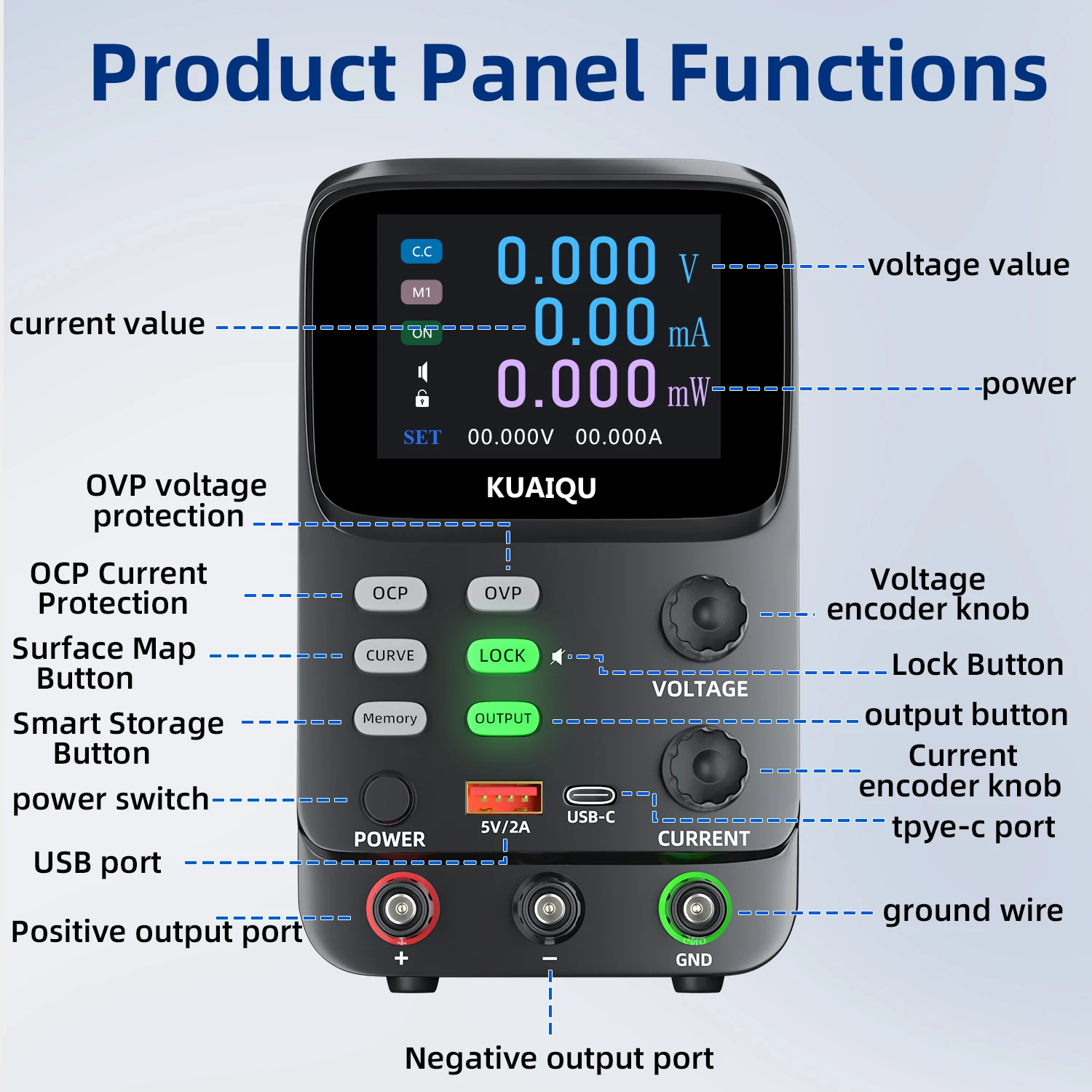

SPPS-K/SPPS-K-R Series Description:

1. 2.8-inch TFT color display

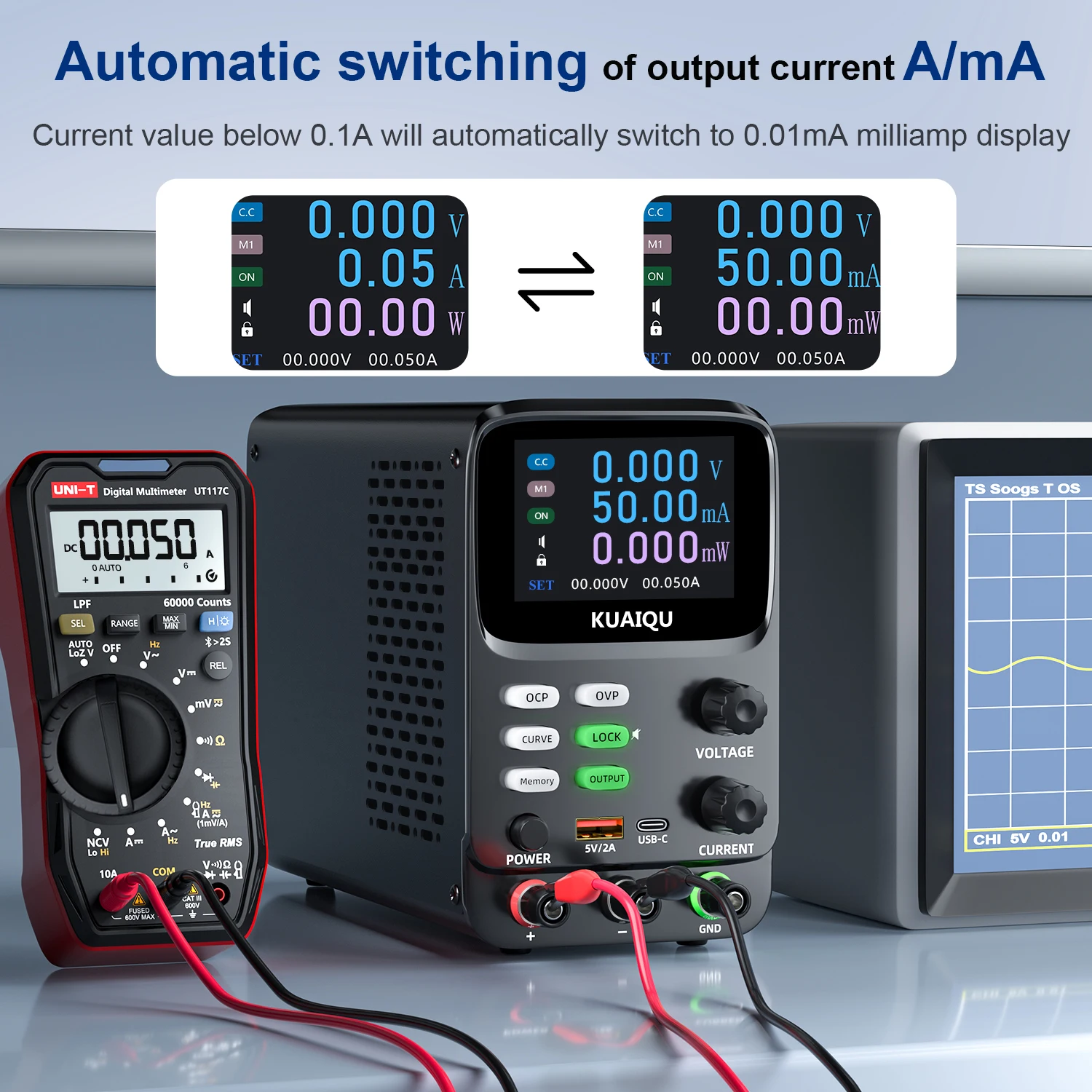

2. Five-digit high-precision display, ripple (20Hz-20MHz), 10μA microampere current display

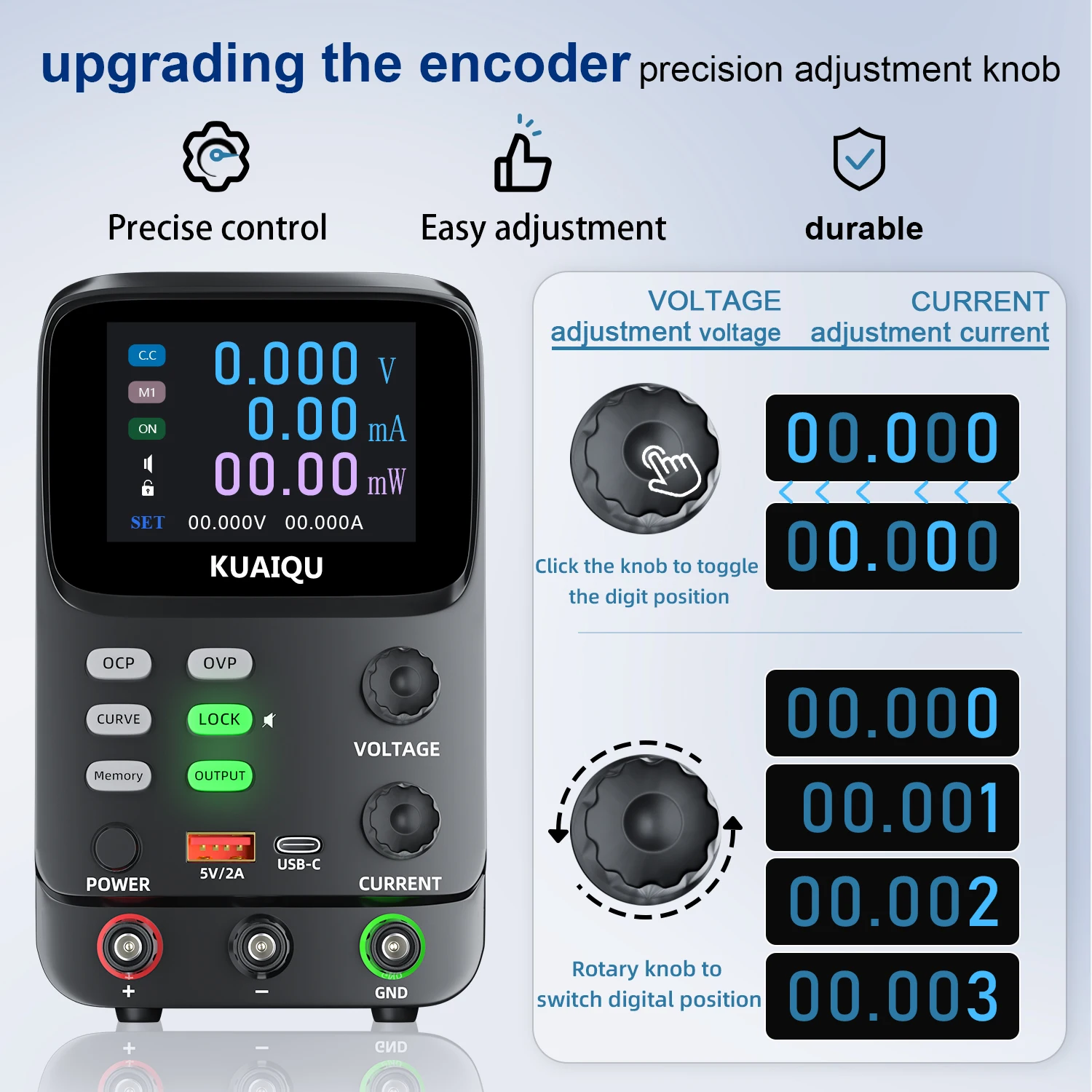

3. Dual encoder knobs for precise digital signal adjustment
4. “CURVE” button for displaying dual current and voltage output curves

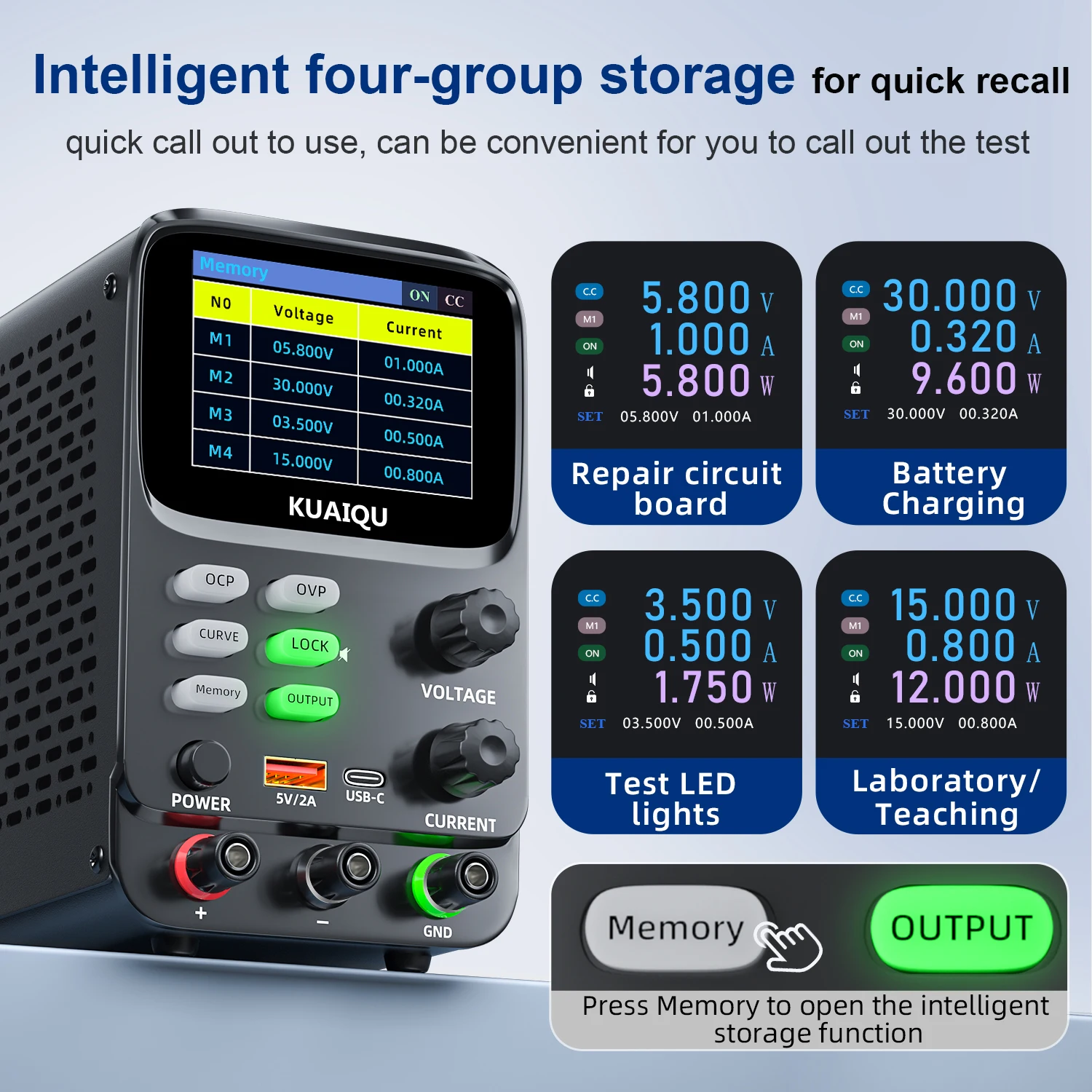

5. “Memory” button with four memory settings. Rotate the knob to select a memorized current and voltage group. Press and hold the current and voltage knobs for 3 seconds to set the current and voltage settings. Press and hold the current and voltage knobs again for 3 seconds to confirm the settings.
6. “OCP” button for current limiting protection. Press and hold for 3 seconds to set the current limit. If the actual output current exceeds the set current value, the OCP display will be displayed, a buzzer will sound, and the output will be disconnected.
7. “OVP” button for voltage limiting protection. Press and hold for 3 seconds to set the voltage limit. If the actual output voltage exceeds the set voltage value, the OVP display will be displayed, a buzzer will sound, and the output will be disconnected.
8. “LOCK” screen lock button locks the screen and buttons to prevent accidental touches that could increase current and voltage and damage the power supply!
9. “OUTPUT” output switch turns current and voltage output on and off.
10. Short-circuit alarm function with buzzer. Press and hold “LOCK” for 3 seconds to turn the buzzer on and off.
11. Dual USB ports (Type-C and USB-A)
12. Measures standby power consumption of mobile phones and simulates battery life for standby power measurement.
13. Automatic constant voltage and current control.

14. 3-in-1 communication port (RS-232/RS-485/USB) allows connection to computer software for current and voltage control, and coded current and voltage output, with 10 memory settings.(Only SPPS-K-R Series)

SPS-S Series Description:

1. LED display, 4 digits, with power display.
2. 4-knob encoder for precise digital signal adjustment.
3. USB-A and USB-C fast charging output ports, supporting multiple fast charging protocols.
4. “OCP” current limiting protection: When the output current exceeds the set current, the output is interrupted, the OCP display is displayed, and a buzzer alarm is sounded.
5. “OVP” voltage limiting protection: When the output voltage exceeds the set voltage, the output is interrupted, the OVP display is displayed, and a buzzer alarm is sounded.
6. “OUTPUT” output interruption on/off button: controls the output current and voltage.
7. Buzzer function: Rotate and press the knob and button to generate a sound. Press and hold “V-Fine” for 5 seconds to turn the buzzer on/off.

SPS-E305 Description:

1. LED screen, 3-digit display, no power indicator.
2. Dual rotary encoder for precise adjustment.
3. Compatible with AC 110V-AC 220V input.
4. Standard cooling fan, automatically starts at power on.
