Precautions for connecting software
software download address
//drive.google.com/file/d/1SMwRcJSb0na0KTnAJE1z0Vurww15Ym-V/view?usp=drive_link

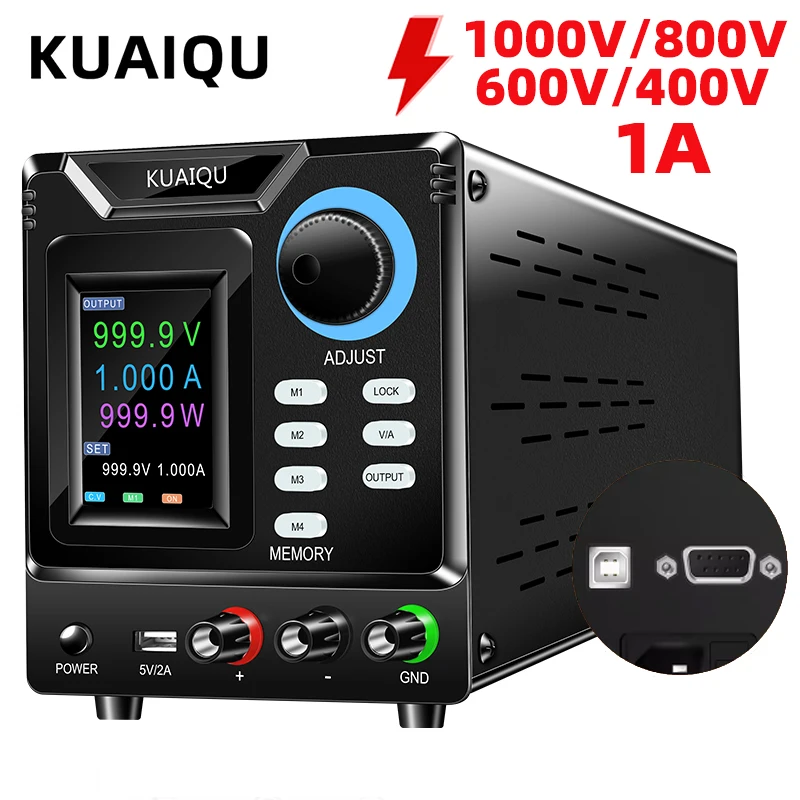

400V~1000V High Voltage DC Power Supply
★Programmable DC Power Supply
★Voltage/Current/Power 4-digit Display
★USB 5V 2A Output
★LCD Color screen

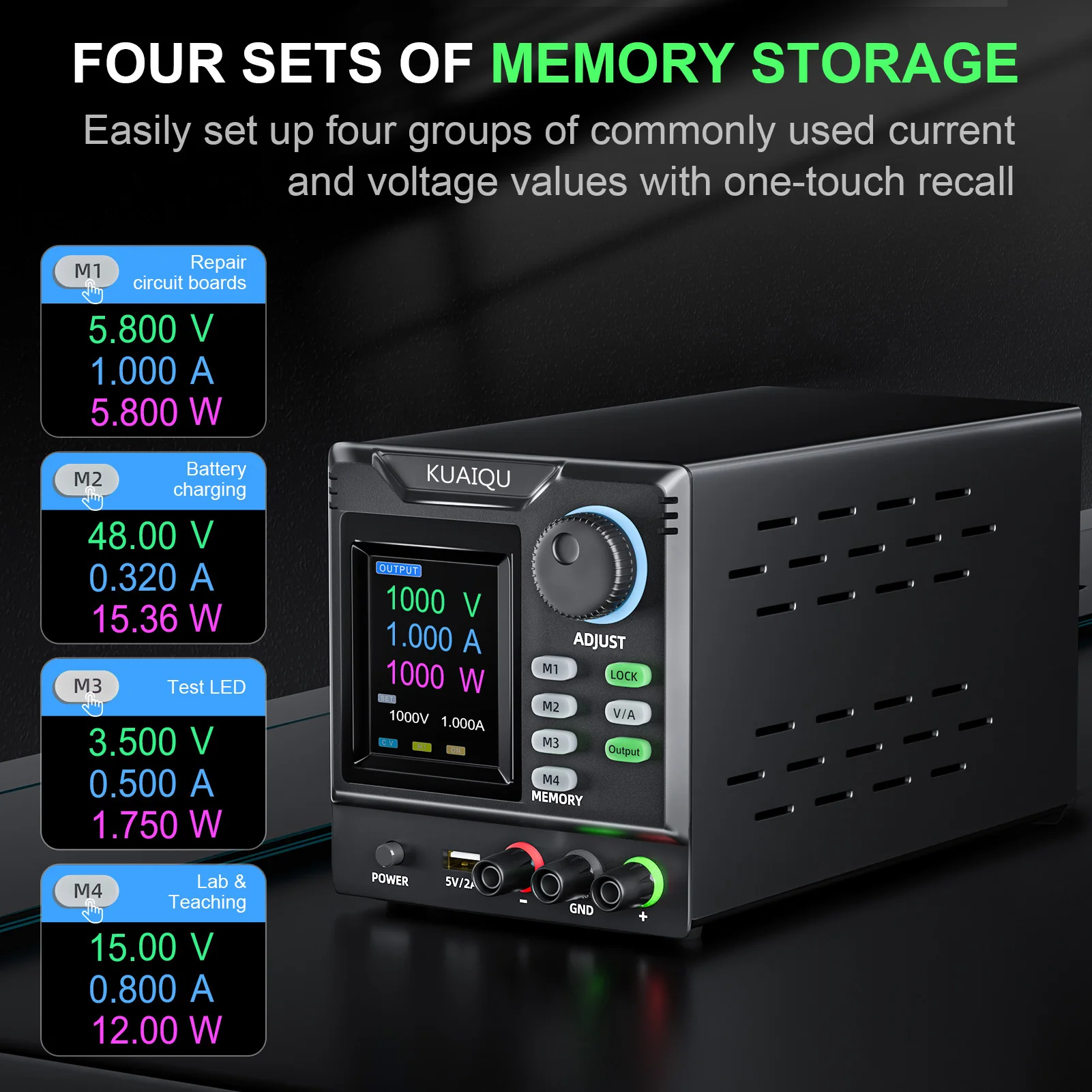

★M1~M4, 4 Groups of Memory
★Output ON/OFF
★Panel Lock Button
★Encoder knob to Adjust

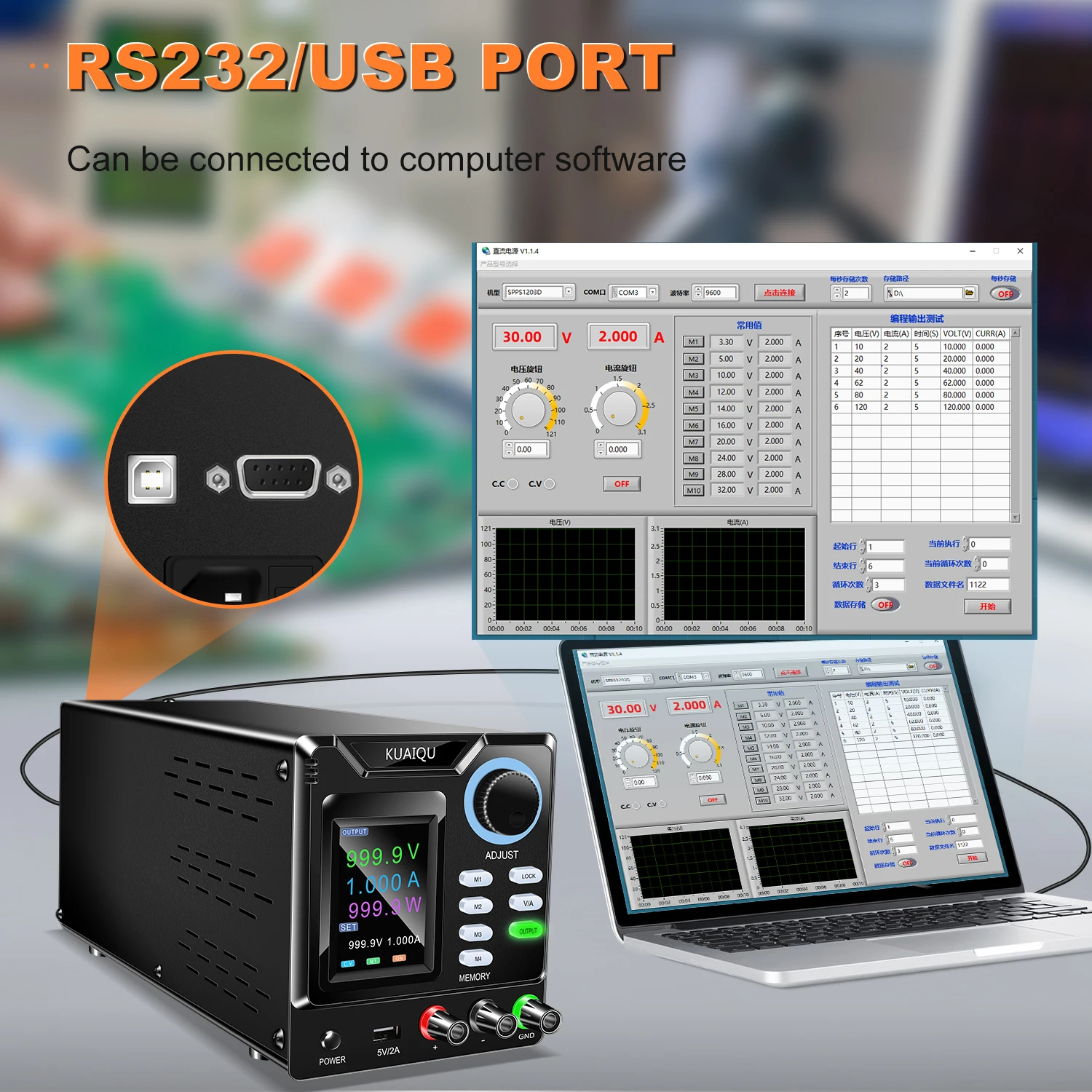

★USB/RS-232/RS485 communication
interface (optional)
Product Description: 1000V1A / 800V1A/ 600V1A /400V1A
Input Voltage: 220V+10% 50Hz (110V10% 60Hz)
Product Weight :
400V1A:2KG
1000V1A//600V/800V: 2.5KG
Display Resolution : Voltage : 00.01V
Current : 00.01A

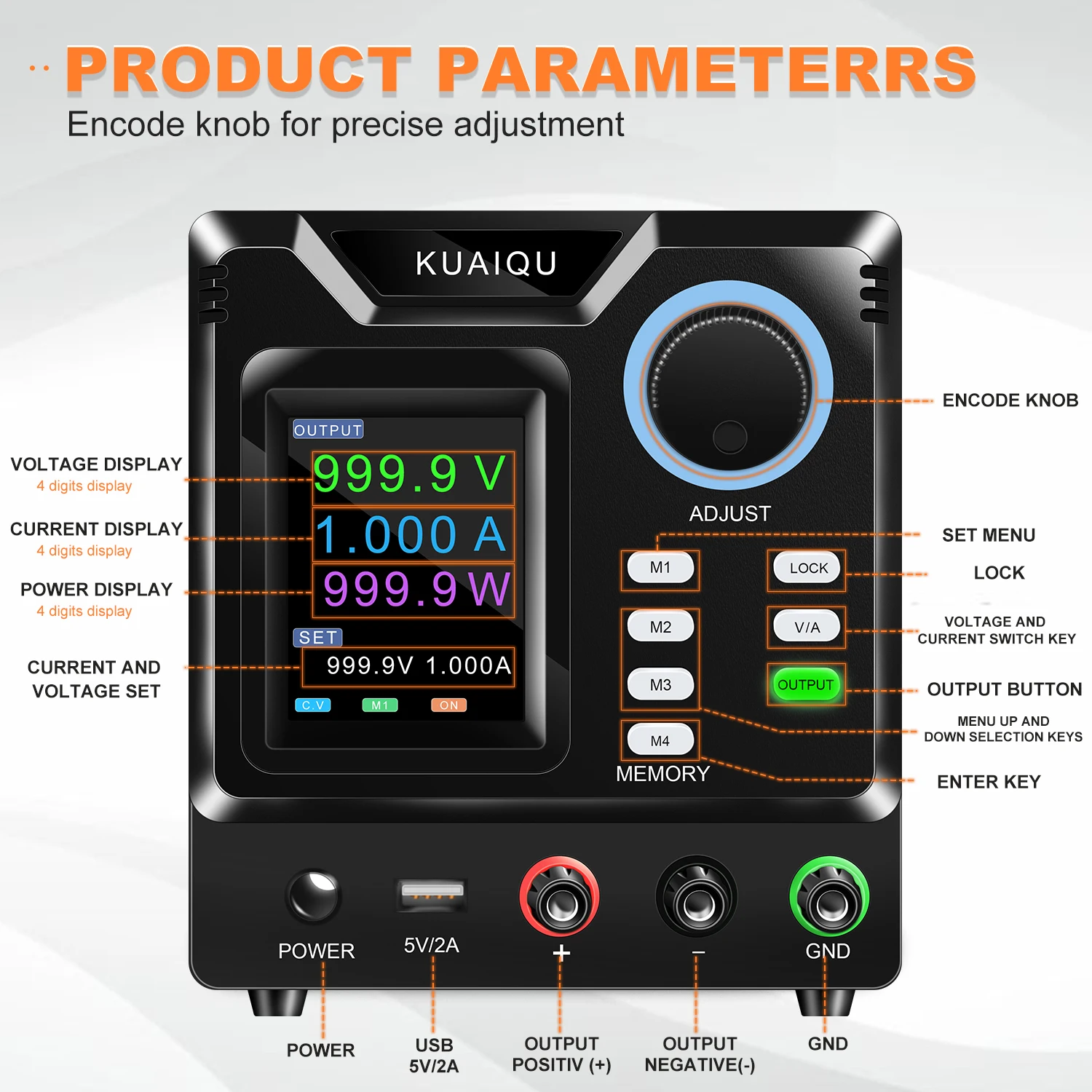

Features
HD 4-digit Color Display
3-inch LCD display shows precise voltage, current, power and other parameters. You can observe the changes of its function indicators from the screen to easily understand its working status, which is easy to view even in low light conditions.
High Precise Encoder Knobs
The lab power supply uses a precise encoder adjustment. Press the knob to switch the number of digits and turn the knob to set the number. Let the direct setting value replace the adjustment value.

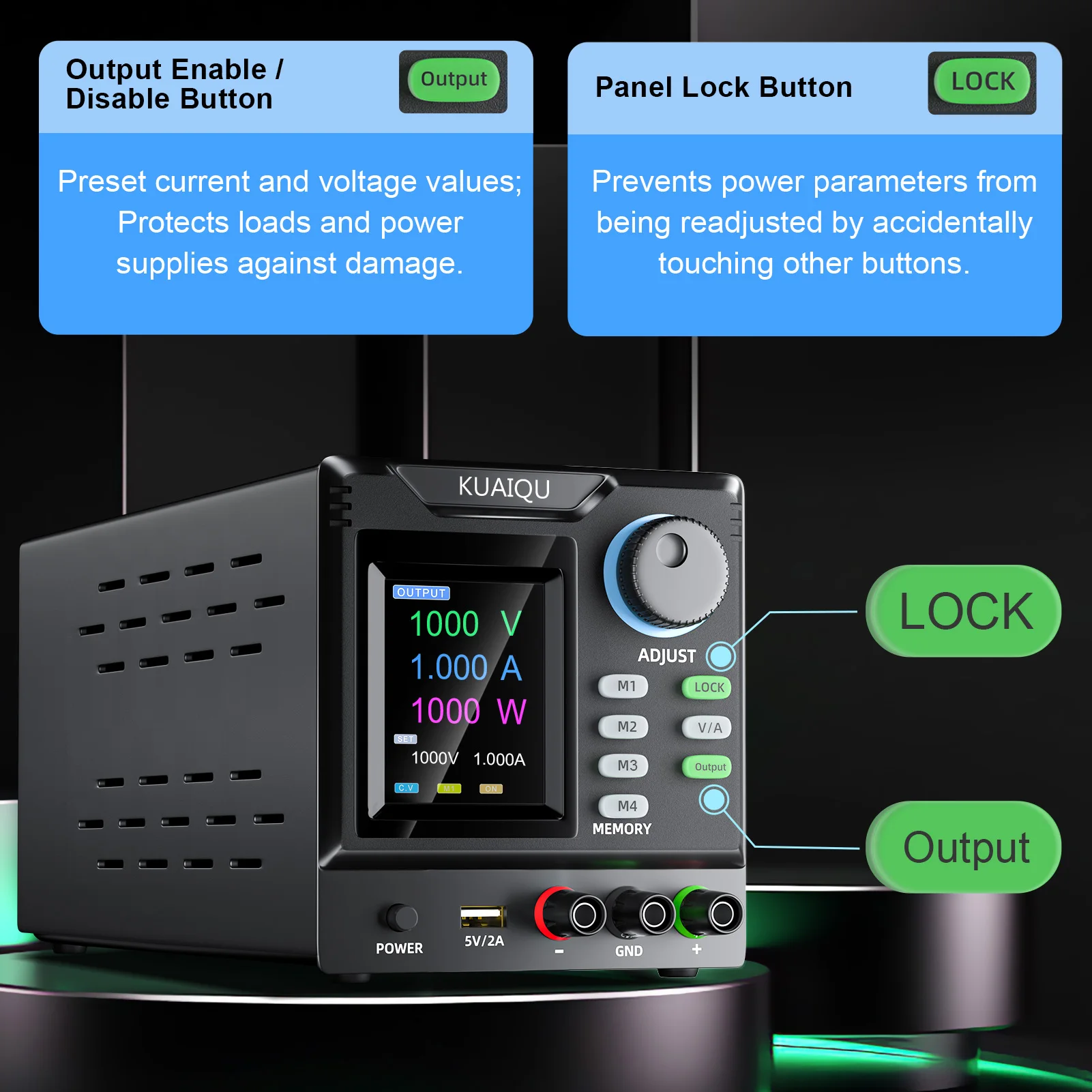

Output Switch Control
In the process of using the dc power supply variable, you can press the output button at any time to turn on or turn off the output of the power supply, this button can prevent you from damaging the device by forgetting to disconnect the output.
Data Lock Key
After pressing the Lock key, all the keys of the machine will be locked, the voltage and current can no longer be adjusted, press the Lock key again, the machine’s keys will be unlocked.
5V/2A USB Port
The dc power supply variable is equipped with a 5V/2A USB port for powering mobile phones, tablet computer and other devices.
Smart Cooling Fan
When the working temperature of the dc power supply exceeds 122℉/50℃, the cooling fan is turned on intelligently, which can effectively dissipate heat. Reduce working noise and prolong the service life of equipment.
CE and FCC Certification
The bench power supply is made of high quality electronic components and is FCC and CE certified to provide reliable and stable performance and effectively extend product life.
Compact and Portable

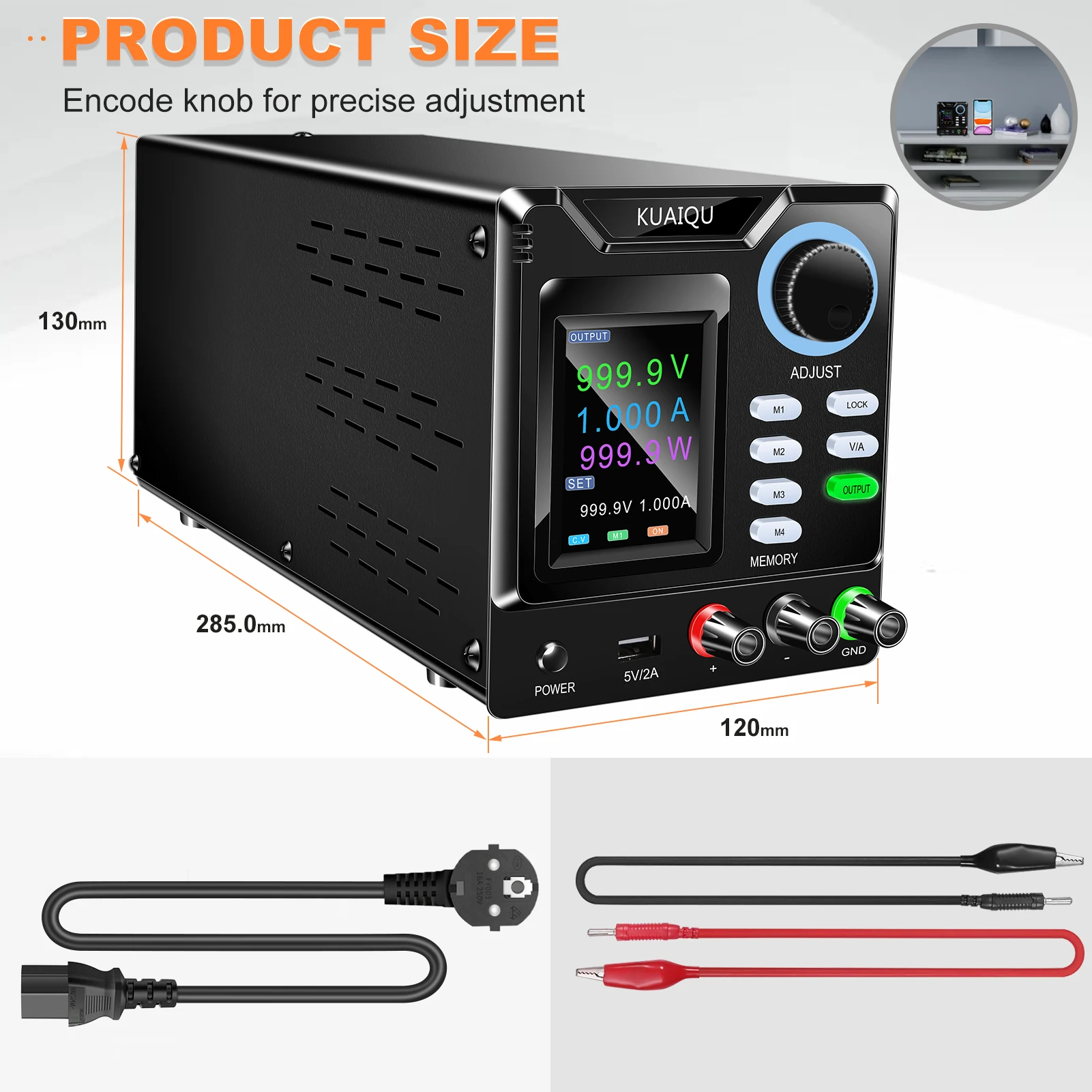

Due to the use of a more compact circuit board, this dc power supply variable is also more compact under the conditions of richer functions and higher accuracy, portable and Compact and the size is only 4.7inx8.7inx5.1in and 3lb.
More pictures
About KUAIQU
We are a manufacturer with 10 years of experience in the field of DC regulated power supply.
We are committed to providing precise service products for all kinds of production and life around the world.
Our products have passed the test of market and time.
We provide high-quality after-sales service and a service team with professional knowledge.
When did we start
We are a professional DC regulated power supply manufacturer established in 2012
What makes our products unique.
We have already launched new SPPS-D series, SPPS-A series,SPPS-B series,SPPS series,and we have R-SPS series,SPS series.
And more advanced DC regulated power supply will be introduced later. The product range covers precision measurement, memory storage, encoder switch, program control and other new designs.
Is the quality of our goods superior
Our products are equiped with a better materials and upgraded structure which makes it higher reliable and accurate.
