Overview
| Weight | 3 lbs |
|---|---|
| Dimensions | 3 in |
| Brand Name |
keyestudio |
| Origin |
Mainland China |
| High-concerned chemical |
None |
| Condition |
New |
| Type |
Voltage Regulator |
| Supply Voltage |
5V |
| is_customized |
Yes |
| Operating Temperature |
-10°C – +50°C |
| Application |
Electric Toy |
| Package |
TQFP |
| Current 3.3V |
500mA(Max) |
| Maximum Power |
2.5W |
| Input Voltage |
7-12V |
| Type C USB |
5V |
| Choice |
yes |
| semi_Choice |
yes |

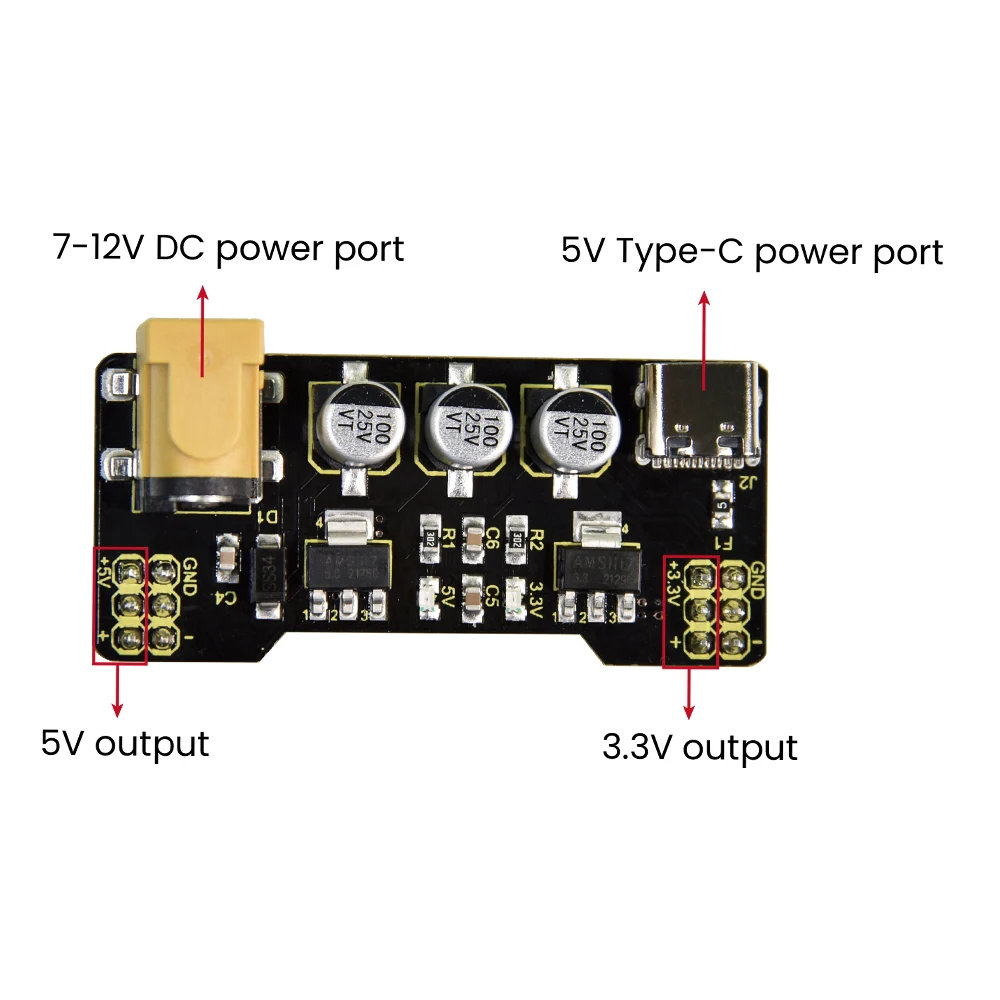

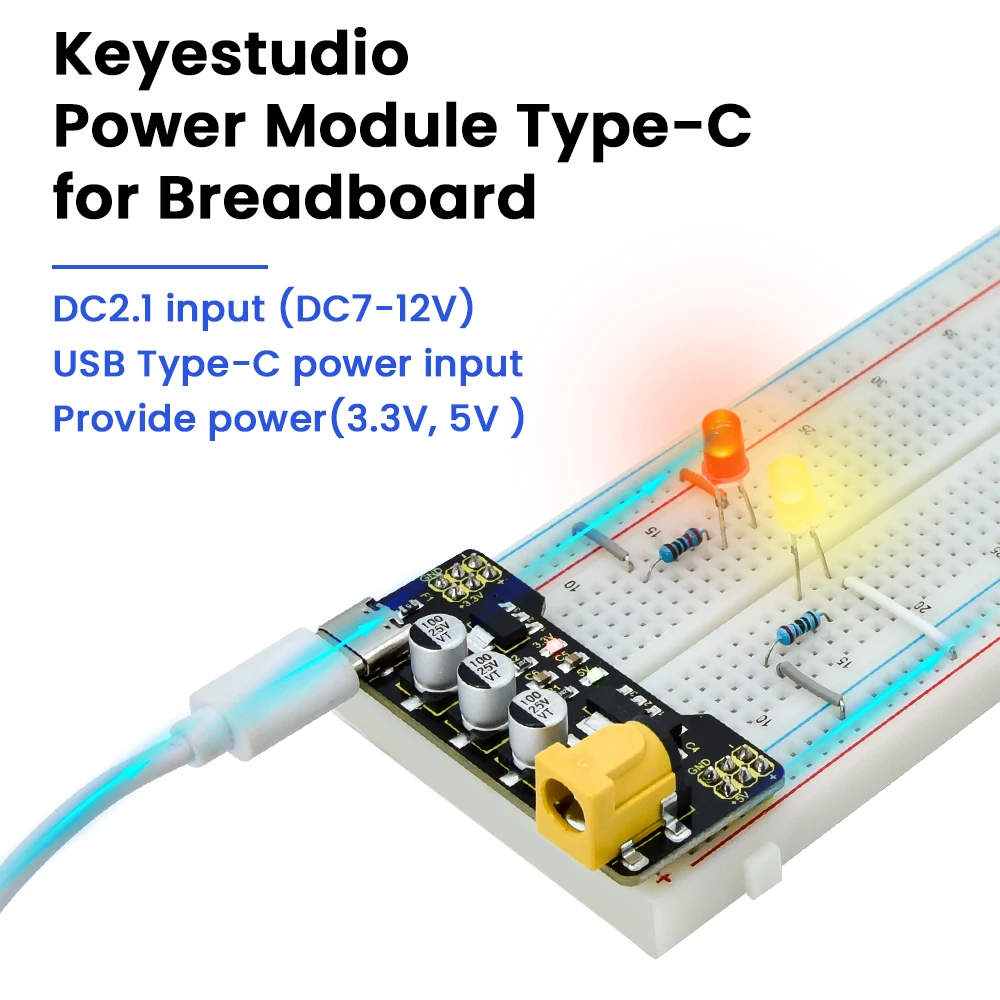

This module can provide power(3.3V, 5V )to breadboards. It has a DC2.1 input (DC7-12V) and a USB Type-C power input.
Purchase Note：Did not work with USB type C PD

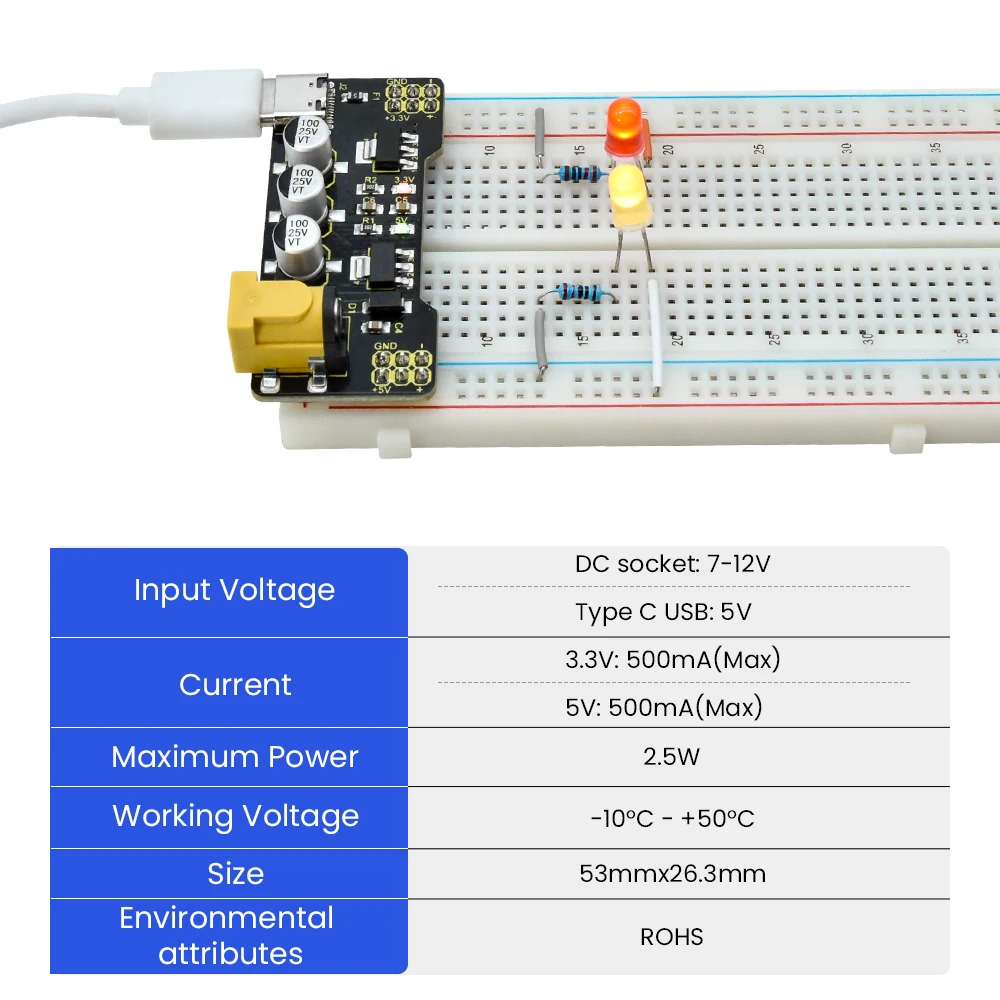

Parameters：
Input Voltage：7-12V； Type C USB: 5V
Current 3.3V: 500mA(Max)
5V: 500mA(Max)
Maximum Power: 2.5W
Working Voltage: -10°C – +50°C
Size: 53mmx26.3mm
Environmental attributes: ROHS
