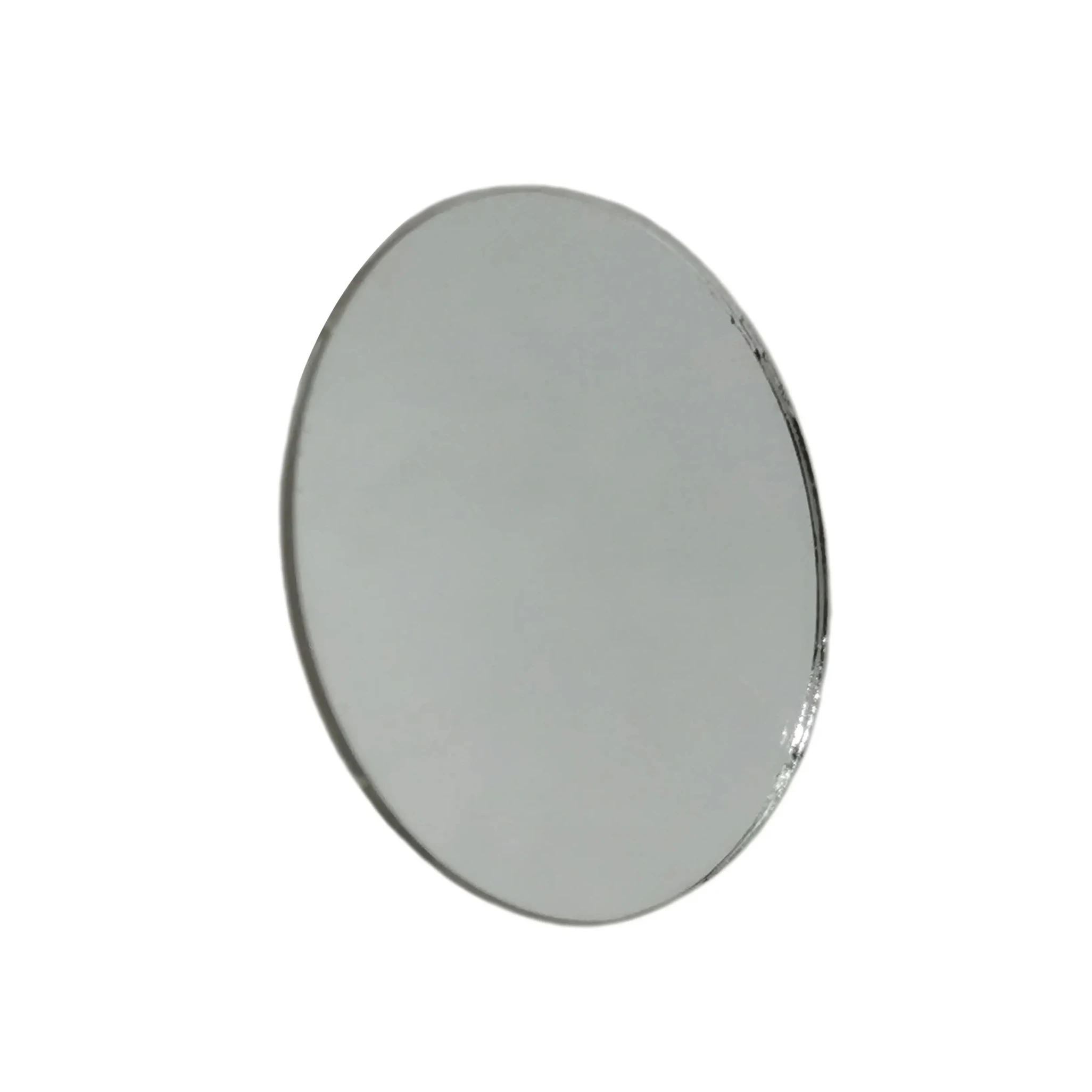

Infrared 700nm/800nm/850nm/900nm/950nm-1200nm Long Wave Pass Filter Round 11/20mm Thick-1.0MM for CCTV Camera LENS

700nm/800nm/850nm/900nm/940nm-1200nm Long Wave Pass Filter Round 11/20mm Thick-0.55MM for Infrared Camera Lens

Product description

The long-wave pass filter allows light whose wavelength is greater than the set wavelength to pass, and cuts off the light whose wavelength is less than the set wavelength. It has the advantages of wide cut-off bandwidth, deep cut-off depth, high conversion steepness, and high transmittance. Widely used in fluorescence excitation spectroscopy, Raman spectroscopy applications, spectral grouping applications, and astronomical observation applications, etc. It can also be used in imaging optical systems, machine vision system applications, to eliminate interference light outside the available bands, and greatly improve imaging clarity Degree, and the sensitivity of the system.

Optical index

Size(Dia.T.): 11mm
Center wavelength: LP 700nm/800nm/850nm/900nm/950nm +/- 5nm
Transmission band: 700nm/800nm/850nm/900nm/950nm~1200nm
Cut-off band: 200nm~700nm
Material: Mirror Glass
Transmission wavefront error: λ/4 @ 700 nm
Parallel difference: <30 arc seconds
Surface finish: 40-20
Diameter tolerance: +0.0/-0.1mm
Thickness: 0.55mm ±0.05mm
Center wavelength tolerance: ±1%
Transmittance T: Tavg>90%
Cut-off zone depth: OD4
Cut-off band steepness: <1%
Effective aperture: >90%
Incident angle: 0°

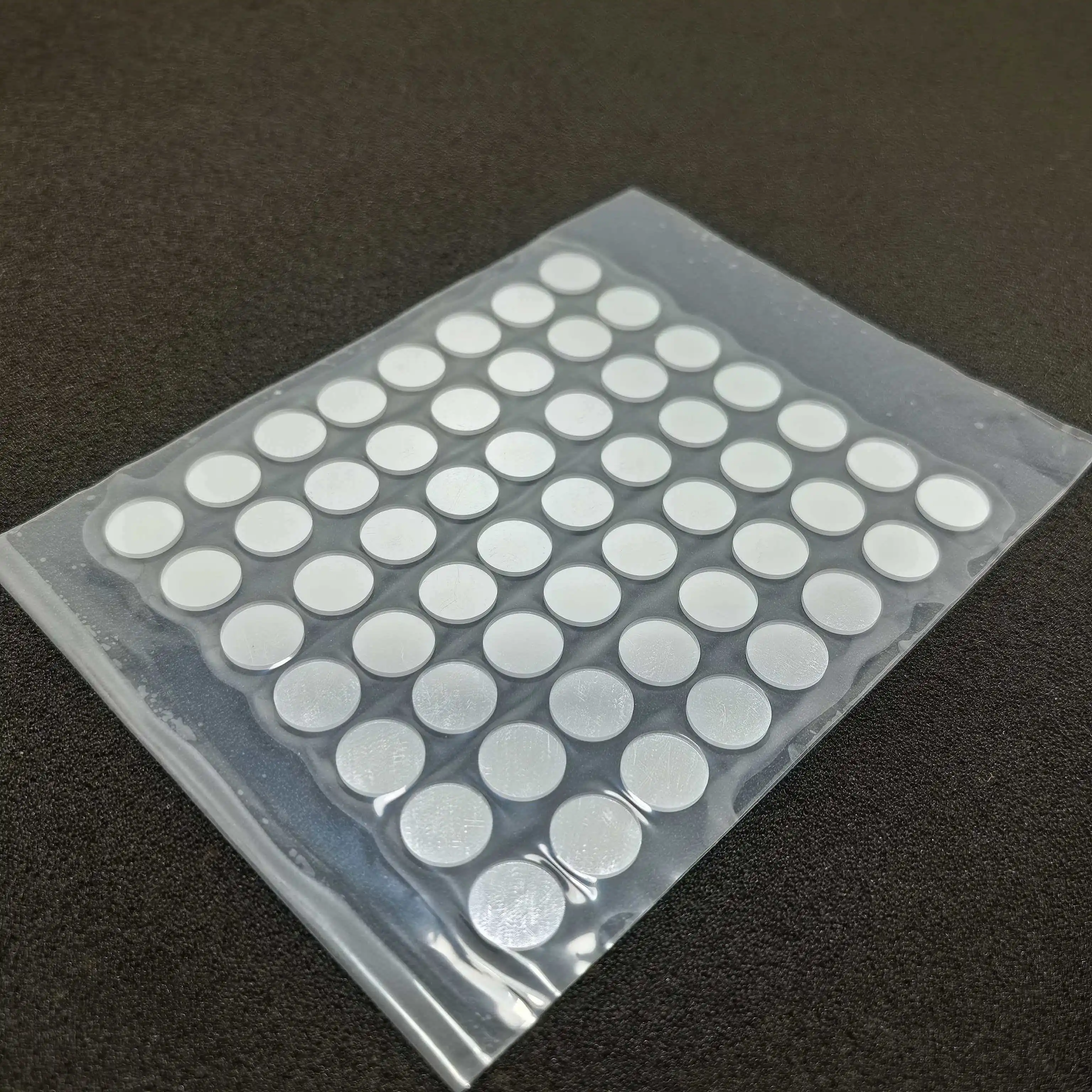

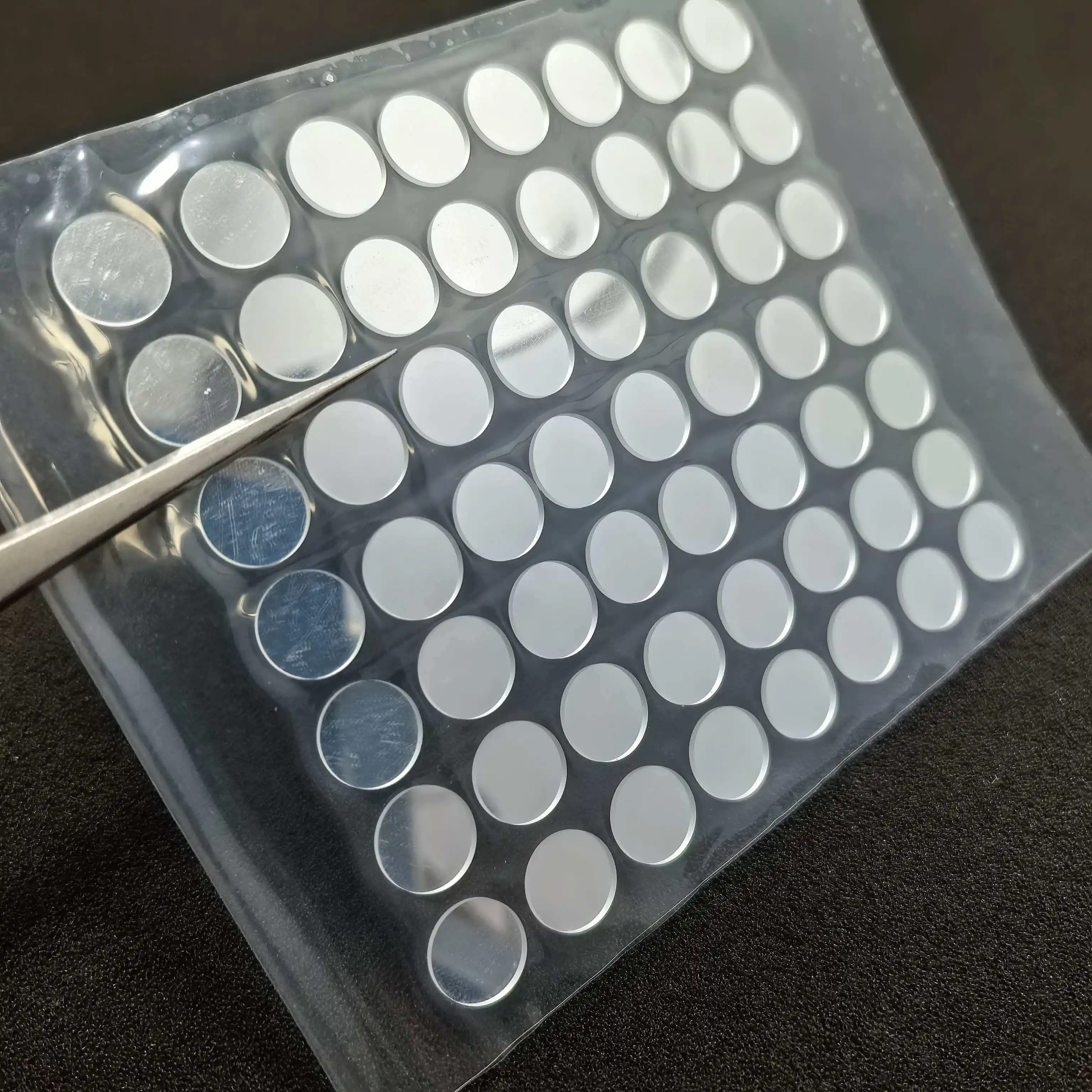

Package.
Round Dia.11mm ,Thickness-1.0mm 700nm/800nm/850nm/900nm/940nm-1200nm Long Band Pass Filter 1PCS.
