I2C Digital MCP4728 12 Bits To Analog Converter GY-MCP4728 Low Power Consumption DAC Breakoout Sensor Module for Arduino

MCP4728 12 Bit Quad Digital to Analog Converter with EEPROM Memory DAC Breakout Sensor Module I2C Interface Low Power Consumption GY-MCP4728

Features:
12-Bit Voltage Output DAC with Four Buffered Outputs
On-Board Nonvolatile Memory (EEPROM) for DAC Codes and I2C Address Bits
Internal or External Voltage Reference Selection

Output Voltage Range:
– Using Internal VREF (2.048V):
0.000V to 2.048V with Gain Setting = 1
0.000V to 4.096V with Gain Setting = 2
– Using External VREF (VDD):
0.000V to VDD

±0.2 Least Significant Bit (LSB) Differential Nonlinearity (DNL) (typical)
Fast Settling Time: 6 µs (typical)
Normal or Power-Down Mode
Low Power Consumption
Single-Supply Operation: 2.7V to 5.5V

I2C Interface: Address bits: User Programmable to EEPROM
Standard (100 kbps), Fast (400 kbps) and High Speed (HS) Mode (3.4 Mbps)
10-Lead MSOP Package
Extended Temperature Range: -40°C to +125°C

Applications:
Set Point or Offset Adjustment
Sensor Calibration
Closed-Loop Servo Control
Low Power Portable Instrumentation
PC Peripherals
Programmable Voltage and Current Source
Industrial Process Control
Instrumentation
Bias Voltage Adjustment for Power Amplifiers

Package Includes:

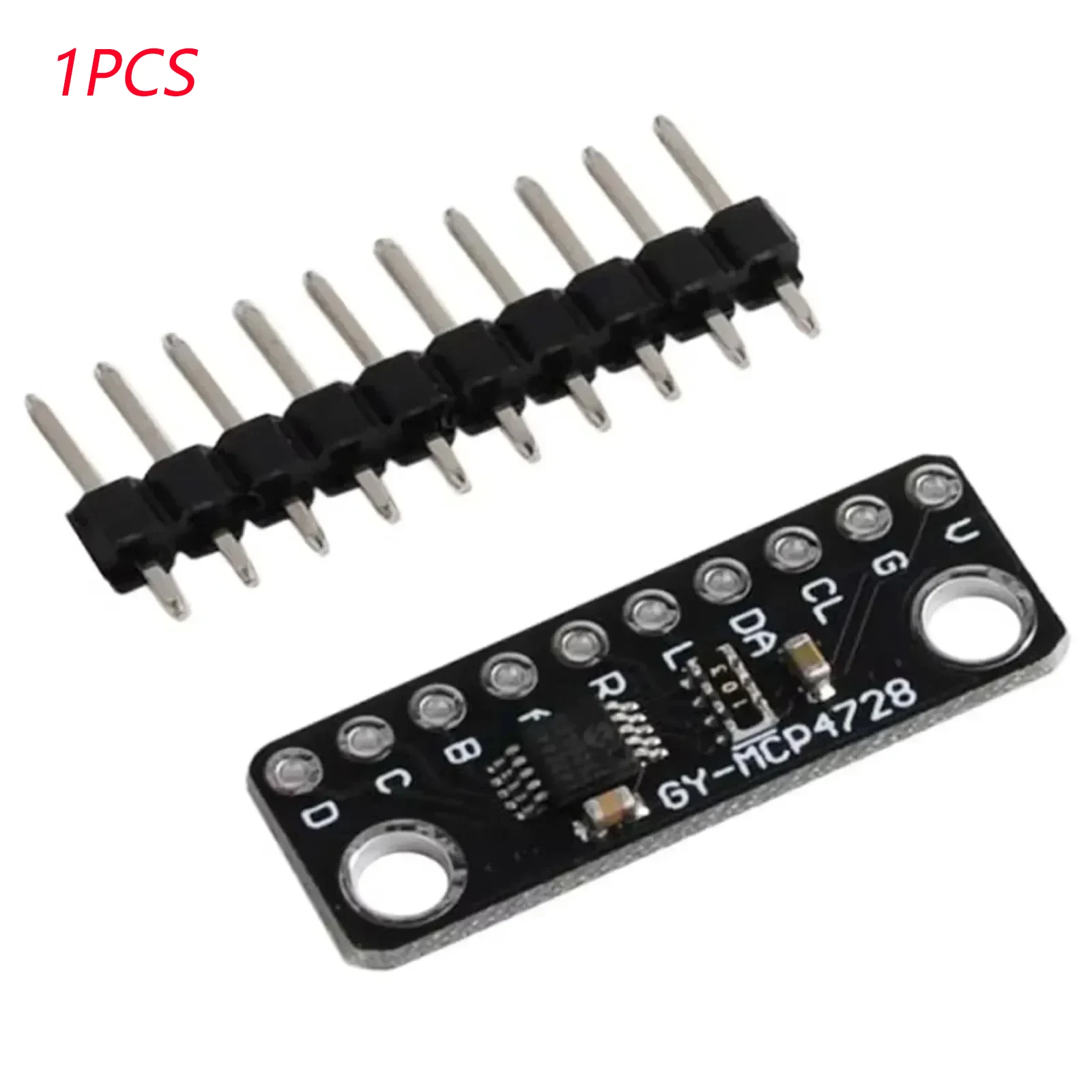

1PCS GY-MCP4728 Sensor
