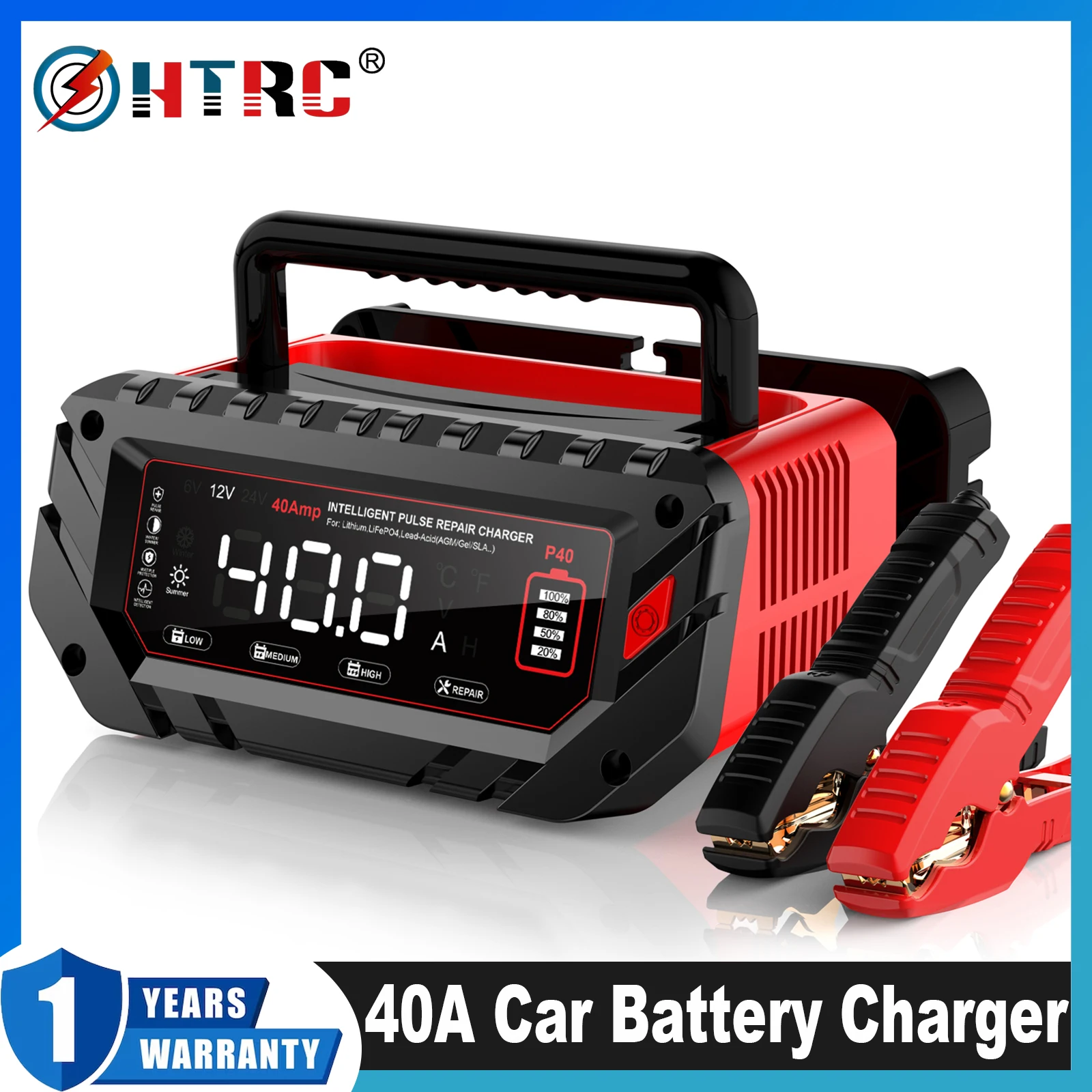

Product Description:
1. Efficient charging: The smart charger uses high-frequency charging technology,which
can greatly shorten the charging time, improve the charging efficiency, and effectively
avoid the problems of battery damage and shortened life caused by overcharging and
too long charging time.
2. Intelligent control: The charger has intelligent control function, which can automatically
identify the type and status of the battery, charge according to the batterycondition,
avoid overcharge and undercharge, protect the battery and extend the battery life.
3. Multiple protection: The smart pulse charger has multiple protection functions,
including overcharge protection, over current protection, short circuit protection,reverse
connection protection, etc., to ensure the safety of the charging process.
4. Portable design: The charger adopts portable design, easy to carry, suitable
forvarious occasions Charging requirements
Charging Process :
1. Plug the smart charger into a power outlet.
2. Press the Mode selection button on the charger.
3. Connect the output end of the charger to the positive and negative terminals of the
battery to start charging. During the charging process, the charger will automatically
identify the battery type and status for intelligent control charging.
4. After charging is completed, the charger will automatically stop charging, and the
connection between the charger output and the battery can be unplugged.
Feature:
AC Input Voltage :100-240V~50/60Hz
Input Power with Load : Max 420W
Output Voltage : 6V/12V/24V
Output Current : 6V Max 10A /12V Max 40A/24V Max 16A
Battery Type :Lithium,LiFePO4,Lead-acid[AGM,GEL,SLA,Flooded,
WET,EFB,etc..]
1: Battery voltage indicator during charging
2: Winter mode indicator (light up according to external temperature)
is below 10 degrees Celsius
3:Summer mode indicator (which lights up according to the outside
temperature) is higher than 28 degrees Celsius
4: Low current charging mode (6V 2A, 12V 3A, 24V 5A)
5: Medium current charging mode (6V 5A, 12V 15A, 24V 8A)
6: High current charging mode (6V 10A, 12V 40A, 24V 16A)
7: Repair mode
8: Charging saturation state
9: Mode selection button
