High quality 6V 12V 24V DC Micro new linear actuator DC motor 30/50/75mm 100mm 150mm stroke customized 188N force free shipping

We are professional Linear Actuators,lifting column and controller manufacturer for more than 20 years old. We have ISO,CE,UKCA certificate. There are more than 500 types linear actuators,lifting columns and controllers in my company.

M5 is one of good quality and hot sell micro electric linear actuator,fixed inner intelligent limited switch,it can stop automatically when it arrives in end position. The engineer team offers varies of stroke,gear rations,input power,cable connector,length,controller to customers. If you need a customized micro linear actuator,we can help you.

Linear Actuator technical data

1 Type                                       M5 micro linear actuator

2 Input                                      6V 12V 24V DC

3 Max Load                                188N=18KG=44LBS

4 Max Speed                              150mm per second

5 Limited switch                          With

6 Duty cycle                               25%

7 Inner tube material                  Aluminum alloy

8 Stroke length                           Max 150mm

9 Retract length                          L1=54.5mm+stroke length

10 Color                                     Black

11 Feedback Potentiometer,with customized fee

12 Operation temperature            -26 ~ +65 degree

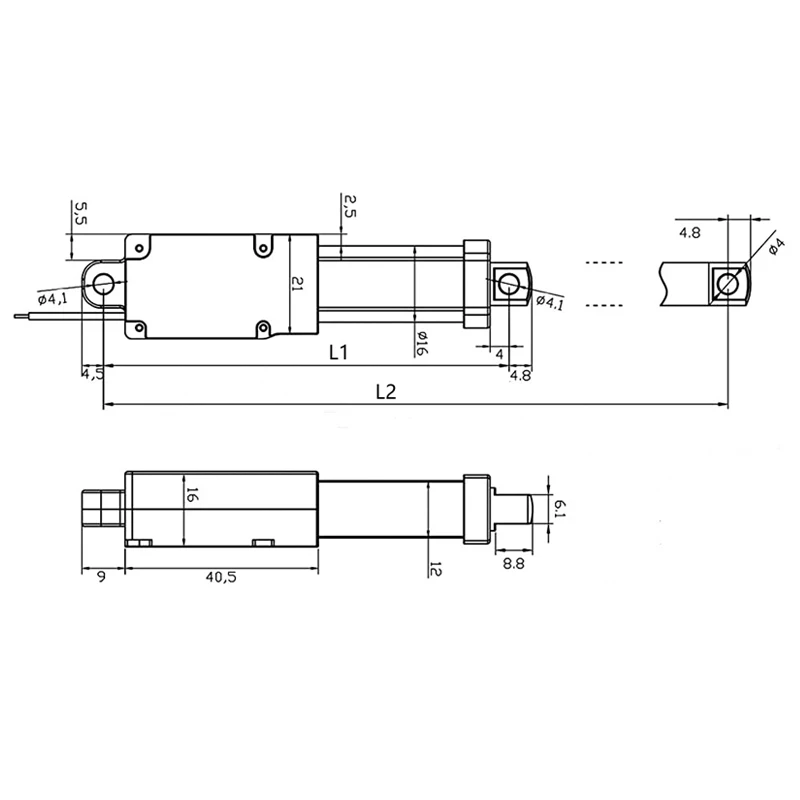

Linear Actuator technical drawing

1 L1=100% fully retract length
