Hdmi-compatible Input To Scart Video Output Audio Converter Adapter Audio Head Compatible For Crt TV Vhs Video Recorder HD 1080P/720P
Â
Feature:

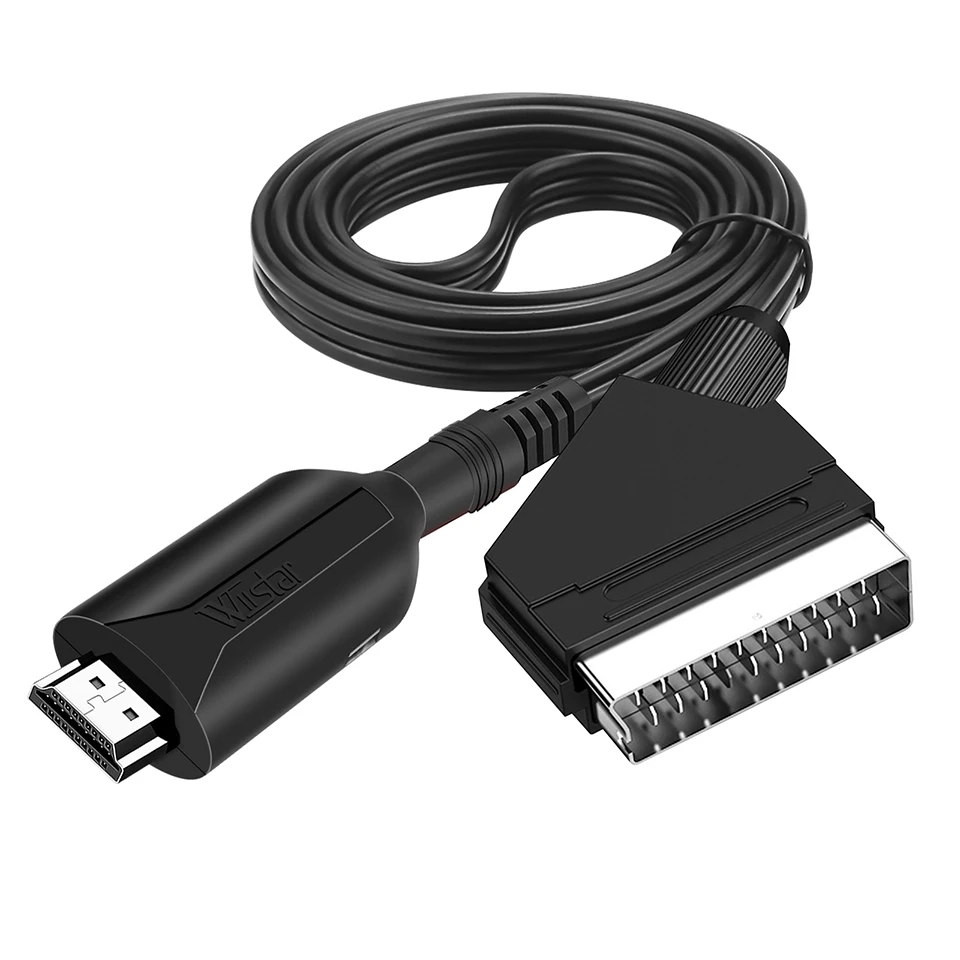

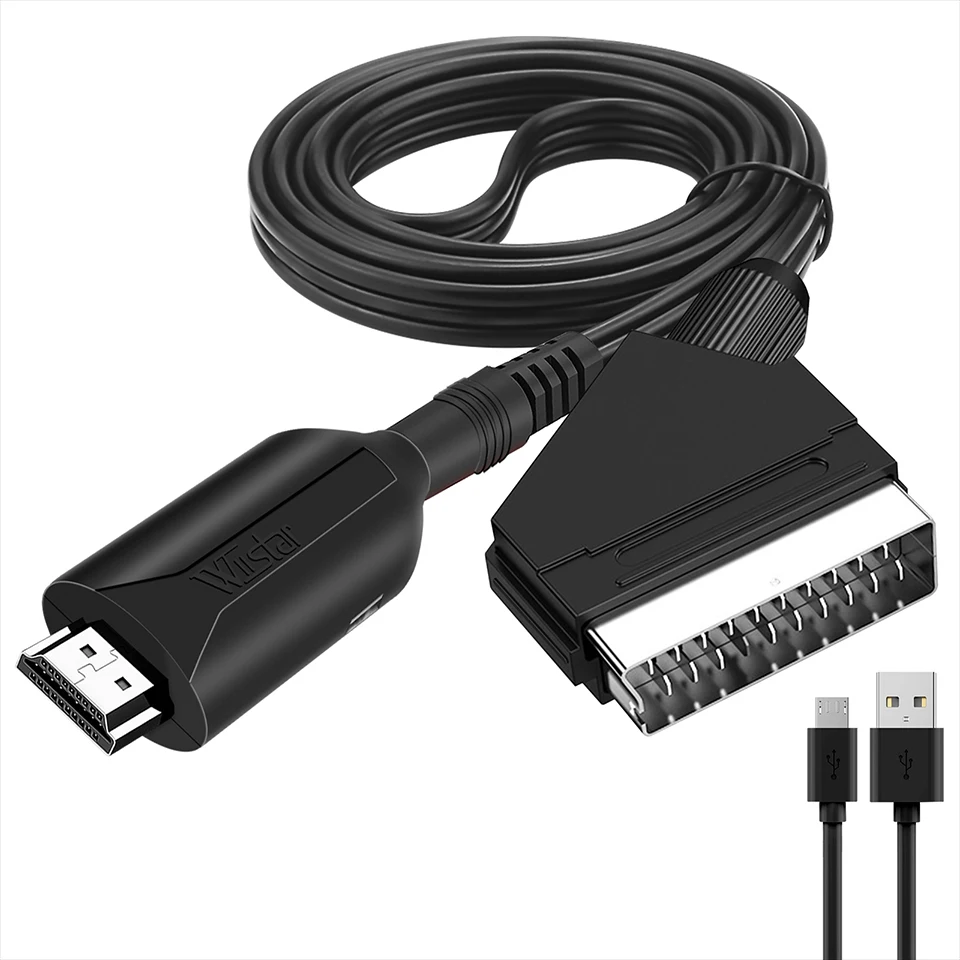

This mini HDMI-compatible to Scart converter converts HDMI-compatible digital audio and video signals into composite video signals and left and right stereo audio signals.
It also supports DVI system, which can help users convert high-quality HDMI-compatible signals into ordinary CVBS (standard resolution 480I, 576I) that can be played on CRT TVs, VHS recorders, DVD recorders, etc., and supports for NTSC and PAL TV systems Output.
No need to drive, portable, plug and play, high-quality zoom technology input resolution, support for NTSC and PAL two standard TV output HDMI-compatible 1.3 and backward compatible.
Â
Specification:
Input: HDMI-compatible
Output: SCART
Resolution: for PAL/NTSC switch
Shell: ABS
HDMI-compatible input and output resolution: up to 1.3/60fs
HDMI-compatible supports video color format: 24-bit/dark 30-bit/36-bit
HDMI-compatible maximum transmission bandwidth: 300MHz
HDMI-compatible maximum transmission speed: 10.2 Gbps
Input and output TMDS signal: 0.5-1.5Vp-p(TTL)
Input and output DDC signal: 5Vp-p (TTL)
RCA analog output (1KHz@0dB): 1V RMS
SNR @0dB (CC1R/ARM): ≥90dB
Distortion: ≤0.1%
Frequency response: 20Hz-20KHz
Maximum working current: 600mA
Power adapter specifications: AC 100V-240V 50/60Hz, DC 5V/1A
Working temperature: 10 – +55℃
Storage temperature: 20 – +60℃
Working humidity: 10-90%RH (non-condensing)
Storage humidity: 5-95%RH (non-condensing)
Â
Usage:

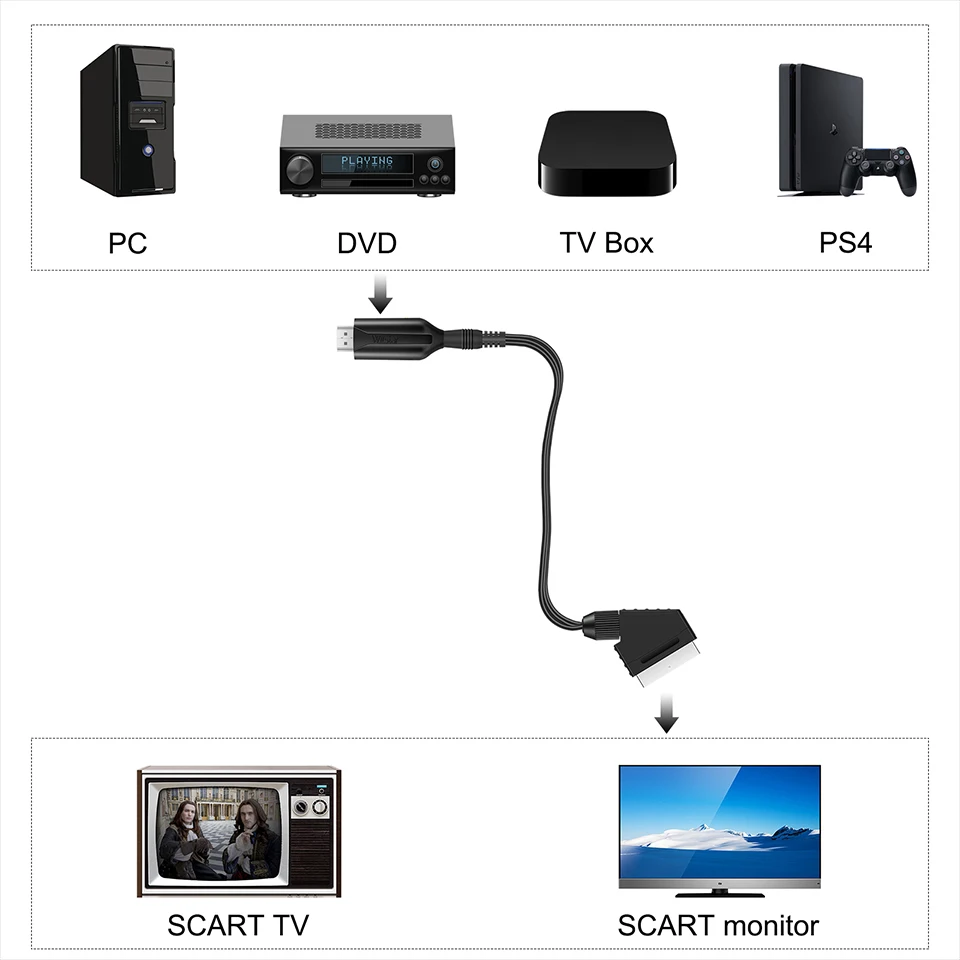

1. Connect the dvd/bd hdmi-compatible hd output to the hdmi-compatible input of the splitter through an hdmi-compatible cable.
2. Connect the scart output of the converter to the scart input of the TV/Monitor via the scart cable.
3. Turn the switch to the left when you need to display the PAL standard, and turn it to the right when you need to display the NTSC standard.

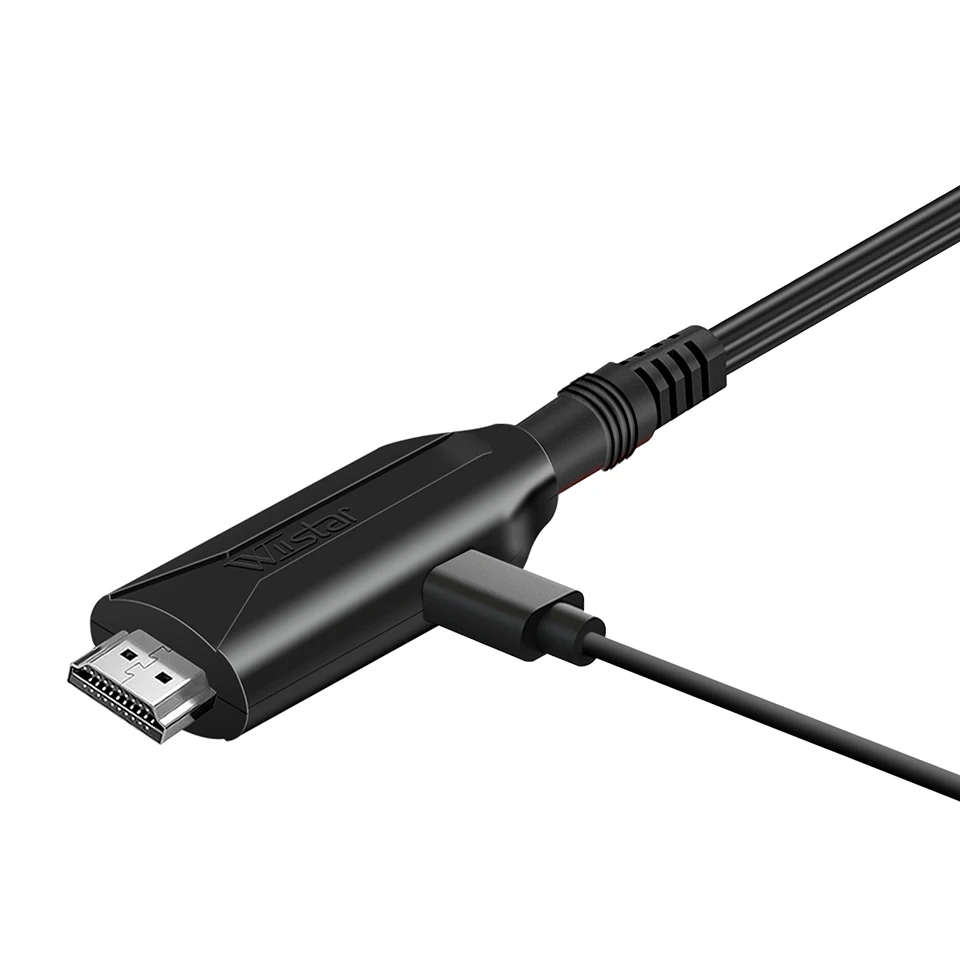

4. Finally, connect the DC head of the power adapter to the DC input of the converter, and then insert the adapter plug into the power socket.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

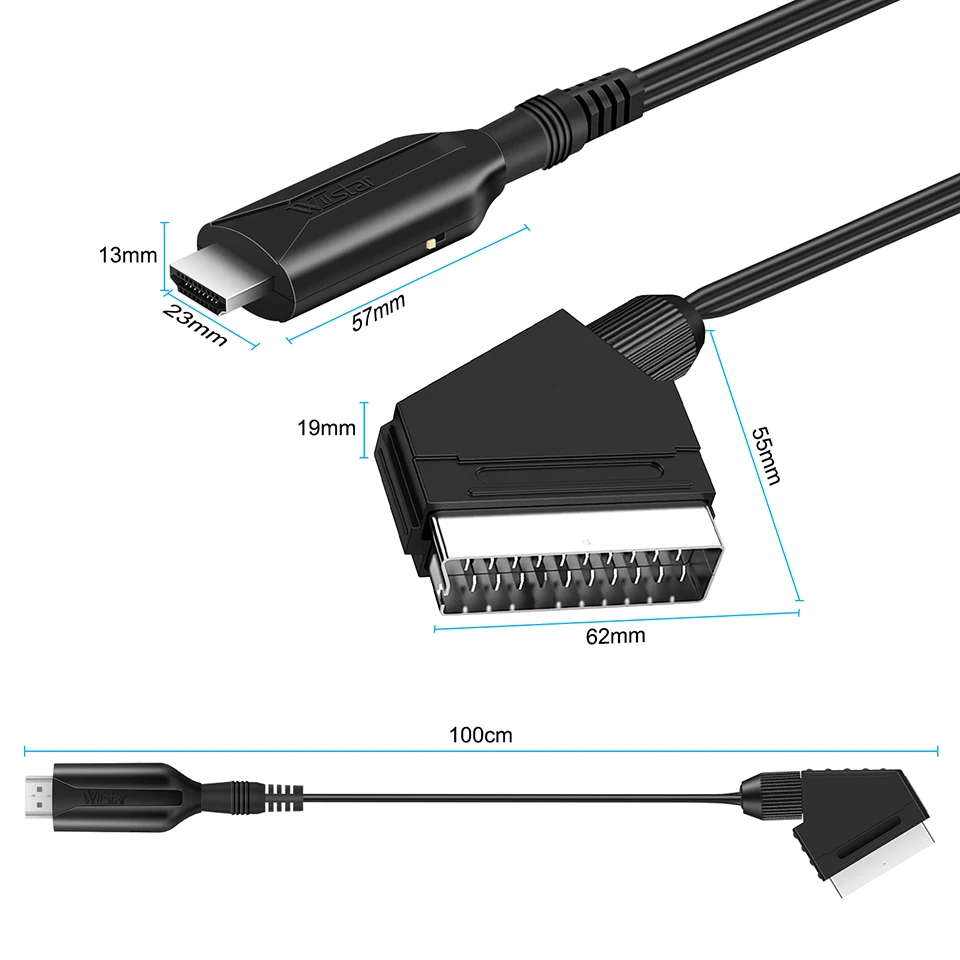

Please allow 1-2cm measuring deviation due to manual measurement.
