Features:
1. HDMI-Compatible 2.0b audio and ARC extractor converter supports 4K/ 2k@60hz Dolby Atmos HDR10 Dolby Vision, Blu ray/DVD/HD player/cable TV/TV/for PS3/4/X PC/laptop, high-definition camera, etc. suitable for televisions.
2. HDMI-Compatible Audio Extractor 4k@60hz The HDMI-Compatible audio converter allows the HD Source to connect to a single HD monitor and adds an additional L+R and SPDIF, as well as a 3.5 headphone jack audio output port. It achieves synchronization of audio signal separation.
3. Support 4k@60hz Ultra high definition resolution. Supports 4K x2k@60hz RGB/YUV4:4:4, HDCP2.2, HDMI-Compatible 2.0, 4K 3D HDR 10 Dolbby Vision and Dollby Atmos, color format RGB (YUV: 4:4). It is also compatible with the back 4k@30hz And 1080p/1080i/720p/576i/480p/480i. The maximum baud rate is 18Gbps. No loss of quality, installation within minutes, plug and play. The picture is clearer and more delicate, giving people a beautiful feeling of a home theater.
4. Three audio EDID settings. The converter provides optimal flexibility through three audio EDID settings, with three audio mode options of PASS/2.0CH/5.1CH. Supports digital audio formats such as DTS-HD/Dolby TrueHD/LPM7.1/DTS/Dolby AC3/DSD, supports signal re timing, and supports HDMI-Compatible ARC.
5. Wide compatibility. The HDMI-Compatible audio converter works perfectly with various HDMI-Compatible source devices, such as TVs, for PS3/4/5, Chromecast, Blu ray/DVD/HD players, cable/satellite set-top boxes, for Xbox, PC/laptops, high-definition cameras, high-definition DVRs, etc. Simply connect your device to enhance your home theater experience with high-resolution video and audio.
Function:

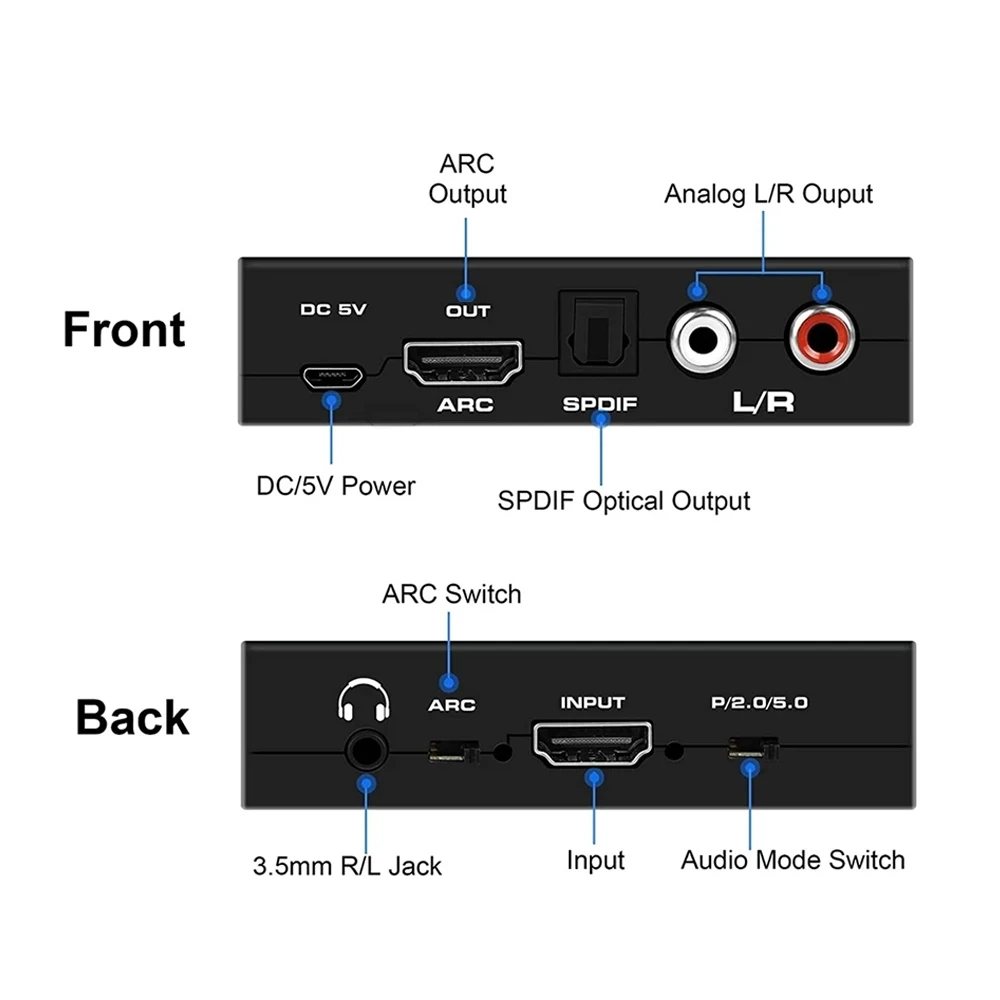

*Convert an HDMI-Compatible input to an HDMI-Compatible (ARC)+audio (SPDIF+R/L+3.5 jack) output
*Supports 4K x2k@60hz RGB/YUV4:4:4， Supports 3D, up to HDCP2.2
*Supports HDR 10 Dolbby Vision and Dolbby Atmos
*Supports deep color tones of 24/30bit and 36bit
*Supports Blu ray 24/50/60fs/HD-DVD/xvYCC
*Digital audio formats such as DTS-HD/Dolby TrueHD/LPM7.1/DTS/Dolby AC3/DSD
*Support signal re timing
*Supports HDMI-Compatible ARC
*Easy to connect, plug and play
*DC5V power supply is required
Specifications:

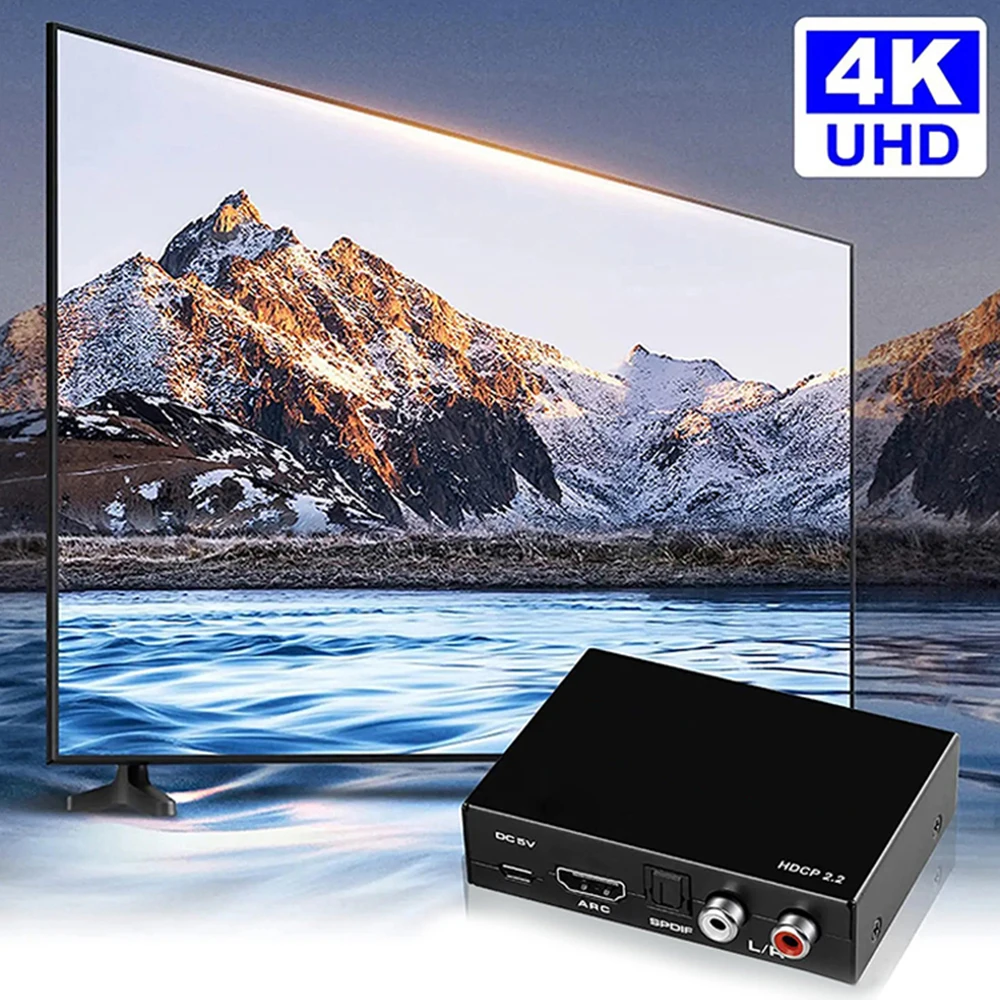

Product Name: 4K HDMI-Compatible Audio Separators
HDMI-Compatible resolution: 4k2k@60hz /3D/1080p/1080i/720p/720i/576p/576i/480p/480i
Maximum bandwidth: 600MHz; Maximum baud rate: 18Gbps
Input cable distance: ≤ 10m AWG26 HDMI-Compatible 2.0a standard cable
Output cable distance: ≤ 10m AWG26 HDMI-Compatible 2.0a standard cable
Product dimensions (length x width x height): 84.5X61.8X21 (mm)
Product Material: Aluminum Alloy

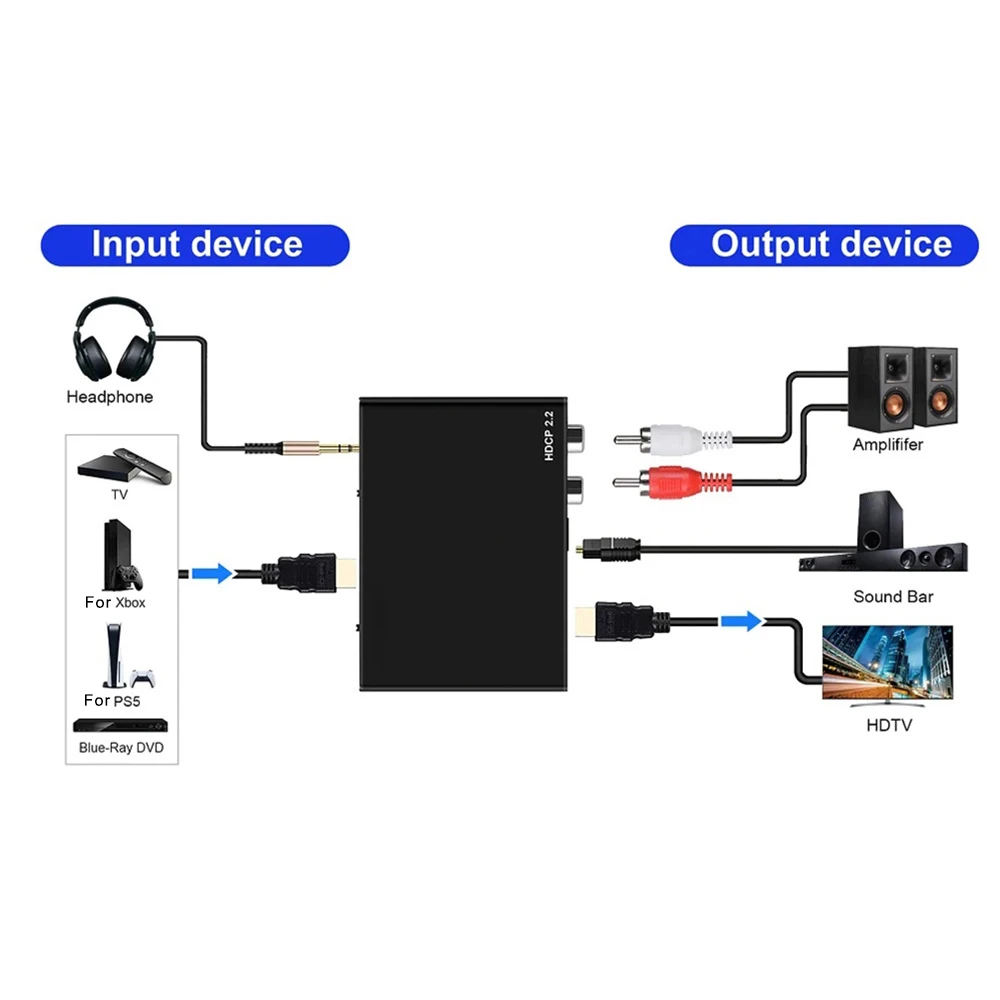

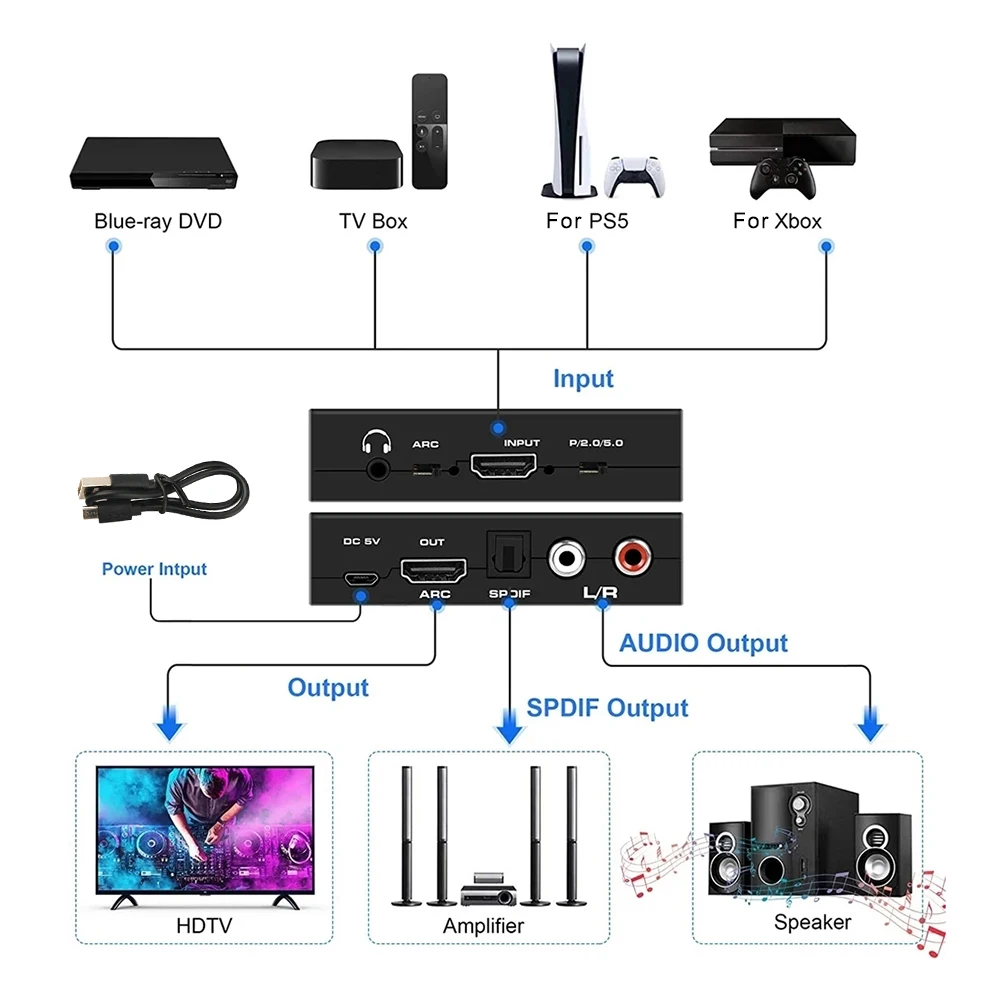

Operation and connection:
1. Use an HDMI-Compatible 2.0 cable to connect the HD Source to the input HDMI-Compatible 2.0 port.
2. Connect the HDMI-Compatible 2.0 output port of the converter to a high-definition monitor.
3. Use an audio cable to connect the R/L port of the converter to the audio device.
4. Connect the SPDIF port to the audio device using a fiber optic cable.
5. Connect the converter to a 5V DC power adapter.
Packing list:
1 * HDMI-Compatible audio splitter
1 * User Manual
1 * Micro USB cable (excluding adapter)

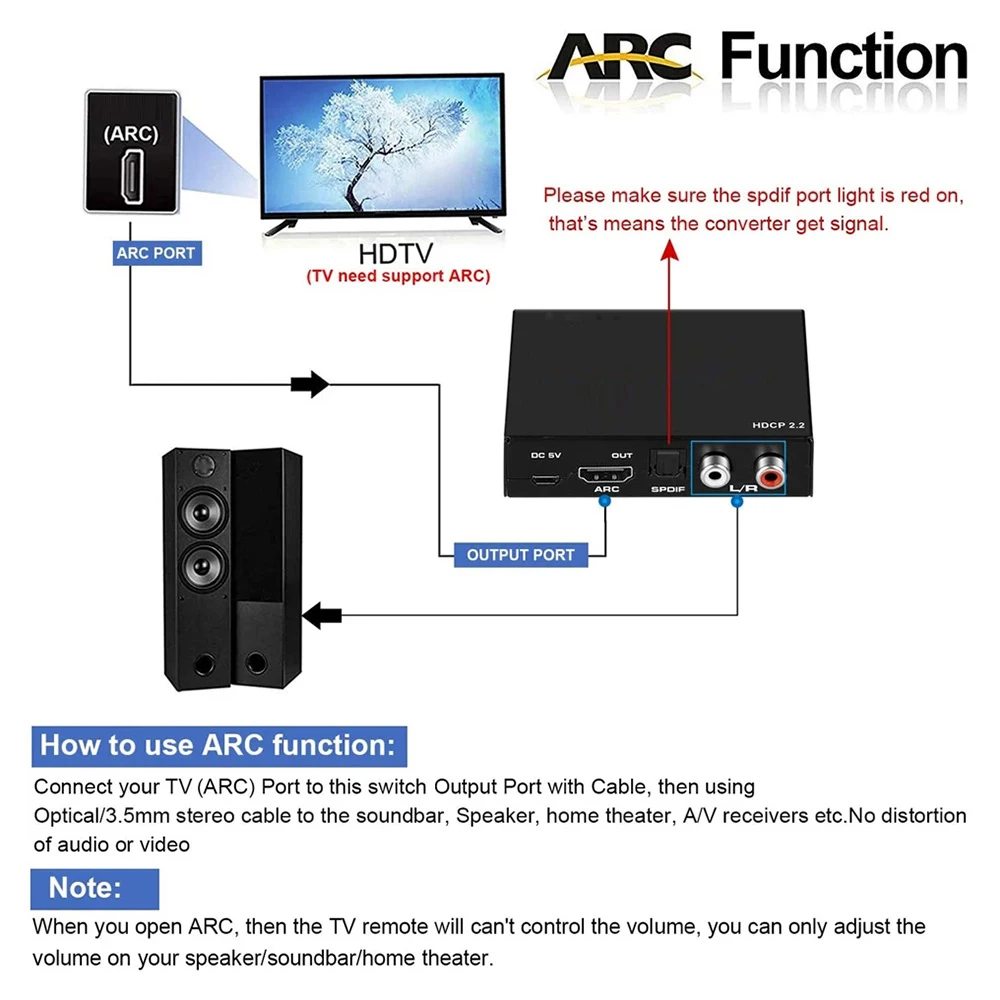

Note: When you turn on ARC, the TV remote control will not be able to control the volume, and you can only adjust the volume on the speakers/speakers/home theater.
Troubleshooting:
1. Dolby/DTS issue: Please check the display compatibility of these formats. Our device does not decode, it only passes it to your monitor.
2. HDR/Dolby Vision issue: Your HDMI-Compatible cable must comply with the HDMI-Compatible 2.0 specification. If the cable does not meet the standard, please replace the cable.
