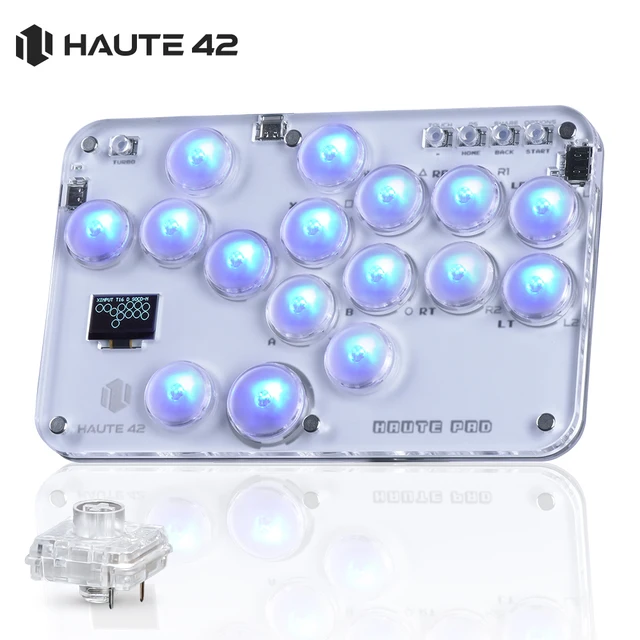

Haute42- COSMOX Leverless Controller Arcade Fighting Games For PC/PS3/PS4/PS5 Switch Steam Stick Keyboard Rims Button Rim

Product Description

Working voltage: 5V

Link method: USB Type-C

Product size: 296mm * 196mm * 10mm

Supported Platforms : pc /ps3/ps4/switch/ Android/Steam

Product Specifications:1Mini Keyboard,1Data Cable Type-C,1Keycap Puller,6 Anti Slip Pads

Ten years of gaming peripheral experience

Carefully crafted portable Hitbox

Take you back to the arcade er

The heart of combat never stops!

This is a leverless controller made of crystal switches, which is completely white and flawless, making it irresistible. The RGB lighting effect has better transparency, allowing you to immerse yourself in the game.

Characteristic:

Dual core ARM Cortex-M0+@ 133MHZ

Supported by dedicated QSPI bus, up to 16MB off chip flash memory

Fully connected AHB crossover switch

Integrated 264kB on-chip SRAM in six independent groups

40nm process node manufacturing, low dynamic power consumption, and low leakage

1ms delay, no frame leakage rate above 95%

Supports firmware updates

more functions and compatibility coming soon

01 Compatibility

B — Xinput mode (Windows/Steam)

A — SWITCH mode

X — PS3 / Dinput mode (Raspberry Pi / Android)

Y — PS4 mode (Compatible with PS4 games on PS5 console）

RT — KEYBOARD mode

Input Mode

To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.

Tips：

This product defaults to Xinput mode，Input mode is saved across power cycles.

If there are games that do not compatible the above input modes , you can enter the Web Configurator to modify them for normal use.

Web Configurator

This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access //192.168.7.1 in a web browser to begin configuration.

TURBO

Hold TURBO，then press the button which you need to be set for turbo function，then this button will be continuous sending while you press it,to cancel this turbo key，just repeat the privious step.

The turbo key that set will be cleard when power off.

These keys can be set as a Turbo key: A / B / X / Y / LB / RB / LT / RT

04 RGB LED Setting

●BACK + START + X Next Animation

●BACK + START + A Previous Animation

●BACK + START + Y Brightness Up

●BACK + START + B Brightness Down

●BACK + START + RB LED Parameter Up

●BACK + START + RT LED Parameter Down

●BACK + START + LB Pressed Parameter Up

●BACK + START + LT Pressed Parameter Down
