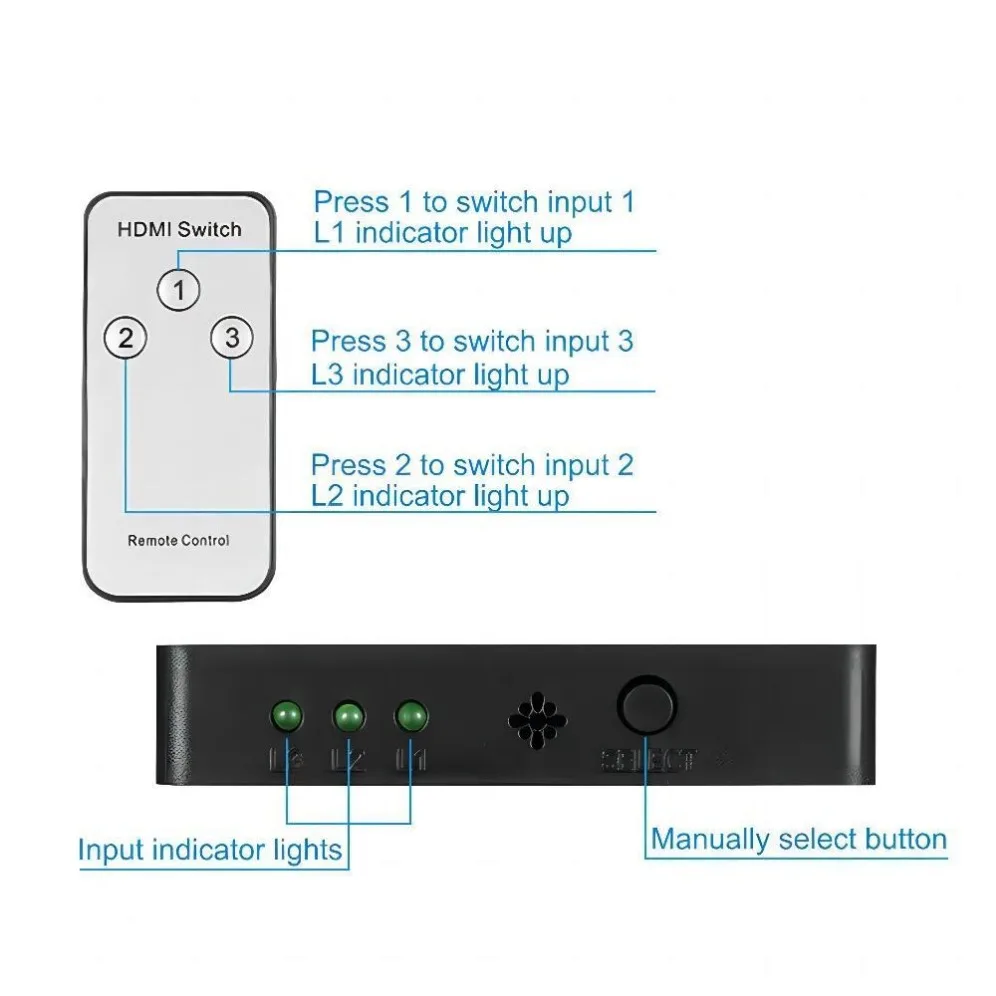

This 3×1 hdmi switcher can support 3 hdmi ports to be switched to all the way monitor terminals by remote control or manual buttons. This hdmi switcher can support all HD formats including 720p, 1080i, 1080p.
Product Features:
1: Support 2.5Gbps data transfer rate for TMDS clock up to 250MHz
2: Support HDMI version 1.4
3: Support 3D
4：Support the highest video resolution 1080P/60Hz
5：Support UXGA, WUXGA
6：Support 8/10/12-bit color depth
7：Support the use of standard AWG26 cable, input transmission distance up to 25 meters, output transmission distance up to 15 meters

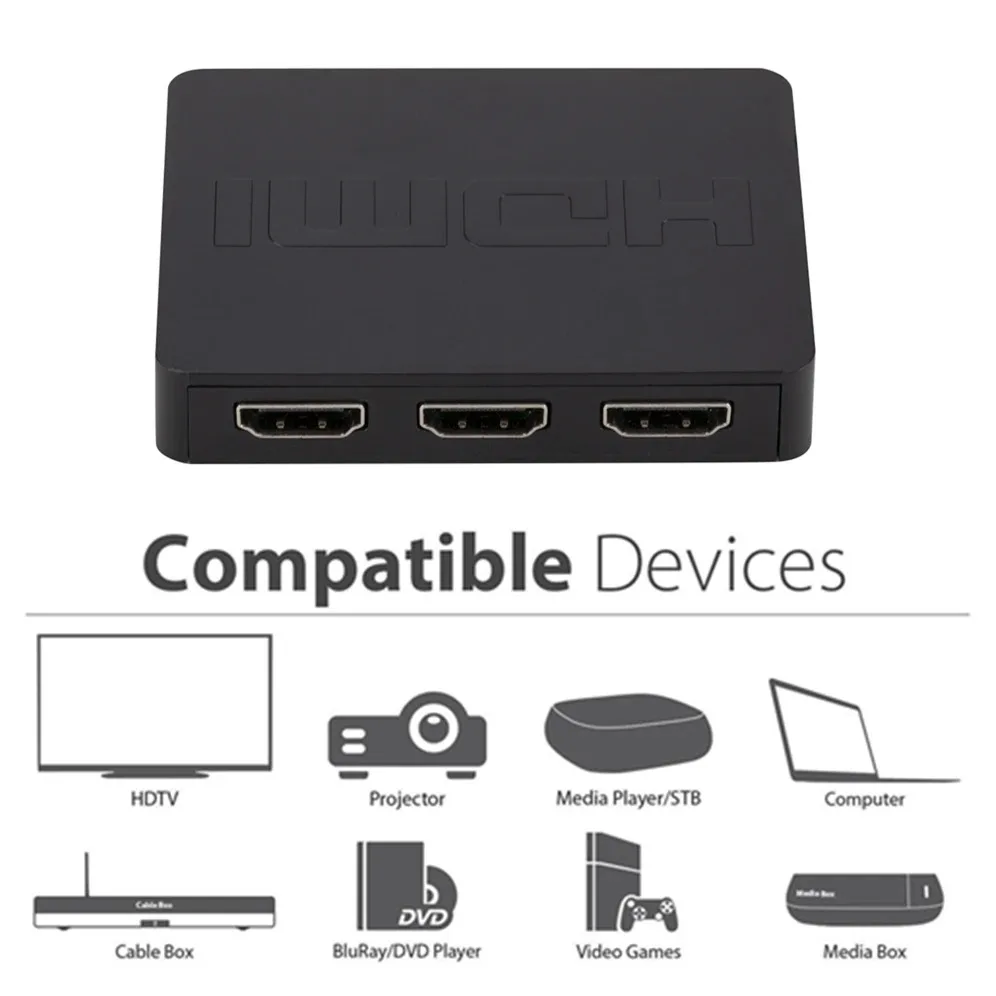

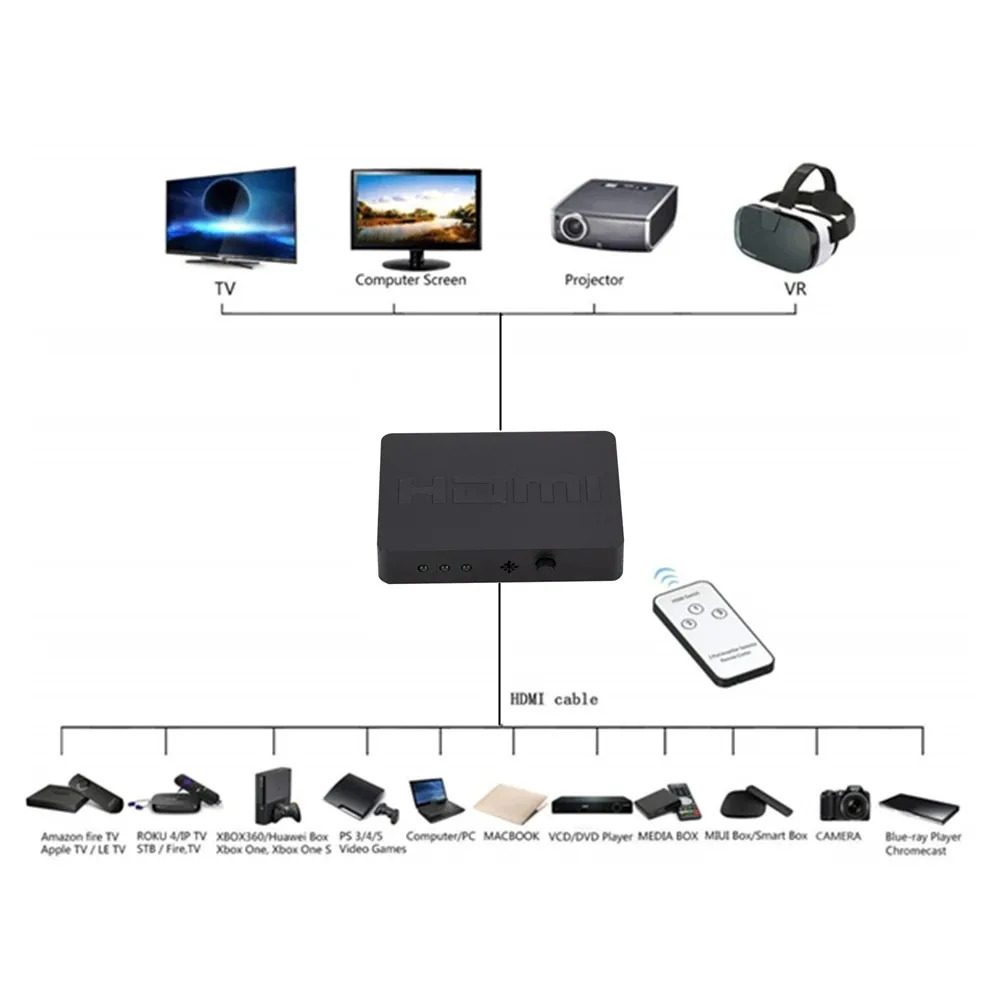

8: Support for a single high-definition display for multiple sources, such as DVD players and satellite receivers, digital projectors, A/V receivers, set-top boxes

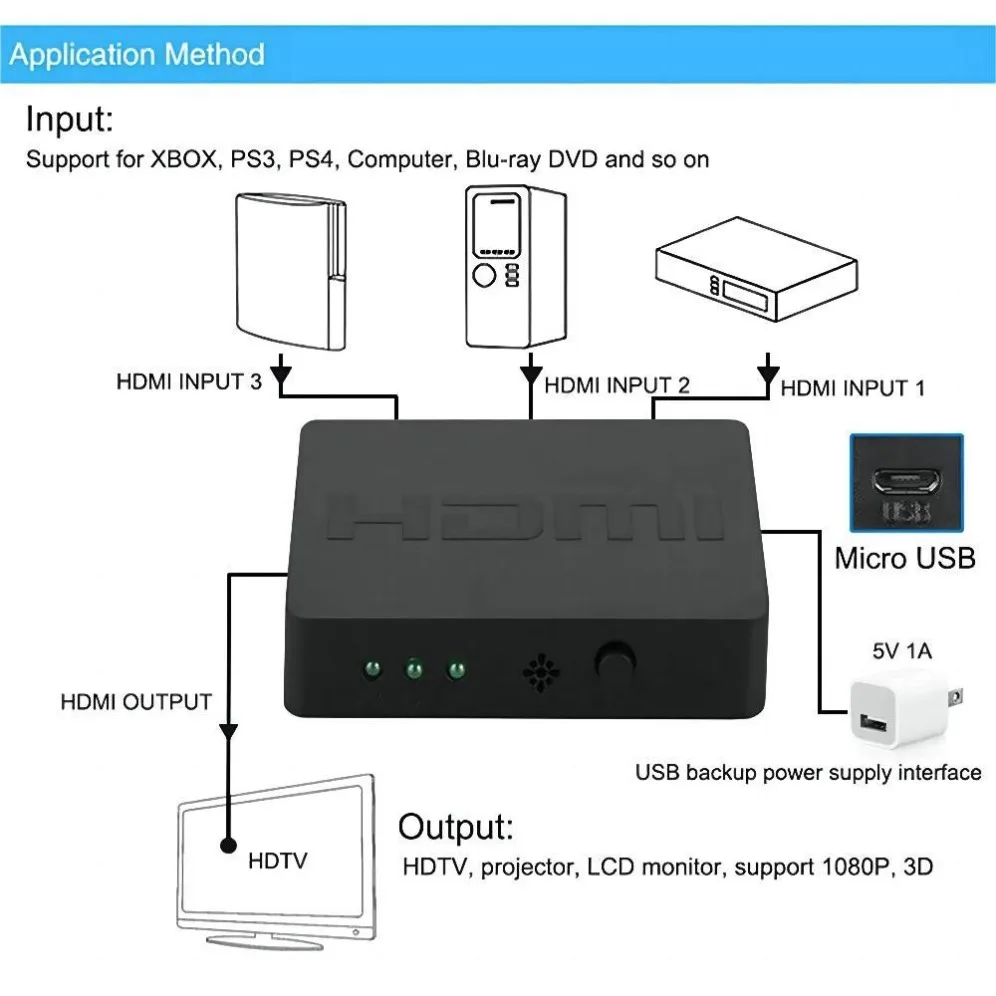

9: Support 5V/1A USB interface power supply
Product Specifications:
HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format: 8/10/12-bit color deep color
Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Maximum bandwidth: 250MHz
Maximum baud rate: 2.5Gbps
Input cable length: ≤15m AWG26 version 1.4 HDMI standard cable
Output cable length: ≤25m AWG26 version 1.4 HDMI standard cable
Maximum operating current: 150mA
Operating temperature range: (-15 to +55℃)
Operating humidity range: 5 to 90% RH (non-condensing)
Package includes:
1 x HDMI Switcher （3 in 1 Out）
1 x Remote Control(Not include Battery)
