For Android Phone Thermal Imaging Camera, 256×192 IR Resolution & 640×480 Visible Camera, 25Hz Temp Alarm, Type-C Interface

For Android Phone Thermal Imaging Camera, 256×192 IR Resolution & 640×480 Visible Camera, 25Hz Temp Alarm, Type-C Interface

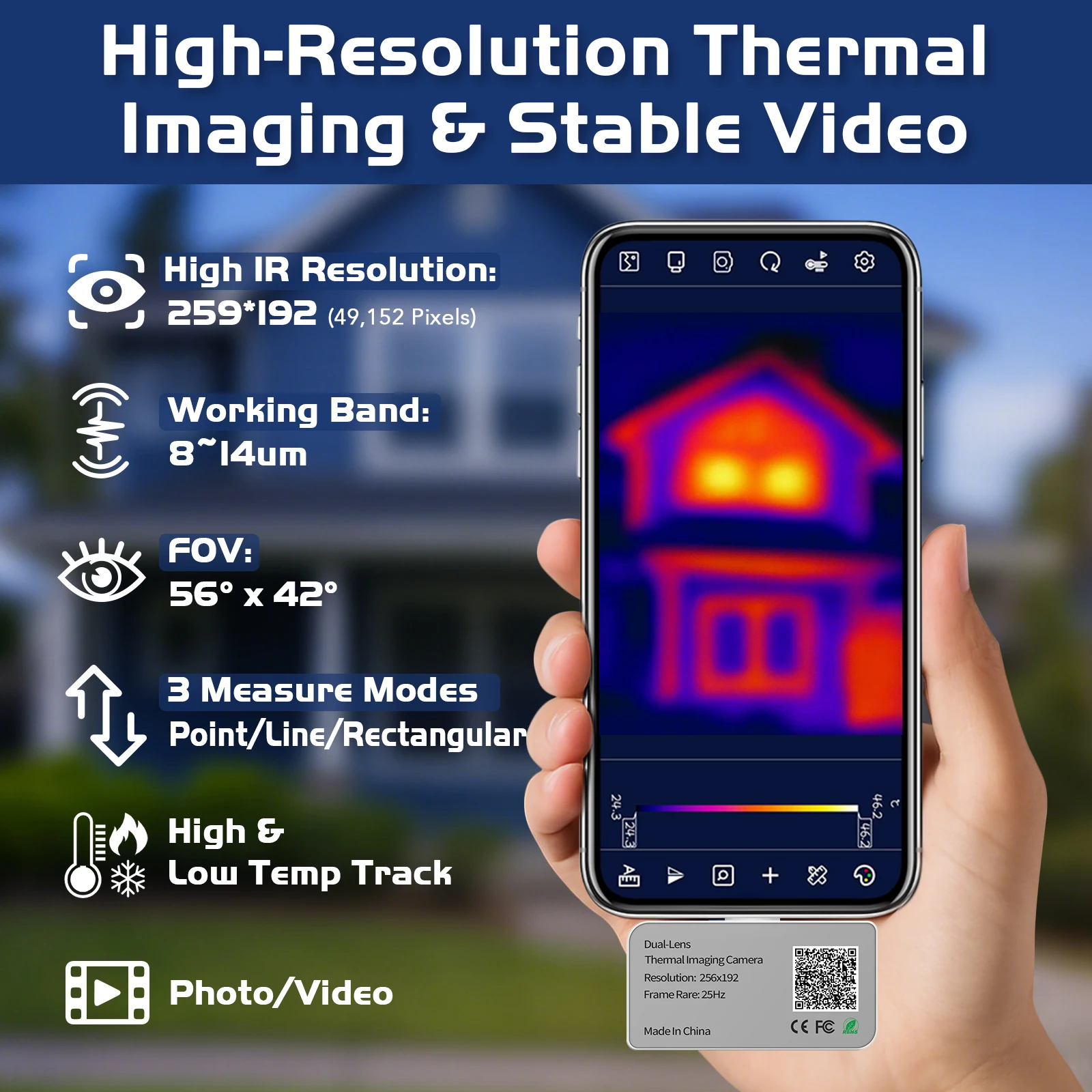

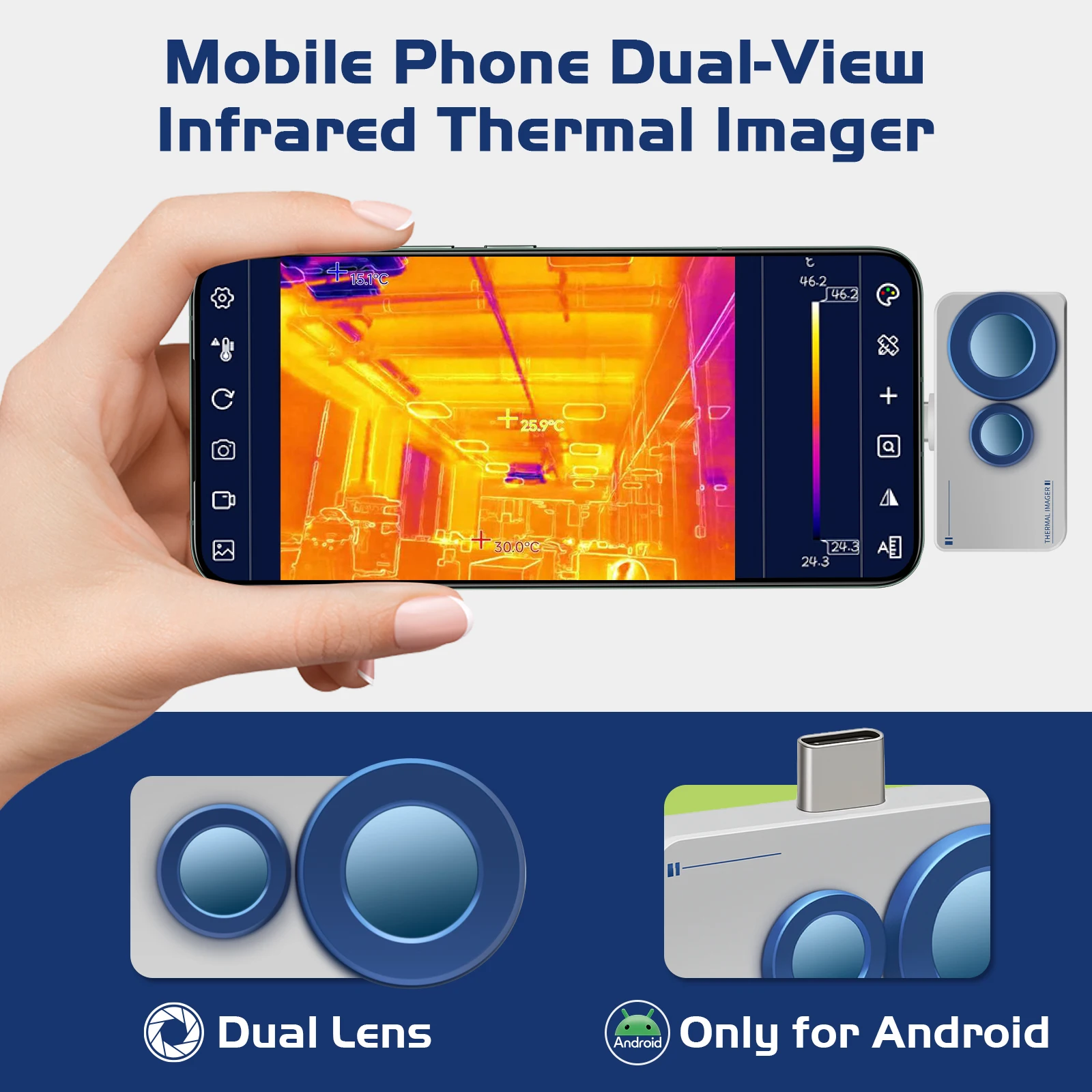

🔍 Dual-Spectrum Clarity:

Experience infrared and visible light fusion imaging with multiple display modes (Edge Fusion, Overlay, PIP), allowing you to precisely locate heat anomalies within a clear visual context.

🌡️ Wide Temperature Range & High Precision:

Measures from -15°C to 600°C with an accuracy of ±2°C or ±2% of reading. Automatically or manually switch between high/low temperature ranges for optimal sensitivity.

📊 Advanced Analysis Tools:

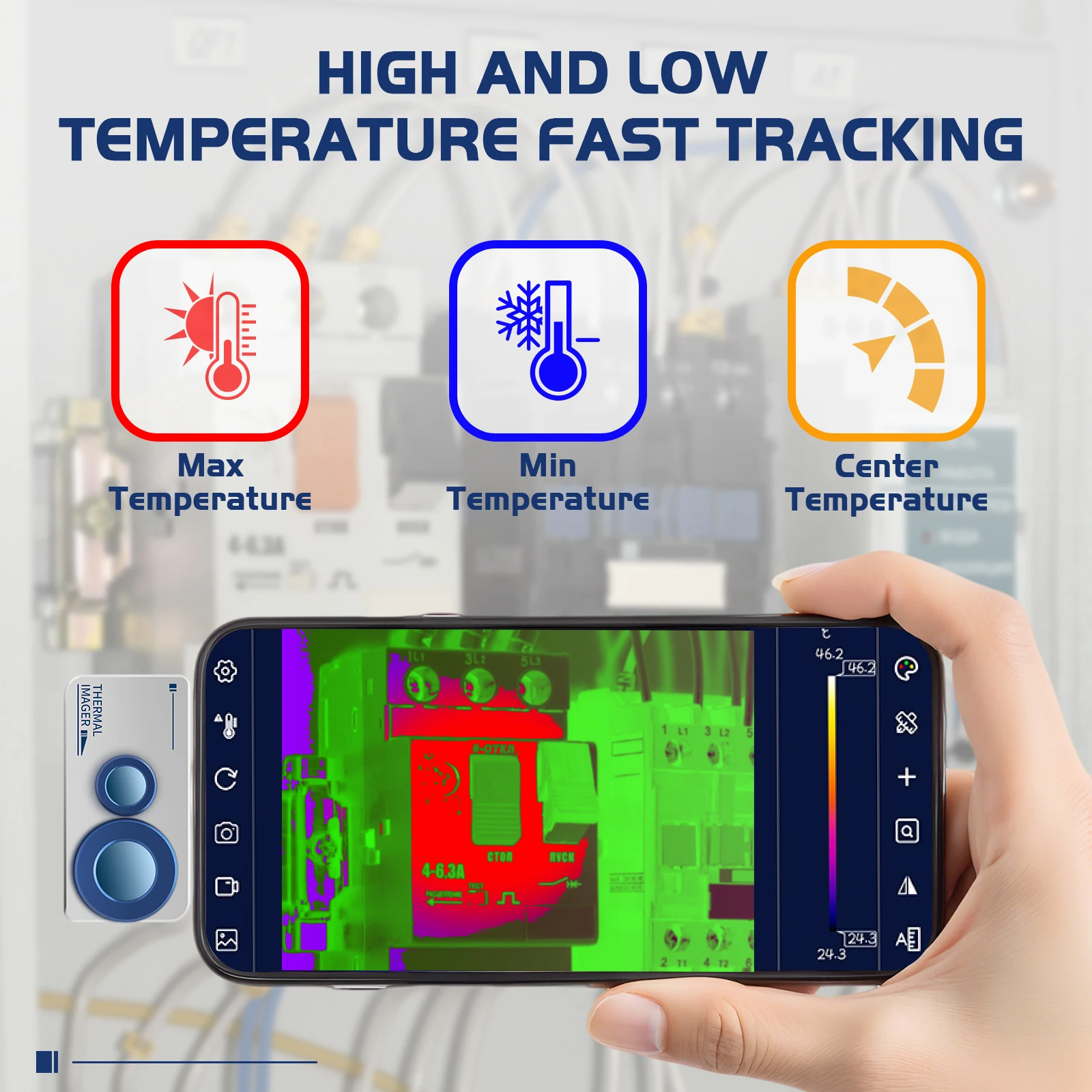

Utilize point, line, and area temperature measurements with auto high/low tracking. Lock temperature ranges to highlight specific thermal bands and use High-Temp Spot Check to instantly locate hotspots.

🚨 Smart Alerts & Recording:

Set customizable over-temperature alarms with visual and audible warnings. Capture photos and videos directly in the app for offline analysis, reporting, and comparison.

Product Parameter:

Infrared Sensor: 256×192 resolution (160×120 optional)

Visible Camera: 640×480 resolution

Spectral Range: 8–14 μm (LWIR)

Thermal Sensitivity (NETD): < 50 mK @ 25°C

Frame Rate: 25 Hz

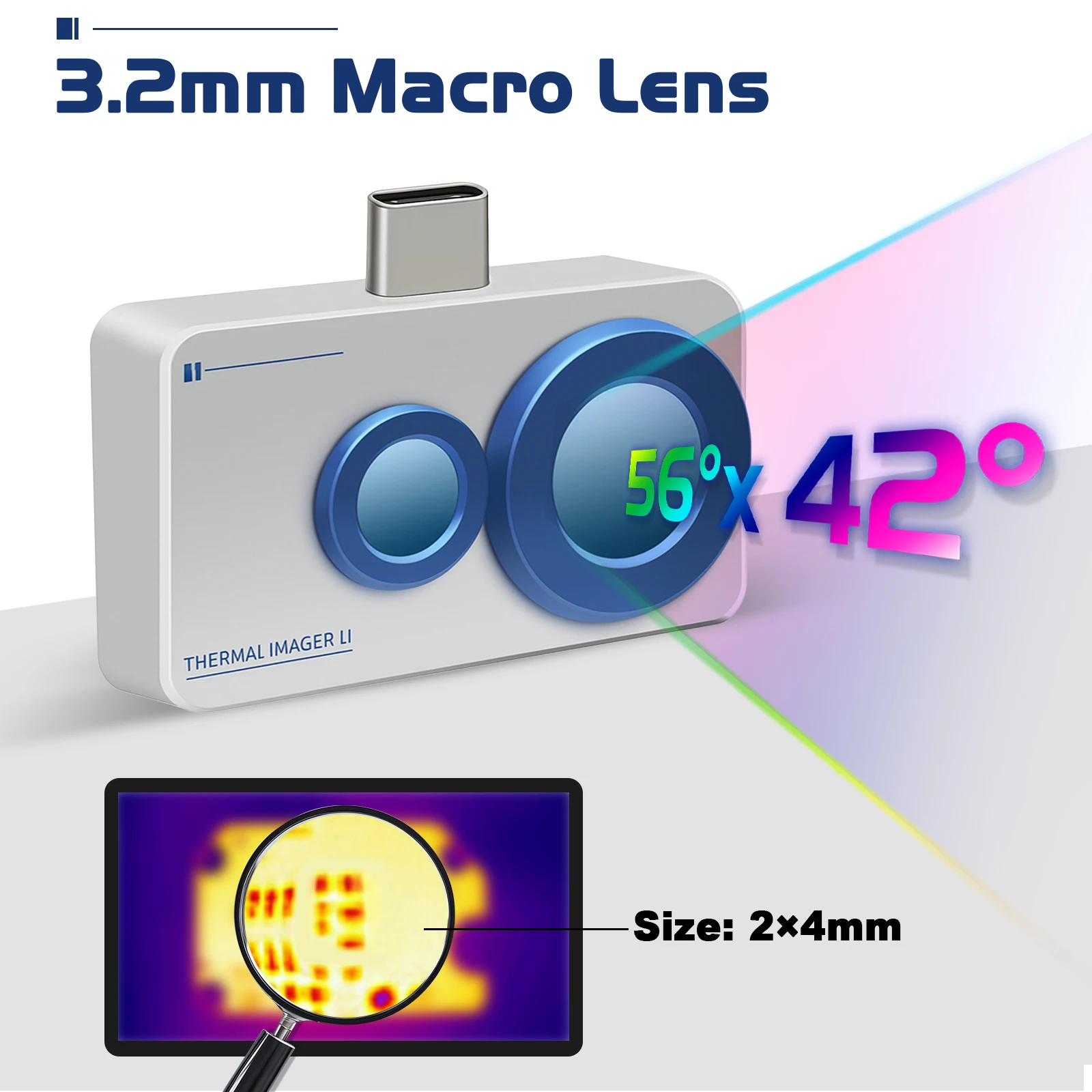

Lens & FOV: 3.2mm lens, 56°×42° (35°×27° optional)

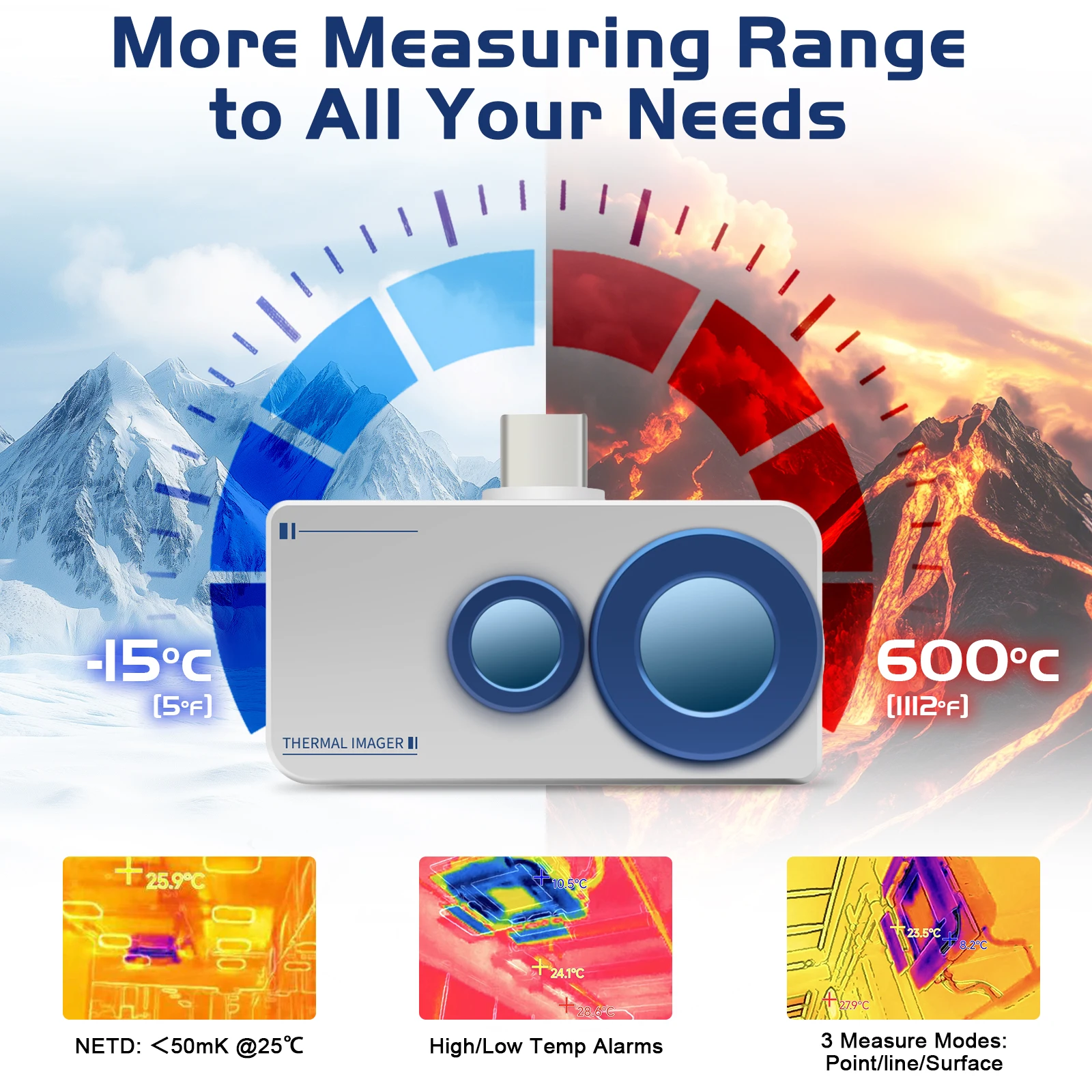

Temperature Range:-15°C to 600°C

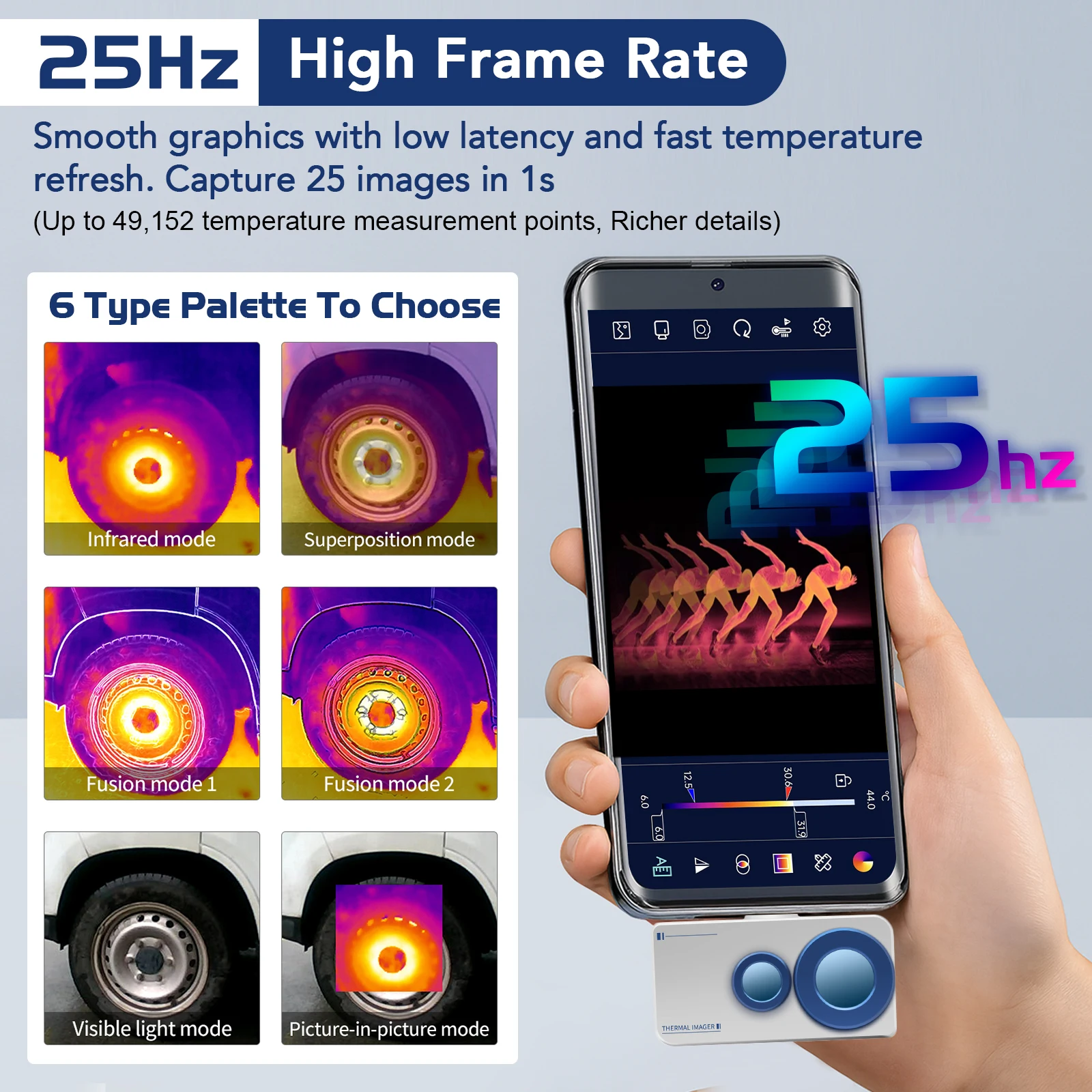

Display Modes: Infrared Only, Visible Only, Fusion 1/2, Overlay, Picture-in-Picture

Color Palettes: Iron, Rainbow, White Hot, Black Hot, Red Hot, Cold Blue
