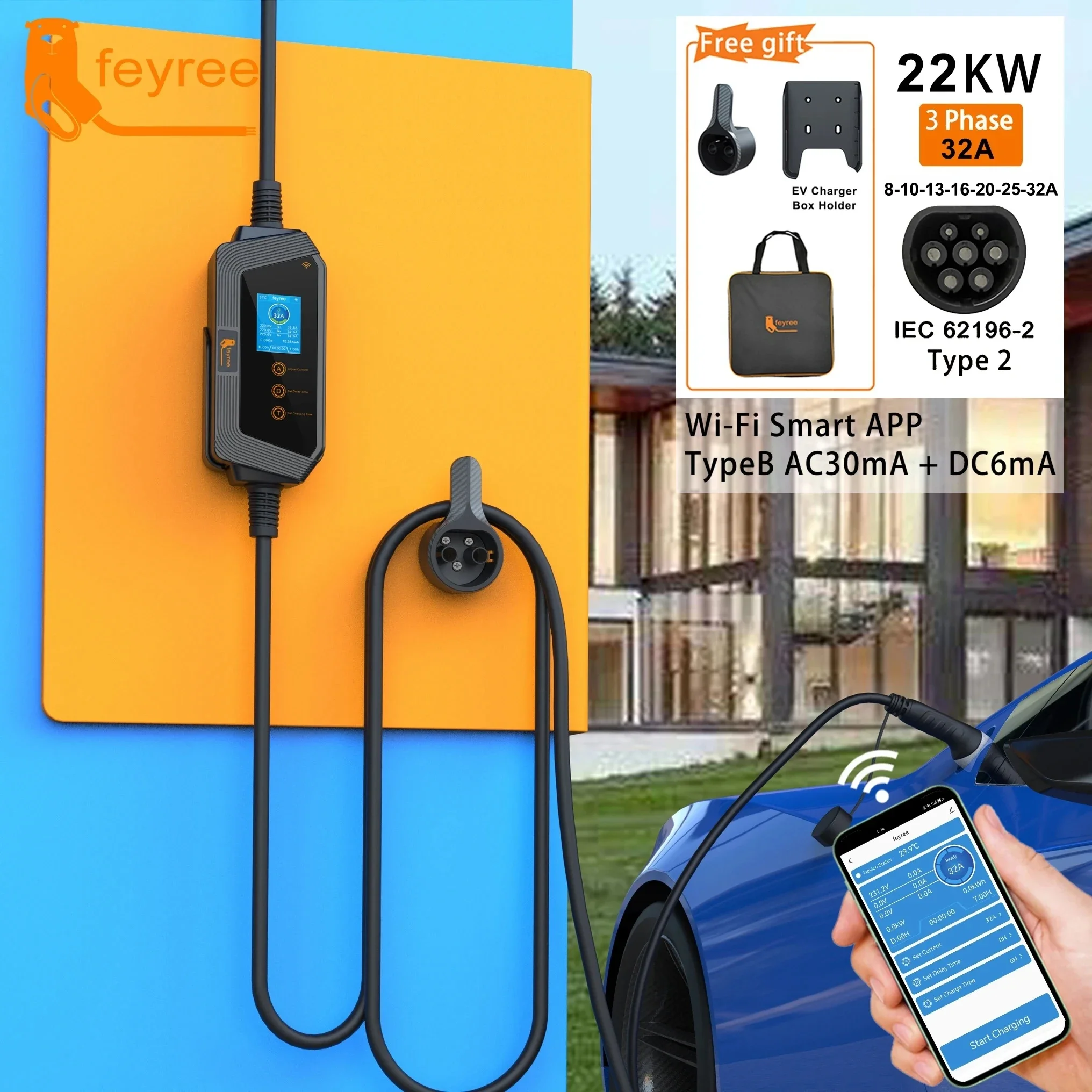

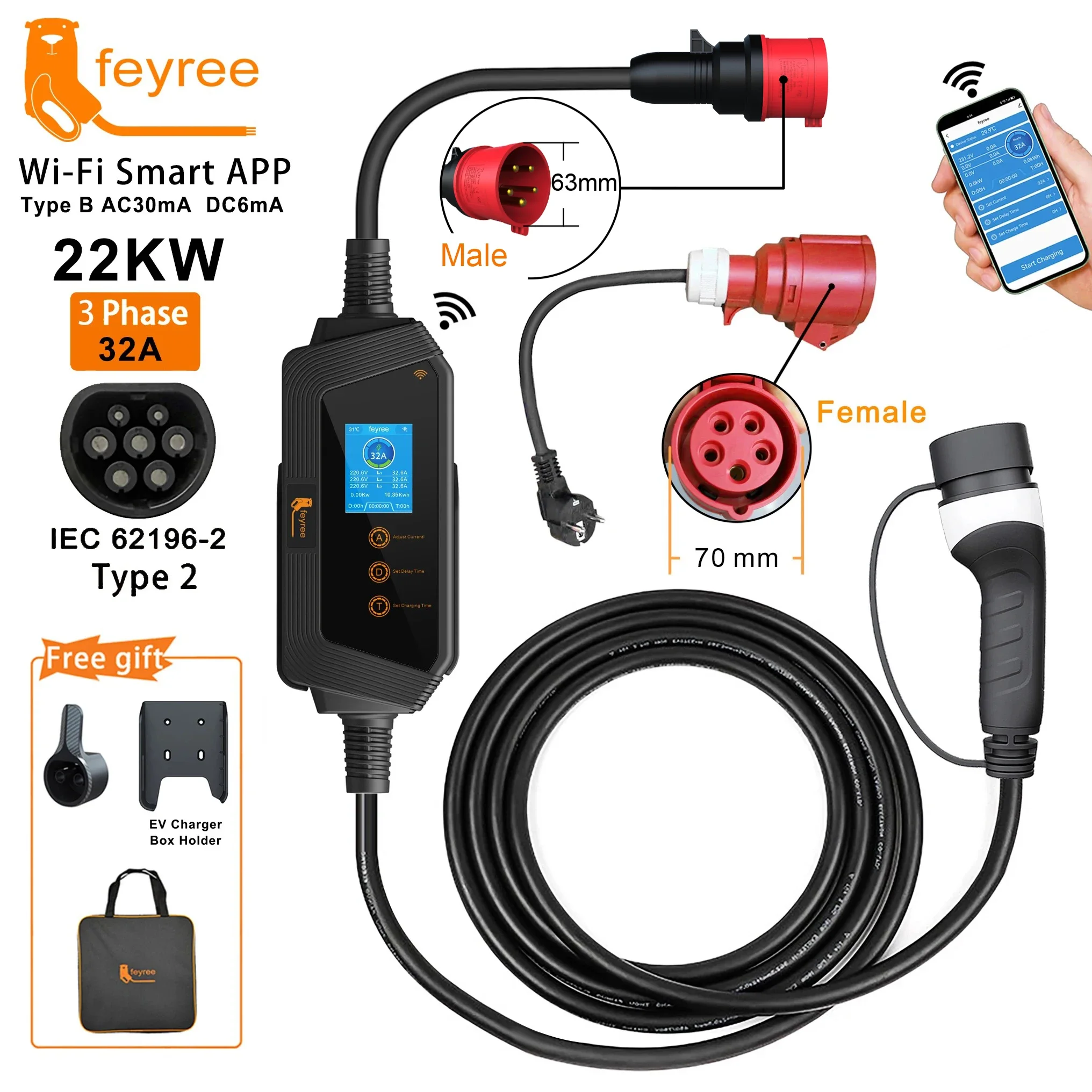

feyree 22KW 32A 3Phase Type2 Portable EV Charger Wi-Fi APP Control EVSE Charging Box Charging Station for Electric Car Charger

Price range: $258.38 through $524.12

Specification

Overview

Weight 38 lbs
Dimensions 11 in
Brand Name

feyree

Origin

Mainland China

High-concerned chemical

None

Charger Type

Portable Charger

Height

11cm

Cable Length

5m

Width

38cm

Material

copper alloy, silver plating

Power (W)

22KW

Weight

4.6KG

Operating Temperature

-30 ~ +55

IP Rating

IP66

Length

38cm

Features

Smart APP Version

Type

Type2

Phase

3 Phase

Current

8A-10A-13A-16A-20A-25A-32A Adjustable

Capacity

22KW Max

Voltage

380V

RCD

TypeB AC30mA + DC6mA

Description

Description:

【Long Service Life】The charger adopts ePTFE (Waterproof Breathable Membrane) materials, which can automatically minimize the damage of control box due to different temperature and air pressure difference between inside and outside of heat expansion and cold contraction. The thickness of the shell has reached 3.5mm,which has superior compressive strength.
【Multi-function usage】With a charging box holder,can meet both portable and wall mounted installation needs.
【Secure charging】
Our chargers have safety protection measures such as overcurrent protection, overvoltage protection, undervoltage protection, leakage protection ( TypeB AC30mA + DC6mA ) , and overheating protection, with a waterproof grade of IP66.
【High flame retardant material】
The gun head,cable and shell are all made of high flame-retardant materials,which meet the UL94V-0 fire protection rating ,can effectively prevent fire hazards ensure safe charging.
【Wi-Fi Smart APP, Real-time Monitor and Appoint the Charging Time】
Built-in smart APP(turn on the wifi and bluetooth when add your device), you need to connect under WIFI environment, which allows your vehicles to be charged during off-peak period by setting the charging time, save money on the electricity bills. And it allows to adjust charging current range, fully-charged notification or track the charging status.
【New
Design Style】Newest Design Style, built-in capacitive touch buttons, more fashion sense of science and technology.
【3 Button Functions Available】Setting Charging Time (“T” Button), Setting Delay Time (“D” Button) and Adjust Current before charging and Memory Charging (“A” Button).

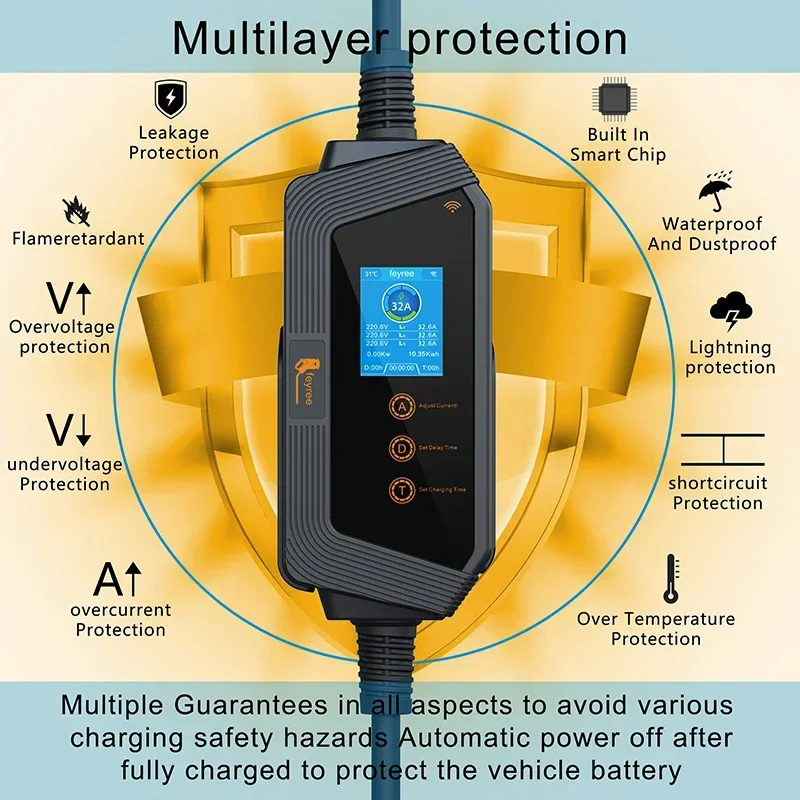

Control box function:

Leakage protection

Overvoltage or low pressure protection

Overload protection

Lightning protection

Overheat protection

Charging Current adjustable

Quality Guarantee: 2 Year Warranty
