FCOB LED Light Strip Pixel Addressable 630 720 LEDs RGB Dream Full Color 12mm DC12V 24V WS2811 High Density Flexible COB Light

Unlike others,we’ve upgraded our LED strips with UL certification and new connectors.

Please pay attention before you place the order:

1. The Price is Only LED Strip, Not Included Power Supply and Pixels Controller.Please be comfirm it before you place the order.
2. This light strip is not compatible with WLED / ESP32 controllers, please buy another controller from our store!

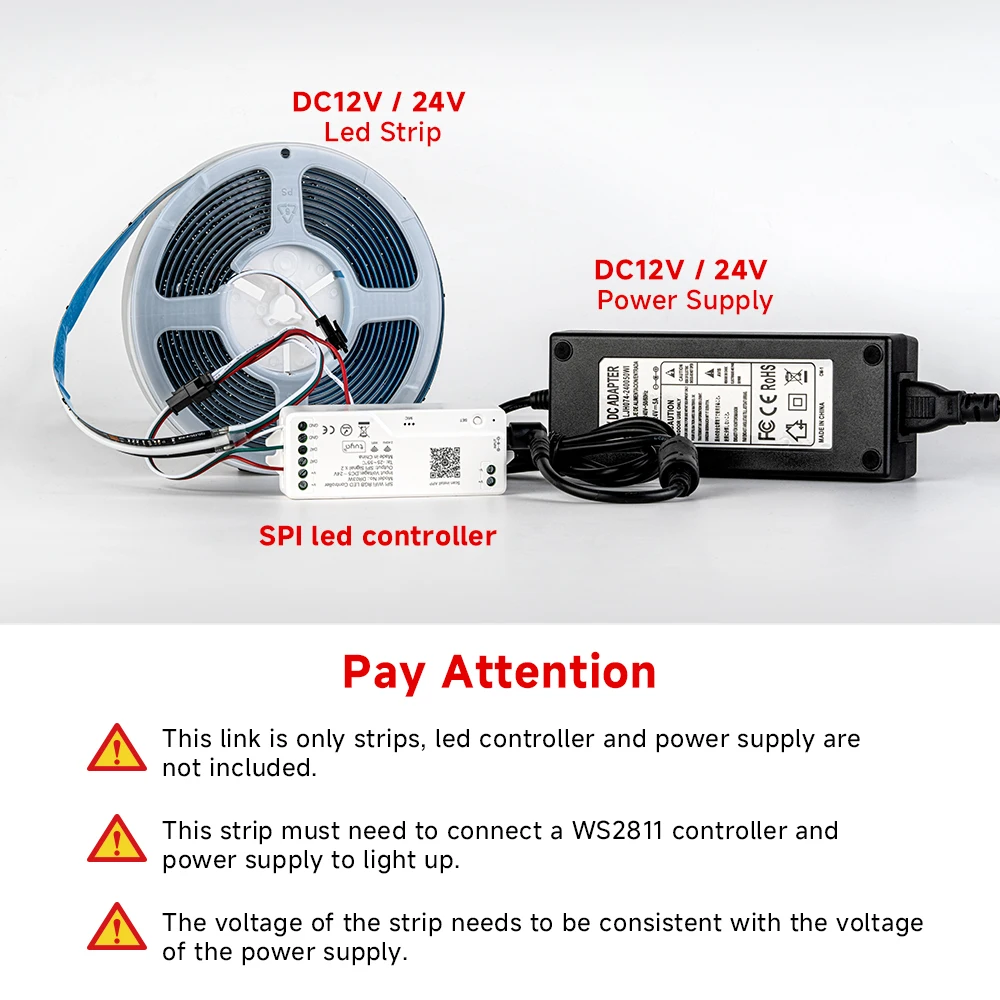

How to choose power supply and led controller?

All options do not include power supply and led controller, please use a suitable power supply (12V 5M is recommended to choose 12V 5A power supply at least, 24V 5M is recommended to choose 24V 5A power supply at least.) If you are not sure how to choose, please contact our customer service.

FCOB LED Light Strip Pixel Addressable 630 720 LEDs RGB Dream Full Color 12mm 24V High Density Flexible FOB COB Led Lights for Room

Specification:

Input Voltage: DC12V/24V.

IC type: FCOB RGB WS2811 IC.

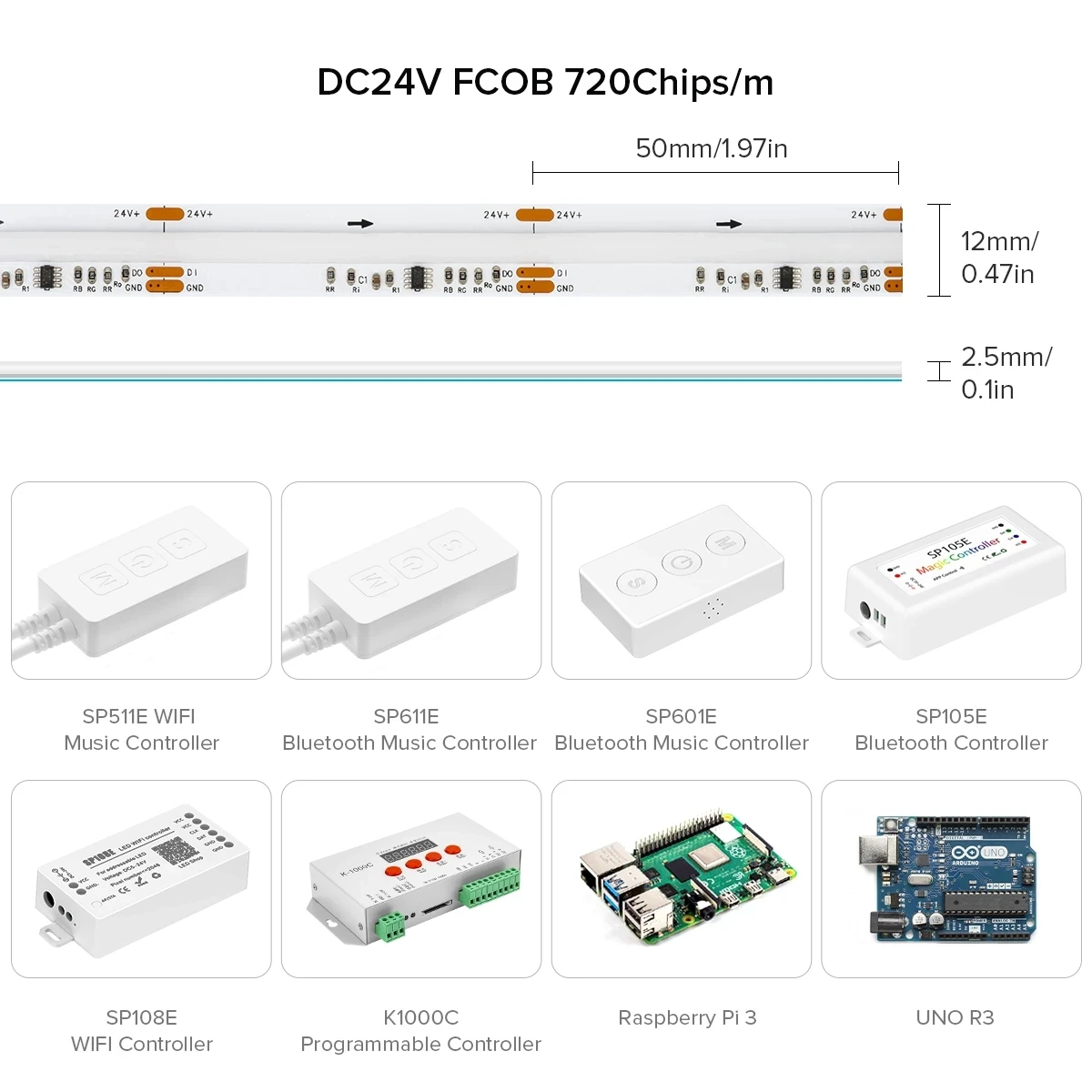

Group of LED Addressable: 5m 720LED/m 20IC/m ,one WS2811 IC Chip drives 36 LED.Total 100 WS2811 IC Chip.

5m 630LED/m 14 IC/m ,Group of 45LED addressable.Total 70 WS2811 IC Chip.

Wattage: 630Leds:24V-12W/m ; 720Leds:24V-21W/m 12V-12W/m

FPCB width: 720leds/m–12mm;630leds/m–10mm

LED quantity: 720 LEDs/M;630 LEDs/M

Cutting Length: 720-every 50mm, 630-every 71mm

Color Rendering Index: Ra＞90

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180°

Advantages:

1. 630 720 chips are arranged in a linear way, integrated package, with uniform light color and no light spot;

2. High thermal conductivity flexible circuit board design, can be bent at will, convenient for installation;

3. The LED chip is directly mounted on the FPC, and the luminous angle can reach 180 degrees;

4. DC24V constant voltage design, safe low voltage, low voltage drop, standard cascade 5m;

5. The back is pasted with high viscosity heat conduction double-sided adhesive tape, which is convenient for installation and firm and durable for pasting;

6. LED light source, energy-saving and environmental protection, in line with national environmental standards.

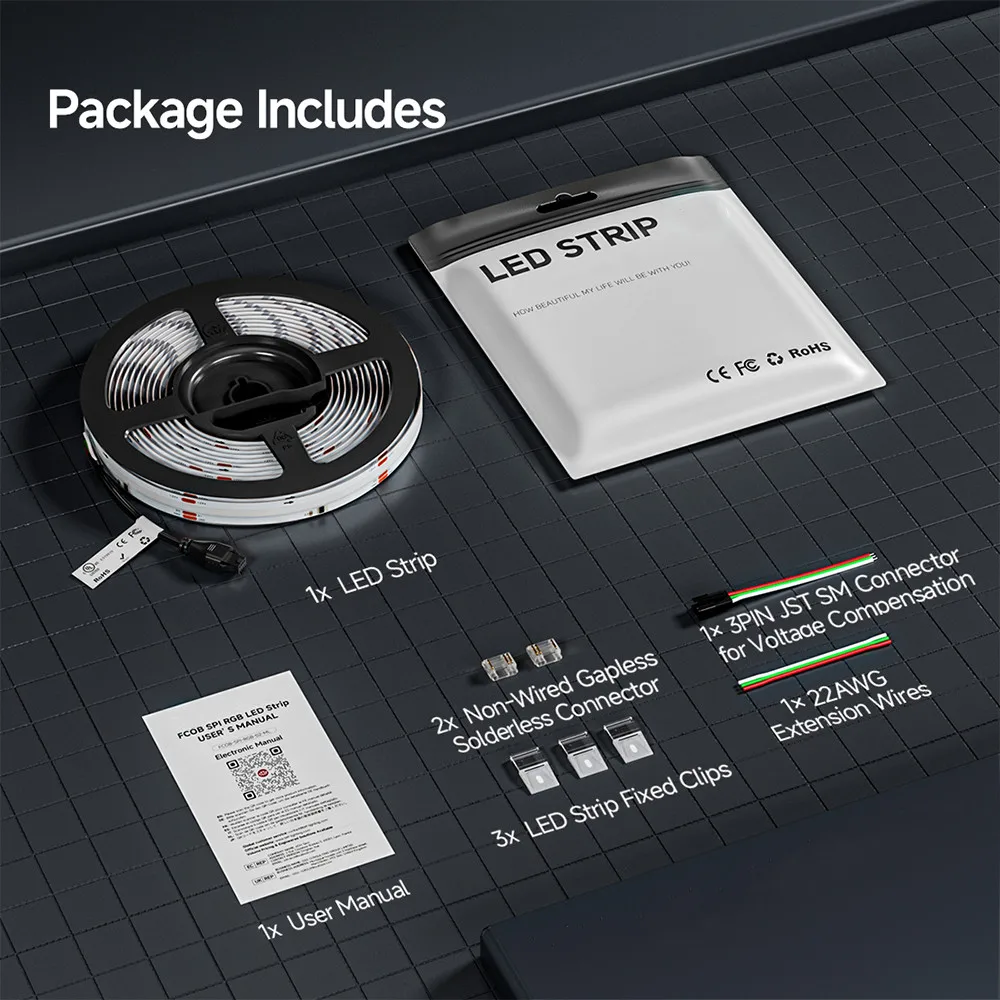

Package List:

1XLED Strip, 1X3PIN Male Connector ,3x Fixed Clips.(Power supply or controller is not included )
