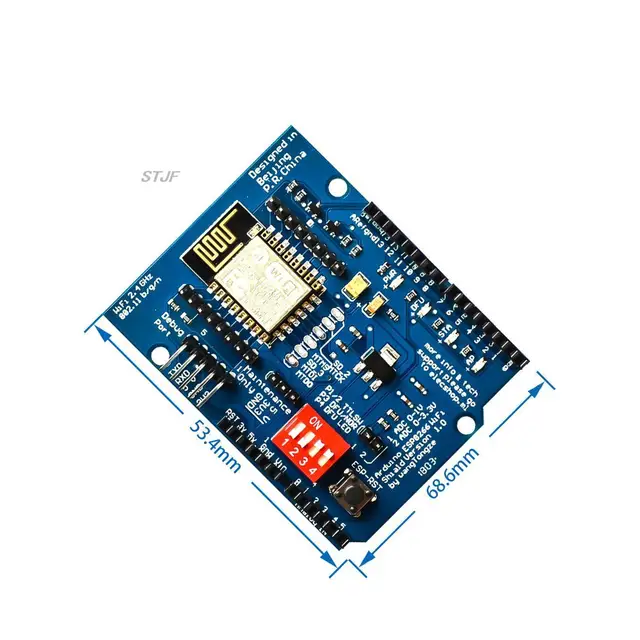

ESP8266 ESP-12 ESP-12E UART Wifi Wireless Shield Development Board For Arduino Mega UNO R3 Module Mega 3.3V 5V TTL Interface one
ESP8266 ESP-12 ESP-12E UART Wifi Wireless Shield Development Board For Arduino Mega UNO R3 Module Mega 3.3V 5V TTL Interface one $13.95
-67%

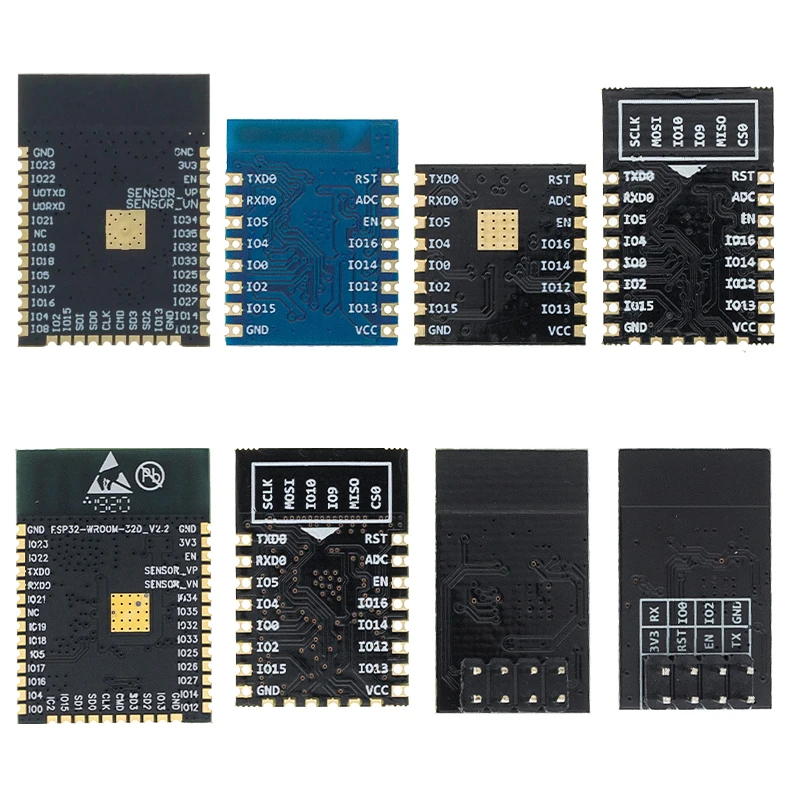

ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 1
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 2
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 3
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 4
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 5
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 6
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 2
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 3
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 4
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 5
ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino - Image 6

ESP8266 ESP-01 ESP-01S ESP-07 ESP-12E ESP-12F ESP-32 ESP-32S Serial WIFI Wireless Module Wireless Transceiver 2.4G For Arduino

Price range: $9.93 through $13.95

Add to compare
Add to wishlist

Specification

Overview

Weight 12 lbs
Dimensions 1 in
Brand Name

AITEXM ROBOT
Origin

Mainland China
High-concerned chemical

None
Condition

New
Type

Logic ICs
Supply Voltage

1
Dissipation Power

Switch And Sensor For Arduino STM
is_customized

Yes
Operating Temperature

ESP8266 WIFI
Application

Computer
Package

SMD
Choice

yes

Description


ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.
ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

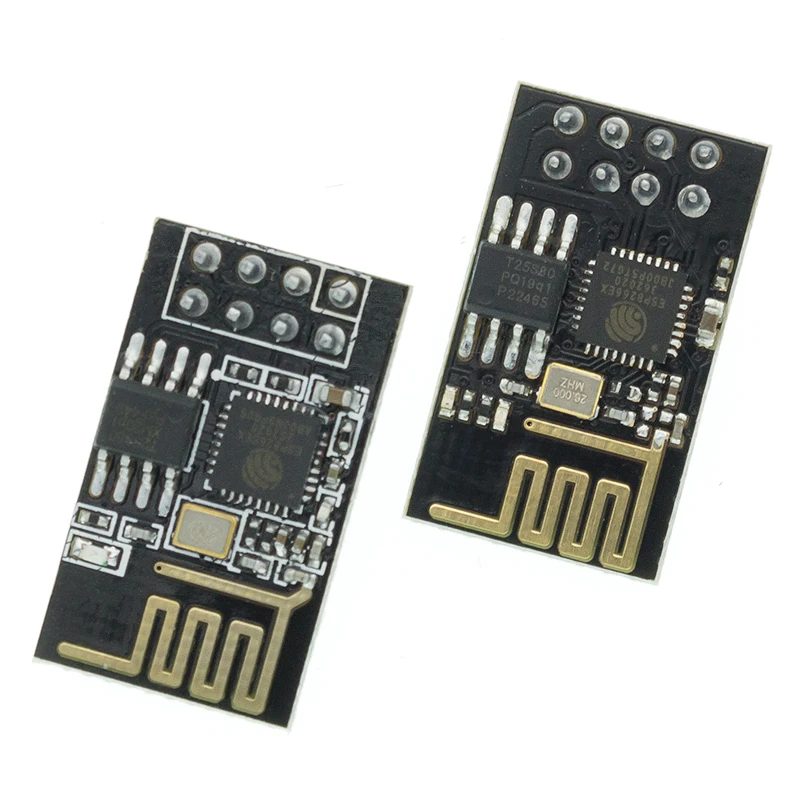

ESP01
SDIO 2.0, SPI, UART
32-pin QFN package
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
Integrated RISC processor, on-chip memory and external memory interfaces
Integrated /baseband processors
Quality of Service management
I2S interface for high fidelity audio applications
On-chip low-dropout linear regulators for all internal supplies
Proprietary spurious-free clock generation architecture
Integrated WEP, TKIP, AES, and WAPI engines
Solutions
Supports APSD for optimal VoIP applications
Patented spurious noise cancellation algorithm for integration in SOC applications
Supports Bluetooth co-existence interface
Self-calibrated RF to ensure optimal performance under all operating conditions
Zero factory tuning
No external RF components
Specifications
802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as application processor
SDIO 1.1/2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)
1. High quality & low price
2. LWIP agreement
3. Support 3 modes: AP, STA, AP+STA
4. Perfect and simple AT commands
Now for Arduino can get on WiFI without braking the bank.
Use this module for your next Interet of Things project, home automation, Or remote sensor project.
This module adats the ESP8226 IC for use over a serial connection using simple AT commands.
No SPI interface or Know-How is required.
Warnings:

This module requires a 3.3 volt supply for VCC, and 3.3V logic. It is not 5V tolant. Connect RX or TX on 5V for Arduino will
destroy this module. You must use a logic level converter, or a 3.3V for Arduino

The 3.3V supply on the for Arduino Uno has inadequate current capabilit to power this module. You must provide a separate,
higher 3.3V supply(about 300mA or better)

ESP-07

Model:ESP8266
ISM 2.4GHz
PA +25dBm
802.11b/g/n

Warnings:
1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.
2.It is not 5V tolant,Connect RX or TX on 5V FOR Arduino will destroy this module.
3.You must use a logic level converter, or a 3.3V FOR Arduino

4.The 3.3V supply on the FOR Arduino Uno has inadequate current capabilit to power this module.

5.You must provide a separate,higher 3.3V supply(about 300mA or better)

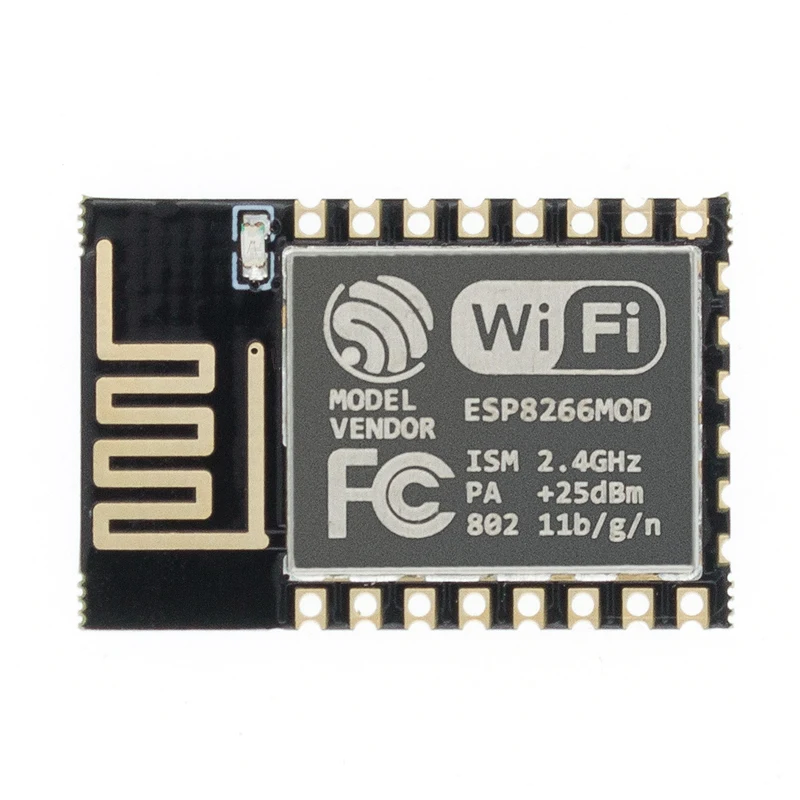

ESP-12F
ESP8266-12F is an enhanced version of ESP8266-12, perfect peripheral circuit, four-layer board technology, enhanced impedance matching, better signal output, whether it is stability or anti-jamming capability, PCB antenna through professional laboratory testing, ROHS certification, Have been greatly improved!For those who choose ESP-12 before, even if the product has been made it does not matter, enhanced version is fully compatible with the firmware before the pin in the ESP-12 on the basis of the addition of six IO port, SPI port leads, the development more convenient,More extensive!

Standards Certification: FCC / CE / TELEC

Wireless standards: 802.11 b / g / n

Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)

Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM

Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)

Working Current: Average: 80mA

Operating temperature: -40 ° ~ 125 °

Storage temperature: Nomal temperature

ESP-12E

Model:ESP8266-12
ISM 2.4GHz
PA +25dBm
802.11b/g/n
Warnings:
1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.
2.It is not 5V tolant,Connect RX or TX on 5V FOR Arduino will destroy this module.
3.You must use a logic level converter, or a 3.3V FOR Arduino
4.The 3.3V supply on the FOR Arduino Uno has inadequate current capabilit to power this
module.
5.You must provide a separate,higher 3.3V supply(about 300mA or better)

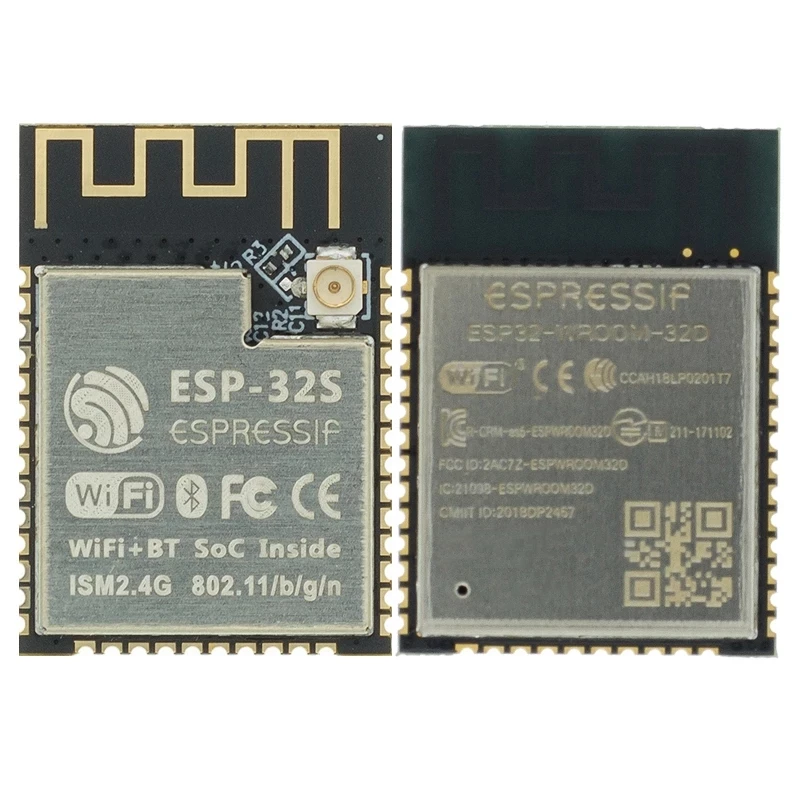

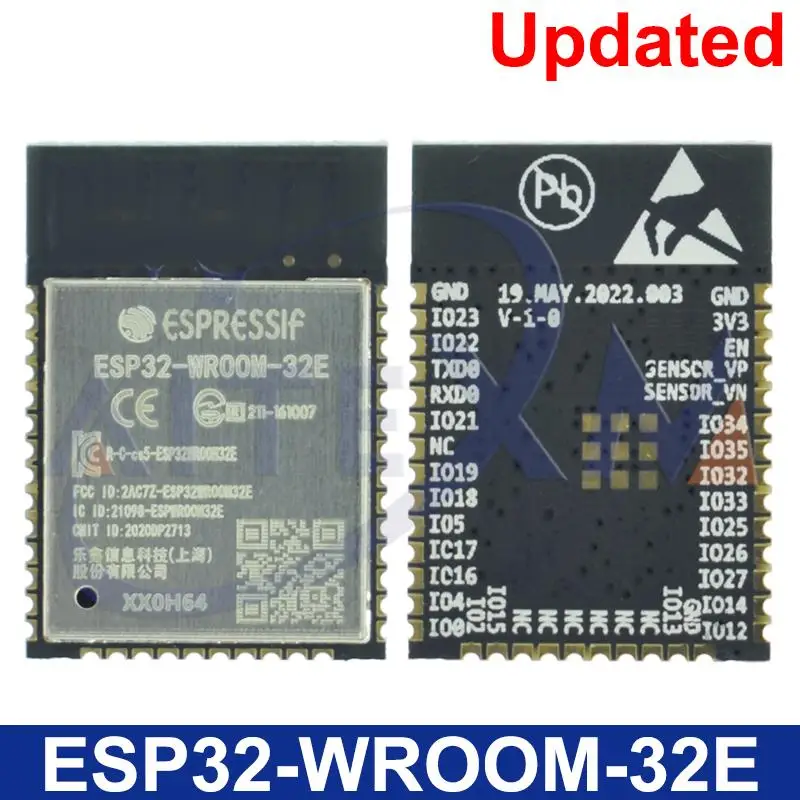

ESP32

ESP32 is a complete,small form factor(SFF)802.11 b/g/n/e/i(2.4GHz)WLAN plus BT4.2combo solution optimized for low-power,mobile consumer electronics,wearable andInternet of Things(IOT) devices.ESP32 integrates all WLAN and BT functionalityin a single package to support a low cost,layout-friendly implementation whileallowing flexibility for platform specific customization.

   ESP32 is a highly integrated solution withless than 10 external components.

   ESp32 integrates the transmit /receive RFfunctionality including the antenna swiches,RF balun,power amplifier,low noisereceive amplifier,filters,power management,and advanced calibratiom ciacuitriesthat allow the solution to dynamically adjust itself to adapt to externalcircuit implefections.

   The entire solution reduces Printed CircuitBoard (PCB) area,time-to-market,and bill-of-material(BOM)costs while addingcapablities and processing power.the mass production of ESP32 does not requireexpensive and specialized Wi-Fi test equipment.

   ESP32’s uitra low power consumption radioarchiteature and proprietary power save technologies extend batter life inreal-world applications,using the following features:

   Fine granularity clock-gating

   Multiple low-power modes,and

   Dynamic voltage scaling

   For instance,in a low-power IoT sensor hubapplication scenario,ESP32 is woken up periodically and only when a specifiedcondition is detected;low duty cycle is used to minimize the amount of energythat the chip expends.The output power of the power amplifier can also beadjusted,so that an optimal trade off between the communication range,data rateand power consumption is achieved.
