ESP32 DevKitC Development Board Module Equipped CP2102 Driver Chip Micro USB Interface 4Mb ESP32 Module

Features:
1. Adopting a small development board design, with complete pin connections, it is easy to connect peripheral devices or insert into breadboards for use.
2. Integrated Wi Fi (802.11b/g/n) and Bluetooth functions, supporting high-speed wireless communication and multiple protocols.
3. High data rate, supporting A-MPDU, A-MSDU aggregation and 0.4 μ s protection interval, with superior performance.
4. Supports USB-UUART bridge, with a maximum transmission rate of 3 Mbps, and supports firmware download and debugging.
5. Equipped with reset and download buttons, integrated 5V power indicator light and multifunctional I/O interface, easy to use.

Product Description:

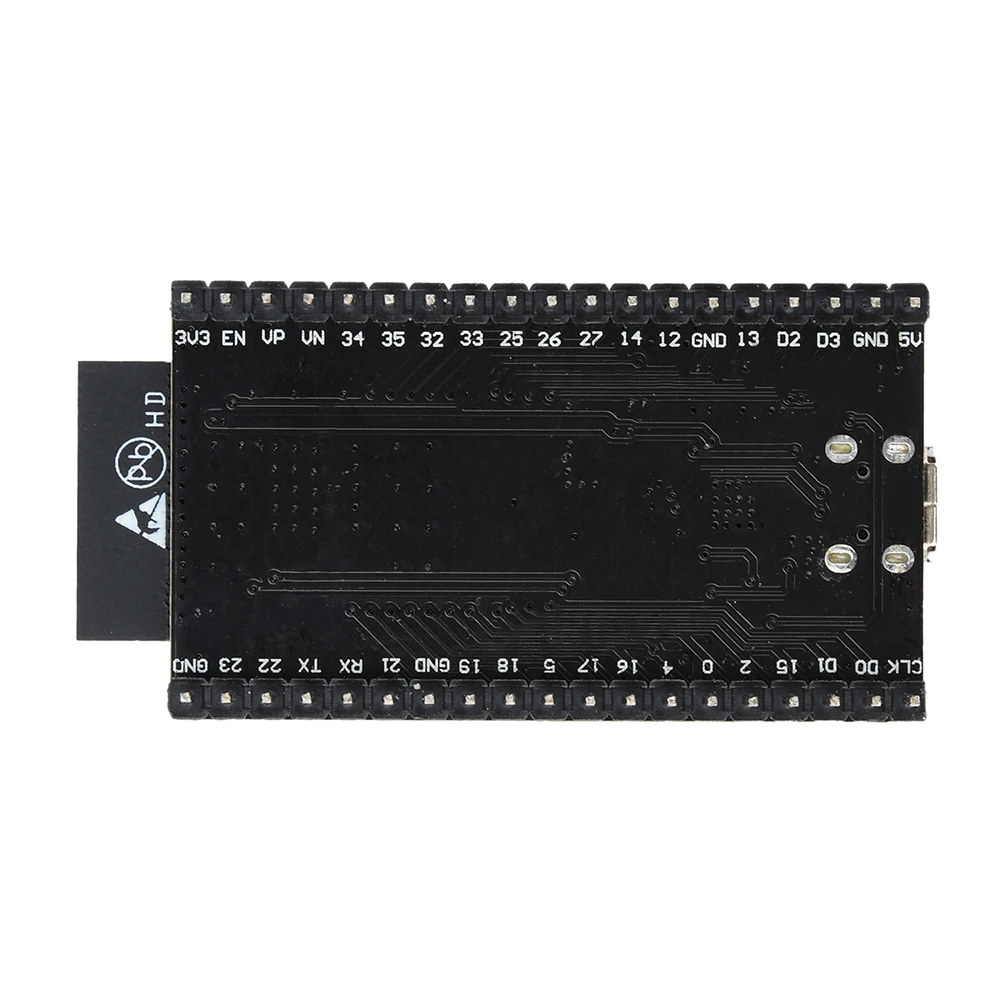

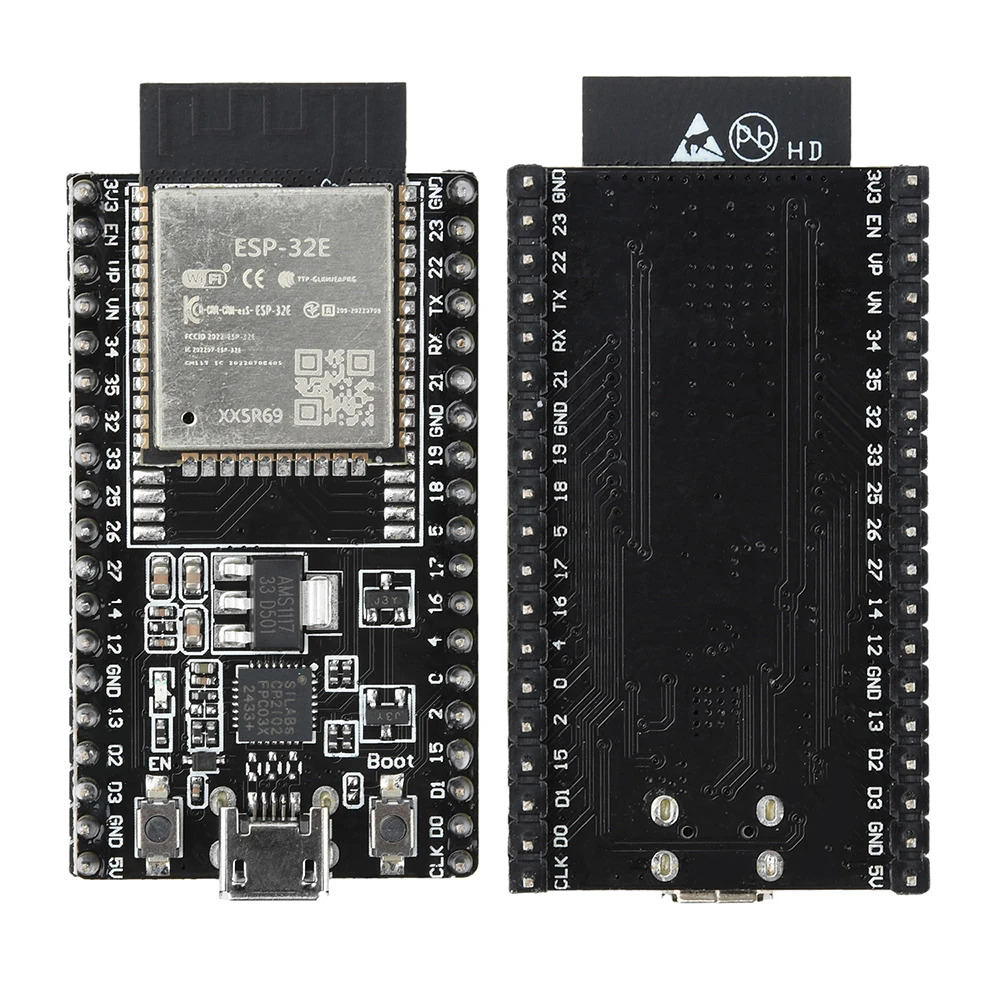

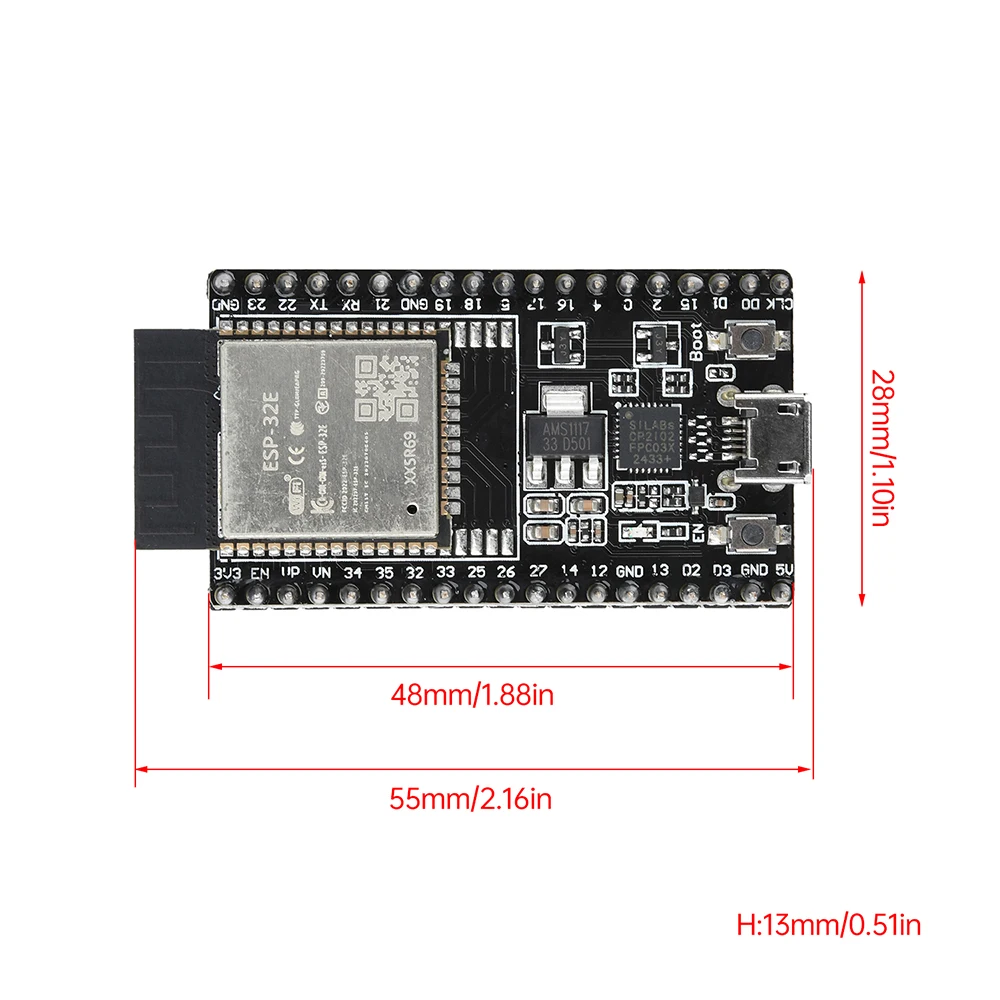

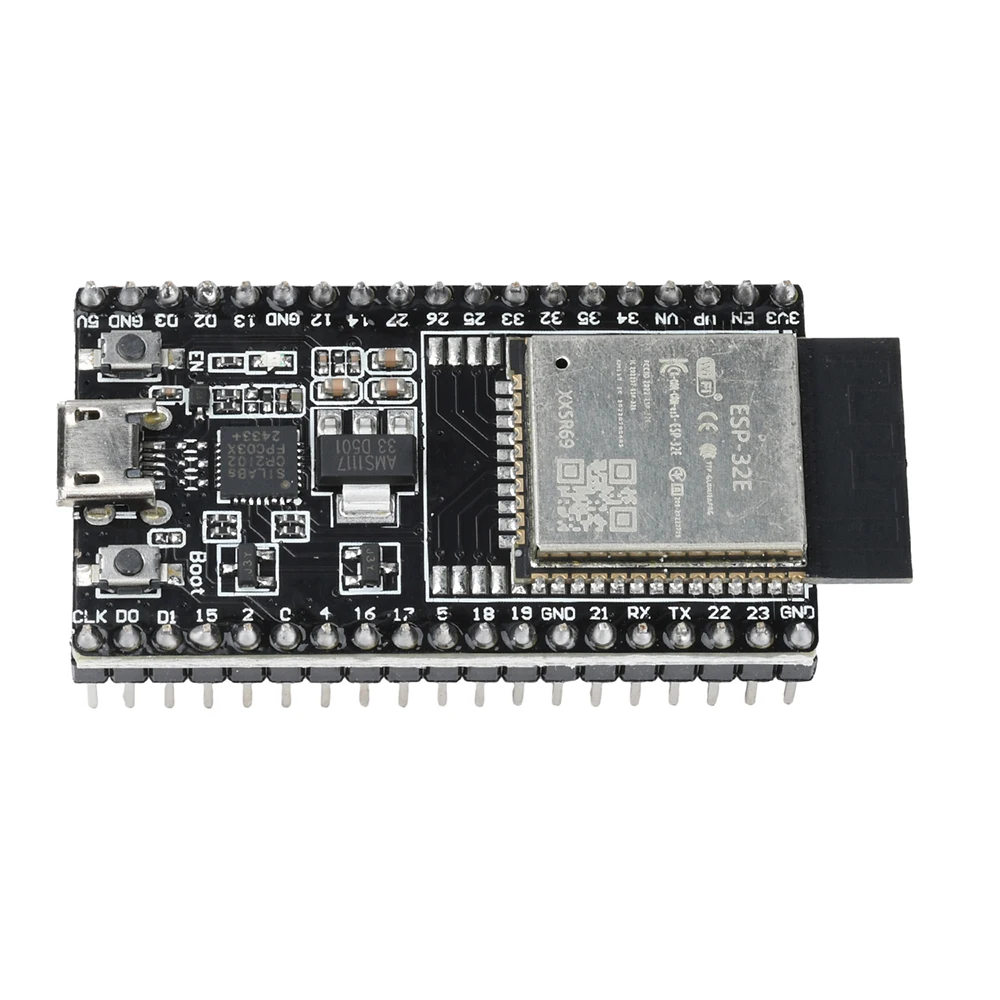

ESP-32 DevKitC is a small development board, with most of the pins of the modules on the board already led out. Developers can easily connect various peripheral devices through jumpers according to their actual needs, or plug the development board into a breadboard for use.

Parameter:
ESP-32E: Onboard PCB antenna
Driver chip: CP2102
• 802.11b/g/n
Data rates up to 150 Mbps in 802.11n mode
• Support A-MPDU and A-MSDU aggregation
0.4 μ s protection interval
• Working channel center frequency range: 2412~2484 MHz
Bluetooth V4.2 BR/EDR and Bluetooth LE standards
CVSD and SBC
•Flash：4MB
EN: Reset button.
Boot: Download button. Press and hold the Boot key, while pressing the EN key (do not release the Boot key at this time) to enter the “firmware download” mode and download firmware through the serial port.
USB to UART Bridge: A single-chip USB-UUART bridge that can provide transmission rates of up to 3Mbps.
Micro USB interface: A USB interface that can be used as a power supply for circuit boards or as a communication interface for connecting PCs and ESP modules.
5V Power On LED: After the development board is powered on (USB or external 5V), this indicator light will light up.

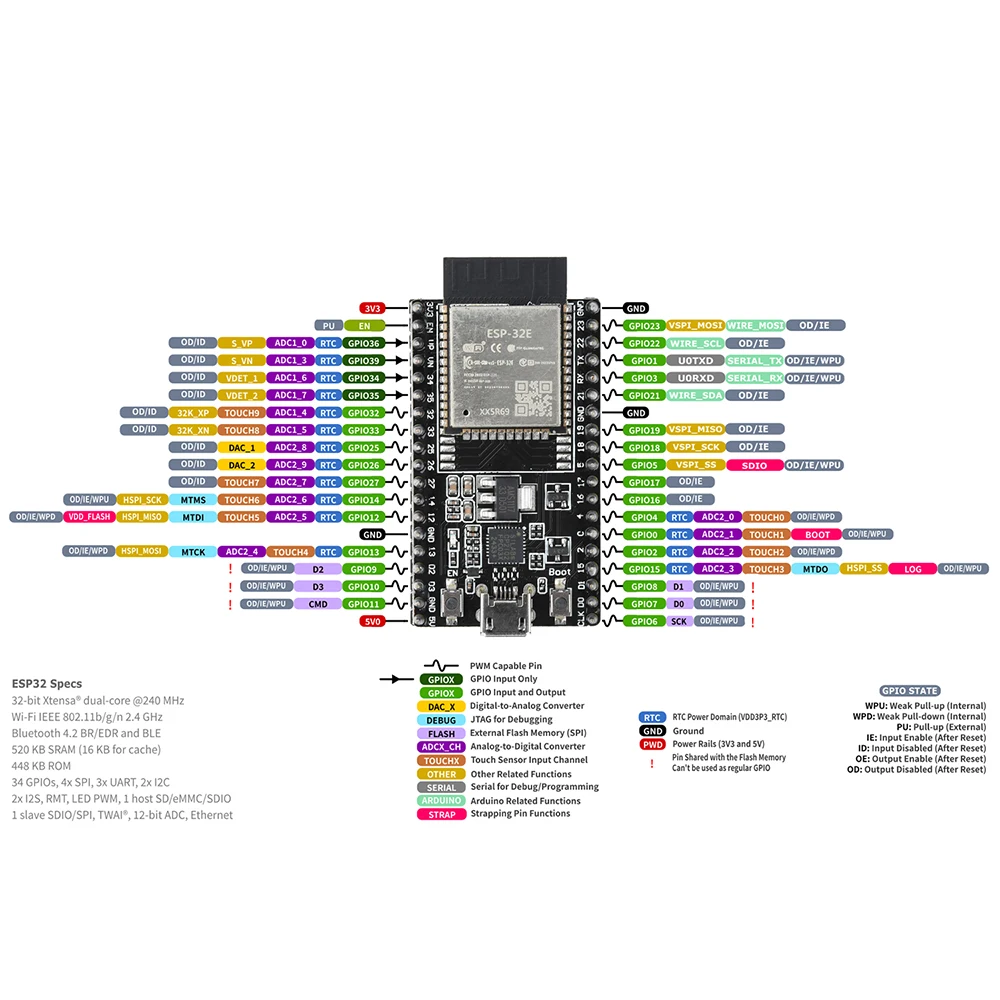

I/O: Most of the pins of the module on the board have been led out to the pin bank of the development board. Users can program ESP-32 to achieve various functions such as PWM, ADC, DAC, I2C, I2S, SPI, etc.
• Power options:
The development board can choose one of the following three power supply methods:
1. Micro USB power supply (default)
2. 5V/GND pin power supply
3. 3V3/GND pin power supply
Attention: The above power supply modes cannot be connected simultaneously, otherwise it may damage the development board and/or power supply.

Package Include:
1X development board
