DSpower 5g Micro Digital Servo Mini Servos plastic/Metal Gear Motor for RC Car WLtoys k969 k989 k999 Mini Q Airplane ROBOT

Item name: DSpower S003

Quantity: 1pcs

Operating Voltage : 4.8~6.0V DC

Max. Torque : 4.8V≥0.80kgf·cm ； 6.0V≥0.85kgf·cm

No Load Speed : 4.8V≤0.08sec/60°; 6.0V≤0.07sec/60°

Stall Current：4.8V≦800mA；6.0V≦950mA

Consumption Current* (No Load)：4.8V ≦100mA ；6.0V≦110mA

Max. Operating Travel Angle：90°±10°(1000~2000μs）

Dead Band Width: ≤ 3 us

Mechanical Limit Angle: 210°

Communication Interface: PWM

Motor Type: Coreless motor

Case Material: ABS

Gear Set Material : Plastic gear

Weight: 5g

Size: 20 × 11.5 × 21.3mm

Length of Connector cable: JR 200±5mm (exposed without plug)

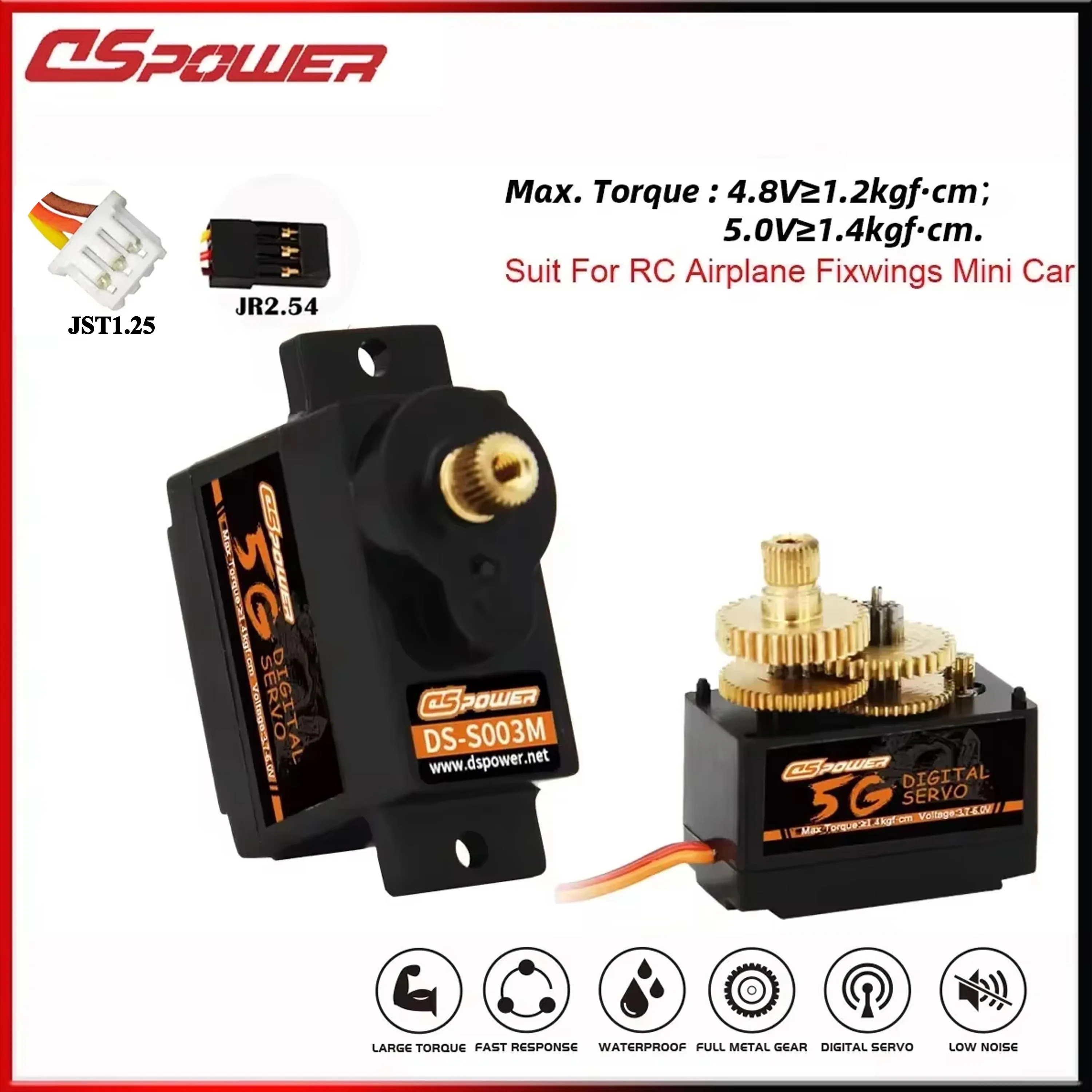

Item name: DSpower S003M

Quantity: 1pcs

Operating Voltage : 4.8~6.0V DC

Max. Torque : 4.8V≥1.20kgf·cm ； 6.0V≥1.4kgf·cm

No Load Speed : 4.8V≤0.08sec/60°; 6.0V≤0.07sec/60°

Stall Current：4.8V≦800mA；6.0V≦950mA

Consumption Current* (No Load)：4.8V ≦100mA ；6.0V≦110mA

Max. Operating Travel Angle：180°±1°(500~2500μs）

Dead Band Width: ≤ 1 us

Mechanical Limit Angle: 210°

Communication Interface: PWM

Motor Type: Coreless motor

Case Material: ABS

Gear Set Material : Metal Gear

Weight: 13g

Size: 20 × 11.5 × 21.3mm

Length of Connector cable: JR 200±5mm (exposed without plug)

Package included:

1 * 5G Digital Servo

1 * Servo Arm Accessories
