DC12V 433MHz RF Wireless Remote Control Switch 2 Channels Relay Receiver Diy Control for Garage Door Curtain Motor Light

• Receiver sensitivity: > 97 dbm

• Transmitting distance:> 100 m ( open space)

• Decoding mode: MCU software decoding

• Remote storage: 20

• Support remote type: EV1527 learning code

• Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )

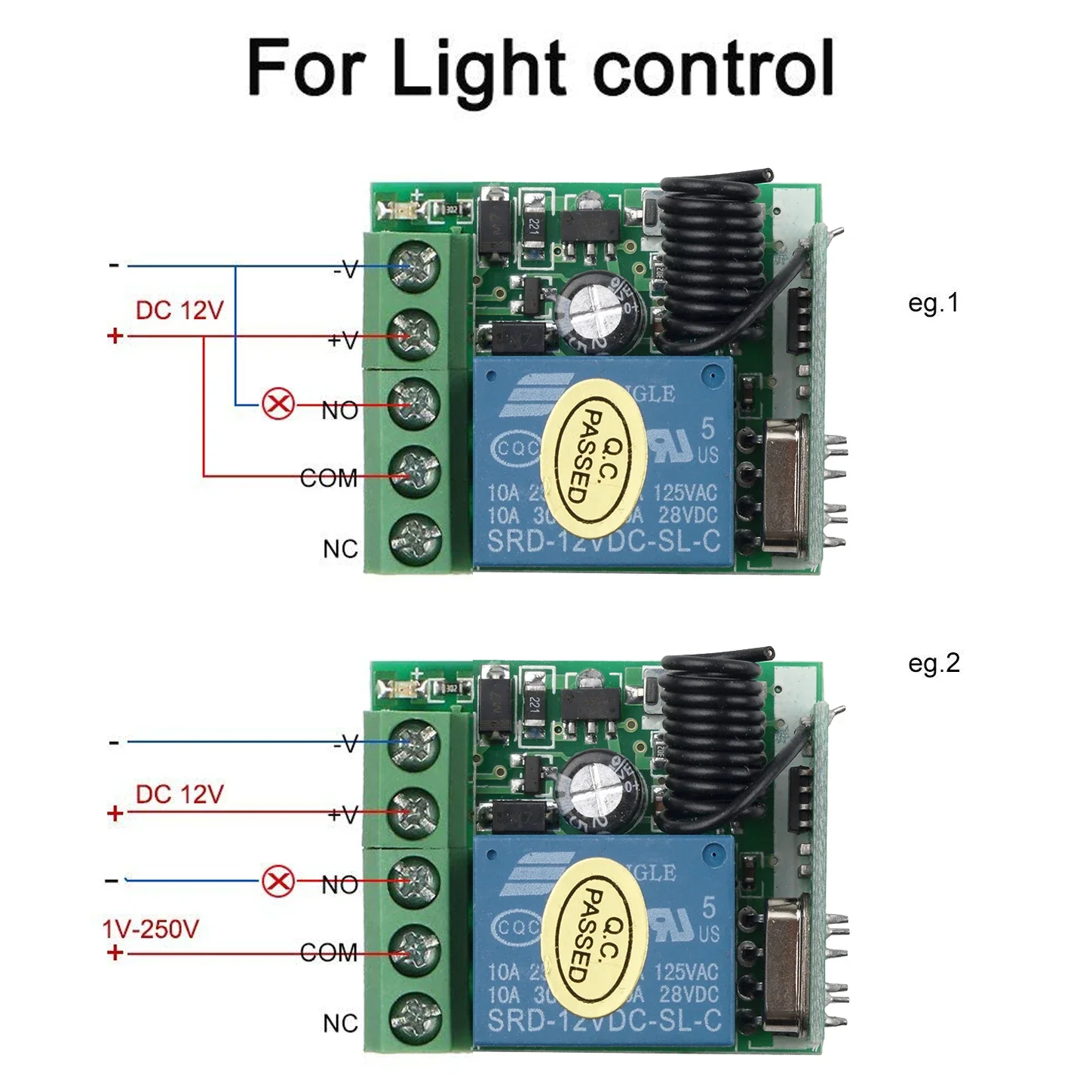

• Output terminal: NO , NC , COM

• Remote control battery: 2 x 3 V CR2016 button batteries

Note: Maximum input power is 250 V

• Universal Gate Remote Control :This 433 Mhz remote control is designed to be a universal solution for gate control, ensuring easy and convenient access to your property.

• DC 12V 10A Relay Receiver :Equipped with a DC 12V 10A relay receiver, this mini module provides reliable and consistent performance for your gate control needs.

• Versatile Application :Not just for gates, this remote control can also be used for controlling LED garages and other home appliances, offering versatility in its usage.

• Compact Mini Module Design :Its compact mini module design allows for easy installation and unobtrusive integration with your existing systems.

• Long Range Signal :With a strong long-range signal, this remote control ensures effective communication even in challenging environments.

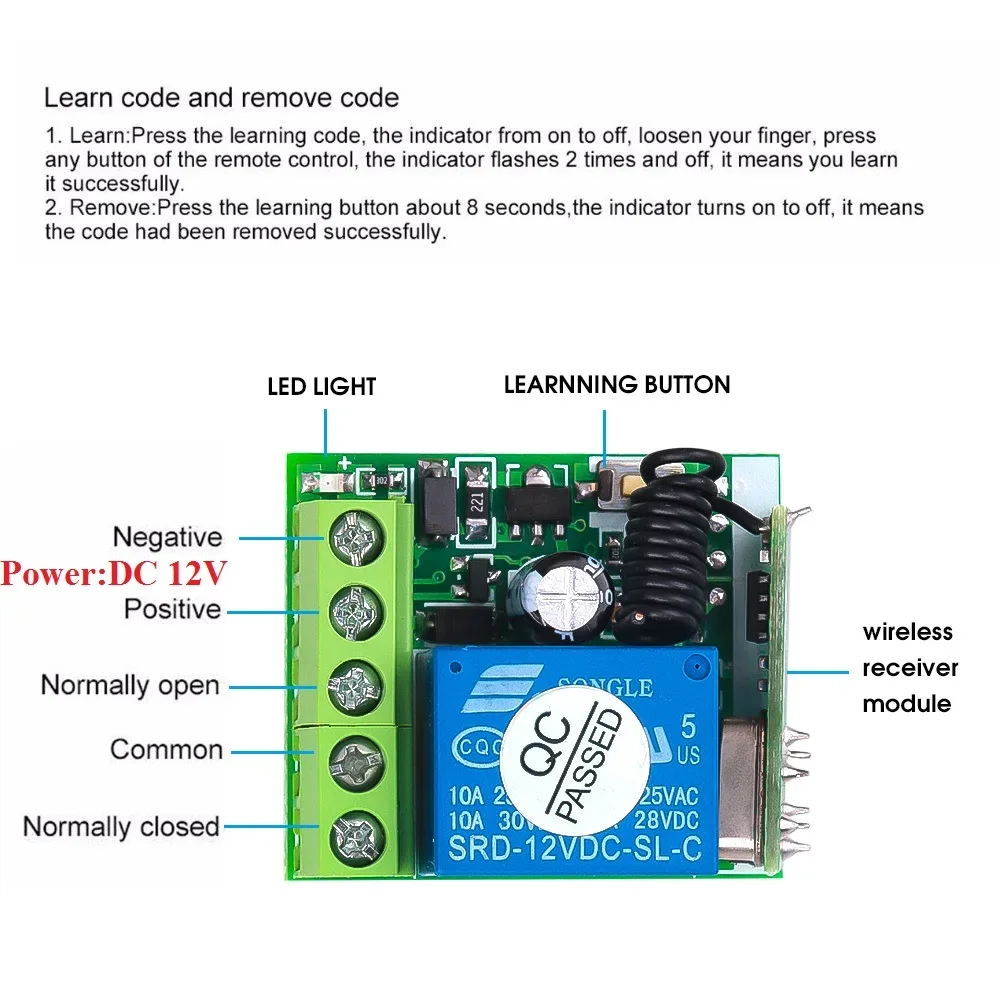

Remote programming

-Clearing the code :

Push the learning button on the receiver 8 times , the codes will be reset.

After clearing the code, remotes will be need to be recalibrated

-Momentary mode

Please contact us for detailed use instructions

-Learning the code : ( Toggle – Press remote button to turn on, press again to turn off.)

Press the learning key on the receiver 2 times, Wait for a moment , the LED will be off , it comes into learning state .

-Push the learning key on the receiver 3 times , the LED (on the Receiver)will blink 3 times.

When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times .

Push the remote button B, Led flash for 3 times .

After 3 seconds , the LED indicator will be off , Learning to succeed.
