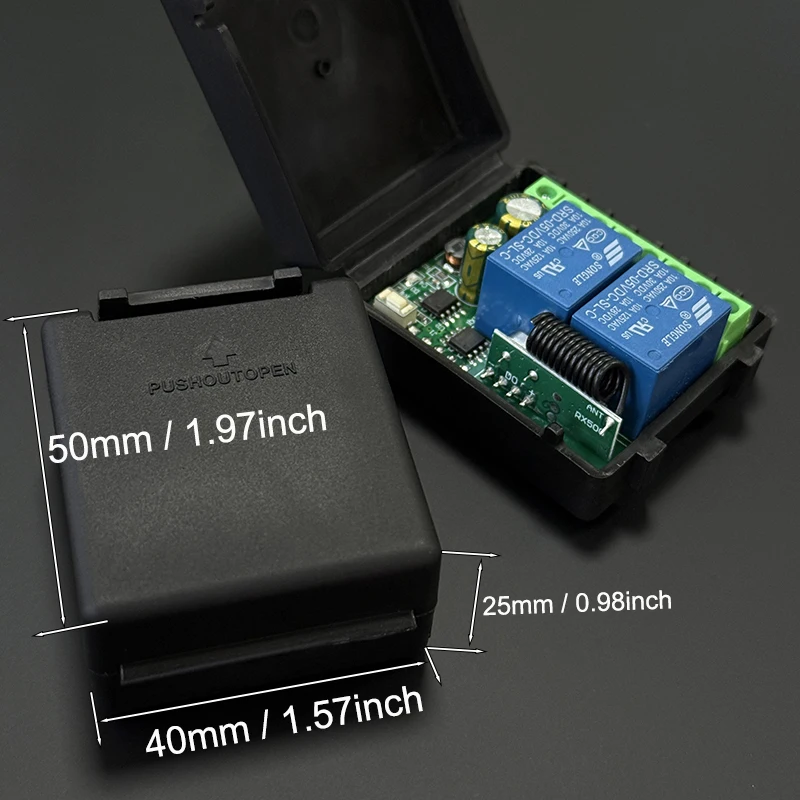

DC 6-30V AC 85-250V 433MHz RF Wireless Remote Control Switch 2 Channels Relay Receiver Control Garage Door Motor Curtain Light

DC 6-30V / AC 85-250V 2CH Relay Receiver for Garage Door Light LED Fanner Motor Signal Transmission 433 MHz Learning Code Rf Remote Control

When to ship ?

We are the seller with the fastest delivery on the platform. When we receive your order, we will send your package within 12 hours.

Specifications

1. Model: YNG213
2. Operating voltage：6V-30V DC/85V~265V AC
3. Static working current：≤10mA
4. Operating temperature：-40℃-+80℃
5. Receive sensitivity：≥-100dB
6. Operating frequency：433MHz 433.92MHz
7. Output current：≤10A
8. Working mode: point movement, interlock,
self-locking, and delay 、Move and lock along the way
9.Output mode:6V-30V DC / 85V~265V AC

Clear code

Press the control board code matching button 8 times in a row, and wait for the LED indicator light to automatically flash continuously for 4 times to return to normal. This will complete the code clearing and clear all previously learned remote control key codes.

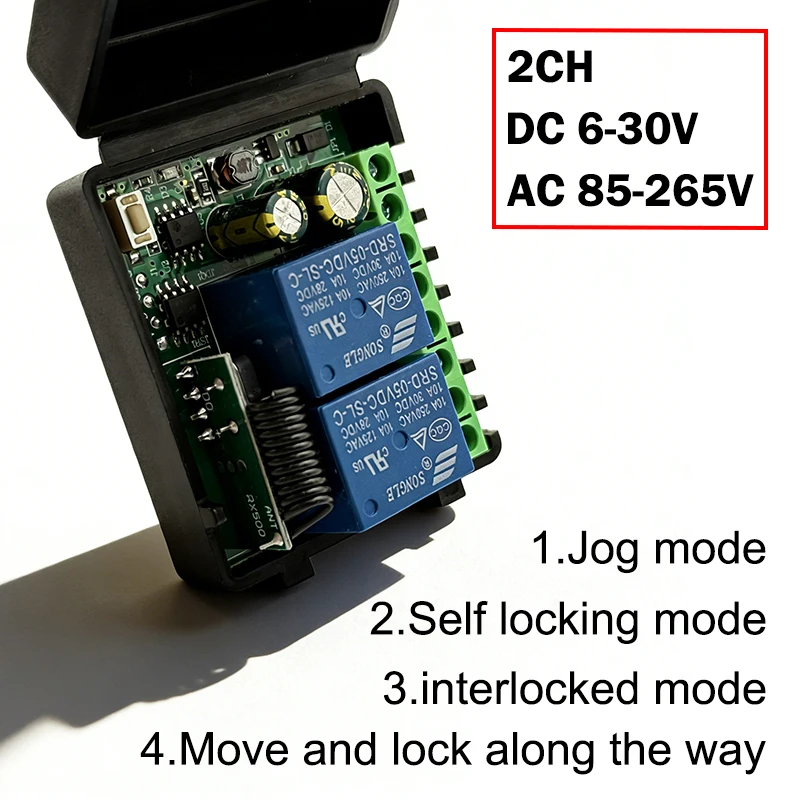

Pattern pairing method

Jog mode

Press the code matching button on the control board once, wait for the LED indicator light to turn off, and then press the remote control A button that needs to be matched. The LED indicator
light on the control board will flash continuously for 3 times. The A button successfully matches the code, and the indicator light will turn off to enter the second button learning state. At this time, press the remote control B button,and the LED indicator light on the control board will flashcontinuously for 3 times. The B button successfully matches the code, and the indicator light will remain on continuously, completing the code matching.

Self locking mode

Press the control board code matching button twice in a row, wait for the LED indicator light to turn off, and then press the remote control A button that requires code matching. The control
board LED indicator light will flash continuously for three times. The A button successfully matches the code, and the indicator light will go out to enter the second button learning state. At this time, press the remote control B button, and the control board LED indicator light will flash continuously for three times. The B button successfully matches the code, and the indicator light will stay on for a long time. The code matching is completed.

interlocked mode

Press the control board code matching button three times in a row, wait for the LED indicator light to turn off, and then press the remote control A button that needs to be matched. The
control board LED indicator light will flash three times in a row. The A button successfully matches the code, and the indicator light will turn off to enter the second button learning state. At this time, press the remote control B button, and the control board LED indicator light will flash three times in a row. The B button successfully matches the code, and the indicator light will remain on for a long time. The code matching is completed.

Move and lock along the way

Press the control board code matching button 4 times in a row, wait for the LED indicator light to turn off, and then press the remote control A button that needs to match the code. The
control board LED indicator light will flash continuously for 3 times. The A button successfully matches the code, and the indicator light will turn off to enter the second button learning state. At this time, press the remote control B button, and the control board LED indicator light will flash continuously for 3 times. The B button successfully matches the code. The indicator light remains on and the code is completed.

Operating Voltage: Versatile compatibility with 6V-30V DC and 85V~265V ACnStatic Working Current: Efficient with ≤10mA power consumptionnOperating Temperature Range: Reliable performance in extreme conditions from -40℃ to +80℃nReceive Sensitivity: Strong signal reception with ≥-100dBnOutput Current: Capable of handling ≤10A loadsnModes of Operation: Includes point movement, interlock, self-locking, and delay modesnnn**Versatile Control for Everyday Applications**nThe DC 12V 24V AC 220V RF433 Remote Control Switch Relay is a robust and versatile addition to any smart home or industrial automation setup. Designed to operate seamlessly across a variety of scenarios, this multifunction receiver module is perfect for controlling a range of electrical devices, from garage doors and curtain motors to lighting systems. Supporting both universal and specialized applications such as electric doors, lighting, and switches, this receiver module is the epitome of adaptability.nn**Effortless Integration and Customization**nSetting up and customizing the RF433 module is a breeze. With its user-friendly interface, you can easily clear codes, pair remotes, and configure the relay’s output modes to fit your specific needs. Whether it’s configuring a simple point movement or more complex interlock and self-locking functions, this remote control receiver module is engineered to provide the flexibility you need to manage your devices effortlessly. The module’s delay mode is particularly useful for applications requiring a timed response, ensuring that your systems operate smoothly and efficiently.nn**Reliability and Performance**nBuilt to withstand the rigors of daily use, the RF433 remote control module boasts a robust operating frequency of 433.92MHz and an impressive output current capacity of ≤10A. This ensures that your devices are powered up or shut down reliably, every time. The module’s operating temperature range is an impressive -40℃ to +80℃, making it a resilient choice for environments with fluctuating temperatures. Its static working current is kept to a minimum, further contributing to the module’s energy efficiency and longevity. Whether you’re automating your home or managing complex industrial systems, the RF433 module is a trusty companion that delivers consistent performance and peace of mind.
