Product Shell:Â Â Â Â Â Â Â Flame retardant PBT plastic shell
Product Capacity:Â Â Â Â Â 0.8uF~25uF full series
Working Voltage:Â Â Â Â Â 400V/450V/500V universal
Product Installation:Â Â Â with cable leadout
General experience without knowing the size of the capacitor (not necessarily accurate):
21-inch fan: 1.5uF
15.8~18.4 inch fan: 1.2uF
10.5~13.1 inch fan: 1uF
Ceiling fan: 2.2uF~3uF
Range hood: 4uF
Small table fan, wall fan: 1.5uF
The capacitor capacity is large, and the fan speed will be a little faster.

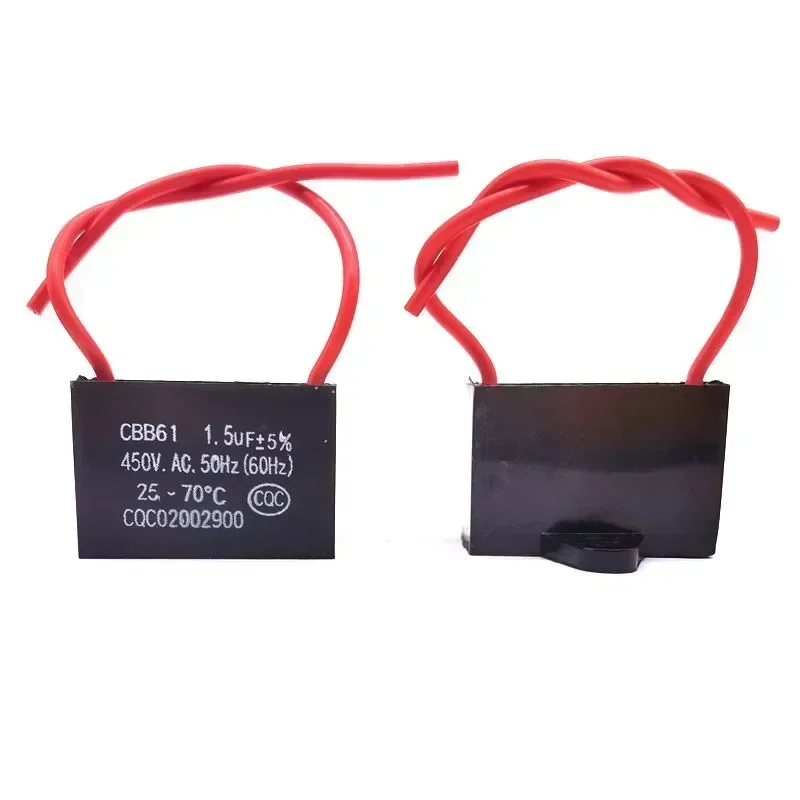

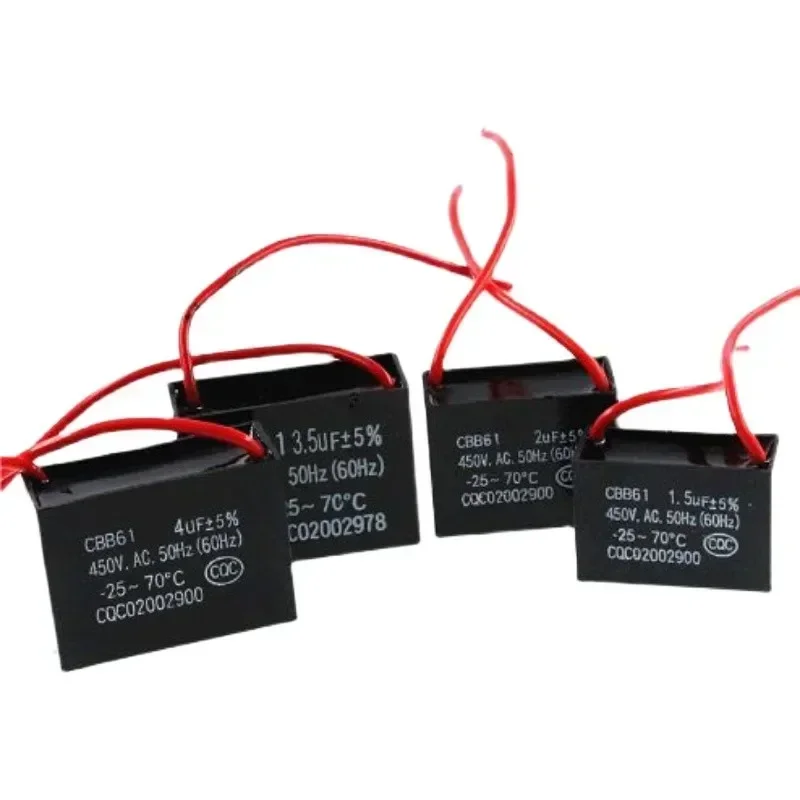

CBB61 capacitor is suitable for: fans, ceiling fans, range hoods, heaters and other electrical appliances
Regardless of positive and negative poles, it can be wired at will
The technology of this product is very mature, and it is safe and reliable to use
Under high temperature use, the capacitor has better heat dissipation effect and more stable performance
Suitable for major brands of electrical appliances, such as:
Gree, Midea, Haier, Daikin, Chigo, Hisense, Mitsubishi, Panasonic, Galanz, Sharp, Toshiba, Hitachi, Siemens, LG, TCL and other brands
Â
Wiring method of CBB capacitor:
1. Use a multimeter to measure the resistance of any 2 of the 3 conductors to find the maximum resistance standard AC
2. Connect the capacitor to alternating current
3. Find the two lines with the lowest resistance (AB or BC) and connect them to the power supply.
Wiring method of electric fan motor:
Fan motors usually have three and five wires. The five wires are black, red, yellow, white and blue. This five-wire fan motor is usually a three-gear speed motor. A three-wire fan motor usually connects the red wire to the power line L, which is then connected to the governor, the black wire to the power neutral line N, the third wire to one end of the fan starter capacitor, and the other end to the fan starter capacitor. Start the capacitor by connecting the power cord to the fire cord.
