Thank you very much for choosing
A professional supplier of car in-dash car GPS navigation player, rear view parking camera and DVR.
We have after-sales service center in UK and Russia. We can offer mixture orders and big discount for retailers and wholesalers.
We work with many regular customers from Europe, South America, Asia and Australia.
Welcome to contact us for e-catalog and long-term of cooperation.
The display language is following your monitor only. For example, your car is Chinese car, it is Chinese.
if your car is Russian car, it is Russian too.
Please be noted
It can’t fit 2021 new Q3, A5, Q5 and A1 etc. They are MIB 3 Infotainment Platform.
A known problem list feedback from customers:
It can’t work with A3 8V Sportback MJ2016 Europa.
It works for some of 2015 models, and it may need some code jobs too.
It can’t work with Audi A3 2020/2021 and VW Golf 8 2020/2021.
It can’t work well with Q2 2017+ in some areas.
It can’t work well with A5 & A7. It will not work when you first put R/reversing gear, it needs twice R/reversing gear operation, then it will display the reversing image well.
It can’t work with Touran 2016+. It can’t work with some A3 2015, which was feedback from customers.
It can’t work with A6L, A7, A8 or Q8, which is based on New MLB Platform.
Please be noted.
It (MQB+Camera C) works for 2015+ A3 8V in Europe , but it doesn’t work for A3 8V 2015 in others area.
If your car is top/luxury version, such as it is with original Navigation etc., it may not fit your car.
On the contrary, if your car is the lowest/primary version, such as no any original/OEM parking sensor etc., it may not fit too.
This camera work with PQ or MQB Platform only.We did not test on the car if it is before 2015.
For Skoda Octavia, its rear trunk switch is similar like the camera A, but its size is 92mm by 35mm, the Camera E is for him, please double check. Thanks.
Product Description
This is a high technology product for Volkswagen, Skoda and Audi system, which is based on MQB Platform (new model) or PQ Platform (old model) from 2016.
It built-in the delay and it works with CANBUS system only. It will get the command from CANBUS system of Car and control the camera on/off and parking line moving.
The camera works with sinosmart harness only.
It supports OEM harness and OEM monitor ONLY, which should be from with the car when it was producted.

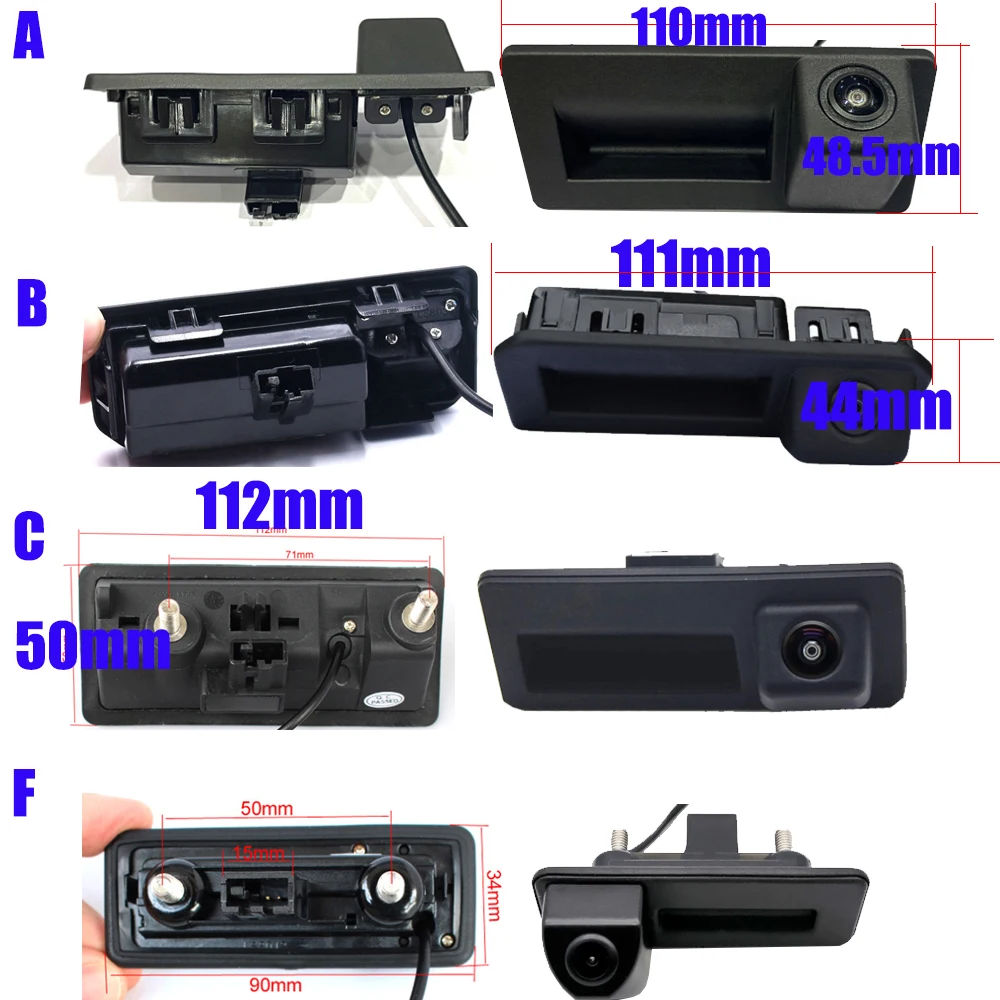

There are few kinds of cameras for different car models, you can check it with your installation size. All of them are with same electronic software system.
The image quality matches the original monitor only. And the lens of the camera is with fish eyes as default with large view angles. Please check the product video carefully.
It can’t fit the new MIB 3 radio
if you need the camera for MIB 3 radio, please click here
There are several special cameras for different models, please check carefully.
####Camera A is for following cars
280 Monitor MQB Platform
Such as Skoda superb 2017-2018, Octavia, Octavia Wagen etc.
Lavida PLUS, Tiguan L 2017, Teramont 2017, C-TREK 2017, Touran L 2016-2017 etc.
AUDI A4L 2017-2018, A3 2019 etc.
===========

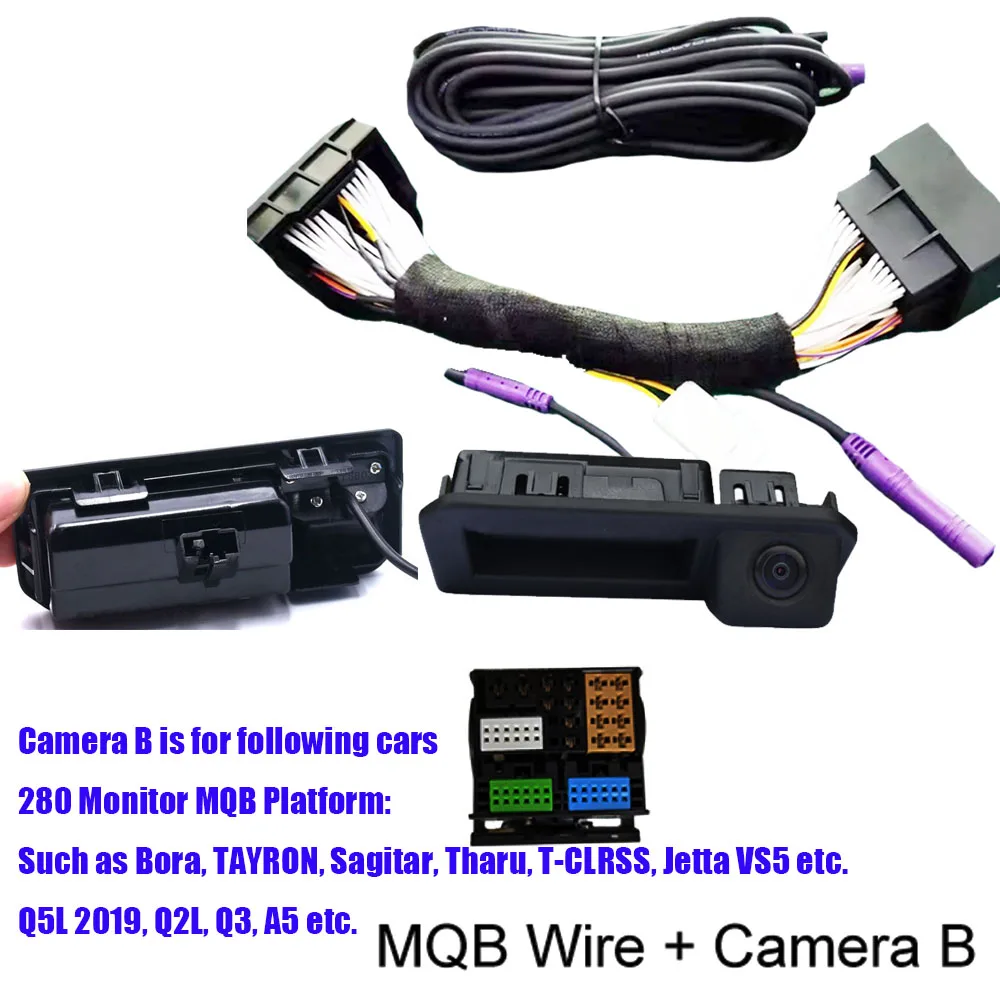

####Camera B is for following cars
280 Monitor MQB Platform:
Such as Bora, TAYRON, Sagitar, Tharu, T-CLRSS, Jetta VS5 etc.
Q5L 2019, Q2L, Q3, A5 etc.
===========
####Camera C is for following cars
Audi
A3 8V 2015+ (MQB Platform)
Q7 2017 2019 etc.
187B Monitor PQ Platform
Such as Old Sagitar, Old Passat etc.
===========

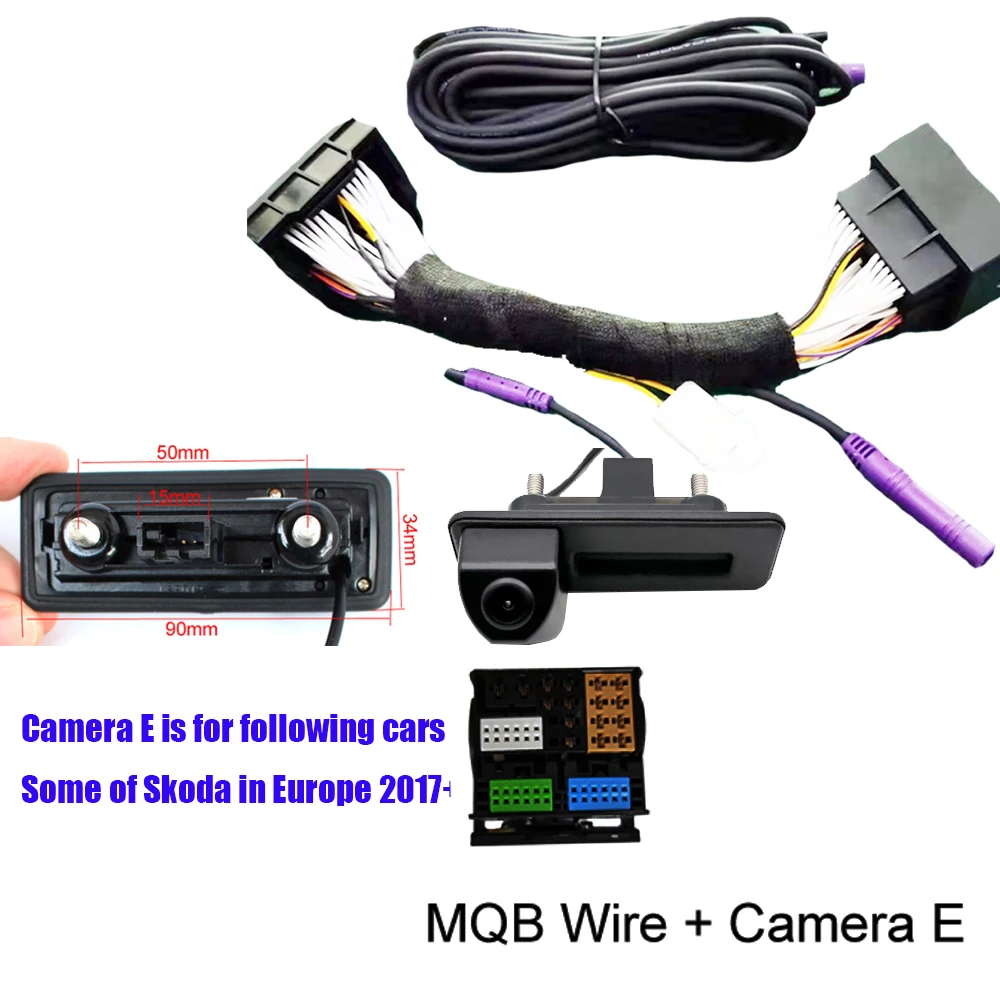

####Camera E is for following cars
Some of Skoda in Europe 2017+
===========
####Camera F is for following cars (Original Car Water Spray Function), its size is same as camera B
Audi
Q2 2017 2018
Q3 2019
Skoda
Kodiaq 2017 2018
Karoq 2018
Some of Volkswagen 2019+
Camera D is universal camera
If you don’t want change your original trunk hand switch, there are 9 colors universal hot sell camera for you, please tell us which you need.
The default is Shine Black.
Please identify what kinds of system you need? MQB? PQ?
Compatible Models and Camera Types
The following models have been confirmed to work with our MQB camera systems. If you are unsure, please send us photos of your infotainment screen and rear trunk handle for confirmation. They are based on real customer feedback and successful installations.
Volkswagen
VW Golf
Golf 7.5 (2017) – Flip Logo or Camera D
Golf Mk7 GTD – Flip Logo or Camera D
VW Passat
Passat (2016–2018) – Camera A
Passat (2019–2021) – Camera B
Passat B8 Estate (2017–2021) – Flip Logo or Camera D
VW Tiguan
Tiguan (2017–2021) – Camera A
Tiguan L (2017–2021) – Camera A
VW Teramont
Teramont (2017–2021) – Camera A
VW Touran
Touran (2018–2021) – Camera A
Touran L (2018–2021) – Camera A
VW Lavida
Lavida (2017) – Camera A
Lavida Plus (2018–2021) – Camera A
VW Sagitar
Sagitar (2016–2018) – Camera A
Sagitar (2019–2021) – Camera B
VW Bora
Bora (2019–2021) – Camera B
VW Tayron
Tayron (2019–2021) – Camera B
VW Tharu
Tharu (2019–2021) – Camera B
VW T-Cross
T-Cross (2019–2021) – Camera B
VW C-TREK
C-TREK (2017–2021) – Camera A
VW Sharan
Sharan (2017–2021) – Camera A
VW Caddy Maxi
Caddy Maxi (2019) – Camera A
VW Arteon Shooting Brake
Arteon (2021) – Flip Logo or Camera D
VW Jetta
Jetta VS5 (2019–2021) – Camera B
Jetta VS7 (2019–2021) – Camera B
VW Touareg
Touareg (2017–2021) – Not compatible (MLB platform, does not support MQB cameras
Skoda
Skoda Octavia Series
Octavia 3 (5E) (2013–2016) – Camera E
Octavia 3 (5E) (2016) – Camera A or E
Octavia 3 FL (2017–2020) – Camera A
Octavia 3 Combi (2013–2020) – Camera A or E
Octavia A7 (2018–2019) – Camera A
Octavia serie 3 (2019) – Camera A
Skoda Superb Series
Superb (2016–2018) – Camera A
Superb B8 (2015–2023) – Camera A
Superb Combi (2021+) – Camera B
Superb Liftback (2020+) – Camera B
Note:
Some 2019+ Superb models (e.g. UK market) may require Camera B instead of Camera A.
Skoda Fabia
Fabia (2015–2018) – Camera B
Fabia (2016) – Camera B
Fabia (2020+) – Please confirm with photo
Skoda Scala
Scala (2019–2022) – Camera B
Scala (2022 with Swing infotainment) – Camera B
Skoda Kamiq
Kamiq (2017–2019) – Camera B
Kamiq (2021) – Camera B
Kamiq (2023 SEDrive) – Camera F
Skoda Karoq
Karoq (2017–2019) – Camera B
Skoda Kodiaq
Kodiaq (2017–2019) – Camera B
Skoda Rapid Spaceback
Rapid Spaceback (2018) – Camera B
Skoda Columbus
Columbus (2013) – Camera E
*** For newer Skoda models with MIB3 systems (typically 2021+), please confirm compatibility before ordering.
SEAT
SEAT Leon Series
Leon ST MK3 (2014) – Camera A
Leon Mk3 (2015) – Camera D
Leon Sportstourer (2016–2020) – Camera D
SEAT Ateca
Ateca (2020) – Camera A
SEAT Ibiza
Ibiza FR (2019) – Camera D
Ibiza (2015) – Camera D
SEAT Arona
Arona (2018) – Camera B
SEAT Ibiza / Arona (2022+)
Please confirm with photos. Some models may use MIB3 systems which are not supported by MQB cameras.
Audi
Audi A3 Series (8V platform)
A3 Sportback or Sedan (2013 to 2016) – Camera C
A3 Sportback or Sedan (2016 to 2019) – Camera C
A3 LM (2020) – Camera C
Tested with MIB STD and MIB2 infotainment systems including 5.8 inch and 7 inch screens
Dynamic parking guidelines supported
Not compatible with A3 8P before 2013 or MIB3 (MMI Plus) systems
Audi Q3 Series
Q3 (2014 to 2017, 1st generation) – Camera C
Confirmed to work with MIB STD and MIB2 units
@@2012–2015: Mostly based on the PQ or early MLB platform, not MIB STD and MIB2 units. The factory system does not recognize the camera signal.@@
Q3 (2018 to 2021, MQB platform) – Camera B
Tested on multiple versions including virtual cockpit
Q3 (2022 and newer) – Not compatible with MQB camera systems due to MIB3 platform
Audi Q2
Q2 (2016 to 2021) – Camera B
Confirmed to work with or without MMI Plus and virtual cockpit
Q2 (2022 and newer) – Some models may use MIB3 system, please confirm with photos
Audi A1 (2nd generation, MQB)
A1 (2019-2020) – Camera B
Only selected MQB-based models confirmed to work
Older or MIB3 models are not supported, even with proper wiring and coding.
Audi A4 and S4 (B9 platform)
A4 Avant B9 (2017) – Camera A
Image appears only after shifting into reverse gear twice
S4 B9 with MMI Basic – Camera A
One customer reported camera angle too low and adjusted manually
Audi A5
A5 Sportback (2017) – Camera B
One customer reported camera only activates when reverse sensor button is manually pressed
Audi Q5 and Q7
Q5L (2017 to 2021) – Camera B
Q7 (2017 to 2021) – Camera A
Compatibility note
For newer Audi models from 2021 and newer using MIB3 platform, our MQB cameras are not compatible
Please contact us before ordering to confirm compatibility
MIB System Overview and Compatibility
Volkswagen Group vehicles use a modular infotainment platform known as MIB (Modular Infotainment Baukasten). Understanding the version of your car’s MIB system is important when selecting a compatible parking camera.
MIB1
Introduced around 2014
Basic infotainment features with lower screen resolution
Usually found on early MQB platform models
Compatible with our MQB camera system
MIB2
Released in 2015–2016
Faster performance and higher-resolution touchscreens
Supports Apple CarPlay and Android Auto
Most common on MQB cars from 2016 to 2020
Fully compatible with our MQB camera system
MIB2.5
Intermediate upgrade around 2018
Improved connectivity and wireless features
Uses similar hardware as MIB2 but with smoother operation
Fully compatible with our MQB camera system
MIB3
Introduced in 2020 and used in newer models
Cloud-based navigation, voice assistants, over-the-air updates
Higher screen resolutions and redesigned UI
Not compatible with our standard MQB camera.
